Using mlxconfig
In order to access device in BDF format via configuration cycles, use "pciconf-" as prefix to the device.
Example:

            # mlxconfig -d 0000:86:00.0 q

Device #1:
----------
Device type:    ConnectX5
Name:           MCX556A-ECA_Ax
Description:    ConnectX-5 VPI adapter card; EDR IB (100Gb/s) and 100GbE; dual-port QSFP28; PCIe3.0 x16; tall bracket; ROHS R6
Device:         0000:86:00.0

Configurations:                              Next Boot
         MEMIC_BAR_SIZE                      0
         MEMIC_SIZE_LIMIT                    _256KB(1)
         HOST_CHAINING_MODE                  DISABLED(0)
         HOST_CHAINING_CACHE_DISABLE         False(0)
         HOST_CHAINING_DESCRIPTORS           Array[0..7]
         HOST_CHAINING_TOTAL_BUFFER_SIZE     Array[0..7]
         FLEX_PARSER_PROFILE_ENABLE          0
         FLEX_IPV4_OVER_VXLAN_PORT           0
         ROCE_NEXT_PROTOCOL                  254
         ESWITCH_HAIRPIN_DESCRIPTORS         Array[0..7]
         ESWITCH_HAIRPIN_TOT_BUFFER_SIZE     Array[0..7]
         PF_BAR2_SIZE                        0
         NON_PREFETCHABLE_PF_BAR             False(0)
         VF_VPD_ENABLE                       False(0)
         STRICT_VF_MSIX_NUM                  False(0)
         VF_NODNIC_ENABLE                    False(0)
         NUM_OF_VFS                          0
         PARTIAL_WRITE_CACHE_MODE            DEVICE_DEFAULT(0)
         PF_BAR2_ENABLE                      False(0)
         SRIOV_EN                            False(0)
         PF_LOG_BAR_SIZE                     5
         .............
    In order to set VPI parameters through mlxconfig, use the following command line:

            # mlxconfig -d <device> set [LINK_TYPE_P1=<link_type>] [LINK_TYPE_P2=<link_type>]
    Example: Configuring both ports as InfiniBand:

            # mlxconfig -d /dev/mst/mt4119_pciconf0 set LINK_TYPE_P1=1 LINK_TYPE_P2=1

Device #1:
----------
Device type:    ConnectX5
Name:           MCX556A-ECA_Ax
Description:    ConnectX-5 VPI adapter card; EDR IB (100Gb/s) and 100GbE; dual-port QSFP28; PCIe3.0 x16; tall bracket; ROHS R6
Device:         /dev/mst/mt4119_pciconf0

Configurations:                              Next Boot       New
         LINK_TYPE_P1                        ETH(2)          IB(1)
         LINK_TYPE_P2                        ETH(2)          IB(1)

Apply new Configuration? (y/n) [n] : y
Applying... Done!
-I- Please reboot machine to load new configurations.
    In order to set SR-IOV parameters through mlxconfig, use the following command line:

            # mlxconfig -d <device> set [SRIOV_EN=<0|1>] [NUM_OF_VFS=<NUM>]
    Example: Turning on SR-IOV and enabling 8 Virtual Functions per Physical Function:

            # mlxconfig -d /dev/mst/mt4115_pciconf0 set SRIOV_EN=1 NUM_OF_VFS=8

Device #1:
----------
Device type:    ConnectX4
PCI device:     /dev/mst/mt4115_pciconf0
Configurations:     Next Boot      New
  SRIOV_EN          0              1
  NUM_OF_VFS        0              8

Apply new Configuration? ? (y/n) [n] : y Applying... Done!
-I- Please reboot machine to load new configurations.
    For a full description of the preboot configurable parameters refer to Supported Configurations and their Parameters under "Preboot Settings".
Example: Enable boot option ROM on port 1, set boot retries to 3 and set the boot protocol to PXE (on ConnectX-3 Pro cards only).

            # mlxconfig -d /dev/mst/mt4103_pciconf0 set BOOT_OPTION_ROM_EN_P1=1 BOOT_RETRY_CNT_P1=3 LEGACY_BOOT_PROTOCOL_P1=1

Device #1:
----------
Device type:   ConnectX3Pro
PCI device:    /dev/mst/mt4103_pciconf0
Configurations:             Next Boot     New
  BOOT_OPTION_ROM_EN_P1     False(0)      True(1)
  BOOT_RETRY_CNT_P1         0             3
  LEGACY_BOOT_PROTOCOL_P1   2             1

Apply new Configuration? ? (y/n) [n] : y
Applying... Done!
-I- Please reboot machine to load new configurations.
    Example: Configure VLAN ID to 3 on port 2

            # mlxconfig -d /dev/mst/mt4119_pciconf0 set BOOT_VLAN=3

Device #1:
----------
Device type:    ConnectX5
Name:           MCX556A-ECA_Ax
Description:    ConnectX-5 VPI adapter card; EDR IB (100Gb/s) and 100GbE; dual-port QSFP28; PCIe3.0 x16; tall bracket; ROHS R6
Device:         /dev/mst/mt4119_pciconf0

Configurations:                              Next Boot       New
         BOOT_VLAN                           1               3

Apply new Configuration? (y/n) [n] : y
Applying... Done!
-I- Please reboot machine to load new configurations.

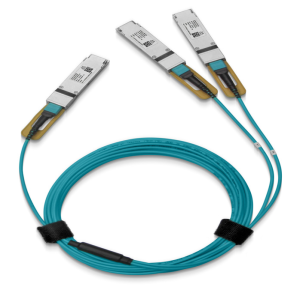

    The break-out cable is a unique NVIDIA capability, where a single physical quad-lane QSFP port is divided into 2 dual-lane ports. It maximizes the flexibility of the end user to use the NVIDIA switch with a combination of dual-lane and quad-lane interfaces according to the specific requirements of its network. All system ports may be split into 2-lane ports. Splitting a port changes the notation of that port from x/y to x/y/z with “x/y” indicating the previous notation of the port prior to the split and “z” indicating the number of the resulting sub-physical port (1,2). Each sub-physical port is then handled as an individual port. For example, splitting port 5 into 2 lanes gives the following new ports: 1/5/1 & 1/5/2.

To enable the port split, the following actions are required:
Step 1. Set the Split Mode in a Remotely Managed Switch.

            # mlxconfig -d <device>set SPLIT_MODE=1
    Example:

            # mlxconfig -d /dev/mst/mt54000_pciconf0 set SPLIT_MODE=1

Device #1:
----------
Device type:     Quantum
Name:            N/A
Description:     N/A
Device:          /dev/mst/mt54000_pciconf0
Configurations:    Next Boot                 New
  SPLIT_MODE       NO_SPLIT_SUPPORT(0)       SPLIT_2X(1)
    To create a query for the Split Mode parameter using mlxconfig:

            # mlxconfig -d <device> q SPLIT_MODE
    Example:

            # mlxconfig -d /dev/mst/mt54000_pciconf0 q SPLIT_MODE

Device #1:
----------
Device type:    Quantum
Name:           N/A
Description:    N/A
Device:         /dev/mst/mt54000_pciconf0
Configurations:   Next Boot
SPLIT_MODE        SPLIT_2X(1)
    Step 2. Split a Port in a Remotely Managed Switch.
- To split a specific port for one or more ports of (1-64) using mlxconfig: - # mlxconfig -d <device> set SPLIT_PORT[<port_num>/<port_range>]= - 1Warning- Please note that although the command, is “set SPLIT_PORT[33..64]”, it splits a specific port for one or more ports of the higher ports (33-40). - Please note that the first port is set as 1, e.g., [1], [1..64].
- How to turn on the split port for the first port only: - mlxconfig -d /dev/mst/SW_MT54000_EVB-SX-1_L00_lid- - 0x0001set SPLIT_PORT[- 1]=- 1
- How to turn on the split port for the first 32 ports (range of ports): - mlxconfig -d /dev/mst/SW_MT54000_EVB-SX-1_L00_lid- - 0x0001set SPLIT_PORT[- 1..- 32]=- 1
- How to turn on the split port for the last 8 ports: - mlxconfig -d /dev/mst/SW_MT54000_EVB-SX-1_L00_lid- - 0x0001set SPLIT_PORT[- 57..- 64]=- 1
- How to turn off the split port for port 40: - mlxconfig -d /dev/mst/SW_MT54000_EVB-SX-1_L00_lid- - 0x0001set SPLIT_PORT[- 40]=- 0
- How to query the split port for the first 32 ports: - mlxconfig -d /dev/mst/SW_MT54000_EVB-SX-1_L00_lid- - 0x0001query SPLIT_PORT[- 1..- 32]
Step 3. Reboot the switch.
To disable the port split, the following actions are required:
Step 1. Disable the Split Ports in a Remotely Managed Switch:
- To unsplit a specific port for one or more ports (1-32) using mlxconfig: - # mlxconfig -d <device> set SPLIT_PORT[<port_num>/<port_range>]= - 0
Step 2. Disable the Split Mode in a Remotely Managed Switch.

            # mlxconfig -d <device> set SPLIT_MODE=0
    mlxconfig allows applying raw configuration file for a pre-set configuration. Raw configuration files are intended for advanced users. This document does not cover the generation of such files.
Set the raw configuration file:

            # mlxconfig -f ./tlv_file.conf -d /dev/mst/mt4115_pciconf1 set_raw

Raw TLV #1 Info:
Length: 0xc
Version: 0
OverrideEn: 1
Type: 0x00000080
Data: 0xa0000000 0xa0020010 0x00000000

Raw TLV #2 Info:
Length: 0x4
Version: 0
OverrideEn: 1
Type: 0x01020012
Data: 0x0000000b

Raw TLV #3 Info:
Length: 0x8
Version: 0
OverrideEn: 1
Type: 0x00000190
Data: 0x00000010 0x00007d00

Raw TLV #4 Info:
Length: 0x4
Version: 0
OverrideEn: 1
Type: 0x00000082
Data: 0x0000000c
Operation intended for advanced users.

Are you sure you want to apply raw TLV file? ? (y/n) [n] : y
Applying... Done!
-I- Please reboot machine to load new configurations.
    Never apply files from an unreliable source.
