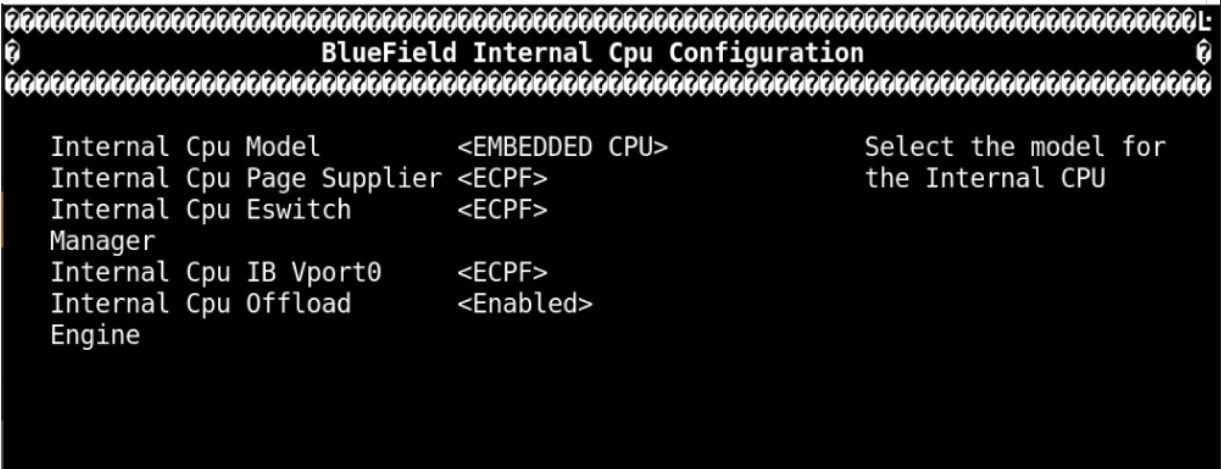

This section is displayed only on BlueField-2 and BlueField-3 devices.
![image2023-8-2_9-32-6.png](https://docscontent.nvidia.com/dims4/default/49c783a/2147483647/strip/true/crop/1221x469+0+0/resize/1221x469!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018b-a9f0-da83-afdf-ffff58510000%2Fimages%2Fnetworking%2Fdownload%2Fattachments%2F144706725%2Fimage2023-8-2_9-32-6.png)
In this menu you can set the following options:
Location: | BlueFiled Internal CPU Configuration |
Description: | Select the model for the Internal CPU |
Configurable: | Yes - A built-in option |
Persistency: | Persistent through AC cycle |
Reboot required: | Yes - A reboot is needed for this change to apply |
Available options: | EMBEDDED CPU/SPERATED HOST |
Default Value: | EMPEDDED CPU |
Location: | BlueFiled Internal CPU Configuration |
Description: | Defines the owner of providing ICM pages to the external host functions |
Configurable: | Yes - A built-in option |
Persistency: | Persistent through AC cycle |
Reboot required: | Yes - A reboot is needed for this change to apply |
Available options: | ECPF/External PF |
Default Value: | ECPF |
Location: | BlueFiled Internal CPU Configuration |
Description: | Defines the owner of Eth embedded switch responsibilities |
Configurable: | Yes - A built-in option |
Persistency: | Persistent through AC cycle |
Reboot required: | Yes - A reboot is needed for this change to apply |
Available options: | ECPF/External PF |
Default Value: | ECPF |
Location: | BlueFiled Internal CPU Configuration |
Description: | Defines the owner of the IB Vport0 responsibilities |
Configurable: | Yes - A built-in option |
Persistency: | Persistent through AC cycle |
Reboot required: | Yes - A reboot is needed for this change to apply |
Available options: | ECPF/External PF |
Default Value: | ECPF |
Location: | BlueFiled Internal CPU Configuration |
Description: | Defines whether the Internal CPU is used as an offload engine |
Configurable: | Yes - A built-in option |
Persistency: | Persistent through AC cycle |
Reboot required: | Yes - A reboot is needed for this change to apply |
Available options: | Enabled/Disabled |
Default Value: | Enabled |
