OSFP Pin Description
| Net Name | PinNum | Signal Description |
|---|---|---|
| GND | 1 | Ground |
| TX2P | 2 | Transmitter Data Non-Inverted |
| TX2N | 3 | Transmitter Data Inverted |
| GND | 4 | Ground |
| TX4P | 5 | Transmitter Data Non-Inverted |
| TX4N | 6 | Transmitter Data Inverted |
| GND | 7 | Ground |
| TX6P | 8 | Transmitter Data Non-Inverted |
| TX6N | 9 | Transmitter Data Inverted |
| GND | 10 | Ground |
| TX8P | 11 | Transmitter Data Non-Inverted |
| TX8N | 12 | Transmitter Data Inverted |
| GND | 13 | Ground |
| SCL | 14 | 2-wire Serial interface clock |
| VCC1 | 15 | +3.3V Power |
| VCC1 | 16 | +3.3V Power |
| LPWn_PRSn | 17 | PRSn Low-Power Mode / Module Present |
| GND | 18 | Ground |
| RX7N | 19 | Receiver Data Inverted |
| RX7P | 20 | Receiver Data Non-Inverted |
| GND | 21 | Ground |
| RX5N | 22 | Receiver Data Inverted |
| RX5P | 23 | Receiver Data Non-Inverted |
| GND | 24 | Ground |
| RX3N | 25 | Receiver Data Inverted |
| RX3P | 26 | Receiver Data Non-Inverted |
| GND | 27 | Ground |
| RX1N | 28 | Receiver Data Inverted |
| RX1P | 29 | Receiver Data Non-Inverted |
| GND | 30 | Ground |
| GND | 31 | Ground |
| RX2P | 32 | Receiver Data Non-Inverted |
| RX2N | 33 | Receiver Data Inverted |
| GND | 34 | Ground |
| RX4P | 35 | Receiver Data Non-Inverted |
| RX4N | 36 | Receiver Data Inverted |
| GND | 37 | Ground |
| RX6P | 38 | Receiver Data Non-Inverted |
| RX6N | 39 | Receiver Data Inverted |
| GND | 40 | Ground |
| RX8P | 41 | Receiver Data Non-Inverted |
| RX8N | 42 | Receiver Data Inverted |
| GND | 43 | Ground |
| INT_RSTn | 44 | INT/RSTn Module Interrupt / Module Reset |
| VCC2 | 45 | +3.3V Power |
| VCC2 | 46 | +3.3V Power |
| SDA | 47 | 2-wire Serial interface data |
| GND | 48 | Ground |
| TX7N | 49 | Transmitter Data Inverted |
| TX7P | 50 | Transmitter Data Non-Inverted |
| GND | 51 | Ground |
| TX5N | 52 | Transmitter Data Inverted |
| TX5P | 53 | Transmitter Data Non-Inverted |
| GND | 54 | Ground |
| TX3N | 55 | Transmitter Data Inverted |
| TX3P | 56 | Transmitter Data Non-Inverted |
| GND | 57 | Ground |
| TX1N | 58 | Transmitter Data Inverted |
| TX1P | 59 | Transmitter Data Non-Inverted |
| GND | 60 | Ground |

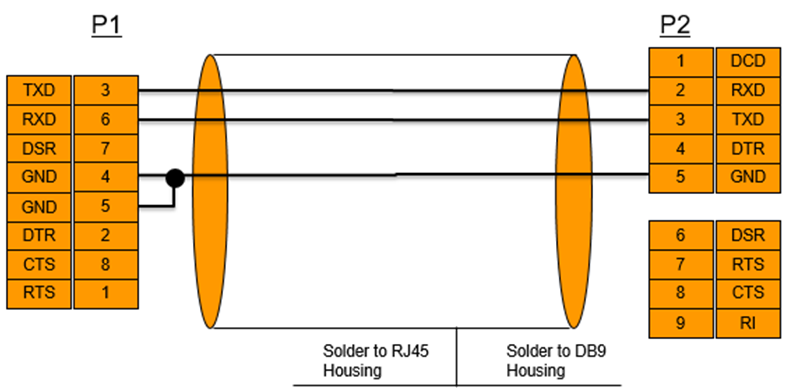

RJ45 to DB9 Harness Pinout
In order to connect a host PC to the Console RJ45 port of the system, a RS232 harness cable (DB9 to RJ45) is supplied.
RJ45 to DB9 Harness Pinout
RJ-45 Console and I²C interfaces are integrated in the same connector. Due to that, connecting any cable other than the NVIDIA supplied console cable may cause an I²C hang.
Using uncertified cables may damage the I²C interface. Refer to the Replacement Parts Ordering Numbers appendix for harness details.
