Supported Interfaces

This section describes the supported interfaces. The table below describes each numbered interface referenced in the figures, with a link to detailed information.

Note

The below figures are for illustration purposes only and might not reflect the current revision of the BlueField-3 platforms.

OPN

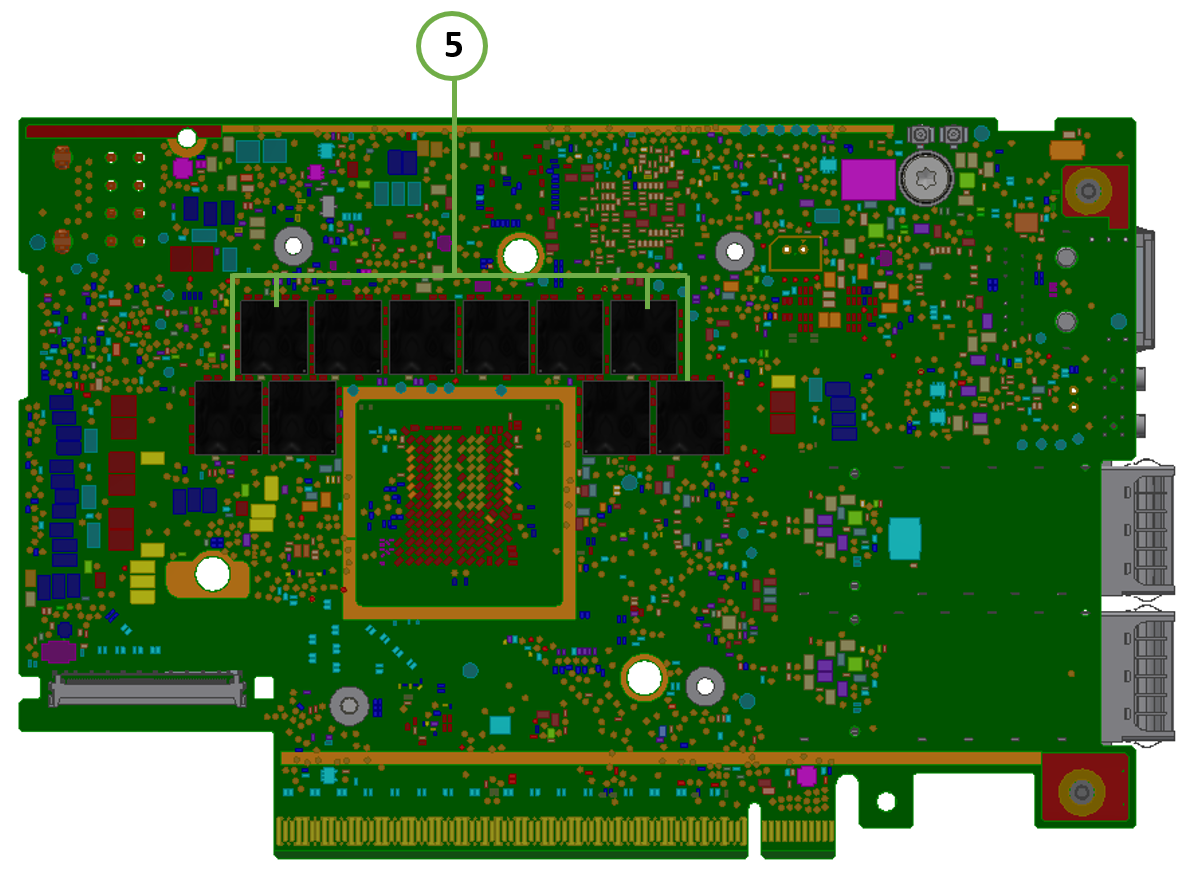

SuperNIC Component Side

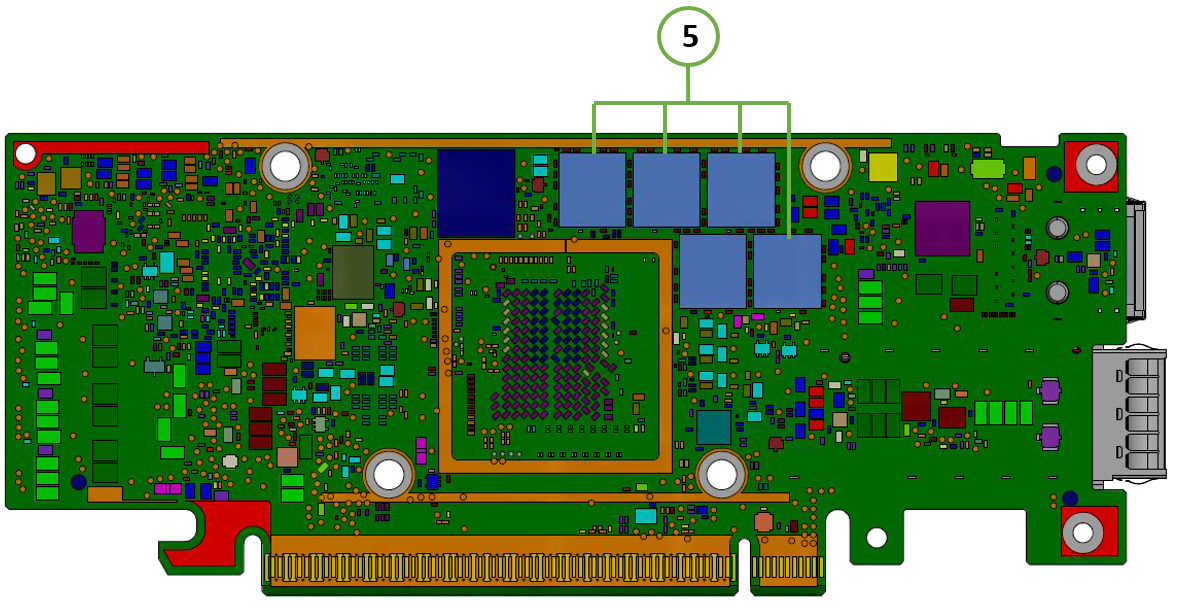

SuperNIC Print Side

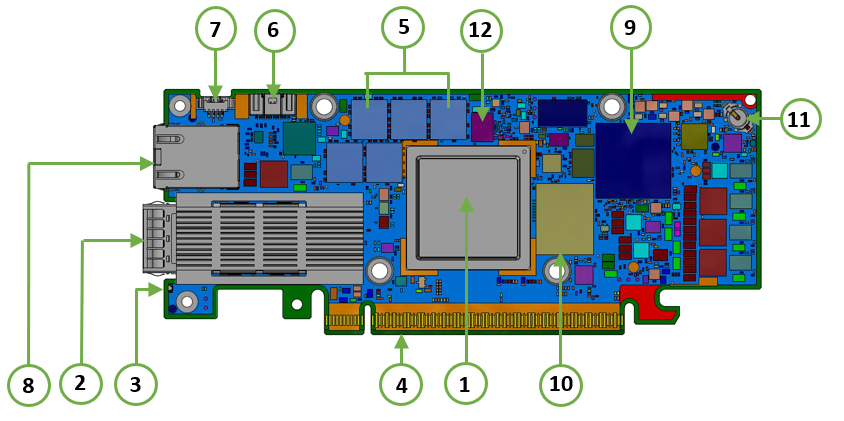

HHHL Single-Slot SuperNIC

Model: B3140H

900-9D3D4-00EN-HA0

900-9D3D4-00NN-HA0



Item

Interface

Description

1

System-on-Chip (SoC)

8 Arm-Cores SuperNIC SoC (System-on-Chip)

2

Networking Interface

The network traffic is transmitted through the SuperNIC QSFP112 connectors. The QSFP112 connectors allow the use of modules and optical and passive cable interconnect solutions

3

Networking Ports LEDs Interface

One bi-color I/O LEDs per port to indicate link and physical status

4

PCI Express Interface

PCIe Gen 5.0 through an x16 edge connector

5

DDR5 SDRAM On-Board Memory

Single-Channel Cards: 10 units of DDR5 SDRAM for a total of 16GB @ 5200MT/s 64bit + 8bit ECC, solder-down memory

6

NC-SI Management Interface

NC-SI 20 pins BMC connectivity for remote management

7

USB 4-pin RA Connector

Used for OS image loading

8

1GbE OOB Management Interface

1GbE BASE-T OOB management interface

9

Integrated BMC

SuperNIC BMC

10

SSD Interface

128GB

11

RTC Battery

Battery holder for RTC

12

eMMC Interface

x8 NAND flash

OPN

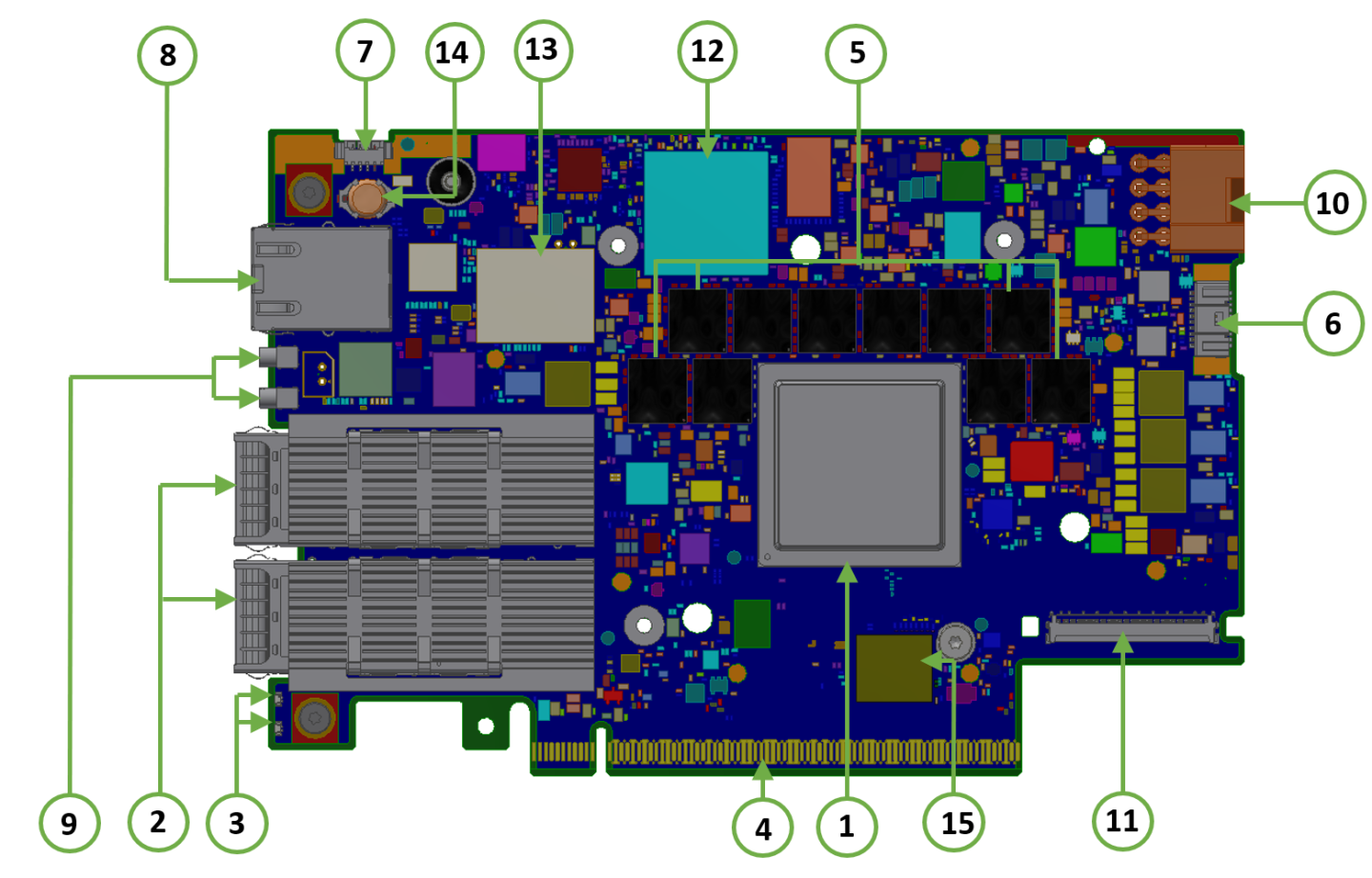

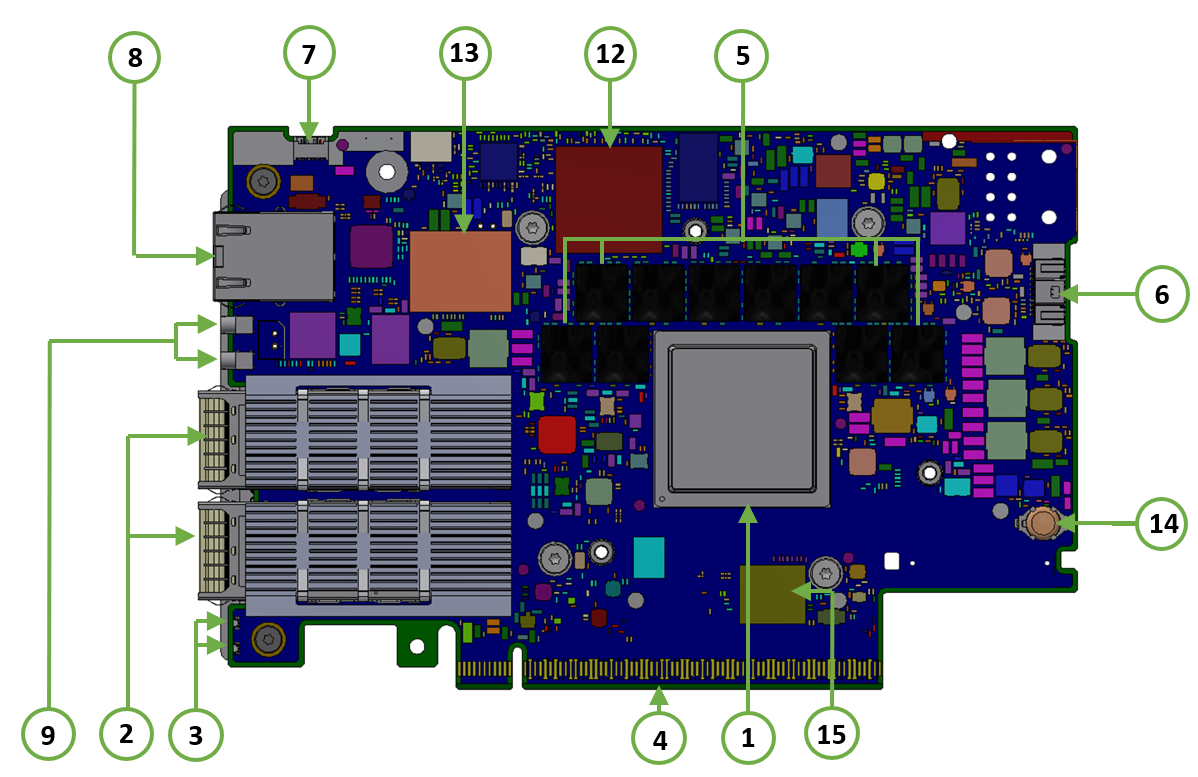

SuperNIC Component Side

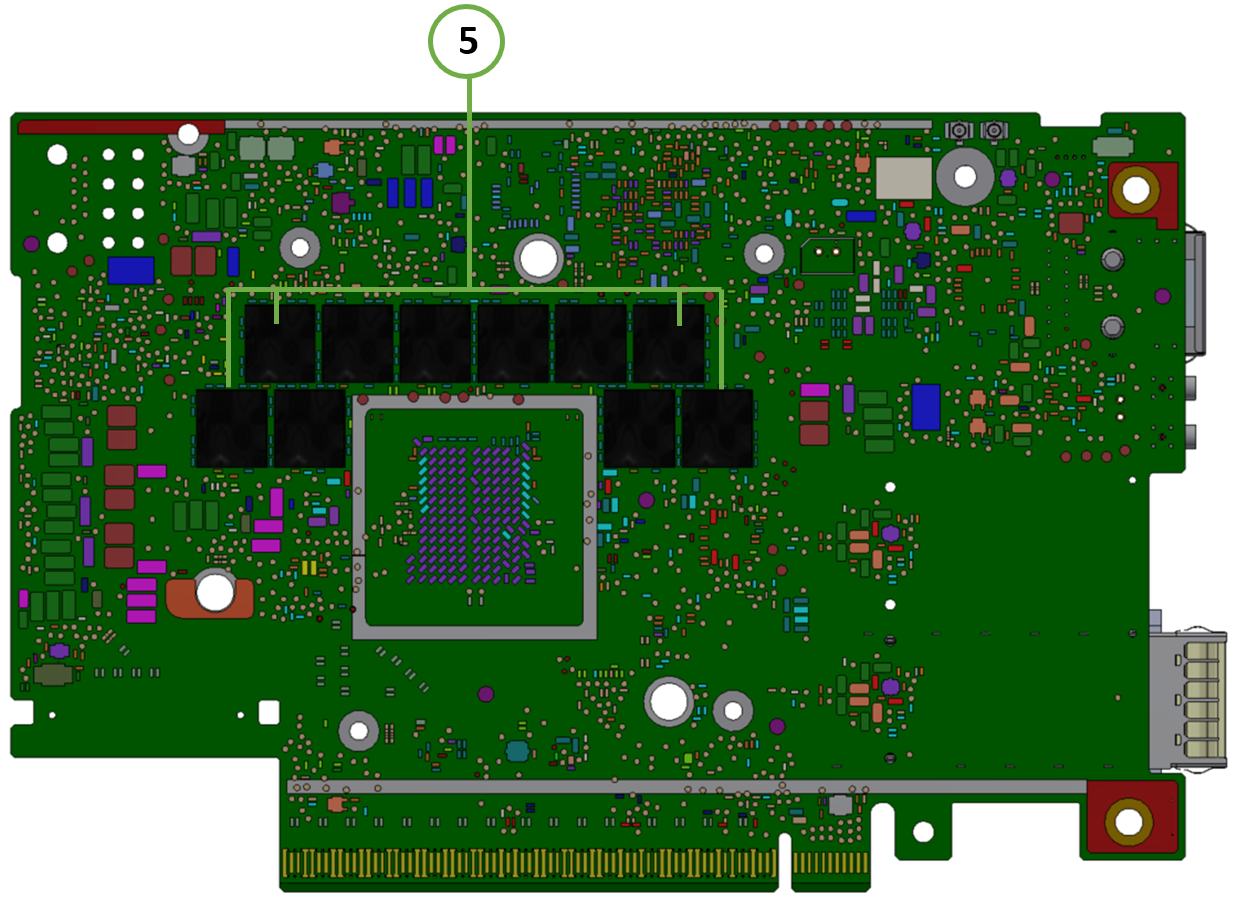

SuperNIC Print Side

FHHL Single-Slot Dual-Port SuperNICs

Model: B3220L

900-9D3B4-00CV-EA0

900-9D3B4-00SV-EA0

Model: B3210L

900-9D3B4-00CC-EA0

900-9D3B4-00SC-EA0

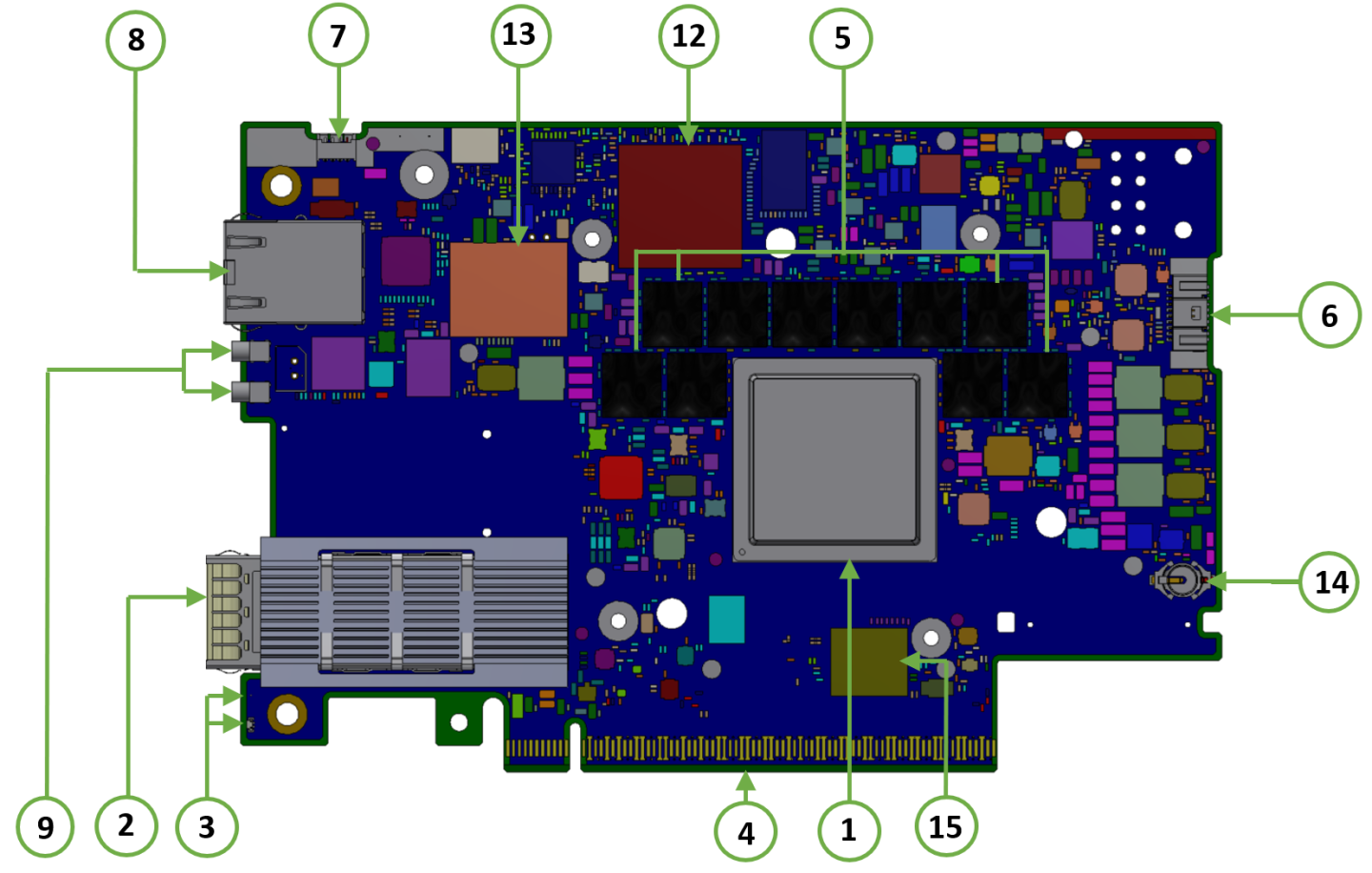

FHHL Single-Slot Single-Port SuperNICs

Model: B3140L

900-9D3B4-00EN-EA0

900-9D3B4-00PN-EA0



Item

Interface

Description

1

System-on-Chip (SoC)

8/16 Arm-Cores SuperNIC SoC

2

Networking Interface

The network traffic is transmitted through the QSFP112 connectors. The QSFP112 connectors allow the use of modules and optical and passive cable interconnect solutions

3

Networking Ports LEDs Interface

One bi-color I/O LEDs per port to indicate link and physical status

4

PCI Express Interface

PCIe Gen 5.0/4.0 through an x16 edge connector

5

DDR5 SDRAM On-Board Memory

20 units of DDR5 SDRAM for a total of 32GB @5200 or 5600MT/s. 128bit + 16bit ECC, solder-down memory

6

NC-SI Management Interface

NC-SI 20 pins BMC connectivity for remote management

7

USB 4-pin RA Connector

Used for OS image loading

8

1GbE OOB Management Interface

1GbE BASE-T OOB management interface

9

MMCX RA PPS IN/OUT

Allows PPS IN/OUT

12

Integrated BMC

SuperNIC BMC

13

SSD Interface

128GB

14

RTC Battery

Battery holder for RTC

15

eMMC Interface

x8 NAND flash

OPN

DPU Component Side

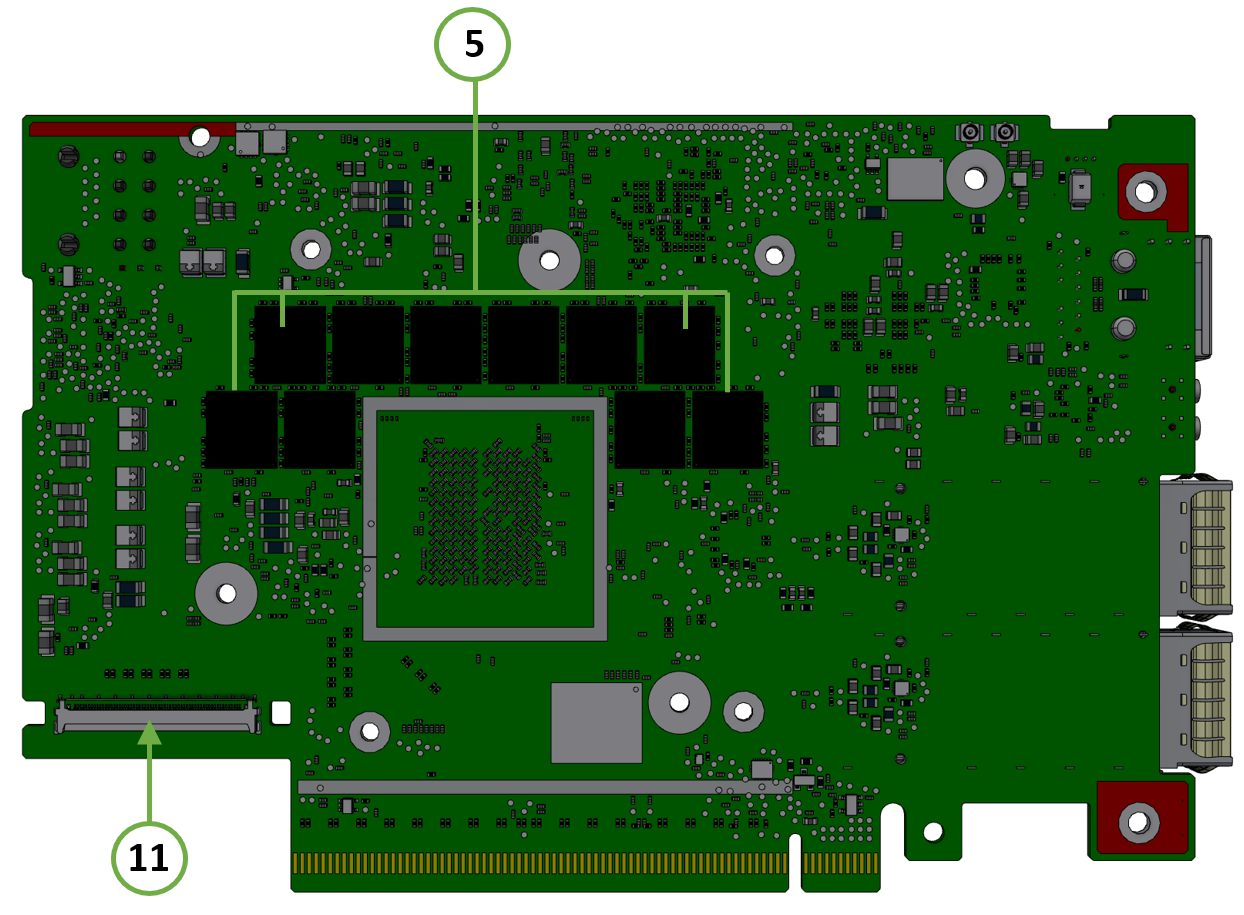

DPU Print Side

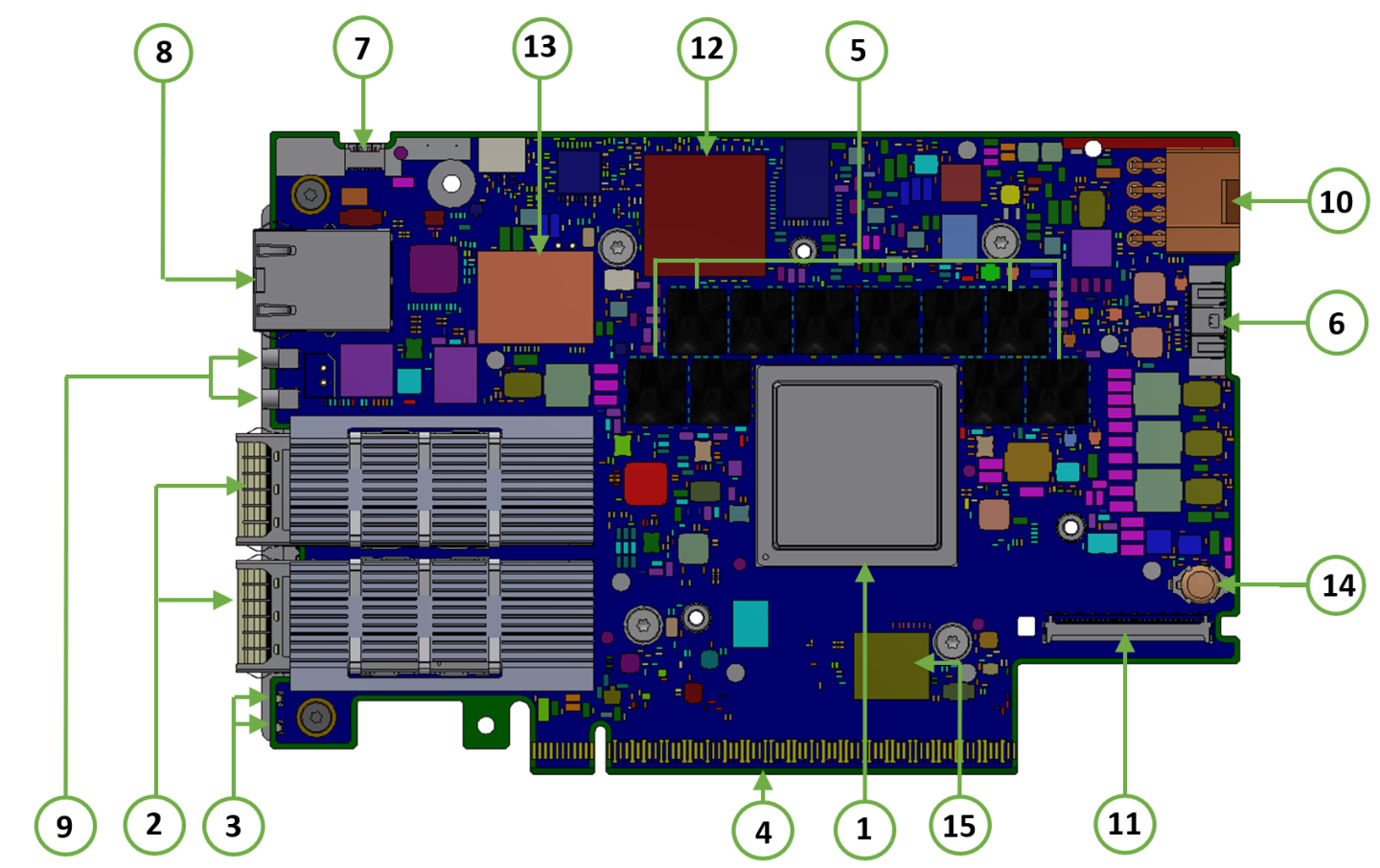

FHHL Single-Slot Dual-Port DPUs

with PCIe Extension Option

Model: B3210E

900-9D3B6-00CC-EA0

900-9D3B6-00SC-EA0

Model: B3210

900-9D3B6-00CC-AA0

900-9D3B6-00SC-AA0

Model: B3220

900-9D3B6-00CV-AA0

900-9D3B6-00SV-AA0

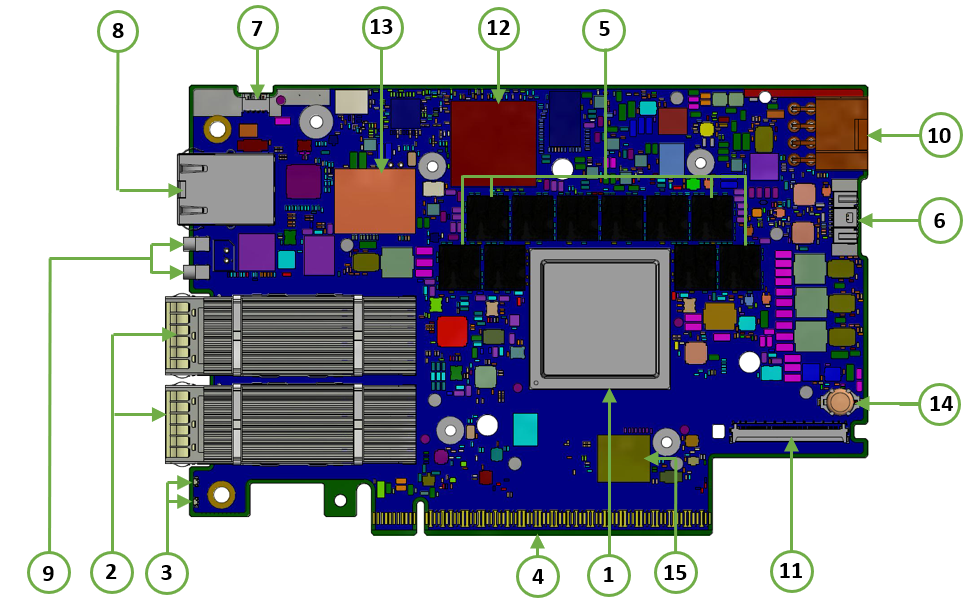

FHHL Dual-Slot Dual-Port DPUs

Model: B3240

900-9D3B6-00CN-AB0

900-9D3B6-00SN-AB0



FHHL Cold-Aisle Single-Slot Dual-Port DPUs

Model: B3240

900-9D3B6-00CN-PA0

Warning

This product can operate in cold-aisle servers only.



Item

Interface

Description

1

System-on-Chip (SoC)

8/16 Arm-Cores DPU SoC

2

Networking Interface

The network traffic is transmitted through the DPU QSFP112 connectors. The QSFP112 connectors allow the use of modules and optical and passive cable interconnect solutions

3

Networking Ports LEDs Interface

One bi-color I/O LEDs per port to indicate link and physical status

4

PCI Express Interface

PCIe Gen 5.0/4.0 through an x16 edge connector

5

DDR5 SDRAM On-Board Memory

20 units of DDR5 SDRAM for a total of 32GB @5200 or 5600MT/s. 128bit + 16bit ECC, solder-down memory

6

NC-SI Management Interface

NC-SI 20 pins BMC connectivity for remote management

7

USB 4-pin RA Connector

Used for OS image loading

8

1GbE OOB Management Interface

1GbE BASE-T OOB management interface

9

MMCX RA PPS IN/OUT

Allows PPS IN/OUT

10

External PCIe Power Supply Connector

An external 12V power connection through an 8-pin ATX connector

Applies to models: B3210E, B3210 and B3220

11

Cabline CA-II Plus Connectors

Two Cabline CA-II plus connectors are populated to allow connectivity to an additional PCIe x16 Auxiliary card

Applies to models: B3210E, B3210 and B3220

12

Integrated BMC

DPU BMC

13

SSD Interface

128GB

14

RTC Battery

Battery holder for RTC

15

eMMC Interface

x8 NAND flash

System-on-Chip (SoC)

NVIDIA® BlueField®-3 is a family of advanced IC solutions that integrate a coherent mesh of 64-bit Armv8.2+ A78 Hercules cores , an NVIDIA® ConnectX®-7 network adapter front-end, and a PCI Express switch into a single chip. The powerful SoC architecture includes an Armv multicore processor array, enabling customers to develop sophisticated applications and highly differentiated feature sets. Leverages the rich Arm software ecosystem and introduces the ability to offload the x86 software stack.

At the heart of BlueField-3, the ConnectX-7 network offload controller with RDMA and RDMA over Converged Ethernet (RoCE) technology delivers cutting-edge performance for networking and storage applications such as NVMe over Fabrics. Advanced features include an embedded virtual switch with programmable access lists (ACLs), transport offloads, and stateless encaps/decaps of NVGRE, VXLAN, and MPLS overlay protocols.

Encryption

Note

Applies to Crypto enabled OPNs.

The BlueField-3 networking platforms address the concerns of modern data centers by combining hardware encryption accelerators with embedded software and fully integrated advanced network capabilities, making it ideal platforms for developing proprietary security applications. The platforms enable a distributed security architecture by isolating and protecting each workload and provide flexible control and visibility at the server and workload level; controlling risk at the server access layer builds security into the DNA of the data center and enables prevention, detection, and response to potential threats in real-time. The BlueField-3 platforms can deliver powerful functionality, including encryption of data-in-motion, bare-metal provisioning, stateful L4 firewall, and more.

Networking Interface

Note

The networking platforms include special circuits to protect the card/server from ESD shocks when plugging copper cables.

The network ports are compliant with the InfiniBand Architecture Specification, Release 1.5. InfiniBand traffic is transmitted through the cards' QSFP112 connectors.

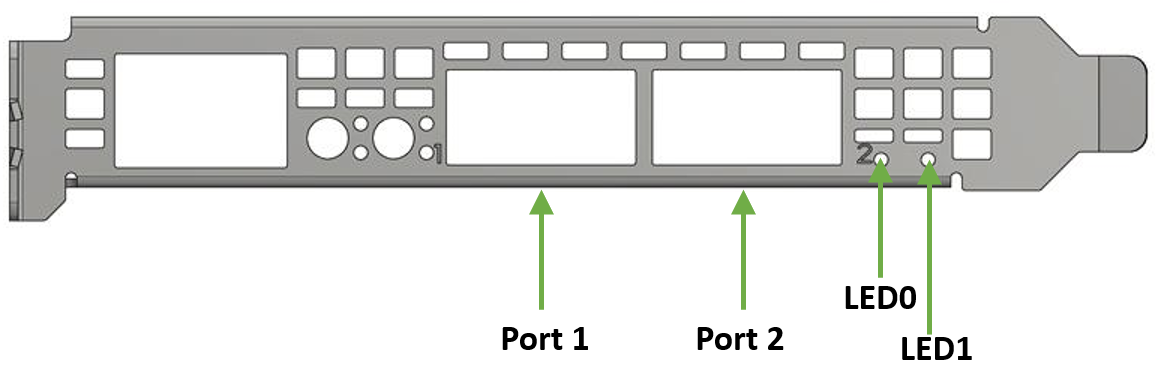

Networking Ports LEDs Interface


One bicolor (Yellow and Green) I/O LED per port indicates speed and link status.

Link Indications

State

Bi-Color LED (Yellow/Green)

Beacon command for locating the adapter card

1Hz blinking Yellow


Error

4Hz blinking Yellow Indicates an error with the link. The error can be one of the following:

Error Type

Description

LED Behavior

I2C

I2C access to the networking ports fails

Blinks until error is fixed

Over-current

Over-current condition of the networking ports

Blinks until error is fixed


Physical Activity

Blinking Green


Link Up

Solid Green


Physical Up (InfiniBand Mode Only)

Solid Yellow



PCI Express Interface

The BlueField-3 supports PCI Express Gen 5.0/4.0 through x16 edge connectors. Some cards allow connectivity to an additional PCIe x16 Auxiliary card through the Cabline CA-II Plus connectors.

The following lists PCIe interface features:

  • PCIe Gen 5.0, 4.0, 3.0, 2.0 and 1.1 compatible

  • 2.5, 5.0, or 8.0, 16.0 or 32.0 GT/s link rate x16 lanes

  • Auto-negotiates to x16, x8, x4, x2, or x1

DDR5 SDRAM On-Board Memory

The BlueField-3 incorporate 10 or 20 units of DDR5 SDRAM. See the following table for DDR5 SDRAM memory specifications per ordering part number.

Model

OPNs

DDR5 SDRAM On-Board Memory

B3140L

B3140H

B3210L

B3220L

900-9D3B4-00EN-EA0 / 900-9D3B4-00PN-EA0

900-9D3D4-00EN-HA0 / 900-9D3D4-00NN-HA0

900-9D3B4-00CC-EA0 / 900-9D3B4-00SC-EA0

900-9D3B4-00CV-EA0 / 900-9D3B4-00SV-EA0

Single-channel with 10 DDR5 + ECC (64bit + 8bit ECC)

for a total of 16GB @ 5200MT/s

B3210E

B3220(a)

900-9D3B6-00CC-EA0 / 900-9D3B6-00SC-EA0

900-9D3B6-00CV-AA0 / 900-9D3B6-00SV-AA0

Dual-channel with 20 DDR5 + ECC (128bit + 16bit ECC)

for a total of 32GB @ 5200MT/s

B3240

900-9D3B6-00CN-AB0 / 900-9D3B6-00SN-AB0 /

900-9D3B6-00CN-PA0

Dual-channel with 20 DDR5 + ECC (128bit + 16bit ECC)

for a total of 32GB @ 5600MT/s

a. 5600MT/s is supported from HW rev (AC). For more information, refer to the latest NVIDIA BlueField DPU BSP.


NC-SI Management Interface

BlueField-3 enables the connection of a Baseboard Management Controller (BMC) to a set of Network Interface Controller (NICs) to enable out-of-band remote manageability. The NC-SI management is supported over RMII and has a connector on the card. Please refer to NC-SI Management Interface for pins.

The below table specifies the maximum trace lengths per board type. Please take the maximum trace length on the board into consideration in your design.

Warning

The USB to UART cable is not used for NC-SI management purposes.

BlueField-3 Platform Family

SKUs

Maximum Trace Length on the Board

B3140H

900-9D3D4-00EN-HA0 / 900-9D3D4-00NN-HA0

82.063mm (3.2inch)

B3220

900-9D3B6-00CV-AA0 / 900-9D3B6-00SV-AA0

144.449mm (~5.7inch)

B3210

900-9D3B6-00CC-AA0 / 900-9D3B6-00SC-AA0

B3240

900-9D3B6-00CN-AB0 / 900-9D3B6-00SN-AB0 /

900-9D3B6-00CN-PA0

B3210E

900-9D3B6-00CC-EA0 / 900-9D3B6-00SC-EA0

B3210L

900-9D3B4-00CC-EA0 / 900-9D3B4-00SC-EA0

B3220L

900-9D3B4-00CV-EA0 / 900-9D3B4-00SV-EA0

B3140L

900-9D3B4-00EN-EA0 / 900-9D3B4-00PN-EA0


UART Interface Connectivity

The UART debug interface on BlueField-3 boards can be accessed through a 20-pin NC-SI connector, which is associated with the NIC BMC device. The connectivity is shown in the following table:

NC-SI Connector Pin #

Signal on Board

12

GND

14

UART_TX

16

UART_RX

Warning

It is prohibited to connect any RS-232 cable directly! Only TTL 3.3V voltage level cables are supported.

Note

Do not use the USB-to-UART cable for NC-SI management purposes.

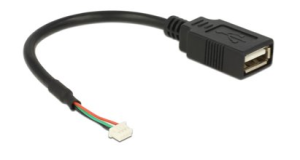

USB 4-pin RA Connector

The USB 4-pin RA USB connector is used to load operating system images. Use a 4-pin male connector to a male Type-A cable to connect to the board.

Warning

It is prohibited to connect male-to-male to host, it is only used for a disk on key.

Note

The male connector to the male Type-A cable is not included in the shipped card box and should be ordered separately as part of the accessories kit (P/N: MBF35-DKIT).


1GbE OOB Management Interface

BlueField-3 incorporates a 1GbE RJ45 out-of-band port that allows the network operator to establish trust boundaries in accessing the management function to apply it to network resources. It can also be used to ensure management connectivity (including the ability to determine the status of any network component) independent of other in-band network components' status.

Note

For cards with integrated BMC: 1GbE OOB Management can be performed via the integrated BMC.

1GbE OOB Management LEDs Interface

Two OOB management LEDs, one Green and one Yellow, behave as described in the table below.

Green LED

Yellow LED

Link/Activity

OFF

OFF

Link off

ON

OFF

1 Gb/s link / No activity

Blinking

OFF

1 Gb/s link / Activity (RX,TX)

OFF

ON

Not supported

OFF

Blinking

ON

ON

Blinking

Blinking

PPS IN/OUT Interface

BlueField-3 incorporates an integrated Hardware Clock (PHC) that allows the card to achieve sub-20u Sec accuracy and also offers many timing-related functions such as time-triggered scheduling or time-based SND accelerations (time-based ASAP²). Furthermore, 5T technology enables the software application to transmit fronthaul (ORAN) at high bandwidth. The PTP part supports the subordinate clock, master clock, and boundary clock.

BlueField-3 PTP solution allows you to run any PTP stack on your host.

With respect to testing and measurements, selected BlueField-3 boards allow you to use the PPS-out signal from the onboard MMCX RA connecter. The BlueField-3 board also allow measuring PTP in scale with the PPS-In signal. The PTP HW clock on the Network adapter is sampled on each PPS-In signal, and the timestamp is sent to the SW.

External PCIe Power Supply Connector

Note

Applies to following DPUs only. The external ATX power cable is not supplied with the DPU package; however, this is a standard cable usually available in servers.

  • B3220: 900-9D3B6-00CV-AA0 and 900-9D3B6-00SV-AA0

  • B3240: 900-9D3B6-00CN-AB0, 900-9D3B6-00SN-AB0 and 900-9D3B6-00CN-PA0

  • B3210: 900-9D3B6-00CC-AA0 and 900-9D3B6-00SC-AA0

  • B3210E: 900-9D3B6-00CC-EA0 and 900-9D3B6-00SC-EA0

To power up the above-mentioned DPUs, it is necessary to use a supplementary 8-pin ATX power cable. Since the power provided by the PCIe golden fingers is limited to 66W, a total maximum of up to 150W is enabled through the ATX 8-pin connector and the PCIe x16 golden fingers.

The maximum power consumption which does not exceed 150W, is in accordance with the mode of operation of the DPU, and is split between the two power sources as follows:

  • Up to 66W from the PCIe golden fingers (12V)

  • The rest of the consumed power is drawn from the external PCIe power supply connector

Important Notes and Warnings

  • The BlueField-3 DPU requires a standard PCIe ATX power connection. However, certain servers may require a custom setup to enable ATX power compatibility.

  • Consult the manufacturer's manuals and specifications to ensure proper connectivity.

  • Before connecting the ATX power cable, make sure you are using a PCIe-compliant 8-pin ATX cable from the server power supply kit.

  • Do not link the CPU power cable to the BlueField-3 DPU PCIe ATX power connector, as their pin configurations differ. Using the CPU power cable in this manner is strictly prohibited and can potentially damage the BlueField-3 DPU. Please refer to External PCIe Power Supply Connector Pins for the external PCIe power supply pins.

  • Avoid using non-standard cables that do not comply with the DPU, unnecessary adapter cables, or storing the cables near heat sources.

  • It is preferable that the x16 PCIe golden fingers and the PCI ATX power supply draw from the same power source. For more information on how to power up the card, refer to DPU Power-Up Instructions.

  • The PCIe ATX 8-pin connector is not compatible with an EPS12V power cable source. Ensure that the appropriate PCIe auxiliary power source is available, not an EPS12V power source.

  • If you are uncertain about your server's compatibility with the PCI ATX connection, please contact your NVIDIA representative for assistance.

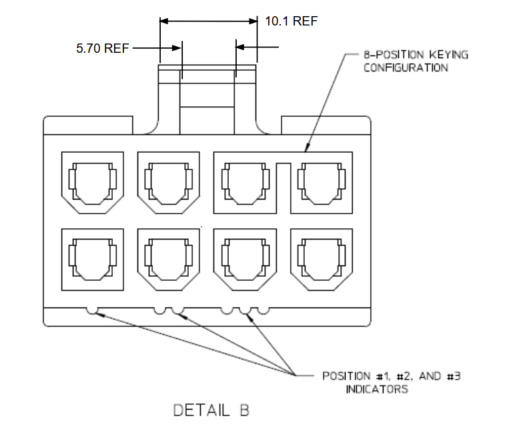

Mechanical Keys of the 8-pin ATX Power Cable (PCIe CEM Specification Rev 5.0)



Cabline CA-II Plus Connectors

Note

Applies to the following DPUs:

B3220: 900-9D3B6-00CV-AA0 and 900-9D3B6-00SV-AA0

B3240: 900-9D3B6-00CN-AB0, 900-9D3B6-00SN-AB0 and 900-9D3B6-00CN-PA0

B3210: 900-9D3B6-00CC-AA0 and 900-9D3B6-00SC-AA0

B3210E: 900-9D3B6-00CC-EA0 and 900-9D3B6-00SC-EA0

The Cabline CA-II connectors on the DPU enable connectivity to an additional PCIe x16 bus in addition to the PCIe x16 bus available through the golden-fingers. The Cabline CA-II Plus connectors allow connectivity to flash cards and NVMe SSD drives.

Specific applications have an interest in direct connectivity to the far end of the Cabline CA-II cables, through the two 60-pin Cabline CA-II connectors, directly to the motherboard, in order to cut the insertion loss and/or the additional space associated with a PCIe x16 Flash Auxiliary Board.

The Cabline CA-II connectors mate with two 60-pin Cabline CA-II cables that can be distinguished by their black or white external insulators and connector pinouts. The black Cabline CA-II cable mates with the DPU's component (top) side, whereas the white Cabline CA-II cable mates with the DPU print (bottom) side. The Cabline CA-II cables are offered in three standard lengths; 150mm, 350mm, and 550mm.

For connector pinouts, please refer to Cabline CA-II Plus Connectors Pinouts.

Integrated BMC Interface

The card incorporates an onboard integrated NIC BMC and an Ethernet switch. The BMC becomes available once the host server powers up the card. The NIC BMC can control the DPU's power and enables DPU shutdown and power-up.

NVMe SSD Interface

Note

The Self Encrypting Disk (SED) capability is not supported.

Warning

It is important to note that all SSD devices come with a limitation on the total number of write operations they can handle throughout their lifespan. This limit is influenced significantly by the software use case and specific parameters like block size and the pattern of data access (whether it is sequential or random). It is the customer's responsibility to oversee the rate at which the SSD ages during both the validation of the code and its usage in the field, ensuring that it aligns with the intended use case.

The on-board 128GB client-grade NVMe SSD is utilized for persistent storage of user applications and logs.

RTC Battery

BlueField-3 incorporates a coin type Lithium battery CR621 for RTC (Real Time Clock).

eMMC Interface

Warning

It is important to note that all eMMC devices come with a limitation on the total number of write operations they can handle throughout their lifespan. This limit is influenced significantly by the software use case and specific parameters like block size and the pattern of data access (whether it is sequential or random). It is the customer's responsibility to oversee the rate at which the eMMC ages during both the validation of the code and its usage in the field, ensuring that it aligns with the intended use case.

The eMMC is an x8 NAND flash used for Arm boot and operating system storage. Memory size is 128GB, where it is effectively pSLC 40GB.
