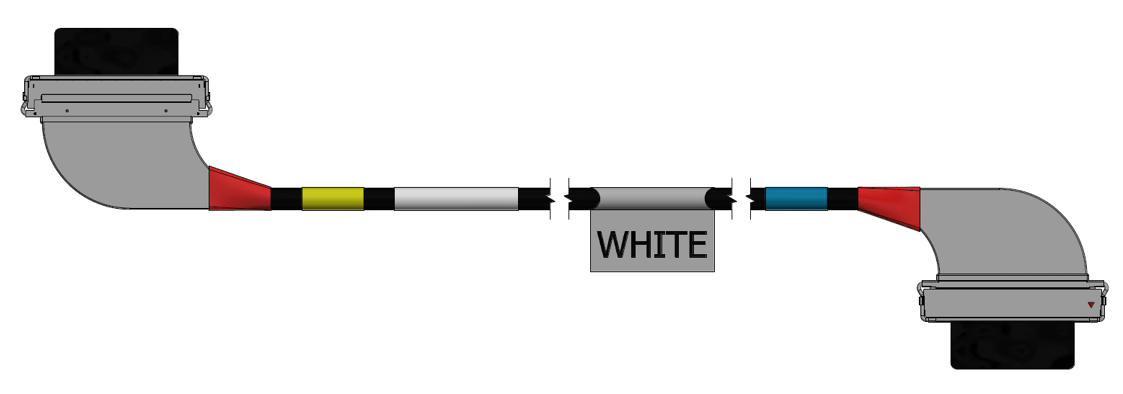

Physical | PCIe Auxiliary Card Size: 5.09 in. x 2.32 in. (129.30mm x 59.00mm) Two Cabline CA-II Plus harnesses (white and black) Length: 15, 25 or 35cm | |||
Power Consumption | Voltage: 12V, 3.3V_AUX Maximum current: 100mA for the 3.3V_AUX voltage rail | |||
PCIe Connectivity | MTMK9100-T15 | PCI Express Gen 5.0/4.0: SERDES @ 16/32 GT/s, x16 lanes (Gen 3.0 compatible) | ||
MTMK9100-T25 / MTMK9100-T35 | PCI Express Gen 4.0: SERDES @ 16GT/s, x16 lanes (Gen 3.0 compatible) | |||
Environmental | Temperature | Operational | 0°C to 55°C | |
Non-operational | -40°C to 70°C | |||
Humidity | Operational | 10% to 85% relative humidity | ||
Non-operational | 10% to 90% relative humidity | |||
Altitude (Operational) | 3050m | |||
Regulatory | Safety: CB / cTUVus / CE | |||
EMC: CE / FCC / VCCI / ICES / RCM / KC | ||||
RoHS: RoHS Compliant |

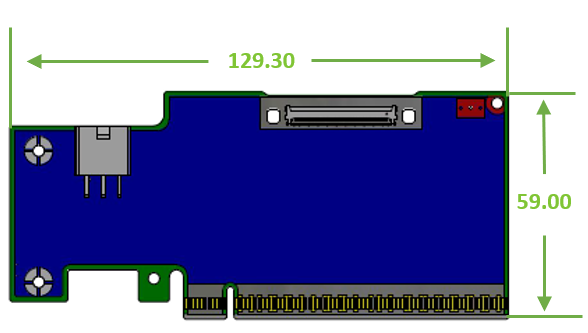

All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.
![image2022-2-10_13-55-42-version-1-modificationdate-1702552883263-api-v2.png](https://docscontent.nvidia.com/dims4/default/9c75ea9/2147483647/strip/true/crop/588x333+0+0/resize/588x333!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F00000190-2fd3-d041-a9b0-afd305930000%2Fimages%2Fdownload%2Fattachments%2F2449222617%2Fimage2022-2-10_13-55-42-version-1-modificationdate-1702552883263-api-v2.png)

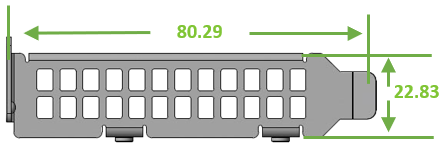

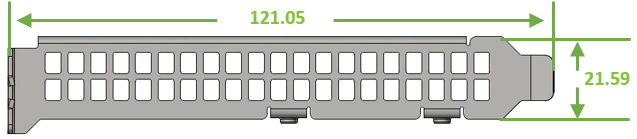

Auxiliary PCIe Connection Card Tall Bracket | Auxiliary PCIe Connection Card Short Bracket |
![]()
| ![]()
|
