Advanced Features

RPC log history (enabled by default) records all the RPC requests (from snap_rpc.py and spdk_rpc.py) sent to the SNAP application and the RPC response for each RPC requests in a dedicated log file, /var/log/snap-log/rpc-log. This file is visible outside the container (i.e., the log file's path on the DPU is /var/log/snap-log/rpc-log as well).

The SNAP_RPC_LOG_ENABLE env can be used to enable (1) or disable (0) this feature.

SR-IOV configuration depends on the kernel version:

• Optimal configuration may be achieved with a new kernel in which the sriov_drivers_autoprobe sysfs entry exists in /sys/bus/pci/devices/<BDF>/

• Otherwise, the minimal requirement may be met if the sriov_totalvfs sysfs entry exists in /sys/bus/pci/devices/<BDF>/




pci 0000:84:00.0: [1af4:1041] type 7f class 0xffffff
pci 0000:84:00.0: unknown header type 7f, ignoring device


SNAP-direct allows SNAP applications to transfer data directly from the host memory to remote storage without using any staging buffer inside the DPU.

SNAP enables the feature according to the SPDK BDEV configuration only when working against an SPDK NVMe-oF RDMA block device.

To enable zero copy, set the environment variable (as it is enabled by default):




SNAP_RDMA_ZCOPY_ENABLE=1


For more info refer to the section SNAP Environment Variables.

NVMe/TCP Zero Copy is implemented as a custom NVDA_TCP transport in SPDK NVMe initiator and it is based on a new XLIO socket layer implementation.

The implementation is different for Tx and Rx:

• The NVMe/TCP Tx Zero Copy is similar between RDMA and TCP in that the data is sent from the host memory directly to the wire without an intermediate copy to Arm memory

• The NVMe/TCP Rx Zero Copy allows achieving partial zero copy on the Rx flow by eliminating copy from socket buffers (XLIO) to application buffers (SNAP). But data still must be DMA'ed from Arm to host memory.

To enable NVMe/TCP Zero Copy, use SPDK v22.05.nvda --with-xlio (v22.05.nvda or higher).

To enable SNAP TCP XLIO Zero Copy:

1. SNAP container: Set the environment variables and resources in the YAML file:

   Copy

   Copied!




   resources:
     requests:
       memory: "4Gi"
       cpu: "8"
     limits:
       hugepages-2Mi: "4Gi"
       memory: "6Gi"
       cpu: "16"

   ## Set according to the local setup
   env:
     - name: APP_ARGS
       value: "--wait-for-rpc"
     - name: SPDK_XLIO_PATH
       value: "/usr/lib/libxlio.so"


2. SNAP sources: Set the environment variables and resources in the relevant scripts

   1. In run_snap.sh, edit the APP_ARGS variable to use the SPDK command line argument --wait-for-rpc:

      run_snap.sh

      Collapse Source

      Copy

      Copied!




      APP_ARGS="--wait-for-rpc"


   2. In set_environment_variables.sh, uncomment the SPDK_XLIO_PATH environment variable:

      set_environment_variables.sh

      Collapse Source

      Copy

      Copied!




      export SPDK_XLIO_PATH="/usr/lib/libxlio.so"





[dpu] spdk_rpc.py bdev_nvme_set_options --transport-ack-timeout 12


Expose an NVMe-oF subsystem with one namespace by using a TCP transport type on the remote SPDK target.




[dpu] spdk_rpc.py sock_set_default_impl -i xlio
[dpu] spdk_rpc.py framework_start_init
[dpu] spdk_rpc.py bdev_nvme_set_options --transport-ack-timeout 12
[dpu] spdk_rpc.py bdev_nvme_attach_controller -b nvme0 -t nvda_tcp -a 3.3.3.3 -f ipv4 -s 4420 -n nqn.2023-01.io.nvmet
[dpu] snap_rpc.py nvme_subsystem_create --nqn nqn.2023-01.com.nvda:nvme:0
[dpu] snap_rpc.py nvme_namespace_create -b nvme0n1 -n 1 --nqn nqn. 2023-01.com.nvda:nvme:0 --uuid 16dab065-ddc9-8a7a-108e-9a489254a839
[dpu] snap_rpc.py nvme_controller_create --nqn nqn.2023-01.com.nvda:nvme:0 --ctrl NVMeCtrl1 --pf_id 0 --suspended --num_queues 16
[dpu] snap_rpc.py nvme_controller_attach_ns -c NVMeCtrl1 -n 1
[dpu] snap_rpc.py nvme_controller_resume -c NVMeCtrl1 -n 1

[host] modprobe -v nvme
[host] fio --filename /dev/nvme0n1 --rw randrw --name=test-randrw --ioengine=libaio --iodepth=64 --bs=4k --direct=1 --numjobs=1 --runtime=63 --time_based --group_reporting --verify=md5


The SPDK version that comes with SNAP supports hardware encryption/decryption offload. To enable AES/XTS, follow the instructions under section "Modifying SF Trust Level to Enable Encryption".

Zero Copy (SNAP-direct) with Encryption

SNAP offers support for zero copy with encryption for bdev_nvme with an RDMA transport.

mlx5_scan_accel_module

Accepts a list of devices to use for the crypto operation provided in the --allowed-devs parameter. If no devices are specified, then the first device which supports encryption is used.

For best performance, it is recommended to use the devices with the largest InfiniBand MTU (4096). The MTU size can be verified using the ibv_devinfo command (look for the max and active MTU fields). Normally, the mlx5_2 device is expected to have an MTU of 4096 and should be used as an allowed crypto device.

Command parameters:

accel_crypto_key_create

Creates crypto key. One key can be shared by multiple bdevs.

Command parameters:

bdev_nvme_attach_controller

Creates NVMe block device.

Command parameters:

bdev_crypto_create

This RPC creates a virtual crypto block device which adds encryption to the base block device.

Command parameters:

SPDK Crypto Example

The following is an example of a configuration with a crypto virtual block device created on top of bdev_nvme with RDMA transport and zero copy support:




[dpu] # spdk_rpc.py mlx5_scan_accel_module --allowed-devs "mlx5_2" --enable-driver
[dpu] # spdk_rpc.py framework_start_init
[dpu] # spdk_rpc.py accel_crypto_key_create -c AES_XTS -k 00112233445566778899001122334455 -e 11223344556677889900112233445500 -n test_dek
[dpu] # spdk_rpc.py bdev_nvme_attach_controller -b nvme0 -t rdma -a 1.1.1.1 -f ipv4 -s 4420 -n nqn.2016-06.io.spdk:cnode0
[dpu] # spdk_rpc.py bdev_crypto_create nvme0n1 crypto_0 -n test_dek
[dpu] # snap_rpc.py spdk_bdev_create crypto_0
[dpu] # snap_rpc.py nvme_subsystem_create --nqn nqn.2023-05.io.nvda.nvme:0
[dpu] # snap_rpc.py nvme_controller_create --nqn nqn.2023-05.io.nvda.nvme:0 --pf_id 0 --ctrl NVMeCtrl0 --suspended
[dpu] # snap_rpc.py nvme_namespace_create –nqn nqn.2023-05.io.nvda.nvme:0 --bdev_name crypto_0 –-nsid 1 -–uuid 263826ad-19a3-4feb-bc25-4bc81ee7749e
[dpu] # snap_rpc.py nvme_controller_attach_ns –-ctrl NVMeCtrl0 --nsid 1
[dpu] # snap_rpc.py nvme_controller_resume –-ctrl NVMeCtrl0


Live migration is a standard process supported by QEMU which allows system administrators to pass devices between virtual machines in a live running system. For more information, refer to QEMU VFIO Device Migration documentation.

Live migration is supported for SNAP virtio-blk devices. It can be activated using a driver with proper support (e.g., NVIDIA's proprietary vDPA-based Live Migration Solution).




snap_rpc.py virtio_blk_controller_create --dbg_admin_q …


Live upgrade allows upgrading the SNAP image a container is using without SNAP container downtime.

Live Upgrade Prerequisites

To enable live upgrade, perform the following modifications:

1. Allocate double hugepages for the destination and source containers.

2. Make sure the requested amount of CPU cores is available.

   The default YAML configuration sets the container to request a CPU core range of 8-16. This means that the container is not deployed if there are fewer than 8 available cores, and if there are 16 free cores, the container utilizes all 16.

   For instance, if a container is currently using all 16 cores and, during a live upgrade, an additional SNAP container is deployed. In this case, each container uses 8 cores during the upgrade process. Once the source container is terminated, the destination container starts utilizing all 16 cores.

   Note

   For 8-core DPUs, the .yaml must be edited to the range of 4-8 CPU cores.

3. Change the name of the doca_snap.yaml file that describes the destination container (e.g., doca_snap_new.yaml ) so as to not overwrite the running container .yaml.

4. Change the name of the new .yaml pod in line 16 (e.g., snap-new).

5. Deploy the the destination container by copying the new yaml (e.g., doca_snap_new.yaml ) to kubelet.

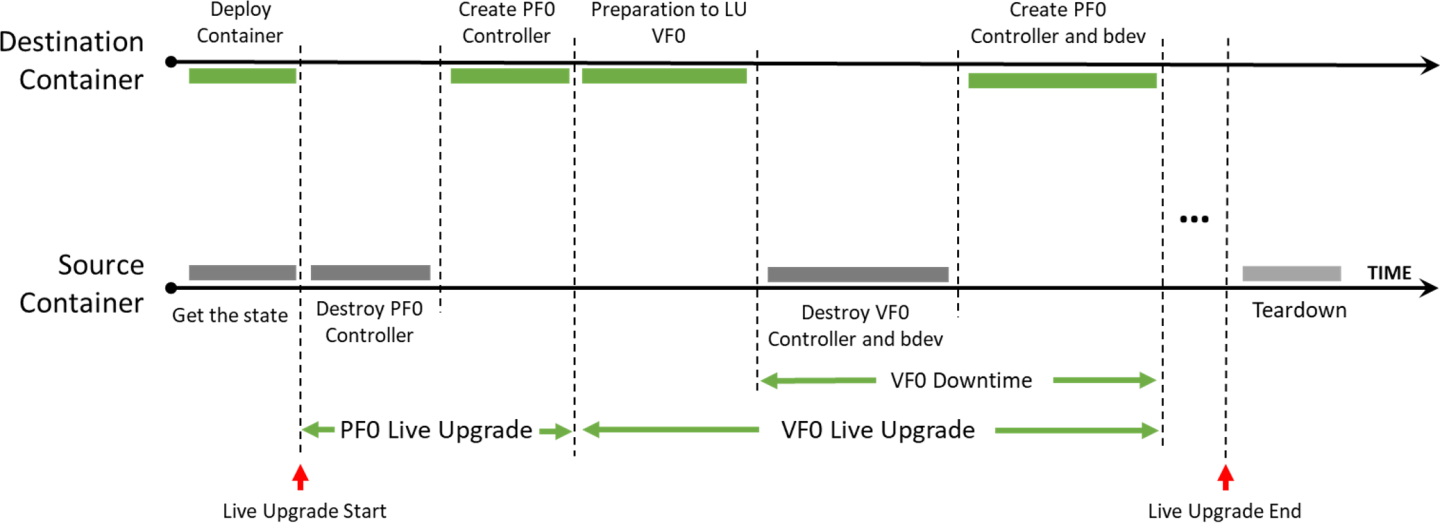

Live Upgrade Flow

The way to live upgrade the SNAP image is to move the SNAP controllers and SPDK block devices between different containers while minimizing the duration of the host VMs impact.

• Source container – the running container before live upgrade

• Destination container – the running container after live upgrade

SNAP Container Live Upgrade Procedure

1. Follow the steps in section "Live Upgrade Prerequisites" and deploy the destination SNAP container using the modified yaml file.

2. Query the source and destination containers:

   Copy

   Copied!




   crictl ps -r


3. Check for SNAP started successfully in the logs of the destination container, then copy the live update from the container to your environment.

   Copy

   Copied!




   [dpu] crictl logs -f <dest-container-id>
   [dpu] crictl exec <dest-container-id> cp /opt/nvidia/nvda_snap/bin/live_update.py /etc/nvda_snap/


4. Run the live_update.py script to move all active objects from the source container to the destination container:

   Copy

   Copied!




   [dpu] cd /etc/nvda_snap
   [dpu] ./live_update.py -s <source-container-id> -d <dest-container-id>


5. Delete the source container.

   Note

   To post RPCs, use the crictl tool:

   Copy

   Copied!




   crictl exec -it <container-id X> snap_rpc.py <RPC-method>
   crictl exec -it <container-id Y> spdk_rpc.py <RPC-method>


   Note

   To automate the SNAP configuration (e.g., following failure or reboot) as explained in section "Automate SNAP Configuration (Optional)", spdk_rpc_init.conf and snap_rpc_init.conf must not include any configs as part of the live upgrade. Then, once the transition to the new container is done, spdk_rpc_init.conf and snap_rpc_init.conf can be modified with the desired configuration.

SNAP Container Live Upgrade Commands

The live update tool is designed to support fast live updates. It iterates over the available emulation functions and performs the following actions for each one:

1. On the source container:

   Copy

   Copied!




   snap_rpc.py virtio_blk_controller_suspend --ctrl [ctrl_name] --events_only


2. On the destination container:

   Copy

   Copied!




   spdk_rpc.py bdev_nvme_attach_controller ...
   snap_rpc.py virtio_blk_controller_create ... --suspended --live_update_listener


3. On the source container:

   Copy

   Copied!




   snap_rpc.py virtio_blk_controller_destroy --ctrl [ctrl_name]
   spdk_rpc.py bdev_nvme_detach_controller [bdev_name]


Message Signaled Interrupts eXtended (MSIX) is an interrupt mechanism that allows devices to use multiple interrupt vectors, providing more efficient interrupt handling than traditional interrupt mechanisms such as shared interrupts. In Linux, MSIX is supported in the kernel and is commonly used for high-performance devices such as network adapters, storage controllers, and graphics cards. MSIX provides benefits such as reduced CPU utilization, improved device performance, and better scalability, making it a popular choice for modern hardware.

However, proper configuration and management of MSIX interrupts can be challenging and requires careful tuning to achieve optimal performance, especially in a multi-function environment as SR-IOV.

By default, BlueField distributes MSIX vectors evenly between all virtual PCIe functions (VFs). This approach is not optimal as users may choose to attach VFs to different VMs, each with a different number of resources. Dynamic MSIX management allows the user to manually control of the number of MSIX vectors provided per each VF independently.

Dynamic MSIX management is built from several configuration steps:

1. PF controller must be opened with dynamic MSIX management enabled.

2. At this point, and in any other time in the future when no VF controllers are opened (sriov_numvfs=0), all PF-related MSIX vectors can be reclaimed from the VFs to the PF's free MSIX pool.

3. User must take some of the MSIX from the free pool and give them to a certain VF during VF controller creation.

4. When destroying a VF controller, the user may choose to release its MSIX back to the pool.

Once configured, the MSIX link to the VFs remains persistent and may change only in the following scenarios:

• User explicitly requests to return VF MSIXs back to the pool during controller destruction.

• PF explicitly reclaims all VF MSIXs back to the pool.

• Arm reboot (FE reset/cold boot) has occurred.

To emphasize, the following scenarios do not change MSIX configuration:

• Application restart/crash.

• Closing and reopening PF/VFs without dynamic MSIX support.

The following is an NVMe example of dynamic MSIX configuration steps (similar configuration also applies for virtio-blk):

1. Open controller on PF with dynamic MSIX capability:

   Copy

   Copied!




   snap_rpc.py nvme_controller_create --dynamic_msix …


2. Reclaim all MSIX from VFs to PF's free MSIX pool:

   Copy

   Copied!




   snap_rpc.py nvme_controller_vfs_msix_reclaim <CtrlName>


3. Query the controller list to get information about the resources constraints for the PF:

   Copy

   Copied!




   # snap_rpc.py nvme_controller_list -c <CtrlName>
   …     'free_msix': 100,
   …     'free_queues': 200,
   …     'vf_min_msix': 2,
   …     'vf_max_msix': 64,
   …     'vf_min_queues': 0,
   …     'vf_max_queues': 31,
   …


   Where:

   • free_msix stands for the number of total MSIX available in the PF's free pool, to be assigned for VFs, through the parameter vf_num_msix (of the <protocol>_controller_create RPC).

   • free_queues stands for the number of total queues (or "doorbells") available in the PF's free pool, to be assigned for VFs, through the parameter num_queues (of the <protocol>_controller_create RPC).

   • vf_min_msix and vf_max_msix together define the available configurable range of vf_num_msix parameter value which can be passed in <protocol>_controller_create RPC for each VF.

   • vf_min_queues and vf_max_queues together define the available configurable range of num_queues parameter value which can be passed in <protocol>_controller_create RPC for each VF.

4. Distribute MSIX between VFs during their creation process, considering the PF's limitations:

   Copy

   Copied!




   snap_rpc.py nvme_controller_create_ --vf_num_msix <n> --num_queues <m> …


   Note

   It is strongly advised to provide both vf_num_msix and num_queues parameters upon VF controller creation. Providing only one of the values may result in a conflict between MSIX and queue configuration, which may in turn cause the controller/driver to malfunction.

   Tip

   In NVMe protocol, MSIX is used by NVMe CQ. Therefore, it is advised to assign 1 MSIX out of the PF's global pool (free_msix) for each assigned queue.

   In virtio protocol, MSIX is used by virtqueue and one extra MSIX is required for BAR configuration changes notification. Therefore, it is advised to assign 1 MSIX out of the PF's global pool (free_msix) for every assigned queue, and one more as configuration MSIX.

   In summary, the best practice for queues/MSIX ratio configuration is:

   • For NVMe – num_queues = vf_num_msix

   • For virtio – num_queues = vf_num_msix-1

5. Upon VF teardown, release MSIX back to the free pool:

   Copy

   Copied!




   snap_rpc.py nvme_controller_destroy_ --release_msix …


6. Set SR-IOV on the host driver:

   Copy

   Copied!




   echo <N> > /sys/bus/pci/devices/<BDF>/sriov_numvfs


   Note

   It is highly advised to open all VF controllers in SNAP in advance before binding VFs to the host/guest driver. That way, for example in case of a configuration mistake which does not leave enough MSIX for all VFs, the configuration remains reversible as MSIX is still modifiable. Otherwise, the driver may try to use the already-configured VFs before all VF configuration has finished but will not be able to use all of them (due to lack of MSIX). The latter scenario may result in host deadlock which, at worst, can be recovered only with cold boot.

   Note

   There are several ways to configure dynamic MSIX safely (without VF binding):

   1. Disable kernel driver automatic VF binding to kernel driver:

      Copy

      Copied!




      # echo 0 > /sys/bus/pci/devices/sriov_driver_autoprobe


      After finishing MSIX configuration for all VFs, they can then be bound to VMs, or even back to the hypervisor:

      Copy

      Copied!




      echo "0000:01:00.0" > /sys/bus/pci/drivers/nvme/bind


   2. Use VFIO driver (instead of kernel driver) for SR-IOV configuration.

   For example:

   Copy

   Copied!




   # echo 0000:af:00.2 > /sys/bus/pci/drivers/vfio-pci/bind				# Bind PF to VFIO driver
   # echo 1 > /sys/module/vfio_pci/parameters/enable_sriov
   # echo <N> > /sys/bus/pci/drivers/vfio-pci/0000:af:00.2/sriov_numvfs	# Create VFs device for it


NVMe Recovery

NVMe recovery allows the NVMe controller to be recovered after a SNAP application is closed whether gracefully or after a crash (e.g., kill -9).

To use NVMe recovery, the controller must be re-created in a suspended state with the same configuration as before the crash (i.e., the same bdevs, num queues, and namespaces with the same uuid, etc).

NVMe recovery uses files on the BlueField under /dev/shm to recover the internal state of the controller. Shared memory files are deleted when the BlueField is reset. For this reason, recovery is not supported after BF reset.

Virtio-blk Crash Recovery

The following options are available to enable virtio-blk crash recovery.

Virtio-blk Crash Recovery with --force_in_order

For virtio-blk crash recovery with --force_in_order, disable the VBLK_RECOVERY_SHM environment variable and create a controller with the --force_in_order argument.

In virtio-blk SNAP, the application is not guaranteed to recover correctly after a sudden crash (e.g., kill -9).

To enable the virtio-blk crash recovery, set the following:




snap_rpc.py virtio_blk_controller_create --force_in_order …


Virtio-blk Crash Recovery without --force_in_order

For virtio-blk crash recovery without --force_in_order, enable the VBLK_RECOVERY_SHM environment variable and create a controller without the --force_in_order argument.

Virtio-blk recovery allows the virtio-blk controller to be recovered after a SNAP application is closed whether gracefully or after a crash (e.g., kill -9).

To use virtio-blk recovery without --force_in_order flag. VBLK_RECOVERY_SHM must be enabled, the controller must be recreated with the same configuration as before the crash (i.e., same bdevs, num queues, etc).

When VBLK_RECOVERY_SHM is enabled, virtio-blk recovery uses files on the BlueField under /dev/shm to recover the internal state of the controller. Shared memory files are deleted when the BlueField is reset. For this reason, recovery is not supported after BlueField reset.

Improving SNAP Recovery Time

The following table outlines features designed to accelerate SNAP initialization and recovery processes following termination.




spdk_rpc.py save_config > config.json





{
	"method": "mlx5_scan_accel_module",
	"params": {
	 "qp_size": 64,
	 "cq_size": 1024,
 	 "num_requests": 2048,
 	 "enable_driver": false,
 	 "split_mb_blocks": 0,
 	 "siglast": false,
 	 "qp_per_domain": false,
	 "disable_signature": true,
	 "disable_crypto": true,
	 "enable_module": false
	}
