CEC and BMC Firmware Operations

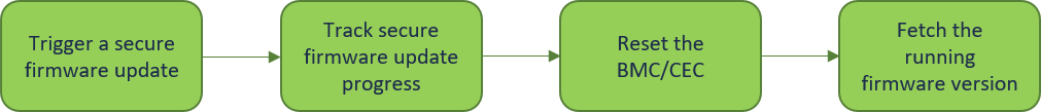

Firmware upgrade of BMC and CEC components using BMC can be performed from a remote server using the Redfish interface.


Triggering Secure Firmware Update

Info

Required for BMC/CEC update.

This section describes how to trigger a secure update and to track the secure update progress.

To perform a multipart update with MultipartHttpPushUri API, run:

Copy
Copied!


            curl -k -u root:'<password>' https://<bmc_ip>/redfish/v1/UpdateService/update-multipart -F 'UpdateParameters={};type=application/octet-stream' -F UpdateFile=@<package_path>

Update with HttpPushUri API – Deprecated

Warning

HttpPushUri API is obsolete. NVIDIA recommends users migrate to MultipartHttpPushUri API as support for HttpPushUri API will be discontinued in the future.

Copy
Copied!


            curl -k -u root:'<password>' -H "Content-Type: application/octet-stream" -X POST -T <package_path> https://<bmc_ip>/redfish/v1/UpdateService/update

Where:

password – password of root user
bmc_ip – BMC IP address
package_path – firmware update package path

Tracking Secure Firmware Update Progress

Info

Required for BMC/CEC update.

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/TaskService/Tasks

Find the current task ID in the response and use it for checking the progress by running:

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/TaskService/Tasks/<task_id> | jq -r ' .PercentComplete'

Where:

password – password of root user
bmc_ip – BMC IP address
task_id – Task ID

To retrieve additional information about the task progress, run:

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/TaskService/Tasks/<task_id>

The task status can be one of the following:

"Running" – the update is currently in progress.
"Completed" – the update finished successfully.
"Exception" – an error occurred during the update.

Resetting/Rebooting BMC

Info

Required for BMC update.

To reset/reboot BMC, run:

Copy
Copied!


            curl -k -u root:'<password>' -H "Content-Type: application/json" -X POST -d '{"ResetType": "GracefulRestart"}' https://<bmc_ip>/redfish/v1/Managers/Bluefield_BMC/Actions/Manager.Reset

Where:

password – password of root user
bmc_ip – BMC IP address

Getting the Running BMC Firmware Version

Info

Required for BMC update.

The following commands get the running firmware version of BlueField devices via the BMC.

For NVIDIA® BlueField®-3:

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/UpdateService/FirmwareInventory/BMC_Firmware | jq -r ' .Version'

Where:

password – password of root user
bmc_ip – BMC IP address

For NVIDIA® BlueField®-2:

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/UpdateService/FirmwareInventory

Get the current firmware ID and then perform:

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/UpdateService/FirmwareInventory/<firmware_id>_BMC_Firmware | jq -r ' .Version'

Where:

password – password of root user
bmc_ip – BMC IP address
firmware_id – numeric value found in the FwInventory schema only. It is calculated during firmware update by the BMC and used to distinguish between the versions.

Getting the Running CEC Firmware Version

Info

Required for CEC update.

Gets the running firmware version from CEC.

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/UpdateService/FirmwareInventory/Bluefield_FW_ERoT | jq -r ' .Version'

Where:

password – password of root user
bmc_ip – BMC IP address

ForceUpdate

Info

Relevant for BlueField-3 only.

Info

Required for BMC update.

ForceUpdate forces the update procedure to proceed even if the target version is identical to the currently programmed version.

When using HttpPushUri API, ForceUpdate is always true (i.e., forces the update procedure to proceed even if the target version is identical)

When using MultipartHttpPushUri API, ForceUpdate is false (i.e., the update procedure fails if the target version is identical), unless "ForceUpdate":true is included under UpdateParameters:

Copy
Copied!


            curl -k -u root:'<password>' https://<bmc_ip>/redfish/v1/UpdateService/update-multipart -F 'UpdateParameters={"ForceUpdate":true};type=application/octet-stream' -F UpdateFile=@<package_path>

Where:

- password – password of root user
- bmc_ip – BMC IP address

Updating BMC

Info

Firmware update takes about 12 minutes.

After initiating the BMC secure update, you can expect to receive responses similar to the following.

If an HttpPushUri API is used:

Copy
Copied!


            curl -k -u root:'<password>' -H "Content-Type: application/octet-stream" -X POST -T <package_path> https://<bmc_ip>/redfish/v1/UpdateService

{
  "@odata.id": "/redfish/v1/TaskService/Tasks/0",
  "@odata.type": "#Task.v1_4_3.Task",
  "Id": "<id>",
  "TaskState": "Running"
}

If a MultipartHttpPushUri API us used:

Copy
Copied!


            curl -k -u root:'<password>' https://<bmc_ip>/redfish/v1/UpdateService/update-multipart -F 'UpdateParameters={};type=application/octet-stream' -F UpdateFile=@<package_path>
{
  "@odata.id": "/redfish/v1/TaskService/Tasks/0",
  "@odata.type": "#Task.v1_4_3.Task",
  "Id": "<id>",
  "TaskState": "Running",
  "TaskStatus": "OK"
}

Where:

package_path – the BMC firmware image file including its path

For example:

Copy
Copied!


            curl -k -u root:'myP@ssword_12345!' https://10.10.10.10/redfish/v1/UpdateService/update-multipart -F 'UpdateParameters={};type=application/octet-stream' -F UpdateFile=@/root/bf2-bmc-ota-24.01-4-ipn.tar

The following command is used to track secure firmware update progress:

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/TaskService/Tasks/<id> | jq -r ' .PercentComplete'

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current Dload  Upload   Total   Spent    Left  Speed
100  2123  100  2123    0     0  38600      0 --:--:-- --:--:-- --:--:-- 37910
20

The task is completed when PercentComplete reaches 100.

Since the reboot option is disabled during the update procedure, use the following command to reboot the BMC.

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/TaskService/Tasks/<id> | jq -r ' .PercentComplete'
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current Dload  Upload   Total   Spent    Left  Speed
100  3822  100  3822    0     0  81319      0 --:--:-- --:--:-- --:--:-- 81319
100

curl -k -u root:'<password>' -H "Content-Type: application/octet-stream" -X POST -d '{"ResetType": "GracefulRestart"}' https://<bmc_ip>/redfish/v1/Managers/Bluefield_BMC/Actions/Manager.Reset
{
  "@Message.ExtendedInfo": [
    {
      "@odata.type": "#Message.v1_1_1.Message",
      "Message": "The request completed successfully.",
      "MessageArgs": [],
      "MessageId": "Base.1.13.0.Success",
      "MessageSeverity": "OK",
      "Resolution": "None"
    }
  ]
}

The following commands are used to verify the current BMC firmware version after reboot:

For BlueField-3:

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/UpdateService/FirmwareInventory/BMC_Firmware | jq -r ' .Version'

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current Dload  Upload   Total   Spent    Left  Speed
100   513  100   513    0     0   9679      0 --:--:-- --:--:-- --:--:--  9679

For BlueField-2:

Get the firmware ID from FirmwareInventory.

Copy
Copied!


            curl -k -u root:'<password>' -X GET https:/<bmc_ip>/redfish/v1/UpdateService/FirmwareInventory/
{
  "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory",
  "@odata.type": "#SoftwareInventoryCollection.SoftwareInventoryCollection",
  "Members": [
    {
      "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/8c8549f3_BMC_Firmware"
…

Use the following command with the retrieved firmware ID from the previous step.

Copy
Copied!


            curl -k -u root:'<password>' -X GET https:/<bmc_ip>/redfish/v1/UpdateService/FirmwareInventory/8c8549f3_BMC_Firmware | jq -r ' .Version'

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100   471  100   471    0     0    622      0 --:--:-- --:--:-- --:--:--   621
bmc-23.04

For BlueField-3 BMC only: W hen updating firmware to a target that has an identical version using MultipartHttpPushUri, you must include ForceUpdate=true. Otherwise, the update procedure fails with the message Component image is identical.

Copy
Copied!


            curl -k -u root:'<password>' https://<bmc_ip>/redfish/v1/UpdateService/update-multipart -F 'UpdateParameters={"ForceUpdate":true};type=application/octet-stream' -F UpdateFile=@<package_path>

Updating CEC

Info

Firmware update takes about 20 seconds.

After initiating the BMC secure update, expect responses similar to the following--depending whether HttpPushUri or MultipartHttpPushUri is used:

HttpPushUri API:

Copy
Copied!


            curl -k -u root:'<password>' -H "Content-Type: application/octet-stream" -X POST -T <package_path> https://<bmc_ip>/redfish/v1/UpdateService
{
  "@odata.id": "/redfish/v1/TaskService/Tasks/0",
  "@odata.type": "#Task.v1_4_3.Task",
  "Id": "0",
  "TaskState": "Running"

MultipartHttpPushUri API:

Copy
Copied!


            curl -k -u root:'<password>' https://<bmc_ip>/redfish/v1/UpdateService/update-multipart -F 'UpdateParameters={};type=application/octet-stream' -F UpdateFile=@<package_path>
{
  "@odata.id": "/redfish/v1/TaskService/Tasks/0",
  "@odata.type": "#Task.v1_4_3.Task",
  "Id": "0",
  "TaskState": "Running",
  "TaskStatus": "OK"
}

Where:

package_path – the BMC firmware image file including its path

For example:

Copy
Copied!


            curl -k -u root:'myP@ssword_12345!' https://10.10.10.10/redfish/v1/UpdateService/update-multipart -F 'UpdateParameters={};type=application/octet-stream' -F UpdateFile=@/root/cec_ota_BMGP-04.0f_debug.bin

Use the following command to track the progress of the CEC firmware update.

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/TaskService/Tasks/0 | jq -r ' .PercentComplete'
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current Dload  Upload   Total   Spent    Left  Speed
100  2123  100  2123    0     0  38600      0 --:--:-- --:--:-- --:--:-- 37910
100

Note

After the CEC secure update operation is complete, CEC activation and reset should be done (see "Activating New CEC") to apply the changes once the update is finished.

Use the following command to verify the current CEC firmware version after reboot.

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/UpdateService/FirmwareInventory/Bluefield_FW_ERoT | jq -r ' .Version'

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100   421  100   421    0     0   1172      0 --:--:-- --:--:-- --:--:--  1172
19-4

Activating New CEC

Note

This is relevant only for BlueField-3 networking platforms (DPU or SuperNIC).

To activate the new CEC firmware, you must reset the CEC device. The following sub-sections describe possible reset options.

Resetting CEC and BMC Subsystems Using CEC Self-reset Command

Note

The CEC self-reset command is supported in CEC versions 00.02.0180.0000 and above. The command activates the new firmware on CEC and should only be used after the CEC update procedure is complete.

Redfish Command

Copy
Copied!


            curl -k -u root:'<password>' -H "Content-Type: application/json" -X POST -d '{"ResetType": "GracefulRestart"}' https://<bmc_ip>/redfish/v1/Chassis/Bluefield_ERoT/Actions/Chassis.Reset

Where:

password – password of root user
bmc_ip – BMC IP address

Command response options:

The response in case of success:

Copy
Copied!


            {
  "@Message.ExtendedInfo": [
    {
      "@odata.type": "#Message.v1_1_1.Message",
      "Message": "The request completed successfully.",
      "MessageArgs": [],
      "MessageId": "Base.1.15.0.Success",
      "MessageSeverity": "OK",
      "Resolution": "None"
    }
  ]
}

The response if there is no pending CEC firmware:

Copy
Copied!


            curl -k -u root:'<password>' -H "Content-Type: application/json" -X POST https://<bmc_ip>/redfish/v1/Chassis/Bluefield_ERoT/Actions/Chassis.Reset -d '{"ResetType":"GracefulRestart"}'
{
  "error": {
    "@Message.ExtendedInfo": [
      {
        "@odata.type": "#Message.v1_1_1.Message",
        "Message": "The requested resource of type ERoT FW named 'Pending-ERoT-FW' was not found.",
        "MessageArgs": [
          "ERoT FW",
          "Pending-ERoT-FW"
        ],
        "MessageId": "Base.1.15.0.ResourceNotFound",
        "MessageSeverity": "Critical",
        "Resolution": "Provide a valid resource identifier and resubmit the request."
      }
    ],
    "code": "Base.1.15.0.ResourceNotFound",
    "message": "The requested resource of type ERoT FW named 'Pending-ERoT-FW' was not found."
  }
}

The response if the command is not supported by the current CEC firmware:

Copy
Copied!


            curl -k -u root:'<password>' -H "Content-Type: application/json" -X POST https://<bmc_ip>/redfish/v1/Chassis/Bluefield_ERoT/Actions/Chassis.Reset -d '{"ResetType":"GracefulRestart"}'
{
  "error": {
    "@Message.ExtendedInfo": [
      {
        "@odata.type": "#Message.v1_1_1.Message",
        "Message": "The action ERoT self-reset is not supported by the resource.",
        "MessageArgs": [
          "ERoT self-reset"
        ],
        "MessageId": "Base.1.15.0.ActionNotSupported",
        "MessageSeverity": "Critical",
        "Resolution": "The action supplied cannot be resubmitted to the implementation.  Perhaps the action was invalid, the wrong resource was the target or the implementation documentation may be of assistance."
      }
    ],
    "code": "Base.1.15.0.ActionNotSupported",
    "message": "The action ERoT self-reset is not supported by the resource."
  }
}

IPMI Command

Copy
Copied!


            ipmitool raw 0x32 0xD2

Command response options:

If successful, no response is given. Glacier and BMC are reset.

The response if there is no pending CEC firmware is:

Copy
Copied!


            Unable to send RAW command (channel=0x0 netfn=0x32 lun=0x0 cmd=0xd2 rsp=0xd6): Cannot execute command, command disabled

The response if the command is not supported by the current CEC firmware is:

Copy
Copied!


            Unable to send RAW command (channel=0x0 netfn=0x32 lun=0x0 cmd=0xd2 rsp=0xd5): Command not supported in present state

Log Event Entries Created per Response Type

Log event entry created in case of success:

Copy
Copied!


            {
  "@odata.id": "/redfish/v1/Systems/Bluefield/LogServices/EventLog/Entries/<Id>",
  "@odata.type": "#LogEntry.v1_13_0.LogEntry",
  "AdditionalDataURI": "/redfish/v1/Systems/Bluefield/LogServices/EventLog/Entries/<Id>/attachment",
  "Created": "<Date>",
  "EntryType": "Event",
  "Id": "<Id>",
  "Message": "The request completed successfully.",
  "MessageArgs": [
    ""
  ],
  "MessageId": "Base.1.0.Success",
  "Name": "System Event Log Entry",
  "Resolution": "Ready for ERoT self Reset",
  "Resolved": false,
  "Severity": "OK"
}

Log event entry created if there is no pending CEC firmware:

Copy
Copied!


            curl -k -u root:'<password>' -H "Content-Type: application/json" -X GET https://<bmc_ip>/redfish/v1/Systems/Bluefield/LogServices/EventLog/Entries/11
{
  "@odata.id": "/redfish/v1/Systems/Bluefield/LogServices/EventLog/Entries/<Id>",
  "@odata.type": "#LogEntry.v1_13_0.LogEntry",
  "AdditionalDataURI": "/redfish/v1/Systems/Bluefield/LogServices/EventLog/Entries/<Id>/attachment",
  "Created": "<Date>",
  "EntryType": "Event",
  "Id": "<Id>",
  "Message": "Awaiting for an action to proceed with installing image '' on 'ERoT'.",
  "MessageArgs": [
    "",
    "ERoT"
  ],
  "MessageId": "Update.1.0.AwaitToUpdate",
  "Name": "System Event Log Entry",
  "Resolution": "Cannot perform ERoT self reset: There is no EC FW pending. Perform an ERoT FW update.",
  "Resolved": false,
  "Severity": "OK"
}

Log event entry created if the command is not supported by the current CEC firmware:

Copy
Copied!


            {
  "@odata.id": "/redfish/v1/Systems/Bluefield/LogServices/EventLog/Entries/<Id>",
  "@odata.type": "#LogEntry.v1_13_0.LogEntry",
  "AdditionalDataURI": "/redfish/v1/Systems/Bluefield/LogServices/EventLog/Entries/<Id>/attachment",
  "Created": "<Date>",
  "EntryType": "Event",
  "Id": "<Id>",
  "Message": "The action ERoT self Reset is not supported by the resource.",
  "MessageArgs": [
    "ERoT self Reset"
  ],
  "MessageId": "Base.1.0.ActionNotSupported",
  "Name": "System Event Log Entry",
  "Resolution": "Cannot perform ERoT self reset: The action is not supported by the current ERoT version.",
  "Resolved": false,
  "Severity": "OK"
}

Possible log event entries created if an error occurs during the BMC shutdown procedure (received after a success log event entry):

Copy
Copied!


            {
  "@odata.id": "/redfish/v1/Systems/Bluefield/LogServices/EventLog/Entries/<Id>",
...
  "MessageId": "Base.1.0.InternalError",
  "Name": "System Event Log Entry",
  "Resolution": "ERoT Reset: Failed to close services towards ERoT reset",
  "Resolved": false,
  "Severity": "Critical"
}

Copy
Copied!


            {
  "@odata.id": "/redfish/v1/Systems/Bluefield/LogServices/EventLog/Entries/<Id>",
...
  "MessageId": "Base.1.0.InternalError",
  "Name": "System Event Log Entry",
  "Resolution": "ERoT Reset: Isolate operation may still be in progress.",
  "Resolved": false,
  "Severity": "Critical"
}

Copy
Copied!


            {
  "@odata.id": "/redfish/v1/Systems/Bluefield/LogServices/EventLog/Entries/<Id>",
...
  "MessageId": "Base.1.0.InternalError",
  "Name": "System Event Log Entry",
  "Resolution": "ERoT Reset: Failed to unmount file system towards ERoT reset.",
  "Resolved": false,
  "Severity": "Critical"
}

Copy
Copied!


            {
  "@odata.id": "/redfish/v1/Systems/Bluefield/LogServices/EventLog/Entries/<Id>",
...
  "MessageId": "Base.1.0.InternalError",
  "Name": "System Event Log Entry",
  "Resolution": ERoT Reset: Failed to unmount file system. It is still mounted as read-write (rw),
  "Resolved": false,
  "Severity": "Critical"
}

Resetting CEC and BMC Subsystems Using IPMI I2C Command over SMBus Channel Connected to PCIe Golden Finger

Note

This option is valid only for servers which support I²C over SMBus from the host BMC.

Copy
Copied!


            ipmitool raw 0x06 0x52 <BUS-ID> 0x82 0x00 0x03 0xFE
ipmitool raw 0x06 0x52 <BUS-ID> 0x82 0x00 0x01 0xFE
sleep <100ms>
ipmitool raw 0x06 0x52 <BUS-ID> 0x82 0x00 0x01 0xFF
ipmitool raw 0x06 0x52 <BUS-ID> 0x82 0x00 0x03 0xFF

Info

The BUS-ID value is system related. It relays how the host BMC is connected to the SMBus of the related BlueField.

Info

The format of the ipmitool i2c command is as follows:

Copy
Copied!


            ipmitool raw <netfun> <cmd> <bus-id> <addr> <read-count> <write-data1> <write-data2>

Resetting the Entire BlueField

This option typically involves a full power cycle of the host platform.

CEC Background Update Status

Info

This section is relevant only for BlueField-3.

BMC and CEC have an active and inactive copy of the same firmware image on their respective firmware SPI flash devices. The firmware update is performed on the inactive copy. Upon a successful boot from the newly updated and active image, the inactive image (e.g., the previously active image) is updated with the latest image.

Note

Firmware update cannot be initiated if the background copy is in progress.

To check the status of the background update, run:

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/Chassis/Bluefield_ERoT
...
  "Oem": {
    "Nvidia": {
      "@odata.type": "#NvidiaChassis.v1_0_0.NvidiaChassis",
      "AutomaticBackgroundCopyEnabled": true,
      "BackgroundCopyStatus": "Completed",
      "InbandUpdatePolicyEnabled": true
    }
  }
…

Info

The background update initially indicates InProgress while the inactive copy of the image is being updated.

Possible Error Codes

Info

This section is relevant only for BlueField-3.

Fault	Diagnosis and Possible Solution
Connection to BMC breaks during firmware package transfer	Redfish task URI is not returned by the Redfish server The Redfish server (if operational) is in `idle` state After a reboot of BMC, or after restart/recovery of the Redfish server, the Redfish server is in `idle` state A new firmware update can be attempted by the Redfish client.
Connection to BMC breaks during firmware update	Redfish task URI that was previously returned by the Redfish server is no longer accessible The Redfish server (if operational) is in one of the following states: In `idle` state, if the firmware update has completed In `update` state, if the firmware update is still ongoing After a BMC reboot, or after restart/recovery of the Redfish server, the Redfish server is in `idle` state A new firmware update can be attempted by the Redfish client.
Two firmware update requests are initiated	The Redfish server blocks the second firmware update request and returns the following: HTTP code 400 "Bad Request" Redfish message based on standard registry entry `UpdateInProgress` A resolution is proposed: "Another update is in progress. Retry the update operation once it is complete." Check the status of the ongoing firmware update by looking at the `TaskCollection` resource.
Redfish task hangs	Redfish task URI that was previously returned by the Redfish server is no longer accessible PLDM-based firmware update progresses After a reboot of BMC, or after restart/recovery of the Redfish server, the Redfish server us in `idle` state A new firmware update can be attempted by the Redfish client.
BMC-EROT communication failure during image transfer	The Redfish task monitoring the firmware update indicates a failure: `TaskState` is set to `Exception` `TaskStatus` is set to `Warning` `Messages` array in the task includes an entry based on the standard registry `Update.1.0.0.TransferFailed` indicating the components that failed during image transfer The Redfish client may retry the firmware update.
Firmware update fails	The Redfish task monitoring the firmware update indicates a failure: `TaskState` is set to `Exception` `TaskStatus` is set to `Warning` `Messages` array in the task includes an entry describing the error The Redfish client may retry the firmware update.
ERoT failure (not responding)	The Redfish task monitoring the firmware update indicates a failure: `TaskState` is set to `Canceled` `TaskStatus` is set to `Warning` `Messages` array in the task includes an entry describing the error The Redfish client reports the error The Redfish client may retry the firmware update.
Firmware image validation failure	The Redfish task monitoring the firmware update indicates a failure: `TaskState` is set to `Exception` `TaskStatus` is set to `Warning` `Messages` array in the task includes an entry based on the standard registry `Update.1.0.0.VerificationFailed` to indicate the component for which verification failed The Redfish client reports the error The Redfish client might retry the firmware update.
Power loss before activation command is sent	The Redfish server is in `idle` state A new firmware update can be attempted by the Redfish client.
Firmware activation failure	The Redfish task monitoring the firmware update indicates a failure: `TaskState` is set to `Exception` `TaskStatus` is set to `Warning` `Messages` array in the task includes an entry based on the standard registry `Update.1.0.ActivateFailed` The Redfish client may retry the firmware update.
Push to BMC firmware package greater than 200 MB	No Redfish task is created `Messages` array in the task includes an entry based on the standard registry `Base.1.15.0.PayloadTooLarge` and the `Resolution` "Firmware package size is greater than allowed size". Make sure the package size is less than the `UpdateService.MaxImageSizeBytes` property and retry the firmware update operation.

On This Page

CEC and BMC Firmware Operations

CEC and BMC Firmware Commands

Triggering Secure Firmware Update

Tracking Secure Firmware Update Progress

Resetting/Rebooting BMC

Getting the Running BMC Firmware Version

Getting the Running CEC Firmware Version

ForceUpdate

Updating BMC

Updating CEC

Activating New CEC

Resetting CEC and BMC Subsystems Using CEC Self-reset Command

Redfish Command

IPMI Command

Log Event Entries Created per Response Type

Resetting CEC and BMC Subsystems Using IPMI I2C Command over SMBus Channel Connected to PCIe Golden Finger

Resetting the Entire BlueField

CEC Background Update Status

Possible Error Codes
