VirtIO-net Emulated Devices

1.0

This feature enables users to create VirtIO-net emulated PCIe devices in the system where the NVIDIA® BlueField®-2 DPU is connected. This is done by the virtio-net-controller software module present in the DPU. Virtio-net emulated devices allow users to hot plug up to 16 virtio-net PCIe PF Ethernet NIC devices or 504 virtio-net PCIe VF Ethernet NIC devices in the host system where the DPU is plugged in.

Warning

Currently, VirtIO specification v1.0 is supported.

DPU software also enables users to create virtio block PCIe PF and SR-IOV PCIe VF devices. This is covered in the NVIDIA BlueField SNAP and virtio-blk SNAP Documentation.

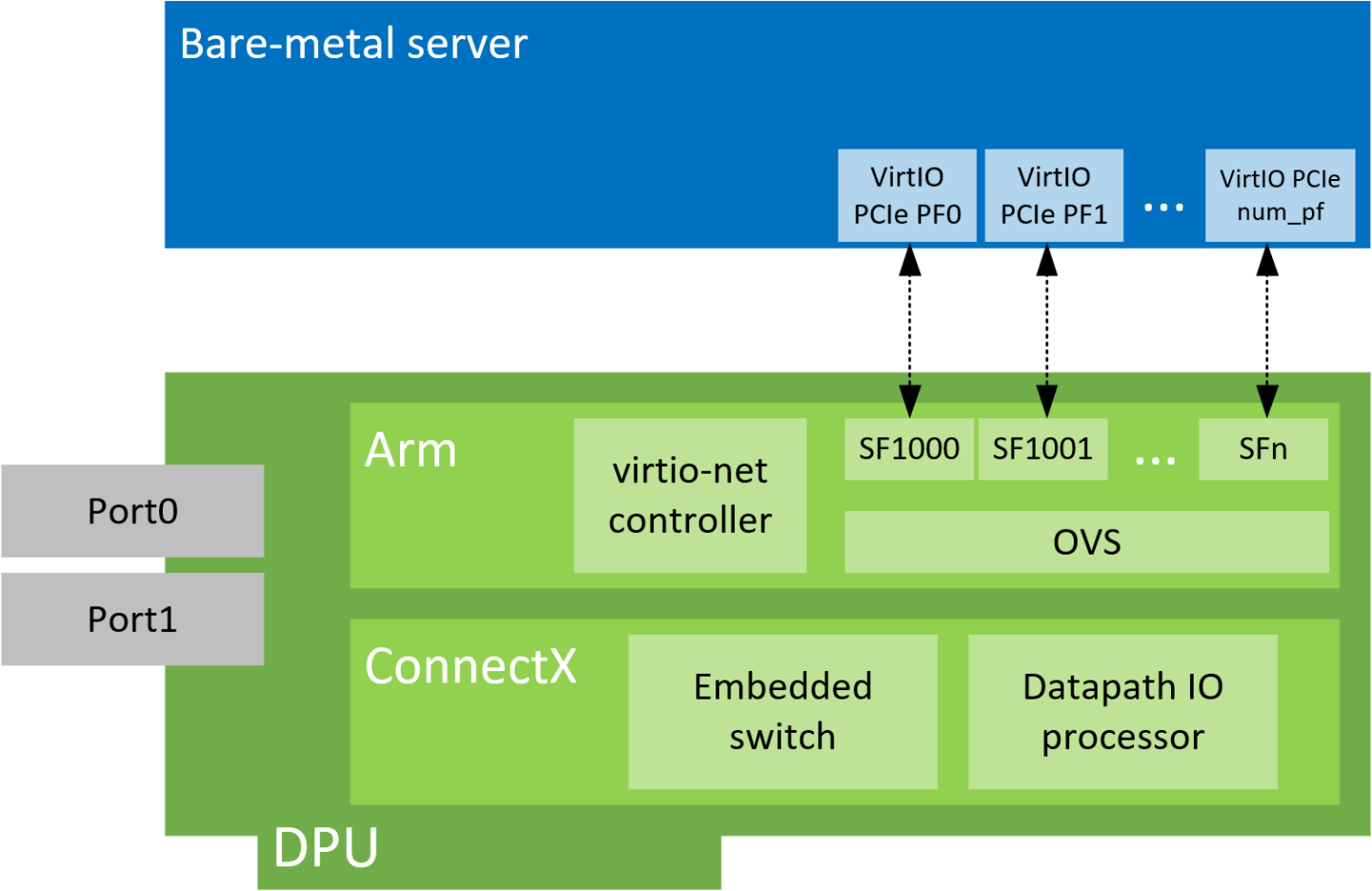

Virtio-net-controller is a systemd service running on the DPU, with a user interface frontend to communicate with the background service. An SF representor is created for each virtio-net device created on the host. Virtio-net controller only uses an SF number ≥1000. Refer to section "Scalable Functions" for more information.

Warning

SF representor name is determined by udev rules. The default name is in the format of <prefix><pf_num><sf_num>. For example: en3f0pf0sf1001.

Important

Since the controller provides hardware resources and ACKs the request from the host's VirtIO driver, in order to reboot the DPU and host OS, it is necessary to reboot the host OS first, and only then reboot the DPU.

SystemD Service

Controller systemd service is enabled by default and runs automatically if VIRTIO_NET_EMULATION_ENABLE is true from mlxconfig.

  1. To check controller service status, run:

    Copy
    Copied!


    $ systemctl status virtio-net-controller.service

  2. To reload the service, make sure to unload virtio-net/virtio-pcie drivers on host. Then run:

    Copy
    Copied!


    $ systemctl restart virtio-net-controller.service

  3. To monitor log output of the controller service, run:

    Copy
    Copied!


    $ journalctl -u virtio-net-controller

The controller service has an optional configuration file which allows users to customize several parameters. The configuration file should be defined on the DPU at the following path /opt/mellanox/mlnx_virtnet/virtnet.conf.

This file is read every time the controller starts. Dynamic change of virtnet.conf is not supported. It is defined as a JSON format configuration file. The currently supported options are:

  • ib_dev_p0 – RDMA device (e.g., mlx5_0) used to create SF on port 0. This port is the EMU manager when is_lag is 0. Default value is mlx5_0.

  • ib_dev_p1 – RDMA device (e.g., mlx5_1) used to create SF on port 1. Default value is mlx5_1.

  • ib_dev_lag – RDMA LAG device (e.g., mlx5_bond_0) used to create SF on LAG. Default value is mlx5_bond_0. This port is EMU manager when is_lag is 1. ib_dev_lag and ib_dev_p0/ib_dev_p1 cannot be configured simultaneously.

  • ib_dev_for_static_pf – the RDMA device (e.g., mlx5_0) which the static VirtIO PF is created on

  • is_lag – specifies whether or not LAG is used. Note that if LAG is used, make sure to use the correct IB dev for static PF.

  • pf_mac – base MAC address for static PFs. MACs are automatically assigned with the following pattern: pf_macpf_0, pf_mac+1→pf_1, etc.

    Warning

    Note that the controller does not validate the MAC address (other than its length). The user must ensure MAC is valid and unique.

  • recovery – specifies whether recovery is enabled. If unspecified, recovery is enabled by default. To disable it, set recovery to 0.

  • sf_pool_percent – determines the initial SF pool size as the percentage of PF_TOTAL_SF of mlxconfig. Valid range: [0, 100]. For instance, if the value is 5, it means an SF pool with 5% of PF_TOTAL_SF is created. 0 means no SF pool is reserved beforehand (default).

    Warning

    PF_TOTAL_SF is shared by all applications. User must ensure the percent request is guaranteed or else the controller will not be able to reserve the requested SFs resulting in failure.

  • sf_pool_force_destroy – specifies whether to destroy the SF pool. When set to 1, the controller destroys the SF pool when stopped/restarted (and the SF pool is recreated if sf_pool_percent is not 0 when starting), otherwise it does not. Default value is 0.

For example, the definition below has all static PFs using mlx5_0 (port 0) as the data path device in a non-lag configuration:

Copy
Copied!


{ "ib_dev_p0": "mlx5_0", "ib_dev_p1": "mlx5_1", "ib_dev_for_static_pf": "mlx5_0", "is_lag": 0, "pf_mac": "00:11:22:33:44:55", "recovery": 1, "sf_pool_percent": 0, "sf_pool_force_destroy": 0 }

The following is an example for LAG configuration:

Copy
Copied!


{ "ib_dev_lag": "mlx5_bond_0", "ib_dev_for_static_pf": "mlx5_bond_0", "is_lag": 1, "pf_mac": "00:11:22:33:44:55", "recovery": 1, "sf_pool_percent": 0, "sf_pool_force_destroy": 0 }


User Frontend

To communicate with the service, a user frontend program (virtnet) is installed on the DPU. Run the following command to check its usage:

Copy
Copied!


# virtnet -h usage: virtnet [-h] [-v] {hotplug,unplug,list,query,modify,log} ...   Nvidia virtio-net-controller command line interface v1.0.9   positional arguments: {hotplug,unplug,list,query,modify,log} ** Use -h for sub-command usage hotplug hotplug virtnet device unplug unplug virtnet device list list all virtnet devices query query all or individual virtnet device(s) modify modify virtnet device log set log level   optional arguments: -h, --help show this help message and exit -v, --version show program's version number and exit

Note that each positional argument has its own help menu as well. For example:

Copy
Copied!


# virtnet log -h usage: virtnet log [-h] -l {info,err,debug} optional arguments: -h, --help show this help message and exit -l {info,err,debug}, --level {info,err,debug} log level: info/err/debug

To operate a particular device, either the VUID or device index can be used to locate the device. Both attributes can be fetched from command "virtnet list". For example, to modify the MAC of a specific VF, you may run either of the following commands:

Copy
Copied!


# virtnet modify -p 0 –v 0 device -m 0C:C4:7A:FF:22:98

Or:

Copy
Copied!


# virtnet modify -u <VUID-string> device -m 0C:C4:7A:FF:22:98

Warning

Note that the following modify options require unbinding the virtio device from virtio-net driver in the guest OS:

  • MAC

  • MTU

  • Features

  • Msix_num

  • max_queue_size

For example:

  • On the guest OS:

    Copy
    Copied!


    $ echo "bdf of virtio-dev" > /sys/bus/pci/drivers/virtio-pci/unbind

  • On the Arm side:

    Copy
    Copied!


    $ virtnet modify ...

  • On the guest OS:

    Copy
    Copied!


    $ echo "bdf of virtio-dev" > /sys/bus/pci/drivers/virtio-pci/bind


Controller Recovery

It is possible to recover the control and data planes if communications are interrupted so the original traffic can resume.

Recovery depends on the JSON files stored in /opt/mellanox/mlnx_virtnet/recovery where there is a file that corresponds to each device (either PF or VF). The following is an example of the data stored in these files:

Copy
Copied!


{ "port_ib_dev": "mlx5_0", "pf_id": 0, "function_type": "pf", "bdf_raw": 26624, "device_type": "hotplug", "mac": "0c:c4:7a:ff:22:93", "pf_num": 0, "sf_num": 2000, "mq": 1 }

These files should not be modified under normal circumstances. However, if necessary, advanced users may tune settings to meet their requirements. Users are responsible for the validity of the recovery files and should only perform this when the controller is not running.

Warning

Controller recovery is enabled by default and does not need user configuration or intervention unless a system reset is needed or BlueField configuration is changed (i.e. any of the mlxconfig options PCI_SWITCH_EMULATION_NUM_PORT, VIRTIO_NET_EMULATION_NUM_VF, or VIRTIO_NET_EMULATION_NUM_PF). To this end, the files under /opt/mellanox/mlnx_virtnet/recovery must be deleted.

The first time LAG is configured with a controller, recover files must be cleaned up to ensure the controller does not try to recover devices with the previous IB parent device.


Controller Live Update

Live update minimizes network interface down time by performing online upgrade of the virtio-net controller without necessitating a full restart.

To perform a live update, you must install a newer version of the controller either using the rpm or deb package (depending on the OS distro used). Run:

For Ubuntu/Debian

Copy
Copied!


dpkg --force-all -i virtio-net-controller-x.y.z-1.mlnx.aarch64.deb

For CentOS/RedHat

Copy
Copied!


rpm -Uvh virtio-net-controller-x.y.z-1.mlnx.aarch64.rpm --force

It is recommended to use the following command to verify the versions of the controller currently running and the one just installed:

Copy
Copied!


virtnet version

If the versions that are correct, issue the following command to start the live update process:

Copy
Copied!


virtnet update --start virtnet update -s

Warning

If an error appears regarding the "update" command not being supported, this implies that the controller version you are trying to install is too old. Reinstalling the proper version will resolve this issue.

During the update process, the following command may be used to check the update status:

Copy
Copied!


virtnet update status virtnet update -t

During the update, all existing virtnet commands (e.g., list, query, modify) are still supported. VF creation/deletion works as well.

When the update process completes successfully, the command virtnet update status will reflect the status accordingly.

Warning

If a device is actively migrating, the existing virtnet commands will appear as "migrating" for that specific device so that user can retry later.


This section covers managing virtio-net PCIe PF devices using virtio-net controller.


VirtIO-net PF Device Configuration

  1. Run the following command on the DPU:

    Copy
    Copied!


    $ mlxconfig -d /dev/mst/mt41686_pciconf0 s INTERNAL_CPU_MODEL=1

  2. Add the following kernel boot parameters to the Linux boot arguments:

    Copy
    Copied!


    intel_iommu=on iommu=pt pci=realloc

  3. Cold reboot the host system.

  4. Apply the following configuration on the DPU:

    Copy
    Copied!


    $ mst start $ mlxconfig -d /dev/mst/mt41686_pciconf0 s PF_BAR2_ENABLE=0 PER_PF_NUM_SF=1 $ mlxconfig -d /dev/mst/mt41686_pciconf0 s \ PCI_SWITCH_EMULATION_ENABLE=1 \ PCI_SWITCH_EMULATION_NUM_PORT=16 \ VIRTIO_NET_EMULATION_ENABLE=1 \ VIRTIO_NET_EMULATION_NUM_VF=0 \ VIRTIO_NET_EMULATION_NUM_PF=0 \ VIRTIO_NET_EMULATION_NUM_MSIX=10 \ ECPF_ESWITCH_MANAGER=1 \ ECPF_PAGE_SUPPLIER=1 \ SRIOV_EN=0 \ PF_SF_BAR_SIZE=10 \ PF_TOTAL_SF=64 $ mlxconfig -d /dev/mst/mt41686_pciconf0.1 s \ PF_SF_BAR_SIZE=10 \ PF_TOTAL_SF=64

  5. Cold reboot the host system a second time.

Creating Hotplug VirtIO-net PF Device

Virtio emulated network PCIe devices are created and destroyed using virtio-net-controller application console. When this application is terminated, all created Virtio-net emulated devices are hot unplugged.

  1. Create a hotplug virtio-net device. Run:

    Copy
    Copied!


    $ virtnet hotplug -i mlx5_0 -f 0x0 -m 0C:C4:7A:FF:22:93 -t 1500 -n 3 -s 1024

    Warning

    The maximum number of virtio-net queues is bound by the minimum of the following numbers:

    • VIRTIO_NET_EMULATION_NUM_MSIX from the command mlxconfig -d <mst_dev> q

    • max_virtq from the command virtnet list

    This creates one hotplug virtio-net device with MAC address 0C:C4:7A:FF:22:93, MTU 1500, and 3 virtio queues with a depth of 1024 entries. This device is uniquely identified by its index. This index is used to query and update device attributes. If the device is created successfully, an output appears similar to the following:

    Copy
    Copied!


    { "bdf": "85:00.0", "vuid": "VNETS1D0F0", "id": 3, "sf_rep_net_device": "en3f0pf0sf2000", "mac": "0C:C4:7A:FF:22:93" }

  2. Add the representor port of the device to the OVS bridge and bring it up. Run:

    Copy
    Copied!


    $ ovs-vsctl add-port <bridge> en3f0pf0sf2000 $ ip link set dev en3f0pf0sf2000 up

    Once steps 1-3 are completed, virtio-net device should be available in the host system.

  3. To query all the device configurations of virtio-net device that you created, run:

    Copy
    Copied!


    $ virtnet query –p 0

  4. To list all the virtio-net devices, run:

    Copy
    Copied!


    $ virtnet list

  5. To modify device attributes, for example, changing its MAC address, run:

    Copy
    Copied!


    $ virtnet modify -p 0 device -m 0C:C4:7A:FF:22:98

  6. Once usage is complete, to hot-unplug a virtio-net device, run:

    Copy
    Copied!


    $ virtnet unplug -p 0

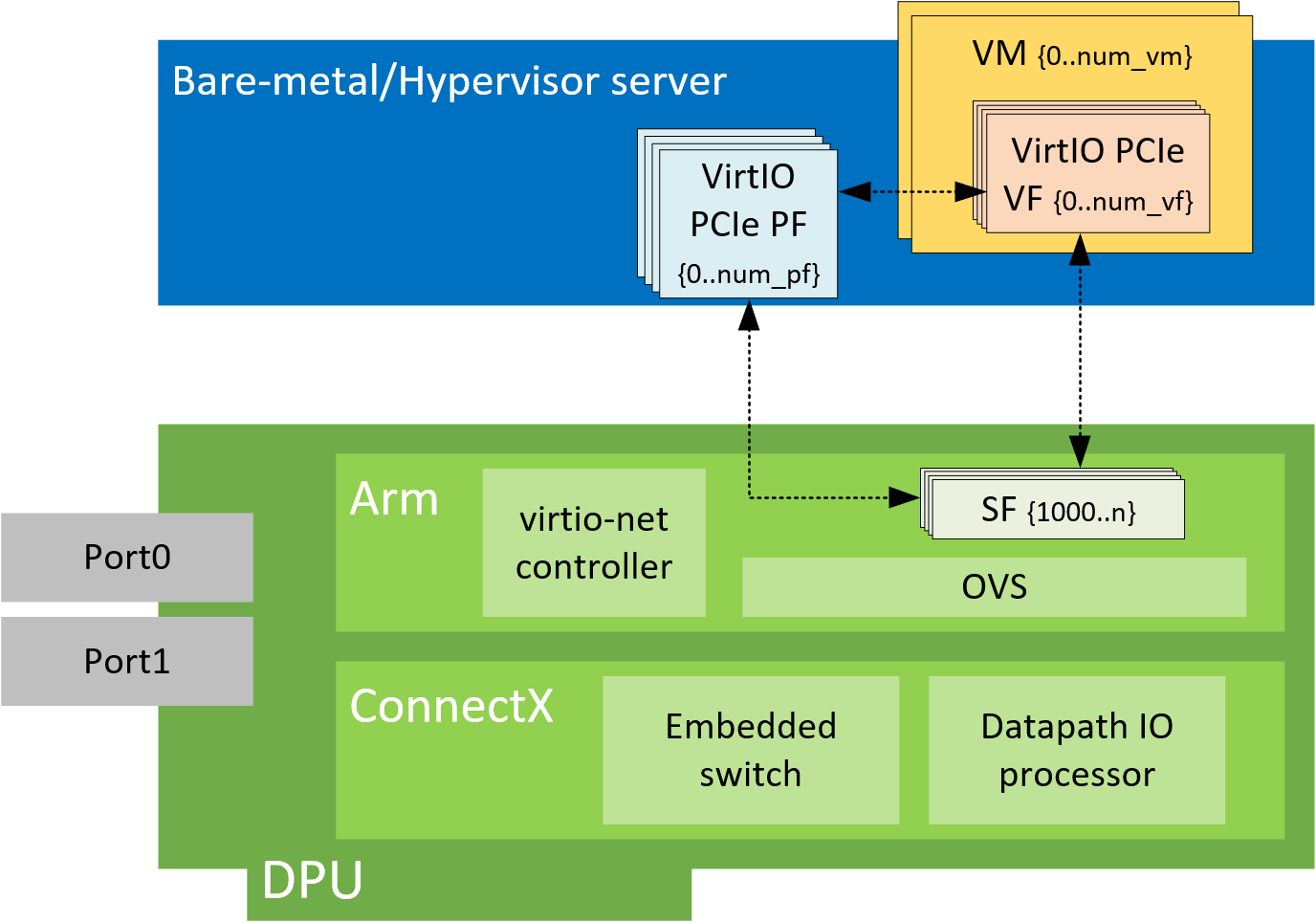

This section covers managing virtio-net PCIe SR-IOV VF devices using virtio-net-controller.


Virtio-net SR-IOV VF Device Configuration

Warning

Virtio-net SR-IOV VF is only supported with statically configured PF, hot-plugged PF is not currently supported.

  1. On the DPU, make sure virtio-net-controller service is enabled so that it starts automatically. Run:

    Copy
    Copied!


    systemctl status virtio-net-controller.service

  2. On the host, enable SR-IOV. Please refer to MLNX_OFED documentation under Features Overview and Configuration > Virtualization > Single Root IO Virtualization (SR-IOV) > Setting Up SR-IOV for instructions on how to do that. Make sure the parameters "intel_iommu=on iommu=pt pci=realloc" exist in grub.conf file.

  3. It is recommended to add pci=assign-busses to the boot command line when creating more than 127 VFs. Without this option, the following errors might appear from host and the virtio driver will not probe these devices.

    Copy
    Copied!


    pci 0000:84:00.0: [1af4:1041] type 7f class 0xffffff pci 0000:84:00.0: unknown header type 7f, ignoring device

  4. Run the following command on the DPU:

    Copy
    Copied!


    mst start && mlxconfig -d /dev/mst/mt41686_pciconf0 s INTERNAL_CPU_MODEL=1

  5. Cold reboot the host system.

  6. Apply the following configuration on the DPU in three steps to support up to 125 VFs per PF (500 VFs in total).

    1. Copy
      Copied!


      $ mst start && mlxconfig -d /dev/mst/mt41686_pciconf0 s PF_BAR2_ENABLE=0 PER_PF_NUM_SF=1

    2. Copy
      Copied!


      $ mlxconfig -d /dev/mst/mt41686_pciconf0 s \ PCI_SWITCH_EMULATION_ENABLE=0 \ PCI_SWITCH_EMULATION_NUM_PORT=0 \ VIRTIO_NET_EMULATION_ENABLE=1 \ VIRTIO_NET_EMULATION_NUM_VF=126 \ VIRTIO_NET_EMULATION_NUM_PF=4 \ VIRTIO_NET_EMULATION_NUM_MSIX=4 \ ECPF_ESWITCH_MANAGER=1 \ ECPF_PAGE_SUPPLIER=1 \ SRIOV_EN=1 \ PF_SF_BAR_SIZE=8 \ PF_TOTAL_SF=508 \ NUM_OF_VFS=0

    3. Copy
      Copied!


      $ mlxconfig -d /dev/mst/mt41686_pciconf0.1 s PF_TOTAL_SF=1 PF_SF_BAR_SIZE=8

  7. Cold reboot the host system.

Creating Virtio-net SR-IOV VF Devices

  1. On the host, make sure the static virtio network device presents. Run:

    Copy
    Copied!


    # lspci | grep -i virtio 85:00.3 Network controller: Red Hat, Inc. Virtio network device

  2. On the host, make sure virtio_pci and virtio_net are loaded. Run:

    Copy
    Copied!


    # lsmod | grep virtio

    The net device should be created:

    Copy
    Copied!


    # ethtool -i p7p3 driver: virtio_net version: 1.0.0 firmware-version: expansion-rom-version: bus-info: 0000:85:00.3 supports-statistics: no supports-test: no supports-eeprom-access: no supports-register-dump: no supports-priv-flags: no

  3. To create SR-IOV VF devices on the host, run:

    Copy
    Copied!


    # echo 2 > /sys/bus/pci/drivers/virtio-pci/0000\:85\:00.3/sriov_numvfs

    Warning

    When the number of VFs created is high, SR-IOV enablement may take several minutes.

    2 VFs should be created from the host:

    Copy
    Copied!


    # lspci | grep -i virt 85:00.3 Network controller: Red Hat, Inc. Virtio network device 85:04.5 Network controller: Red Hat, Inc. Virtio network device 85:04.6 Network controller: Red Hat, Inc. Virtio network device

  4. From the DPU virtio-net controller, run the following command to get VF information.

    Copy
    Copied!


    # virnet list { "vf_id": 0, "parent_pf_id": 0, "function_type": "VF", "vuid": "VNETS0D0F2VF1", "bdf": "83:00.6", "sf_num": 3000, "sf_parent_device": "mlx5_0", "sf_rep_net_device": "en3f0pf0sf3000", "sf_rep_net_ifindex": 19, "sf_rdma_device": "mlx5_7", "sf_vhca_id": "0x192", "msix_config_vector": "0x0", "num_msix": 10, "max_queues": 4, "max_queues_size": 256, "net_mac": "5A:94:07:04:F6:1C", "net_mtu": 1500 },

    You may use the pci-bdf to match the PF/VF on the host to the information showing on DPU.

    To query all the device configurations of the virtio-net device of that VF, run:

    Copy
    Copied!


    $ virtnet query -p 0 -v 0

    Add the corresponding SF representor to the OVS bridge and bring it up. Run:

    Copy
    Copied!


    # ovs-vsctl add-port <bridge> en3f0pf0sf1004 # ip link set dev en3f0pf0sf1004 up

    Now the VF is functional.

    Warning

    When port MTU (p0/p1 of the DPU) is changed after the controller is started, you must restart controller service. It is not recommended to use jumbo MTUs because that may lead to performance degradation.

  5. To destroy SR-IOV VF devices on the host, run:

    Copy
    Copied!


    # echo 0 > /sys/bus/pci/drivers/virtio-pci/0000\:85\:00.3/sriov_numvfs

    Warning

    When the command returns from the host OS, it does not necessarily mean the controller finished its operations. Look at controller log from the DPU and make sure you see a log like below before removing VirtIO kernel modules or recreate VFs.

    Copy
    Copied!


    # virtio-net-controller[3544]: [INFO] virtnet.c:617:virtnet_device_vfs_unload: PF(0): Unload (4) VFs finished

    Once VFs are destroyed, created SFs from the DPU side are not destroyed but are saved into the SF pool to be reused later.
