UEFI Secure Boot

Warning

This feature is available in NVIDIA® BlueField®-2 DPUs and up.

UEFI secure boot is a feature of the Unified Extensible Firmware Interface (UEFI) specification. The feature defines a new interface between the OS and firmware/BIOS.

When enabled and fully configured on the DPU, UEFI secure boot helps the Arm-based software running on top of UEFI resist attacks and infection from malware. UEFI secure boot detects tampering with boot loaders, key operating system files, and unauthorized option ROMs by validating their digital signatures. Detections are blocked from running before they can attack or infect the system.

UEFI secure boot works like a security gate. Code signed with valid keys (whose public key/certificates exist in the DPU) gets through the gate and executes. However, UEFI secure boot blocks at the gate and rejects a code that has a bad signature or no signature.

The DPU enables UEFI secure boot with the Ubuntu OS that is included in the platform software.

Verifying UEFI Secure Boot on DPU

To verify whether UEFI secure boot is enabled, run the following command from the BlueField console:

Copy
Copied!


ubuntu@localhost:~$ sudo mokutil --sb-state SecureBoot enabled

As UEFI secure boot is not specific to BlueField platforms, refer to the Canonical documentation online for further information on UEFI secure boot to familiarize yourself with the UEFI secure boot concept:

Main Use Cases for UEFI Secure Boot

UEFI secure boot can be used in 2 main cases for the DPU:

#

Method

Pros

Cons

1

Using the default enabled UEFI secure boot (with Ubuntu OS or any Microsoft signed boot loader)

Warning

Relatively easy

Limited flexibility; only allows executing NVIDIA binary files

Dependency on Microsoft as signing entity

2

Enabling UEFI secure boot with a user/custom OS (other than the default Ubuntu)

Warning

Please contact NVIDIA Networking Support for instructions

Autonomy – you control your keys (no dependency on Microsoft or NVIDIA as signing entities)

Necessitates creating your own capsule files to enroll and customize UEFI secure boot

Signing binaries is complex as you must create X.509 certificates and enroll them in UEFI or shim which requires a fair amount of prior knowledge of how secure boot works. For that reason, BlueField secured platforms are shipped with all the needed certificates and signed binaries (allowing seamless work with case #1).

Warning

NVIDIA strongly recommends utilizing UEFI secure boot in any case due the increased security it enables.


UEFI secure boot is enabled as part of the default settings of the DPU and requires no special configuration from the user to use with the bundled Ubuntu operating system.

Disabling UEFI Secure Boot

UEFI secure boot can be disabled per device from the UEFI menu as part of the DPU boot process, which requires access to the BlueField console.

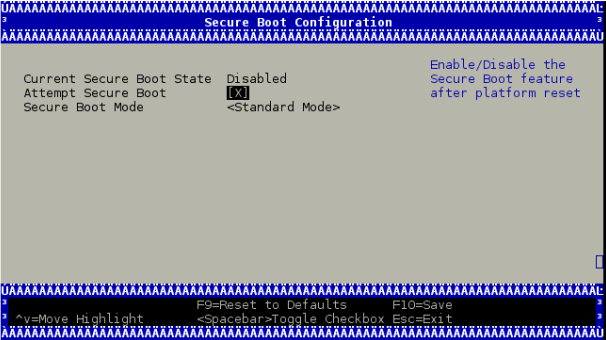

To disable UEFI secure boot, reboot the platform and stop at the UEFI menu. From the UEFI menu screen, select "Device Manager", then "Secure Boot Configuration". If "Attempt Secure Boot" is checked, then uncheck it and reboot.


Warning

Disabling secure boot permanently is not recommended in production environments.


Existing DPU Certificates

As part of having UEFI secure boot enabled, the UEFI databases are populated with NVIDIA self-signed X.509 certificates. The Microsoft certificate is also installed into the UEFI database to ensure that the Ubuntu distribution can boot while UEFI secure boot is enabled (and generally any DPU-compatible OS loader signed by Microsoft).

The pre-installed certificate files are:

  • NVIDIA PK key certificate

  • NVIDIA KEK key certificate

  • NVIDIA db certificate

  • Microsoft db certificate

  • Canonical db certificate

To be able to utilize UEFI secure boot with a user/custom OS (other than the default Ubuntu) several steps are required. These steps are depicted in the following sections.

Warning

All processes described in the following sections require some level of testing and knowledge in how OS boot flows and bootloaders work.

Options for Enabling UEFI Secure Boot

There are 3 main methods to sign custom binaries and run them on the DPU with UEFI secure boot enabled:

#

Method

Pros

Cons

1

Sign OS loader (e.g. Shim) by Microsoft. See section "Signing OS Loader by Microsoft" for more information.

Does not require access to the BlueField console

Dependency on Microsoft as signing entity

2

Shim – enroll an MOK key certificate in the shim and use the private part to sign your files

Warning

Before using this method, make sure to generate custom keys and certificates according to section "Generation of Custom Keys and Certificates".

Easy

  • Very limited flexibility

  • Only allows executing a custom kernel or load a custom module

  • Does not allow executing UEFI applications, UEFI drivers or OS loaders

Does not require access to the BlueField console

  • Dependency on Microsoft as signing entity

  • Not scalable – requires access to BlueField console per device (i.e., UART console required)

3

UEFI – enroll your own key certificate in the UEFI database and use the private part to sign your files

Warning

Before using this method, make sure to generate custom keys and certificates according to section "Generation of Custom Keys and Certificates

Autonomy – you control your keys (not dependent on Microsoft or NVIDIA as signing entities)

  • Necessitates manually adding your key certificate to database

  • Not scalable – requires access to BlueField console per device (i.e., UART console required)

Signing binaries for UEFI secure boot is complex as it requires creating X.509 certificates and enrolling them in UEFI or shim which requires a fair amount of prior knowledge of how secure boot works. For that reason, the processes used to enroll keys and to sign UEFI binaries are available in this document.

You may want to execute a UEFI application, a UEFI driver, an OS loader, or a custom kernel, or load a custom module. Secure booting these binaries depends on the certificates and public keys available in the UEFI database and the shim MOK list.

Custom Kernel Images

One option to boot custom binaries on a DPU is to sign the OS loader (Shim) by Microsoft following the guidelines which are updated and maintained by Microsoft.

The certificates/keys must be embedded within the shim OS loader for it to boot the custom Kernel binary image and custom Kernel modules signed accordingly.

Warning

Signing binaries with Microsoft is a process the involves lead time that needs to be taken into consideration. This course of action requires testing to making sure the complied BFB image including the Microsoft-signed bootloader works properly.


NVIDIA Kernel Modules

In this option, the NVIDIA db certificates (mentioned in section ‎"Existing DPU Certificates") must remain enrolled. This is due to the NVIDIA provided out-of-tree kernel modules and drivers (e.g., OFED) which are signed by NVIDIA and authenticated by this NVIDIA certificate in the UEFI.

To boot binaries not signed with the existing public keys and certificates in the UEFI database (like the Microsoft certificate and key described above), create an X.509 certificate (which includes the public key part of the public–private key pair) that can be imported either directly though the UEFI or, more easily, via shim.

Creating a certificate and public key for use in UEFI secure boot is relatively simple. OpenSSL can do it by running the command req.

For illustration purposes only, this example shows how to create a 2048-bit RSA MOK key and its associated certificate file in *.der format:

Copy
Copied!


$ openssl req -new -x509 -newkey rsa:2048 -nodes -days 36500 -outform DER -keyout "mok.priv" -out "mok.der"

An OpenSSL configuration file may be used for key generation. It can be specified using --config path/to/openssl.cnf.

Warning

Detailed key and certificate generation are beyond the scope of this document. Organizations must choose the proper way to generate keys and certificates based on their own security policy.

In the following sections we refer to the db private key as "key.priv" and its DER certificate as "cert.der". Similarly, the MOK private key is referred to as "mok.priv" and its DER certificate as "mok.der".

To boot a custom kernel or load a custom module, you will need to create a MOK key pair. The newly created MOK key must be an RSA 2048-bit. The private part is used for signing operations and must be kept safe. The public part X.509 key certificate in DER format must be enrolled within the shim MOK list.

Once the public key certificate is enrolled within the shim, the MOK key will be accepted as a valid signing key.

Note that kernel module signing requires a special configuration. For example, the extendedKeyUsage field must show an OID of 1.3.6.1.4.1.2312.16.1.2. That OID will tell shim that this is meant to be a module signing certificate.

For illustration purposes, an example of OpenSSL configuration file is provided below:

Copy
Copied!


HOME = . RANDFILE = $ENV::HOME/.rnd [ req ] distinguished_name = req_distinguished_name x509_extensions = v3 string_mask = utf8only prompt = no   [ req_distinguished_name ] countryName = US stateOrProvinceName = Westborough localityName = Massachusetts 0.organizationName = CampanyX commonName = Secure Boot Signing emailAddress = example@example.com   [ v3 ] subjectKeyIdentifier = hash authorityKeyIdentifier = keyid:always,issuer basicConstraints = critical,CA:FALSE extendedKeyUsage = codeSigning,1.3.6.1.4.1.311.10.3.6,1.3.6.1.4.1.2312.16.1.2 nsComment = "OpenSSL Generated Certificate"

To enroll the MOK key certificate, download the associated key certificate to the BlueField file system and run the following command:

Copy
Copied!


ubuntu@localhost:~$ sudo mokutil --import mok.der input password: input password again:

You will need to follow the prompts to enter a password that will be used to make sure they really do want to enroll the key certificate.

Note that the key certificate is not enrolled yet. It will be enrolled by the Shim on the next reboot. To list the imported certificate file intended to be enrolled:

Copy
Copied!


ubuntu@localhost:~$ sudo mokutil --list-new

The reboot needs to be performed.

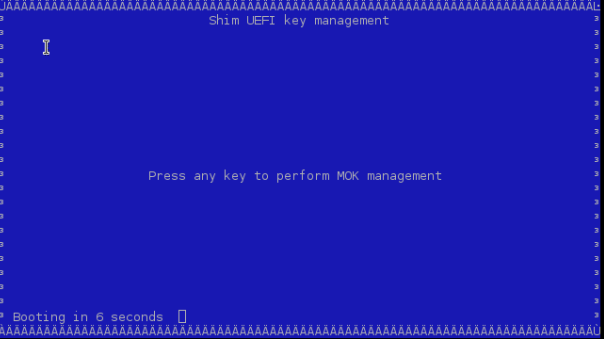

Just before loading GRUB, shim will show a blue screen which is actually another piece of the shim project called "MokManager". You can ignore the blue screen showing an error message. Press "OK" to enter the "Shim UEFI key management" screen.

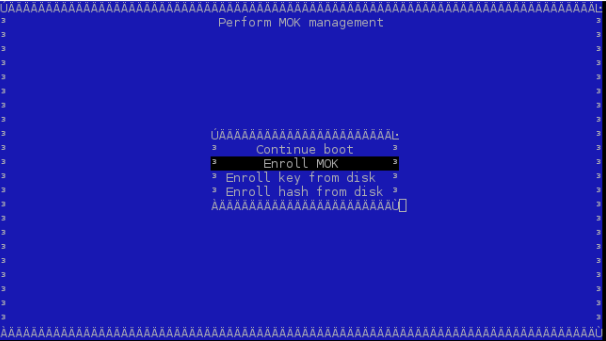

Use that screen to select "Enroll MOK" and follow the menus to finish the enrolling process.


You may also look at some of the properties of the key you are trying to add to make sure it is indeed the right one using "View key". MokManager will ask for the same password you typed in earlier when running mokutil before reboot. MokManager will save the key and you will need to reboot again.

To list the enrolled certificate files, run the following command:

Copy
Copied!


ubuntu@localhost:~$ sudo mokutil --list-enrolled

Some users may need to generate their own keys. For convenience, the processes used to enroll keys into UEFI db as well as to sign UEFI binaries are available in this document.

To execute your binaries while UEFI secure boot is enabled, you will need your own pair of private and public key certificates. The supported keys are RSA 2048-bit and ECDSA 384-bit.

The private part is used for signing operations and must be kept safe. The public part X.509 key certificate in DER format must be enrolled within the UEFI db.

After disabling UEFI secure boot per device temporarily, as described in section "Existing DPU Certificates", it is possible to override all the key certificate files of the UEFI database. This allows you to enroll your PK key certificate, your KEK key certificate, and your db certificates.

Enrolling certificates can be done by:

Warning

Make sure to have UEFI secure boot temporarily disabled on the DPU before proceeding to the following steps.

Enrolling New NVIDIA Certificates

There are four possible scenarios for enrolling new NVIDIA certificates:

Based on your specific scenario, one of the following courses of action must be performed.

Users Updating to v3.9.2

  1. Install BFB v3.9.2 on the DPU.

  2. Enroll certificates by running the following:

    Copy
    Copied!


    dpu# sudo bfrec --capsule /lib/firmware/mellanox/boot/capsule/EnrollKeysCap dpu# sudo reboot

    Warning

    This can be automated by Ansible playbooks, Foreman, etc.

Users Not Planning to Update to v3.9.2

If you do not plan to upgrade to v3.9.2 at this time (and plan to upgrade to future versions later), you may obtain a Debian package and use its capsule to update your certificates from whatever release you currently have installed.

  1. Refer to the latest repo package.

  2. Run:

    Copy
    Copied!


    wget https://linux.mellanox.com/public/repo/doca/latest/ubuntu20.04/aarch64/<mlxbf-bootimages>.deb

  3. Run:

    Copy
    Copied!


    dpu# apt install <mlxbf-bootimages>.deb

  4. Enroll certificates by running the following:

    Copy
    Copied!


    dpu# sudo bfrec --capsule /lib/firmware/mellanox/boot/capsule/EnrollKeysCap dpu# sudo reboot

    Warning

    This can be automated by Ansible playbooks, Foreman, etc.

Users with Custom UEFI Secure Boot Certificates

If you have custom certificates enrolled in your DPU, you can enroll only the new NVIDIA certificate which can be provided by NVIDIA Support.

Customer with DPU UEFI Secure Boot Disabled

No action is required.

Enrolling Certificates Using Capsule

To enroll your key certificates, create a capsule file by way of tools and scripts provided along with the BlueField software.

To create the capsule files, run the mlx-mkcap script. After installing BlueField software, the script can be found under /lib/firmware/mellanox/boot/capsule/scripts. This script generates a capsule file to supply the key certificates to UEFI and enable UEFI secure boot:

Copy
Copied!


$ ./mlx-mkcap --pk-key pk.cer --kek-key kek.cer --db-key db.cer EnrollYourKeysCap

Note that you may specify as many db certificates as needed using the --db-key flag. In this example, only a single db certificate is specified.

To set the UEFI password, you may specify the --uefi-passwd flag. For example, to set the UEFI password to bluefield, run the following command:

Copy
Copied!


$ ./mlx-mkcap --pk-key pk.cer --kek-key kek.cer --db-key db.cer --uefi-passwd "bluefield" EnrollYourKeysCap

The resulting capsule file, EnrollYourKeysCap, can be downloaded to the BlueField file system to initiate the key enrollment process. From the BlueField console, execute the following command then reboot:

Copy
Copied!


ubuntu@localhost:~$ bfrec --capsule EnrollYourKeysCap

On the next reboot, the capsule file is processed and the UEFI database is populated with the keys extracted from the capsule file.

Warning

A capsule file with default certificates can be found under /lib/firmware/mellanox/boot/capsule/EnrollKeysCap.

The capsule file can be used to enroll all the required certificates to boot BlueField supported software distributions. Note that all existing certificates are deleted prior to enrolling the new certificate.

Warning

Enrolling certificates using a provided capsule can be done automatically with bfb-install. To trigger automatic certificates enrollment, add ENROLL_KEYS=yes to the bf.cfg file.

Warning

Enrolling the PK key certificate file enables the UEFI secure boot.


Enrolling Certificates into UEFI DB

As mentioned, the public part X.509 key certificate in DER format must be enrolled within the UEFI db.

The X.509 DER certificate file must be installed into the EFI System Partition (ESP). Download the certificate file to the BlueField file system and place it into the ESP:

Copy
Copied!


ubuntu@localhost:~$ sudo cp path/to/cert.der /boot/efi/

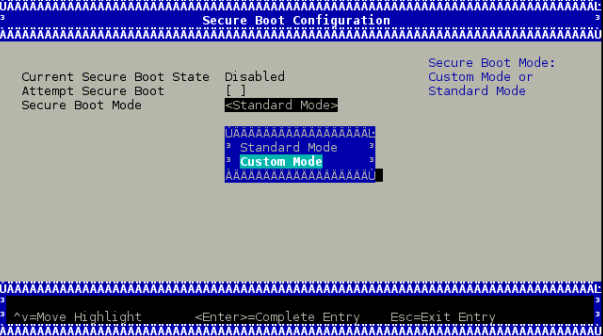

Now to enroll the certificate into the UEFI db, you will need to reboot and login again into the UEFI menu. From the "UEFI menu", select "Device Manager" entry, then "Secure Boot Configuration". Select "Secure Boot Mode" and choose "Custom Mode" setup. The secure boot "Custom Mode" setup feature allows a physically present user to modify the UEFI database.

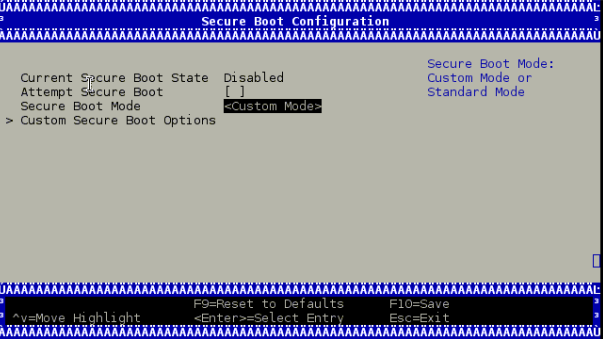

Once the platform is in "Custom Mode", a "Custom Secure Boot Options" menu entry appears which allows you to manipulate the UEFI database keys and certificates.

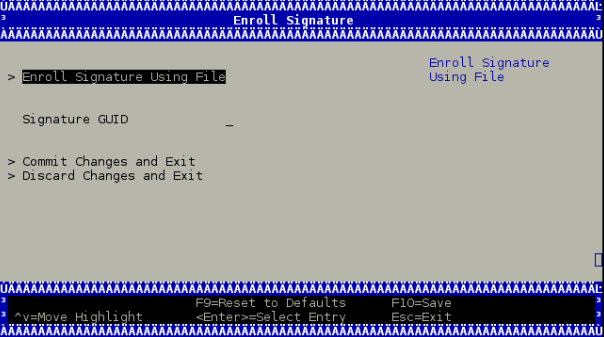

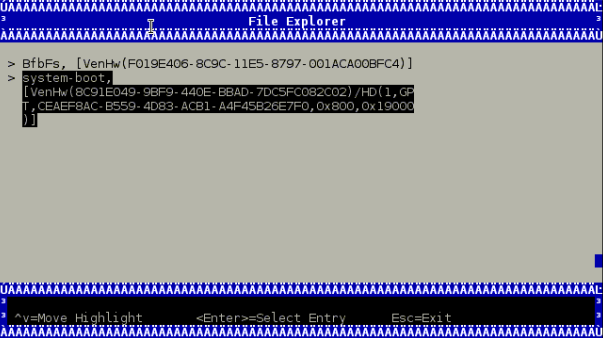

To enroll your DER certificate file, select "DB Options" and enter the "Enroll Signature" menu. Select "Enroll Signature Using File" and navigate within the EFI System Partition (ESP) to the db DER certificate file. The ESP path is shown below as "system-boot, [VenHw(*)/HD(*)]".



While enrolling the certificate file, you might enter a GUID along with the key certificate file. The GUID is the platform's way of identifying the key. It serves no purpose other than for you to tell which key is which when you delete them (it is not used at all in signature verification).

This value must be in the following format: 11111111-2222-3333-4444-1234567890ab.

If no value is entered, a GUID of 00000000-0000-0000-0000-000000000000 is created.

Finally, commit the changes and exit. You might be asked to reboot.

Signing Custom Kernel and UEFI Binaries

To sign a custom kernel or any other EFI binary (UEFI application, UEFI driver or OS loader) you want to have loaded by shim. You will require the private part of the key and the certificate in PEM format.

To convert the certificate into PEM, run:

Copy
Copied!


$ openssl x509 -in mok.der -inform DER -outform PEM -out mok.pem

Now, to sign your EFI binary, run:

Copy
Copied!


$ sbsign --key mok.priv --cert mok.pem binary.efi --output binary.efi.signed

Note that if you are using your db key, use the private part of the key and its associated certificate converted into PEM format for binary signing.

If the X.509 key certificate is enrolled in UEFI db or by way of shim, the binary should be loaded just fine.

Signing Kernel Modules

The X.509 certificate you added must be visible to the kernel. To verify the keys visible to the kernel, run:

Copy
Copied!


ubuntu@localhost:~$ sudo cat /proc/keys

For a very straightforward result, run:

Copy
Copied!


ubuntu@localhost:~$ dmesg | grep -i "X.509" [ 1.869521] Loading compiled-in X.509 certificates [ 1.875441] Loaded X.509 cert 'Build time autogenerated kernel key: b1a3fbd0178bdb7190387a4187e8e4b0eb476cdc' [ 1.941752] integrity: Loading X.509 certificate: UEFI:db [ 1.947636] integrity: Loaded X.509 cert 'YourSigningDbKey: a109f01707ba6769c4d546530ba1592c7daedc3b' [ 1.958736] integrity: Loading X.509 certificate: UEFI:db [ 1.964170] integrity: Loaded X.509 cert 'Microsoft Corporation UEFI CA 2011: 13adbf4309bd82709c8cd54f316ed522988a1bd4' [ 2.023740] integrity: Loading X.509 certificate: UEFI:MokListRT [ 2.030090] integrity: Loaded X.509 cert 'YourSingingMokKey: 2012e5122669ffc0cc28827c6134329a6bec0b88' [ 2.040796] integrity: Loading X.509 certificate: UEFI:MokListRT [ 2.046830] integrity: Loaded X.509 cert 'SomeOrg: shim: 331c1c8963538e327d6e39346f4f53b200987015' [ 2.055796] integrity: Loading X.509 certificate: UEFI:MokListRT [ 2.062114] integrity: Loaded X.509 cert 'Canonical Ltd. Master Certificate Authority: ad91990bc22ab1f517048c23b6655a268e345a63'

If the X.509 certificate attributes (commonName, etc.) are configured properly, you should see your key certificate information in the result output. In this example, two custom keys are visible to the kernel:

  • "YourSigningMokKey'' – registered with the Shim as a MOK

  • "YourSigningDbKey" – registered with UEFI as db

This example is for illustration purposes only. The actual output might differ from the output shown in this example depending on what key was previously enrolled and how it was enrolled.

You may sign kernel modules using either of these approaches:

  • Sign the kernel module using kmodsign command

  • Sign the kernel module using the Linux kernel script sign-file

Signing Kernel Modules Using kmodsign

If you are using the kmodsign command to sign kernel modules, run:

Copy
Copied!


ubuntu@localhost:~$ kmodsign sha512 mok.priv mok.der module.ko module.ko

The signature will be appended to the kernel module by kmodsign.

But if you rather keep the original kernel module unchanged, run:

Copy
Copied!


ubuntu@localhost:~$ kmodsign sha512 mok.priv mok.der module.ko module-signed.ko

See kmosign --help for more information.

Signing Kernel Modules Using sign-file

To sign the kernel module using the Linux kernel script sign-file, please refer to the Linux kernel documentation.

Note that if you are using your db key, use the private part of the key and its associated certificate for binary signing.

To validate that the module is signed, check that it includes the string "~Module signature appended~":

Copy
Copied!


ubuntu@localhost:~$ hexdump -Cv module.ko | tail -n 5 00002c20 10 14 08 cd eb 67 a8 3d ac 82 e1 1d 46 b5 5c 91 |.....g.=....F.\.| 00002c30 9c cb 47 f7 c9 77 00 00 02 00 00 00 00 00 00 00 |..G..w..........| 00002c40 02 9e 7e 4d 6f 64 75 6c 65 20 73 69 67 6e 61 74 |..~Module signat| 00002c50 75 72 65 20 61 70 70 65 6e 64 65 64 7e 0a |ure appended~.| 00002c5e

Ongoing Updates

Update Key Certificates

Warning

This requires UEFI secure boot to have been enabled using your own keys, which means that you own the signing keys.

While UEFI secure boot is enabled, it is possible to update your keys using a capsule file.

To create a capsule intended to update the UEFI secure boot keys, generate the new set of keys, and then run:

Copy
Copied!


$ ./mlx-mkcap --pk-key new_pk.cer --kek-key new_kek.cer --db-key new_db1.cer --db-key new_db2.cer --db-key new_db3.cer --signer-key db.key --signer-cert db.pem EnrollYourNewKeysCap

Note that --signer-key and --signer-cert are set so the capsule is signed. When UEFI secure boot is enabled, the capsule is verified using the key certificates previously enrolled in the UEFI database. It is important to use the old signing keys associated with the certificates in the UEFI database to sign the capsule. The new key certificates are intended to replace the existing key certificates after capsule processing. Once the UEFI database is updated, the new keys must be used to sign the newly created capsule files.

To enroll the new set of keys, download the capsule file to the BlueField console and use bfrec to initiate the capsule update.

Disable UEFI Secure Boot Using Capsule

Warning

This requires UEFI secure boot to have been enabled using your own keys, which means that you own the signing keys.

It is possible to disable UEFI secure boot through capsule update. This requires an empty PK key when creating the capsule file.

To create a capsule intended to disable UEFI secure boot, create a dummy empty PK certificate:

Copy
Copied!


$ touch null_pk.cer

Then create the capsule file:

Copy
Copied!


$ ./mlx-mkcap --pk-key null_pk.cer --signer-key db.key --signer-cert db.pem DeletePkCap

Note that --signer-key and --signer-cert must be specified with the appropriate private keys and certificates associated with the actual key certificates in the UEFI database.

To enroll the empty PK certificate, download the capsule file to the BlueField console and use bfrec to initiate the capsule update.

Deleting the PK certificate disables the UEFI secure boot which is not recommended in production environments.

© Copyright 2023, NVIDIA. Last updated on Sep 9, 2023.
