Virtio-net Deployment

Updating OS Image on BlueField

To install the BFB bundle on the NVIDIA® BlueField®, run the following command from the Linux hypervisor:

Copy
Copied!


            [host]# sudo bfb-install --rshim <rshimN> --bfb <image_path.bfb>

For more information, refer to section "Deploying BlueField Software Using BFB from Host" in the NVIDIA BlueField DPU BSP documentation.

Updating NIC Firmware

From the BlueField networking platform, run:

Copy
Copied!


            [dpu]# sudo /opt/mellanox/mlnx-fw-updater/mlnx_fw_updater.pl --force-fw-update

For more information, refer to section "Upgrading Firmware" in the NVIDIA DOCA Installation Guide for Linux.

As default, DPU should be configured in DPU mode. A simple way to confirm DPU is running at DPU mode is to log into the BlueField Arm system and check if p0 and pf0hpf both exists by running command below.

Copy
Copied!


            [dpu]# ip link show

Virtio-net full emulation only works in DPU mode. For more information about DPU mode configuration, please refer to page "Mode of Operation" in the NVIDIA BlueField DPU BSP documentation.

Before enabling the virtio-net service, configure firmware via mlxconfig tool is required. There are examples on typical configurations, the table listed relevant mlxconfig entry descriptions.

Note

For mlxconfig configuration changes to take effect, perform a BlueField system-level reset.

Mlxconfig Entries	Description
`VIRTIO_NET_EMULATION_ENABLE`	Must be set to `TRUE`, for virtio-net to be enabled
`VIRTIO_NET_EMULATION_NUM_PF`	Total number of PCIe functions (PFs) exposed by the device for virtio-net emulation. Those functions are persistent along with host/BlueField power cycle.
`VIRTIO_NET_EMULATION_NUM_VF`	The max number of virtual functions (VFs) that can be supported for each virtio-net PF
`VIRTIO_NET_EMULATION_NUM_MSIX`	Number of MSI-X vectors assigned for each PF of the virtio-net emulation device, minimal is `4`.
`VIRTIO_NET_EMULATION_NUM_VF_MSIX`	Number of MSI-X vectors assigned for each VF of the virtio-net emulation device, minimal is `4`. Relevant for BlueField-3 devices only.
`PCI_SWITCH_EMULATION_ENABLE`	When `TRUE`, the device exposes a PCIe switch. All PF configurations are applied on the switch downstream ports. In such case, each PF gets a different PCIe device on the emulated switch. This configuration allows exposing extra network PFs toward the host which can be enabled for virtio-net hot-plug devices.
`PCI_SWITCH_EMULATION_NUM_PORT`	The maximum number of emulated switch ports. Each port can hold a single PCIe device (emulated or not). This determines the supported maximum number of hot-plug virtio-net devices. The maximum number depends on hypervisor PCIe resource, and cannot exceed 31. Note Check system PCIe resource. Changing this entry to a big number may results in the host not booting up, which would necessitate disabling the BlueField device and clearing the host NVRAM.
`PER_PF_NUM_SF`	When `TRUE`, the SFs configuration is defined by `TOTAL_SF` and `SF_BAR_SIZE` for each PF individually. If they are not defined for a PF, device defaults are used.
`PF_TOTAL_SF`	The total number of scalable function (SF) partitions that can be supported for the current PF. Valid only when `PER_PF_NUM_SF` is set to `TRUE`. This number should be greater than the total number of virtio-net PFs (both static and hotplug) and VFs. Note This entry differs between the BlueField and host side `mlxconfig`. It is also a system wide value, which is shared by virtio-net and other users. The DPU normally creates 1 SF as default per port. Consider this default SF into account when reserving the `PF_TOTAL_SF`.
`PF_SF_BAR_SIZE`	Log (base 2) of the BAR size of a single SF, given in KB. Valid only when `PF_TOTAL_SF` is non-zero and `PER_PF_NUM_SF` is set to `TRUE`.
`PF_BAR2_ENABLE`	When `TRUE`, BAR2 is exposed on all external host PFs (but not on the embedded Arm PFs/ECPFs). The BAR2 size is defined by the `log_pf_bar2_size`.
`SRIOV_EN`	Enable single-root I/O virtualization (SR-IOV) for virtio-net and native PFs
`EXP_ROM_VIRTIO_NET_PXE_ENABLE`	Enable expansion ROM option for PXE for virtio-net functions Note All virtio `EXP_ROM` options should be configured from host side other than the BlueField platform's side, only static PF is supported.
`EXP_ROM_VIRTIO_NET_UEFI_ARM_ENABLE`	Enable expansion ROM option for UEFI for Arm based host for virtio-net functions
`EXP_ROM_VIRTIO_NET_UEFI_x86_ENABLE`	Enable expansion ROM option for UEFI for x86 based host for virtio-net functions

The maximum number of supported devices is listed below. It does not apply when there are hot-plug and VF created at the same time.

Static PF	Hot-plug PF	VF
31	31	1008

Note

The maximum supported number of hotplug PFs depends on the host PCI resource, it may support less or none on specific systems. Refer to host BIOS specification.

Static PF

Static PF is defined as virtio-net PFs which are persistent even after DPU or host power cycle. It also supports creating SR-IOV VFs.

The following is an example for enabling the system with 4 static PFs (VIRTIO_NET_EMULATION_NUM_PF) only:

Info

10 SFs (PF_TOTAL_SF) are reserved to take into account other application using the SFs.

Copy
Copied!


            [dpu]# mlxconfig -d 03:00.0 s \
VIRTIO_NET_EMULATION_ENABLE=1 \
VIRTIO_NET_EMULATION_NUM_PF=4 \
VIRTIO_NET_EMULATION_NUM_VF=0 \
VIRTIO_NET_EMULATION_NUM_MSIX=64 \
PCI_SWITCH_EMULATION_ENABLE=0 \
PCI_SWITCH_EMULATION_NUM_PORT=0 \
PER_PF_NUM_SF=1 \
PF_TOTAL_SF=64 \
PF_BAR2_ENABLE=0 \
PF_SF_BAR_SIZE=8 \
SRIOV_EN=0

Hotplug PF

Hotplug PF is defined as virtio-net PFs which can be hotplugged or unplugged dynamically after the system comes up.

Note

Hotplug PF does not support creating SR-IOV VFs.

The following is an example for enabling 16 hotplug PFs (PCI_SWITCH_EMULATION_NUM_PORT):

Copy
Copied!


            [dpu]# mlxconfig -d 03:00.0 s \
VIRTIO_NET_EMULATION_ENABLE=1 \
VIRTIO_NET_EMULATION_NUM_PF=0 \
VIRTIO_NET_EMULATION_NUM_VF=0 \
VIRTIO_NET_EMULATION_NUM_MSIX=64 \
PCI_SWITCH_EMULATION_ENABLE=1 \
PCI_SWITCH_EMULATION_NUM_PORT=16 \
PER_PF_NUM_SF=1 \
PF_TOTAL_SF=64 \
PF_BAR2_ENABLE=0 \
PF_SF_BAR_SIZE=8 \
SRIOV_EN=0

SR-IOV VF

SR-IOV VF is defined as virtio-net VFs created on top of PFs. Each VF gets an individual virtio-net PCIe devices.

Note

VFs cannot be dynamically created or destroyed, they can only change from X to 0, or from 0 to X.

Note

VFs will be destroyed when reboot host or unbind PF from virtio-net kernel driver.

The following is an example for enabling 126 VFs per static PF—504 (4 PF x 126) VFs in total:

Copy
Copied!


            [dpu]# mlxconfig -d 03:00.0 s \
VIRTIO_NET_EMULATION_ENABLE=1 \
VIRTIO_NET_EMULATION_NUM_PF=4 \
VIRTIO_NET_EMULATION_NUM_VF=126 \
VIRTIO_NET_EMULATION_NUM_MSIX=64 \
VIRTIO_NET_EMULATION_NUM_VF_MSIX=64 \
PCI_SWITCH_EMULATION_ENABLE=0 \
PCI_SWITCH_EMULATION_NUM_PORT=0 \
PER_PF_NUM_SF=1 \
PF_TOTAL_SF=512 \
PF_BAR2_ENABLE=0 \
PF_SF_BAR_SIZE=8 \
NUM_VF_MSIX=0 \
SRIOV_EN=1

PF/VF Combinations

Creating static/hotplug PFs and VFs at the same time is supported.

The total sum of PCIe functions to the external host must not exceed 256. For example:

If there are 2 PFs with no VFs (NUM_OF_VFS=0) and there is 1 RShim, then the remaining static functions is 253 (256-3).
If 1 virtio-net PF is configured (VIRTIO_NET_EMULATION_NUM_PF=1), then up to 252 virtio-net VFs can be configured (VIRTIO_NET_EMULATION_NUM_VF=252)
If 2 virtio-net PF (VIRTIO_NET_EMULATION_NUM_PF=2), then up to 125 virtio-net VFs can be configured (VIRTIO_NET_EMULATION_NUM_VF=125)

The following is an example for enabling 15 hotplug PFs, 2 static PFs, and 200 VFs (2 PFs x 100):

Copy
Copied!


            [dpu]# mlxconfig -d 03:00.0 s \
VIRTIO_NET_EMULATION_ENABLE=1 \
VIRTIO_NET_EMULATION_NUM_PF=2 \
VIRTIO_NET_EMULATION_NUM_VF=100 \
VIRTIO_NET_EMULATION_NUM_MSIX=10 \
VIRTIO_NET_EMULATION_NUM_VF_MSIX=64 \
PCI_SWITCH_EMULATION_ENABLE=1 \
PCI_SWITCH_EMULATION_NUM_PORT=15 \
PER_PF_NUM_SF=1 \
PF_TOTAL_SF=256 \
PF_BAR2_ENABLE=0 \
PF_SF_BAR_SIZE=8 \
NUM_VF_MSIX=0 \
SRIOV_EN=1

Note

In hotplug virtio-net PFs and virtio-net SR-IOV VFs setups, only up to 15 hotplug devices are supported.

System Configuration

Host System Configuration

For hotplug device configuration, it is recommended to modify the hypervisor OS kernel boot parameters and add the options below:

Copy
Copied!


            pci=realloc

For SR-IOV configuration, first enable SR-IOV from the host.

Info

Refer to MLNX_OFED documentation under Features Overview and Configuration > Virtualization > Single Root IO Virtualization (SR-IOV) > Setting Up SR-IOV for instructions on how to do that.

Make sure to add the following options to Linux boot parameter.

Copy
Copied!


            intel_iommu=on iommu=pt

Note

Add pci=assign-busses to the boot command line when creating more than 127 VFs. Without this option, the following errors may trigger from the host and the virtio driver would not probe those devices.

Copy
Copied!


            pci 0000:84:00.0: [1af4:1041] type 7f class 0xffffff
pci 0000:84:00.0: unknown header type 7f, ignoring device

Note

Because the controller from the BlueField side provides hardware resources and acknowledges (ACKs) the request from the host's virtio-net driver, it is mandatory to reboot the host OS (or unload the virtio-net driver) first and the BlueField afterwards. This also applies to reconfiguring a controller from the BlueField platform (e.g., reconfiguring LAG). Unloading the virtio-net driver from host OS side is recommended.

BlueField System Configuration

Virtio-net full emulation is based on ASAP^2. For each virtio-net device created from host side, there is an SF representor created to represent the device from the BlueField side. It is necessary to have the SF representor in the same OVS bridge of the uplink representor.

The SF representor name is designed in a fixed pattern to map different type of devices.

	Static PF	Hotplug PF	SR-IOV VF
SF Range	1000-1999	2000-2999	3000 and above

Static PF

Hotplug PF

SR-IOV VF

SF Range

1000-1999

2000-2999

3000 and above

For example, the first static PF gets the SF representor of en3f0pf0sf1000 and the second hotplug PF gets the SF representor of en3f0pf0sf2001. It is recommended to verify the name of the SF representor from the sf_rep_net_device field in the output of virtnet list.

Copy
Copied!


            [dpu]# virtnet list
{
  ...
  "devices": [
    {
      "pf_id": 0,
      "function_type": "static PF",
      "transitional": 0,
      "vuid": "MT2151X03152VNETS0D0F2",
      "pci_bdf": "14:00.2",
      "pci_vhca_id": "0x2",
      "pci_max_vfs": "0",
      "enabled_vfs": "0",
      "msix_num_pool_size": 0,
      "min_msix_num": 0,
      "max_msix_num": 32,
      "min_num_of_qp": 0,
      "max_num_of_qp": 15,
      "qp_pool_size": 0,
      "num_msix": "64",
      "num_queues": "8",
      "enabled_queues": "7",
      "max_queue_size": "256",
      "msix_config_vector": "0x0",
      "mac": "D6:67:E7:09:47:D5",
      "link_status": "1",
      "max_queue_pairs": "3",
      "mtu": "1500",
      "speed": "25000",
      "rss_max_key_size": "0",
      "supported_hash_types": "0x0",
      "ctrl_mac": "D6:67:E7:09:47:D5",
      "ctrl_mq": "3",
      "sf_num": 1000,
      "sf_parent_device": "mlx5_0",
      "sf_parent_device_pci_addr": "0000:03:00.0",
      "sf_rep_net_device": "en3f0pf0sf1000",
      "sf_rep_net_ifindex": 15,
      "sf_rdma_device": "mlx5_4",
      "sf_cross_mkey": "0x18A42",
      "sf_vhca_id": "0x8C",
      "sf_rqt_num": "0x0",
      "aarfs": "disabled",
      "dim": "disabled"
    }
  ]
 }

Once SF representor name is located, add it to the same OVS bridge of the corresponding uplink representor and make sure the SF representor is up:

Copy
Copied!


            [dpu]# ovs-vsctl show
f2c431e5-f8df-4f37-95ce-aa0c7da738e0
    Bridge ovsbr1
        Port ovsbr1
            Interface ovsbr1
                type: internal
        Port en3f0pf0sf0
            Interface en3f0pf0sf0
        Port p0
            Interface p0
[dpu]# ovs-vsctl add-port ovsbr1 en3f0pf0sf1000
[dpu]# ovs-vsctl show
f2c431e5-f8df-4f37-95ce-aa0c7da738e0
    Bridge ovsbr1
        Port ovsbr1
            Interface ovsbr1
                type: internal
        Port en3f0pf0sf0
            Interface en3f0pf0sf0
        Port en3f0pf0sf1000
            Interface en3f0pf0sf1000
        Port p0
            Interface p0
[dpu]# ip link set dev en3f0pf0sf1000 up

Usage

After firmware/system configuration and after system power cycle, the virtio-net devices should be ready to deploy.

First, make sure that mlxconfig options take effect correctly by issuing the following command:

Info

The output has a list with 3 columns: default configuration, current configuration, and next-boot configuration. Verify that the values under the 2nd column match the expected configuration.

Copy
Copied!


            [dpu]# mlxconfig -d 03:00.0 -e q | grep -i \*
*        PER_PF_NUM_SF                               False(0)        True(1)         True(1)
*        NUM_OF_VFS                                  16              0               0
*        PF_BAR2_ENABLE                              True(1)         False(0)        False(0)
*        PCI_SWITCH_EMULATION_NUM_PORT               0               8               8
*        PCI_SWITCH_EMULATION_ENABLE                 False(0)        True(1)         True(1)
*        VIRTIO_NET_EMULATION_ENABLE                 False(0)        True(1)         True(1)
*        VIRTIO_NET_EMULATION_NUM_VF                 0               126             126
*        VIRTIO_NET_EMULATION_NUM_PF                 0               1               1
*        VIRTIO_NET_EMULATION_NUM_MSIX               2               64              64
*        VIRTIO_NET_EMULATION_NUM_VF_MSIX            0               64              64
*        PF_TOTAL_SF                                 0               508             508
*        PF_SF_BAR_SIZE                              0               8               8

If the system is configured correctly, virtio-net-controller service should be up and running. If the service does not appear as active, double check the firmware/system configurations above.

Copy
Copied!


            [dpu]# systemctl status virtio-net-controller.service
● virtio-net-controller.service - Nvidia VirtIO Net Controller Daemon
   Loaded: loaded (/etc/systemd/system/virtio-net-controller.service; enabled; vendor preset: disabled)
   Active: active (running)
     Docs: file:/opt/mellanox/mlnx_virtnet/README.md
 Main PID: 30715 (virtio_net_cont)
    Tasks: 55
   Memory: 11.7M
   CGroup: /system.slice/virtio-net-controller.service
           ├─30715 /usr/sbin/virtio_net_controller
           ├─30859 virtio_net_emu
           └─30860 virtio_net_ha

To reload or restart the service, run:

Copy
Copied!


            [dpu]# systemctl restart virtio-net-controller.service

Note

If using "force kill" (i.e., kill -9 or kill -SIGKILL) for the virtio-net-controller service, users should use kill -9 -<pid of virtio_net_controller process, i.e. 30715 in previous example> (note the dash "-" before the pid).

Hotplug PF Devices

Creating PF Devices

To create a hotplug virtio-net device, run:
Copy

Copied!
```

            [dpu]# virtnet hotplug -i mlx5_0 -f 0x0 -m 0C:C4:7A:FF:22:93 -t 1500 -n 3 -s 1024

```
Info

Refer to "Virtnet CLI Commands" for full usage.

This command creates one hotplug virtio-net device with MAC address 0C:C4:7A:FF:22:93, MTU 1500, and 3 virtio queues with a depth of 1024 entries. The device is created on the physical port of mlx5_0. The device is uniquely identified by its index. This index is used to query and update device attributes. If the device is created successfully, an output similar to the following appears:
Copy

Copied!
```

            {
  "bdf": "15:00.0",
  "vuid": "MT2151X03152VNETS1D0F0",
  "id": 0,
  "transitional": 0,
  "sf_rep_net_device": "en3f0pf0sf2000",
  "mac": "0C:C4:7A:FF:22:93",
  "errno": 0,
  "errstr": "Success"
}

```

Add the representor port of the device to the OVS bridge and bring it up. Run:

Copy
Copied!


            [dpu]# ovs-vsctl add-port <bridge> en3f0pf0sf2000
[dpu]# ip link set dev en3f0pf0sf2000 up

Once steps 1-2 are completed, the virtio-net PCIe device should be available from hypervisor OS with the same PCIe BDF.

Copy
Copied!


            [host]# lspci | grep -i virtio
15:00.0 Ethernet controller: Red Hat, Inc. Virtio network device (rev 01)

Probe virtio-net driver (e.g., kernel driver):

Copy
Copied!


            [host]# modprobe -v virtio-pci && modprobe -v virtio-net

The virtio-net device should be created. There are two ways to locate the net device:

Check the dmesg from the host side for the corresponding PCIe BDF:

Copy
Copied!


            [host]# dmesg | tail -20 | grep 15:00.0 -A 10 | grep virtio_net
[3908051.494493] virtio_net virtio2 ens2f0: renamed from eth0

Check all net devices and find the corresponding MAC address:

Copy
Copied!


            [host]# ip link show | grep -i "0c:c4:7a:ff:22:93" -B 1
31: ens2f0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP mode DEFAULT group default qlen 1000
    link/ether 0c:c4:7a:ff:22:93 brd ff:ff:ff:ff:ff:ff

Check that the probed driver and its BDF match the output of the hotplug device:

Copy
Copied!


            [host]# ethtool -i ens2f0
driver: virtio_net
version: 1.0.0
firmware-version:
expansion-rom-version:
bus-info: 0000:15:00.0
supports-statistics: yes
supports-test: no
supports-eeprom-access: no
supports-register-dump: no
supports-priv-flags: no

Now the hotplug virtio-net device is ready to use as a common network device.

Destroying PF Devices

To hot-unplug a virtio-net device, run:

Copy
Copied!


            [dpu]# virtnet unplug -p 0
{'id': '0x1'}
{
  "errno": 0,
  "errstr": "Success"
}

The hotplug device and its representor are destroyed.

SR-IOV VF Devices

Creating SR-IOV VF Devices

After configuring the firmware and BlueField/host system with correct configuration, users can create SR-IOV VFs.

The following procedure provides an example of creating one VF on top of one static PF:

Locate the virtio-net PFs exposed to the host side:

Copy
Copied!


            [host]# lspci | grep -i virtio
14:00.2 Network controller: Red Hat, Inc. Virtio network device

Verify that the PCIe BDF matches the backend device from the BlueField side:

Copy
Copied!


            [dpu]# virtnet list
{
  ...
   "devices": [
    {
      "pf_id": 0,
      "function_type": "static PF",
      "transitional": 0,
      "vuid": "MT2151X03152VNETS0D0F2",
      "pci_bdf": "14:00.2",
      "pci_vhca_id": "0x2",
      "pci_max_vfs": "0",
      "enabled_vfs": "0",
      "msix_num_pool_size": 0,
      "min_msix_num": 0,
      "max_msix_num": 32,
      "min_num_of_qp": 0,
      "max_num_of_qp": 15,
      "qp_pool_size": 0,
      "num_msix": "64",
      "num_queues": "8",
      "enabled_queues": "7",
      "max_queue_size": "256",
      "msix_config_vector": "0x0",
      "mac": "D6:67:E7:09:47:D5",
      "link_status": "1",
      "max_queue_pairs": "3",
      "mtu": "1500",
      "speed": "25000",
      "rss_max_key_size": "0",
      "supported_hash_types": "0x0",
      "ctrl_mac": "D6:67:E7:09:47:D5",
      "ctrl_mq": "3",
      "sf_num": 1000,
      "sf_parent_device": "mlx5_0",
      "sf_parent_device_pci_addr": "0000:03:00.0",
      "sf_rep_net_device": "en3f0pf0sf1000",
      "sf_rep_net_ifindex": 15,
      "sf_rdma_device": "mlx5_4",
      "sf_cross_mkey": "0x18A42",
      "sf_vhca_id": "0x8C",
      "sf_rqt_num": "0x0",
      "aarfs": "disabled",
      "dim": "disabled"
    }
  ]
 }

Probe virtio_pci and virtio_net modules from the host:

Copy
Copied!


            [host]# modprobe -v virtio-pci && modprobe -v virtio-net

The PF net device should be created.

Copy
Copied!


            [host]# ip link show | grep -i "4A:82:E3:2E:96:AB" -B 1
21: ens2f2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000
    link/ether 4a:82:e3:2e:96:ab brd ff:ff:ff:ff:ff:ff

The MAC address and PCIe BDF should match between the BlueField side (virtnet list) and host side (ethtool).

Copy
Copied!


            [host]# ethtool -i ens2f2
driver: virtio_net
version: 1.0.0
firmware-version:
expansion-rom-version:
bus-info: 0000:14:00.2
supports-statistics: yes
supports-test: no
supports-eeprom-access: no
supports-register-dump: no
supports-priv-flags: no

To create SR-IOV VF devices on the host, run the following command with the PF PCIe BDF (0000:14:00.2 in this example):

Copy
Copied!


            [host]# echo 1 > /sys/bus/pci/drivers/virtio-pci/0000\:14\:00.2/sriov_numvfs

1 extra virtio-net device is created from the host:

Copy
Copied!


            [host]# lspci | grep -i virtio
14:00.2 Ethernet controller: Red Hat, Inc. Virtio network device (rev 01)
14:00.4 Ethernet controller: Red Hat, Inc. Virtio network device (rev 01)

The BlueField side shows the VF information from virtnet list as well:

Copy
Copied!


            [dpu]# virtnet list
    ...
    {
      "vf_id": 0,
      "parent_pf_id": 0,
      "function_type": "VF",
      "transitional": 0,
      "vuid": "MT2151X03152VNETS0D0F2VF1",
      "pci_bdf": "14:00.4",
      "pci_vhca_id": "0xD",
      "pci_max_vfs": "0",
      "enabled_vfs": "0",
      "num_msix": "12",
      "num_queues": "8",
      "enabled_queues": "7",
      "max_queue_size": "256",
      "msix_config_vector": "0x0",
      "mac": "16:FF:A2:6E:6D:A9",
      "link_status": "1",
      "max_queue_pairs": "3",
      "mtu": "1500",
      "speed": "25000",
      "rss_max_key_size": "0",
      "supported_hash_types": "0x0",
      "ctrl_mac": "16:FF:A2:6E:6D:A9",
      "ctrl_mq": "3",
      "sf_num": 3000,
      "sf_parent_device": "mlx5_0",
      "sf_parent_device_pci_addr": "0000:03:00.0",
      "sf_rep_net_device": "en3f0pf0sf3000",
      "sf_rep_net_ifindex": 18,
      "sf_rdma_device": "mlx5_5",
      "sf_cross_mkey": "0x58A42",
      "sf_vhca_id": "0x8D",
      "sf_rqt_num": "0x0",
      "aarfs": "disabled",
      "dim": "disabled"
     }

Add the corresponding SF representor to the OVS bridge as the virtio-net PF and bring it up. Run:

Copy
Copied!


            [dpu]# ovs-vsctl add-port <bridge> en3f0pf0sf3000
[dpu]# ip link set dev en3f0pf0sf3000 up

Now the VF is functional.

Note

Info

SR-IOV enablement from the host side takes a few minutes. For example, it may take 5 minutes to create 504 VFs.

Tip

It is recommended to disable VF autoprobe before creating VFs.

Copy
Copied!


            [host]# echo 0 > /sys/bus/pci/drivers/virtio-pci/<virtio_pf_bdf>/sriov_drivers_autoprobe
[host]# echo <num_vfs> > /sys/bus/pci/drivers/virtio-pci/<virtio_pf_bdf>/sriov_numvfs

Users can pass through the VFs directly to the VM after finishing. If using the VFs inside the hypervisor OS is required, bind the VF PCIe BDF:

Copy
Copied!


            [host]# echo <virtio_vf_bdf> > /sys/bus/pci/drivers/virtio-pci/bind

Keep in mind to reenable the autoprobe for other use cases:

Copy
Copied!


            [host]# echo 1 > /sys/bus/pci/drivers/virtio-pci/<virtio_pf_bdf>/sriov_drivers_autoprobe

Warning

Creating VFs for the same PF on different threads may cause the hypervisor OS to hang.

Destroying SR-IOV VF Devices

To destroy SR-IOV VF devices on the host, run:

Copy
Copied!


            [host]# echo 0 > /sys/bus/pci/drivers/virtio-pci/<virtio_pf_bdf>/sriov_numvfs

Note

When the echo command returns from the host OS, it does not necessarily mean the BlueField side has finished its operations. To verify that the BlueField is done, and it is safe to recreate the VFs, either:

Check controller log from the BlueField and make sure you see a log entry similar to the following:

Copy
Copied!


            [dpu]# journalctl -u virtio-net-controller.service -n 3 -f
virtio-net-controller[5602]: [INFO] virtnet.c:675:virtnet_device_vfs_unload: static PF[0], Unload (1) VFs finished

Query the last VF from the BlueField side:

Copy
Copied!


            [dpu]# virtnet query -p 0 -v 0 -b
{'all': '0x0', 'vf': '0x0', 'pf': '0x0', 'dbg_stats': '0x0', 'brief': '0x1', 'latency_stats': '0x0', 'stats_clear': '0x0'}
{
  "Error": "Device doesn't exist"
}

Note

Once VFs are destroyed, SFs created for virtio-net from the BlueField side are not destroyed but are saved into the SF pool for reuse later.

Note

Restarting virtio-net-controller service while performing device create/destroy for either hotplug or VF is unsupported.

Assigning Virtio-net Device to VM

All virtio-net devices (static/hotplug PF and VF) support PCIe passthrough to a VM. PCIe passthrough allows the device to get better performance in the VM.

Assigning a virtio-net device to a VM can be done via virt-manager or virsh command.

Locating Virtio-net Devices

All virtio-net devices can be scanned by the PCIe subsystem in hypervisor OS and displayed as a standard PCIe device. Run the following command to locate the virtio-net devices devices with its PCIe BDF.

Copy
Copied!


            [host]# lspci | grep 'Virtio network'
00:09.1 Ethernet controller: Red Hat, Inc. Virtio network device (rev 01)

Using virt-manager

Start virt-manager, run the following command:

Copy
Copied!


            [host]# virt-manager

Note

Make sure your system has xterm enabled to show the virt-manager GUI.

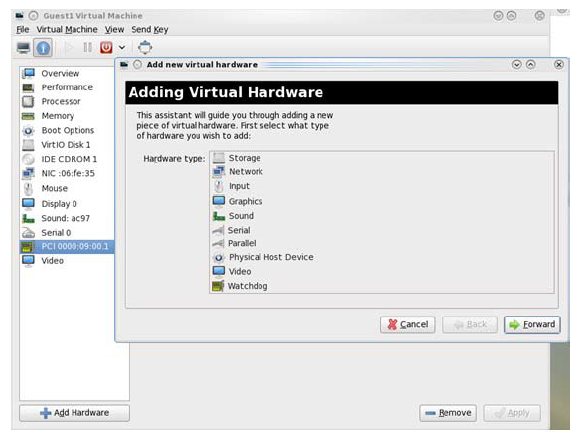

Double-click the virtual machine and open its Properties. Navigate to Details → Add hardware → PCIe host device.


Choose a virtio-net device virtual function according to its PCIe device (e.g., 00:09.1), reboot or start the VM.

Using virsh Command

Run the following command to get the VM list and select the target VM by Name field:

Copy
Copied!


            [host]# virsh list --all
 Id   Name                           State
----------------------------------------------
 1    host-101-CentOS-8.5           running

Edit the VMs XML file, run:

Copy
Copied!


            [host]# virsh edit <VM_NAME>

Assign the target virtio-net device PCIe BDF to the VM, using vfio as driver, replace BUS/SLOT/FUNCTION/BUS_IN_VM/SLOT_IN_VM/FUNCTION_IN_VM with corresponding settings.

Copy
Copied!


            <hostdev mode='subsystem' type='pci' managed='no'>
  <driver name='vfio'/>
    <source>
      <address domain='0x0000' bus='<#BUS>' slot='<#SLOT>' function='<#FUNCTION>'/>
    </source>
  <address type='pci' domain='0x0000' bus='<#BUS_IN_VM>' slot='<#SLOT_IN_VM>' function='<#FUNCTION_IN_VM>'/>
</hostdev>

For example, assign target device 00.09.1 to the VM and its PCIe BDF within the VM is 01:00.0:

Copy
Copied!


            <hostdev mode='subsystem' type='pci' managed='no'>
  <driver name='vfio'/>
    <source>
      <address domain='0x0000' bus='0x00' slot='0x09' function='0x1'/>
    </source>
  <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
</hostdev>

Destroy the VM if it is already started:

Copy
Copied!


            [host]# virsh destory <VM_NAME>

Start the VM with new XML configuration:

Copy
Copied!


            [host]# virsh start <VM_NAME>

On This Page

Virtio-net Deployment

Updating OS Image on BlueField

Updating NIC Firmware

Configuring NIC Firmware

Static PF

Hotplug PF

SR-IOV VF

PF/VF Combinations

System Configuration

Host System Configuration

BlueField System Configuration

Usage

Hotplug PF Devices

Creating PF Devices

Destroying PF Devices

SR-IOV VF Devices

Creating SR-IOV VF Devices

Destroying SR-IOV VF Devices

Assigning Virtio-net Device to VM

Locating Virtio-net Devices

Using virt-manager

Using virsh Command
