Specifications
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
|
Physical |
Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) |
|||
|
Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical) |
||||
|
Protocol Support |
InfiniBand: IBTA v1.4a Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), HDR (50Gb/s per lane) port |
|||
|
Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Data Rate |
InfiniBand |
SDR/DDR/QDR/FDR/EDR/HDR100 |
||
|
Ethernet |
1/10/25/40/50/100 Gb/s |
|||
|
PCI Express Gen3.0/4.0 |
SERDES @ 8.0GT/s/16GT/s, x8 lanes (2.0 and 1.1 compatible) |
|||
|
Voltage : 3.3Aux Maximum current: 100mA |
||||
|
Power and Airflow |
Power |
Cable |
||
|
Typical Powerb |
Passive Cables |
10.1W |
||
|
Maximum Power |
Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials) |
|||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Airflow (LFM) / Ambient Temperature |
Cable Type |
Airflow Direction |
||
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
TBD |
TBD |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cc |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
|
Physical |
Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) |
|||
|
Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical) |
||||
|
Protocol Support |
InfiniBand: IBTA v1.4a Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), HDR (50Gb/s per lane) port |
|||
|
Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Data Rate |
InfiniBand |
SDR/DDR/QDR/FDR/EDR/HDR100/HDR |
||
|
Ethernet |
1/10/25/40/50/100/200 Gb/s |
|||
|
PCI Express Gen3/4: |
SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible) |
|||
|
Power and Airflow |
Voltage : 3.3Aux Maximum current: 100mA |
|||
|
Power |
Cable |
|||
|
Typical Powerb |
Passive Cables |
19.3W |
||
|
Maximum Power |
Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials) |
|||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Airflow (LFM) / Ambient Temperature |
Cable Type |
Airflow Direction |
||
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
350 LFM / 55°C |
250 LFM / 35°C |
||
|
NVIDIA Active 4.7W Cables |
500 LFM / 55°Cc |
250 LFM / 35°C |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°C |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidityd |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. For engineering samples - add 250LFM
d. The non-operational storage temperature specifications apply to the product without its package.
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
|
Physical |

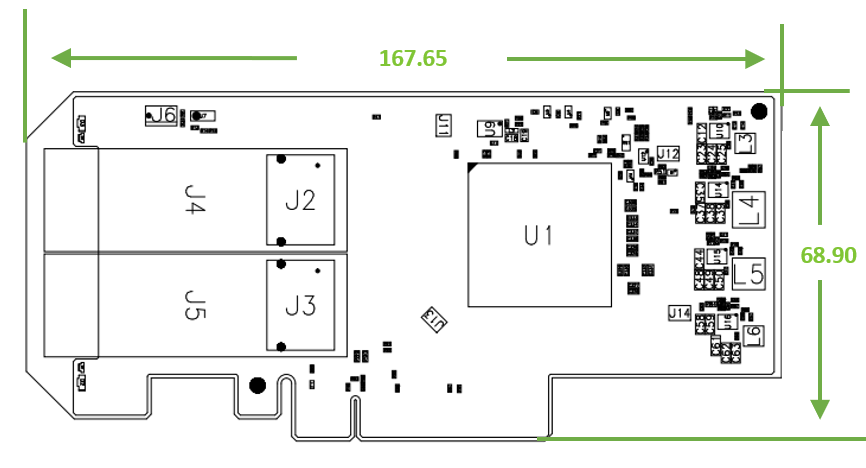

Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) |
|||
|

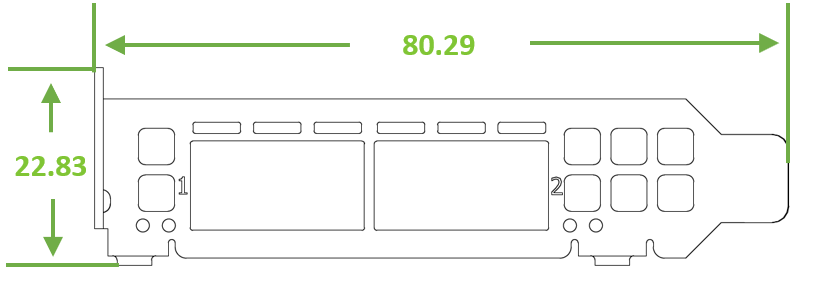

Connector: Dual QSFP56 InfiniBand and Ethernet (copper and optical) |
||||
|
Protocol Support |
InfiniBand: IBTA v1.4a Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), HDR (50Gb/s per lane) port |
|||
|
Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Data Rate |
InfiniBand |
SDR/DDR/QDR/FDR/EDR/HDR100/HDR |
||
|
Ethernet |
1/10/25/40/50/100/200 Gb/s |
|||
|
PCI Express Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible) |
||||
|
Power and Airflow |
Voltage : 3.3Aux Maximum current: 100mA |
|||
|
Power |
Cable |
|||
|
Typical Powerb |
Passive Cables |
23.6W |
||
|
Maximum Power |
Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials) |
|||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Airflow (LFM) / Ambient Temperature |
Cable Type |
Airflow Direction |
||
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
400 LFM / 55°C |
300 LFM / 35°C |
||
|
NVIDIA Active 4.7W Cables |
950 LFM / 55°C 600 LFM / 48°Cd |
300 LFM / 35°C |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°C |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidityc |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. For both operational and non-operational states.
Please make sure to install the ConnectX-6 card in an liquid-cooled Intel® Server System D50TNP platform.
|
Physical |

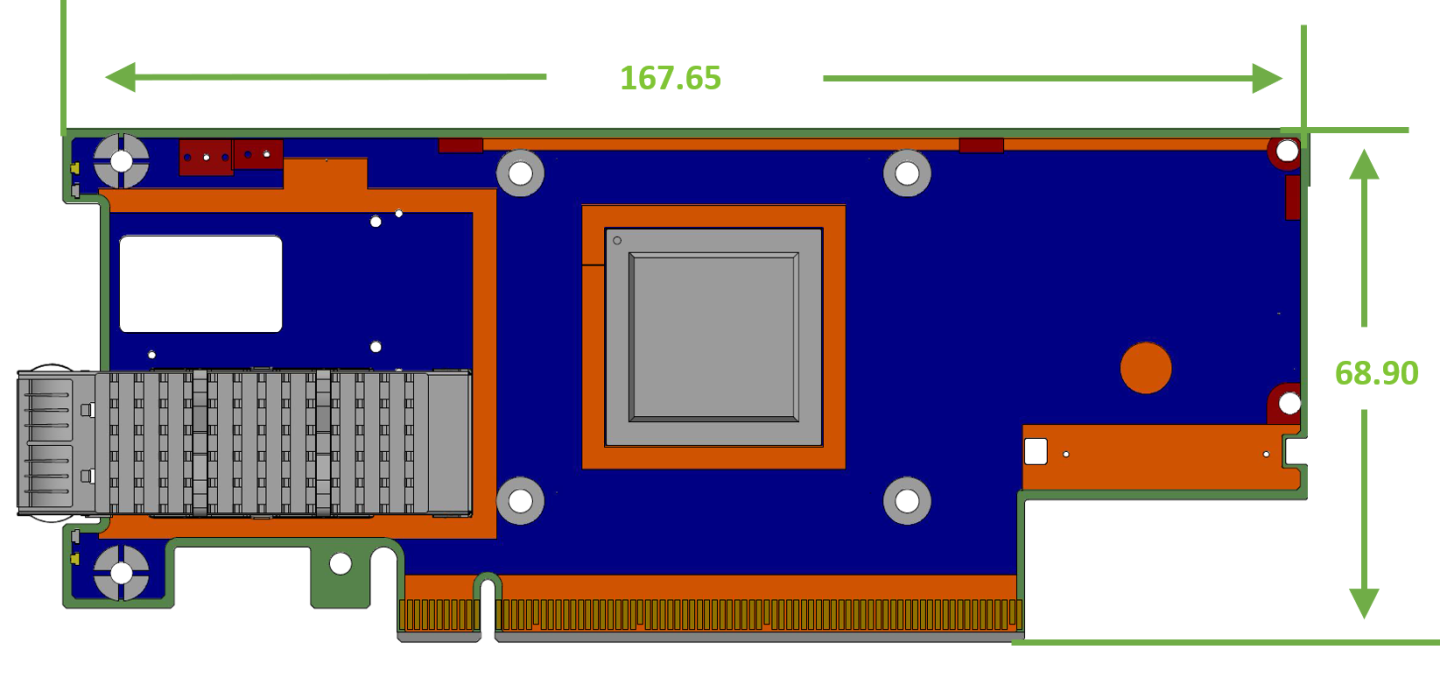

Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) |
|||
|
Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical) |
||||
|
Protocol Support |
InfiniBand: IBTA v1.4a Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), HDR (50Gb/s per lane) port |
|||
|
Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Data Rate |
InfiniBand |
SDR/DDR/QDR/FDR/EDR/HDR100/HDR |
||
|
Ethernet |
1/10/25/40/50/100/200 Gb/s |
|||
|
PCI Express Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible) |
||||
|
Power and Airflow |
Voltage : 3.3Aux Maximum current: 100mA |
|||
|
Power |
Cable |
|||
|
Typical Powerb |
Passive Cables |
18.5W |
||
|
Maximum Power |
Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials) |
|||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Airflow (LFM) / Ambient Temperature |
Cable Type |
Airflow Direction |
||
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
TBD |
TBD |
||
|
NVIDIA Active 4.7W Cables |
TBD |
TBD |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°C |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidityc |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. For both operational and non-operational states.
Please make sure to install the ConnectX-6 card in an liquid-cooled Intel® Server System D50TNP platform.
|
Physical |

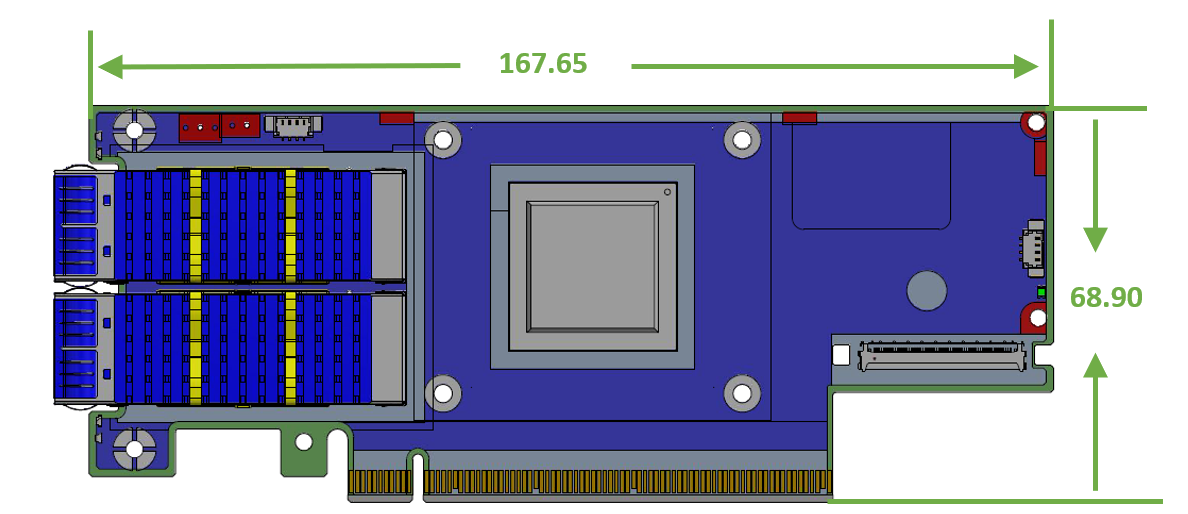

Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) |
|||
|
Connector: Dual QSFP56 InfiniBand and Ethernet (copper and optical) |
||||
|
Protocol Support |
InfiniBand: IBTA v1.4a Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), HDR (50Gb/s per lane) port |
|||
|
Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Data Rate |
InfiniBand |
SDR/DDR/QDR/FDR/EDR/HDR100/HDR |
||
|
Ethernet |
1/10/25/40/50/100/200 Gb/s |
|||
|
PCI Express Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible) |
||||
|
Power and Airflow |
Voltage : 3.3Aux Maximum current: 100mA |
|||
|
Power |
Cable |
|||
|
Typical Powerb |
Passive Cables |
20.85W |
||
|
Maximum Power |
Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials) |
|||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Airflow (LFM) / Ambient Temperature |
Cable Type |
Airflow Direction |
||
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
TBD |
TBD |
||
|
NVIDIA Active 4.7W Cables |
TBD |
TBD |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°C |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidityc |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. For both operational and non-operational states.
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
|
Physical |
Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) |
|||
|
Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical) |
||||
|
Protocol Support |
InfiniBand: IBTA v1.4 a Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane) |
|||
|
Ethernet: 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Data Rate |
InfiniBand |
SDR/DDR/QDR/FDR/EDR/HDR100 |
||
|
Ethernet |
1/10/25/40/50/100 Gb/s |
|||
|
PCIe Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible) |
||||
|
Power and Airflow |
Voltage : 3.3Aux Maximum current: 100mA |
|||
|
Power |
Cable |
|||
|
Typical Powerb |
Passive Cables |
15.6W |
||
|
Maximum Power |
Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials) |
|||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Airflow (LFM) / Ambient Temperature |
Cable Type |
Airflow Direction |
||
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
300 LFM / 55°C |
200 LFM / 35°C |
||
|
NVIDIA Active 2.7W Cables |
300 LFM / 55°C |
200 LFM / 35°C |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cc |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
For power specifications when using a single-port configuration, please refer to MCX653105A-ECAT Specifications
|
Physical |
Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) |
|||
|

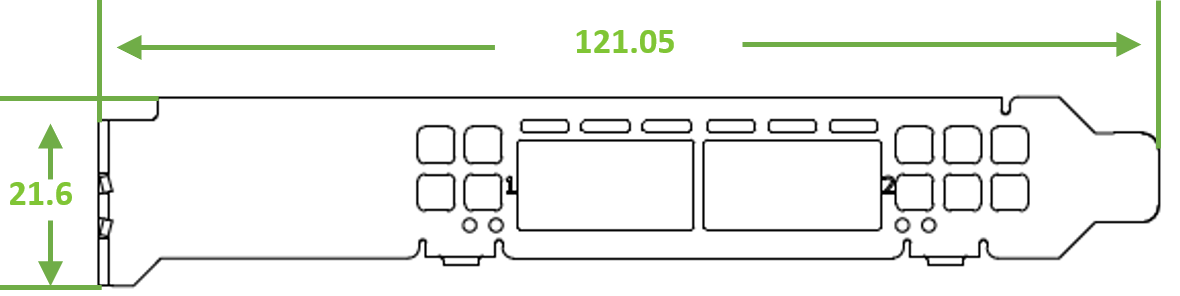

Connector: Dual QSFP56 InfiniBand and Ethernet (copper and optical) |
||||
|
Protocol Support |
InfiniBand: IBTA v1.4a Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane) port |
|||
|
Ethernet: 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Data Rate |
InfiniBand |
SDR/DDR/QDR/FDR/EDR |
||
|
Ethernet |
1/10/25/40/50/100 Gb/s |
|||
|
Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible) |
||||
|
Power and Airflow |
Voltage: 12V, 3.3VAUX Maximum current: 100mA |
|||
|
Power |
Cable |
|||
|
Typical Powerb |
Passive Cables |
21.0W |
||
|
Maximum Power |
Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials) |
|||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Airflow (LFM) / Ambient Temperature |
Cable Type |
Airflow Direction |
||
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
350 LFM / 55°C |
250 LFM / 35°C |
||
|
NVIDIA Active 2.7W Cables |
550 LFM / 55°C |
250 LFM / 35°C |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cc |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
|
Physical |
Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) Auxiliary PCIe Connection Card Size: 5.09 in. x 2.32 in. (129.30mm x 59.00mm) Two Cabline CA-II Plus harnesses (white and black) Length: 35cm |
|||
|
Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical) |
||||
|
Protocol Support |
InfiniBand: IBTA v1.4a Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), HDR (50Gb/s per lane) port |
|||
|
Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Data Rate |
InfiniBand |
SDR/DDR/QDR/FDR/EDR/HDR100/HDR |
||
|
Ethernet |
1/10/25/40/50/100/200 Gb/s |
|||
|
Gen3: SERDES @ 8.0GT/s/, x16 lanes (2.0 and 1.1 compatible) |
||||
|
Adapter Card Power |
Voltage: 12V, 3.3VAUX |
|||
|
Power |
Cable |
|||
|
Typical Powerb |
Passive Cables |
27.1W |
||
|
Maximum Power |
Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials) |
|||
|
Voltage : 3.3Aux Maximum current: 100mA |
||||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Active Auxiliary PCIe Connection Card Power |
Typical Power |
3.0W |
||
|
Maximum Power |
4.0W |
|||
|
Airflow |
Airflow (LFM) / Ambient Temperature |
Cable Type |
Airflow Direction |
|
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
600 LFM / 55°C |
350 LFM / 35°C |
||
|
NVIDIA Active 4.7W Cables |
600 LFM / 55°Cc |
350 LFM / 35°C |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°c |
|
|
Non-operational |
-40°C to 70°Cd |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. For engineering samples - add 250LFM
d. The non-operational storage temperature specifications apply to the product without its package.
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
For power specifications when using a single-port configuration, please refer to MCX654105A-HCAT Specifications
|
Physical |
Low Profile Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) Auxiliary PCIe Connection Card Size: 5.09 in. x 2.32 in. (129.30mm x 59.00mm) Two Cabline CA-II Plus harnesses (white and black) Length: 35cm |
|||
|
Connector: Dual QSFP56 InfiniBand and Ethernet (copper and optical) |
||||
|
Protocol Support |
InfiniBand: IBTA v1.4a Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), HDR (50Gb/s per lane) port |
|||
|
Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Data Rate |
InfiniBand |
SDR/DDR/QDR/FDR/EDR/HDR100/HDR |
||
|
Ethernet |
1/10/25/40/50/100/200 Gb/s |
|||
|
Gen3: SERDES @ 8.0GT/s, x16 lanes (2.0 and 1.1 compatible) |
||||
|
Adapter Card Power |
Voltage: 12V, 3.3VAUX |
|||
|
Power |
Cable |
|||
|
Typical Powerb |
Passive Cables |
31.4W |
||
|
Maximum Power |
Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials) |
|||
|
Voltage : 3.3Aux Maximum current: 100mA |
||||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Active Auxiliary PCIe Connection Card Power |
Typical Power |
3.0W |
||
|
Maximum Power |
4.0W |
|||
|
Airflow (LFM) / Ambient Temperature |
Cable Type |
Airflow Direction |
||
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
700 LFM / 55°C |
400 LFM / 35°C |
||
|
NVIDIA Active 4.7W Cables |
1050 LFM / 55°C 600 LFM / 48°C |
400 LFM / 35°C |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cc |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM// KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
|
Physical |
Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) Auxiliary PCIe Connection Card Size: 5.09 in. x 2.32 in. (129.30mm x 59.00mm) Two Cabline CA-II Plus harnesses (white and black) Length: 35cm |
|||
|
Connector: Dual QSFP56 InfiniBand and Ethernet (copper and optical) |
||||
|
Protocol Support |
Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane) | |||
|
Ethernet: 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Data Rate |
InfiniBand |
SDR/DDR/QDR/FDR/HDR100/EDR |
||
|
Ethernet |
1/10/25/40/50/100 Gb/s |
|||
|
Gen3: SERDES @ 8.0GT/s, x16 lanes (2.0 and 1.1 compatible) |
||||
|
Adapter Card Power |
Voltage: 12V, 3.3VAUX Maximum current: 100mA |
|||
|
Power |
Cable |
|||
|
Typical Powerb |
Passive Cables |
27.1W |
||
|
Maximum Power |
Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials) |
|||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Active Auxiliary PCIe Connection Card Power |
Typical Power |
3.0W |
||
|
Maximum Power |
4.0W |
|||
|
Airflow |
Airflow (LFM) / Ambient Temperature |
Cable Type |
Airflow Direction |
|
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
600 LFM / 55°C |
400 LFM / 35°C |
||
|
NVIDIA Active 2.7W Cables |
700 LFM / 55°C |
400 LFM / 35°C |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cc |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
|
Physical |
Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) |
|||
|
Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical) |
||||
|
Protocol Support |
InfiniBand: IBTA v1.4a Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane) port |
|||
|
Ethernet: 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Data Rate |
InfiniBand |
SDR/DDR/QDR/FDR/EDR/HDR100 |
||
|
Ethernet |
1/10/25/40/50/100 Gb/s |
|||
|
Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes, Socket Direct (2.0 and 1.1 compatible) |
||||
|
Adapter Card Power |
Voltage: 12V, 3.3VAUX Maximum current: 100mA |
|||
|
Power |
Cable |
|||
|
Typical Powerb |
Passive Cables |
19.4W |
||
|
Maximum Power |
Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials) |
|||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Airflow |
Airflow (LFM) / Ambient Temperature |
Cable Type |
Airflow Direction |
|
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
300 / 55°C |
200 / 35°C |
||
|
NVIDIA Active 2.75W Cables |
300 / 55°C |
200 / 35°C |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cc |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidityc |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
For power specifications when using a single-port configuration, please refer to MCX653105A-EFAT Specifications.
|
Physical |
Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm) |
|||
|
Connector: Dual QSFP56 InfiniBand and Ethernet (copper and optical) |
||||
|
Protocol Support |
Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane) port | |||
|
Ethernet: 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
||||
|
Data Rate |
InfiniBand |
SDR/DDR/QDR/FDR/EDR, HDR100 |
||
|
Ethernet |
1/10/25/40/50/100 Gb/s |
|||
|
Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes, Socket Direct (2.0 and 1.1 compatible) |
||||
|
Adapter Card Power and Airflow |
Voltage: 12V, 3.3VAUX |
|||
|
Power |
Cable |
|||
|
Typical Powerb |
Passive Cables |
21.6W |
||
|
Maximum Power |
Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials) |
|||
|
Voltage : 3.3Aux Maximum current: 100mA |
||||
|
Maximum power available through QSFP56 port: 5W |
||||
|
Airflow (LFM) / Ambient Temperature |
Cable Type |
Airflow Direction |
||
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
350 LFM / 55°C |
250 LFM / 35°C |
||
|
NVIDIA Active 2.75W Cables |
550 LFM / 55°C |
250 LFM / 35°C |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cc |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.
Please make sure to install the ConnectX-6 card in a PCIe slot that is capable of supplying the required power and airflow as stated in the below table.
|
Physical |

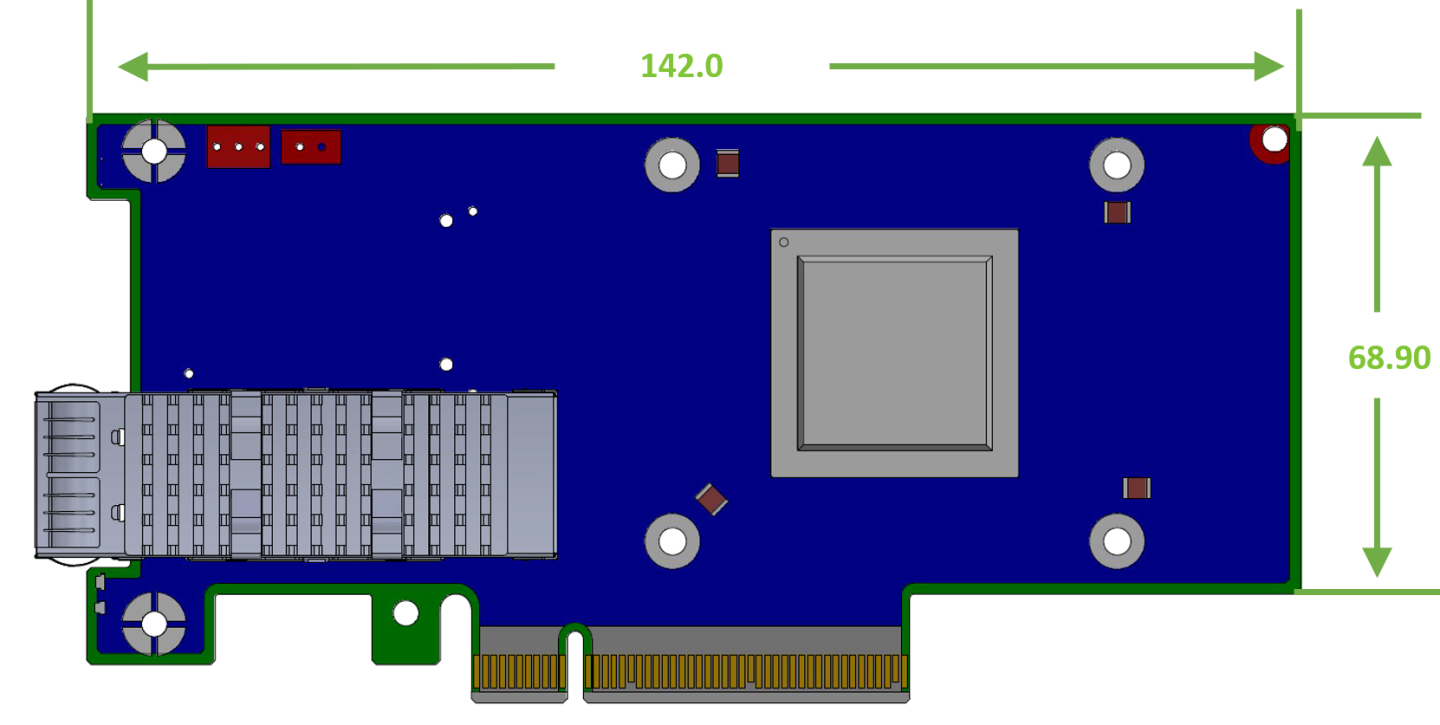

Adapter Card Size: 5.59 in. x 2.71 in. (142mm x 68.90mm) |
|||
|
Connector: Single QSFP InfiniBand (copper and optical) |
||||
|
Protocol Support |
InfiniBand: IBTA v1.4a HDR (4 lanes x 50Gb/s per lane) , HDR100 (2 lane x 50Gb/s per lane), EDR (4 lanes x 25Gb/s per lane), FDR (4 lanes x 14.0625Gb/s), 1X/2X/4X SDR (4 lanes x 2.5Gb/s per lane). |
|||
|
Data Rate |
InfiniBand |
HDR/HDR100/EDR/FDR/SDR |
||
|
Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes |
||||
|
Adapter Card Power |
Voltage: 12V, 3.3VAUX |
|||
|
Power |
Cable |
|||
|
Typical Powerb |
Passive Cables |
19.58W |
||
|
Maximum Power |
Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials) |
|||
|
Voltage : 3.3Aux Maximum current: 100mA |
||||
|
Maximum power available through QSFP port: 5W |
||||
|
Airflow |
Airflow (LFM) / Ambient Temperature |
Cable Type |
Airflow Direction |
|
|
Heatsink to Port |
Port to Heatsink |
|||
|
Passive Cables |
TBD |
TBD |
||
|
NVIDIA Active 2.75W Cables |
TBD |
TBD |
||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°Cc |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety: CB / cTUVus / CE |
|||
|
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
|
RoHS: RoHS Compliant |
||||
Notes: a. The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.

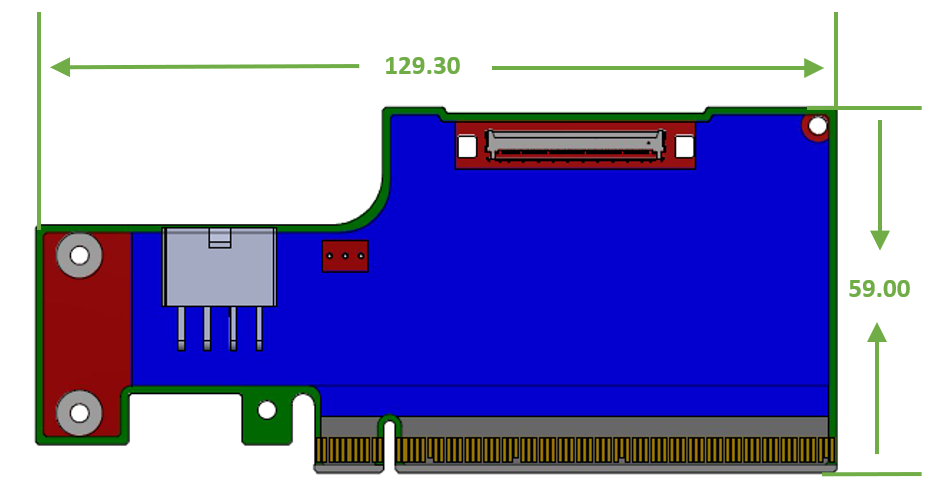

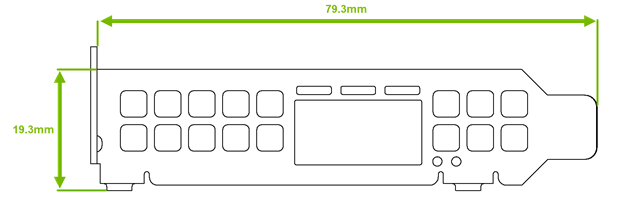

All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.
