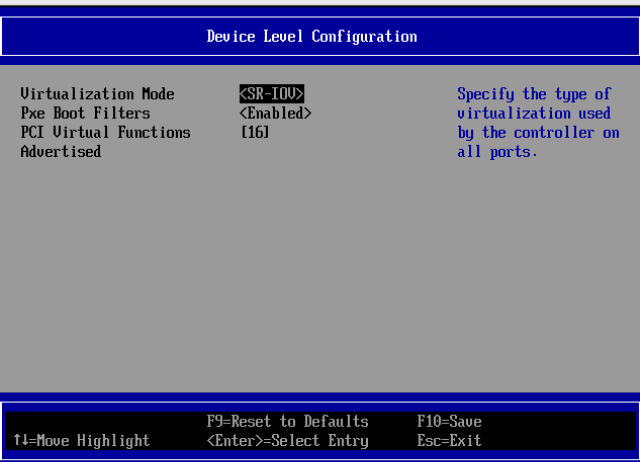

HII Device Level Configuration
In the following menu, you can set the following options:
|
Location: |
Main Configuration Form /Device Level Configuration |
|
Description: |
Specifies the type of virtualization used by the controller on all ports. Only valid for adapters that support SR-IOV virtualization mode. |
|
Configurable: |
Yes – built-in options |
|
Persistency: |
Persistent through AC cycle |
|
Reboot required: |
Yes – reboot is needed in order for this change to apply |
|
Available options: |
1 - None 2 - SR-IOV |
|
Location: |
Main Configuration Form /Device Level Configuration |
|
Description: |
The number of virtual functions advertised and usable by the driver. Only valid for adapters that support SR-IOV virtualization mode. |
|
Configurable: |
Yes – via input – If virtualization mode is SR-IOV |
|
Persistency: |
Persistent through AC cycle |
|
Reboot required: |
Yes – reboot is needed in order for this change to apply |
|
Value restrictions: |
Minimum integer value is 0. Maximum integer value is the value supported by the firmware installed. |
|
Location: |
Main Configuration Form /Device Level Configuration |
|
Description: |
Enable PXE-BOOT known-protocols filters (DHCP, TFTP, ICMP) |
|
Configurable: |
Yes |
|
Persistency: |
Persistent through AC cycle |
|
Reboot required: |
Yes – reboot is needed in order for this change to apply |
|
Value restrictions: |
0- Disabled 1- Enabled |
