HCOLL

To meet the needs of scientific research and engineering simulations, supercomputers are growing at an unrelenting rate. As supercomputers increase in size from mere thousands to hundreds-of-thousands of processor cores, new performance and scalability challenges have emerged. In the past, performance tuning of parallel applications could be accomplished fairly easily by separately optimizing their algorithms, communication, and computational aspects. However, as systems continue to scale to larger machines, these issues become co-mingled and must be addressed comprehensively.

Collective communications execute global communication operations to couple all processes/nodes in the system and therefore must be executed as quickly and as efficiently as possible. Indeed, the scalability of most scientific and engineering applications is bound by the scalability and performance of the collective routines employed. Most current implementations of collective operations will suffer from the effects of systems noise at extreme-scale (system noise increases the latency of collective operations by amplifying the effect of small, randomly occurring OS interrupts during collective progression.) Furthermore, collective operations will consume a significant fraction of CPU cycles, cycles that could be better spent doing the meaningful computation.

The two issues of lost CPU cycles and performance loss to the effects of system noise have been addressed by offloading the communications to the host channel adapters (HCAs) and switches. The technologies of SHARP (Scalable Hierarchical Aggregation and Reduction Protocols) and CORE-Direct® (Collectives Offload Resource Engine) provide the most advanced solution available for handling collective operations, thereby ensuring maximal scalability, minimal CPU overhead, and providing the capability to overlap communication operations with computation allowing applications to maximize asynchronous communication.

Additionally, HCOLL contains support for building runtime configurable hierarchical collectives. HCOLL leverages hardware multicast capabilities to accelerate collective operations. In HCOLL, the performance and scalability of the UCX point-to-point library in the form of the "ucx_p2p" BCOL is fully taken advantage of. This enables users to leverage NVIDIA hardware offloads transparently and with minimal effort.

HCOLL is a standalone library that can be integrated into any MPI or PGAS runtime. Support for HCOLL is currently integrated into Open MPI versions 1.7.4 and higher. HCOLL release currently supports blocking and non-blocking variants of "Allgather", "Allgatherv", "Allreduce", "AlltoAll", "AlltoAllv", "Barrier", and "Bcast".

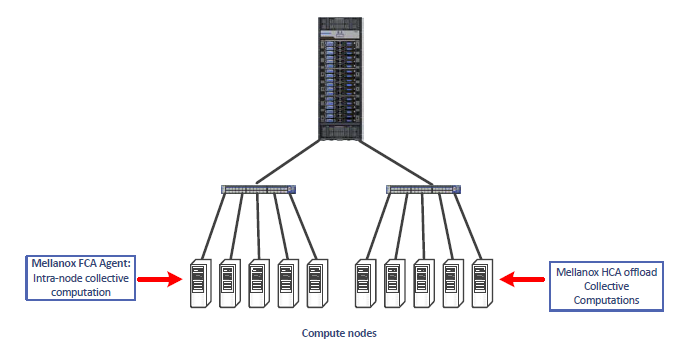

The following diagram summarizes the HCOLL architecture:

The following diagram shows the HCOLL components and the role that each plays in the acceleration process:



Warning

HCOLL is part of the HPC-X software toolkit and does not require any special installation.

Enabling HCOLL in Open MPI

HCOLL is enabled by default with HPC-X. Users can explicitly disable it using the following MCA parameter.

Copy
Copied!


%mpirun -np 32 -mca coll_hcoll_enable 0 ./a.out


Tuning HCOLL Setting

The default HCOLL settings should be optimal for most systems. To check the available HCOLL parameters and their default values, run the following command after loading HPC-X.

Copy
Copied!


% $HPCX_HCOLL_DIR/bin/hcoll_info –all

HCOLL parameters are simply environment variables and can be modified in one of the following ways:

  • Modify the default HCOLL parameters as part of the mpirun command.

    Copy
    Copied!


    % mpirun ... -x HCOLL_ML_BUFFER_SIZE=65536

  • Modify the default HCOLL parameter values from SHELL:

    Copy
    Copied!


    % export -x HCOLL_ML_BUFFER_SIZE=65536 % mpirun ...

Selecting Ports and Devices

To select the HCA device


and port you would like HCOLL to run over:

Copy
Copied!


-x HCOLL_MAIN_IB=<device_name>:<port_num>


Enabling Offloaded MPI Non-blocking Collectives

In order to use hardware offloaded collectives in non-blocking MPI calls (e.g. MPI_Ibcast()), set the following parameter

Copy
Copied!


-x HCOLL_ENABLE_NBC=1

The supported non-blocking MPI collectives are:Note that enabling non-blocking MPI collectives will disable multicast acceleration in blocking MPI collectives.

  • MPI_Ibarrier

  • MPI_Ibcast

  • MPI_Iallgather

  • MPI_Iallreduce (4b, 8b, SUM, MIN, PROD, AND, OR, LAND, LOR)

Enabling Multicast Accelerated Collectives

HCOLL uses hardware multicast to accelerate certain collective operations. In order to take full advantage of this unique capability, you must first have IPoIB configured on every adapter card/port pair that collective message traffic flows through.

Configuring IPoIB

To configure IPoIB, you need to define an IP address on the IB interface.

  1. Use /usr/bin/ibdev2netdev to show all IB interfaces.

    Copy
    Copied!


    hpchead ~ >ibdev2netdev mlx4_0 port 1 ==> ib0 (Down) mlx4_0 port 2 ==> ib1 (Down) mlx5_0 port 1 ==> ib2 (Down) mlx5_0 port 2 ==> ib3 (Down)

  2. Use /sbin/ifconfig to get the address information for a specific interface (e.g. ib0).

    Copy
    Copied!


    hpchead ~ >ifconfig ib0 ifconfig uses the ioctl access method to get the full address information, which limits hardware addresses to 8 bytes. Since InfiniBand address has 20 bytes, only the first 8 bytes are displayed correctly. Ifconfig is obsolete! For replacement check ip. ib0 Link encap:InfiniBand HWaddr A0:04:02:20:FE:80:00:00:00:00:00:00:00:00:00:00:00:00:00:00 inet addr:192.168.1.1 Bcast:192.168.1.255 Mask:255.255.255.0 BROADCAST MULTICAST MTU:2044 Metric:1 RX packets:58 errors:0 dropped:0 overruns:0 frame:0 TX packets:1332 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1024 RX bytes:3248 (3.1 KiB) TX bytes:80016 (78.1 KiB)

    Or you can use /sbin/ip for the same purpose

    Copy
    Copied!


    hpchead ~ >ip addr show ib0 4: ib0: <BROADCAST,MULTICAST> mtu 2044 qdisc mq state DOWN qlen 1024 link/infiniband a0:04:02:20:fe:80:00:00:00:00:00:00:00:02:c9:03:00:21:f9:31 brd 00:ff:ff:ff:ff:12:40:1b:ff:ff:00:00:00:00:00:00:ff:ff:ff:ff inet 192.168.1.1/24 brd 192.168.1.255 scope global ib0-

In the example above, the IP is defined (192.168.1.1). If it is not defined, then you can define an IP address now.

Enabling NVIDIA SHARP Software Accelerated Collectives

As of v1.7, HPC-X supports NVIDIA SHARP Software Accelerated Collectives. These collectives are enabled by default if HCOLL v3.5 and above detects that it is running in a supported environment.

To enable NVIDIA SHARP acceleration:


Copy
Copied!


-x HCOLL_ENABLE_SHARP=1

To disable NVIDIA SHARP acceleration:


Copy
Copied!


-x HCOLL_ENABLE_SHARP=0

To change the NVIDIA SHARP message threshold:


Copy
Copied!


-x HCOLL_BCOL_P2P_ALLREDUCE_SHARP_MAX=<threshold> ( default: tune based on sharp resources)

The maximum small message allreduce algorithm runs through SHARP. Messages with a size greater than the above will use SHARP streaming aggregation or fall back to non-SHARP-based algorithms (multicast based or non-multicast based).

For instructions on how to deploy NVIDIA SHARP software in InfiniBand fabric, see NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) Deployment Guide.

Once NVIDIA SHARP software is deployed, you need to only specify the HCA device (device_name) and port number (port_num) that is connected to the NVIDIA SHARP software tree in the following way:

Copy
Copied!


-x HCOLL_MAIN_IB=<device_name>:<port_num>

GPU Buffer Support in HCOLL

HCOLL of version >= 4.4 supports collective operations over GPU buffers. The supported GPU HW includes NVIDIA® GPUs starting from Tesla K80.

  • Minimal SW requirement: CUDA® (version >= 9.0).

If CUDA runtime is available during MPI job, HCOLL will automatically enable GPU support. Collective operations that support GPU buffers:

  • Allreduce

  • Bcast

  • Allgather

If some other collective operation API of libhcoll is called with GPU buffer, then the call would return HCOLL_ERROR after the buffer type check.

Recommended Additional SW

  • NCCL (version >= 2.4).
    It is recommended to install libnccl for better performance. If it is not available, HCOLL will print a warning regarding potentially lower performance. The warning can be suppressed by setting “-x HCOLL_CUDA_BCOL=ucx_p2p -x HCOLL_CUDA_SBGP=p2p”.

  • GPUDirect RDMA nv_peer_mem. If nv_peer_mem module is loaded on all nodes, then Bcast operation over GPU buffers will be optimized with HW Multicast.

The control parameter is HCOLL_GPU_ENABLE = <0,1,-1>

where:

Parameter

Description

0

GPU support disabled. The type of the user buffers’ pointers is not checked. In such a case, if the user provides the buffer allocated on GPU, the behavior is undefined.

1

GPU support enabled. The buffer pointer is checked and HCOLL GPU collectives are enabled. This is the default value if the CUDA runtime is available.

-1

Partial GPU support. The buffer pointer is checked and HCOLL falls back to the runtime in the case of GPU buffer.

Limitations

Not all combinations of (OP, DTYPE) are supported for MPI_Allreduce with GPU buffers.

Supported operations:

  • SUM

  • PROD

  • MIN

  • MAX

Supported types:

  • INT8,16,32,64

  • UINT8,16,32,64

  • FLOAT16,32,64

Limitations

  • As of v4.1 release, HCOLL does not fully support mixed MPI datatypes. In this context, mixed datatypes refers to collective operations where the datatype layout of input and output buffers may be different on different ranks. For example:
    For an arbitrary MPI collective operation:

    Copy
    Copied!


    MPI_Collective_op( input, count1, datatype-in_i, output, count2,datatype-out_i, communicator)

    Where i = 0,...,(number_of_mpi_processes - 1)
    Mixed mode means when i is not equal to j, (datatype-in_i, datatype-out_i) is not necessarily equal to (datatype-in_j, datatype-out_j).
    Mixed MPI datatypes, in general, can prevent protocol consensus inside HCOLL, resulting in hangs. However, because HCOLL contains a datatype engine with packing and unpacking flows built into the collective algorithms, mixed MPI datatypes will work under the following scenarios:

    • If the packed length of the data (a value all ranks must agree upon regardless of datatype) can fit inside a single HCOLL buffer (the default is (64Kbytes - header_space)), then mixed datatypes will work.

    • If the packed length of count*datatype is bigger than an internal HCOLL buffer, then HCOLL will need to fragment the message. If the datatypes and counts are defined on each rank so that all ranks agree on the number of fragments needed to complete the operation, then mixed datatypes will work. Our datatype engine cannot split across primitive types and padding, this may result in non-agreement on the number of fragments required to process the operation. When this happens, HCOLL will hang with some ranks expecting incoming fragments and other believing the operation is complete.

  • The environment variable HCOLL_ALLREDUCE_ZCOPY_TUNE= (default - dynamic) selects the level of automatic runtime tuning of HCOLL’s large data allreduce algorithm. “Static” means no tuning is applied at runtime. “Dynamic” - allows HCOLL to dynamically adjust the algorithms radix and zero-copy threshold selection based on runtime sampling of performance.

    Note: The “dynamic” mode should not be used in cases where numerical reproducibility is required, as this mode may result in a variation of the floating point reduction result from one run to another due to non-fixed reduction order.
