MAM1Q00A-QSA28 NVIDIA DynamiX QSA™ QSA28, QSFP28 to SFP28 Adapter Product Specifications


NVIDIA® DynamiX QSA™ QSA28, QSFP28 to SFP28 adapter, enables smooth, cost effective connections between a single lane

transceiver/cable and a quad lane port. The QSA28 allows connecting an SFP28/SFP+/SFP transceiver or cable to a QSFP28 port of an Nx100 Gbps switch or network interface card (NIC).

The QSA28 should be installed into a QSFP28 port, and is intended to either connect a switch QSFP28 port to a NIC SFP28 port or connect a NIC QSFP28 port to a switch SFP28 port. For example, an SFP28-based cable can be connected to 100GbE ConnectX®-4 NIC and to the 32 x 100GbE SN2700 Ethernet switch. The QSA28 conforms to the SFF-8402 for the SFP28 side and to SFF-8665 for the QSFP28 standards and is thoroughly tested to meet strict quality requirements. The adapter has a QSFP28 form factor with a receptacle for SFP28 transceiver/AOC/DAC connector. The QSA28 provides a solution for integrating systems using different vendors’ equipment, it is vendor agnostic and provides a direct path to the SFP unit’s memory. The QSA28 interoperates with all major optical module and direct attach copper cables vendors.

Its design assures minimum loss on the conversion path between the QSFP28 cage and the SFP28 receptacle. The RF (high speed data) channel of the SFP28 receptacle is connected to lane 1 of the QSFP28 connector. The 3 remaining RF channels on the QSFP28 connector are not connected. The QSA28 is qualified for 10GbE SFP+ and 1GbE SFP transceivers meeting the Small Form Factor Pluggable (SFP) Transceiver Multi-source Agreement (MSA).

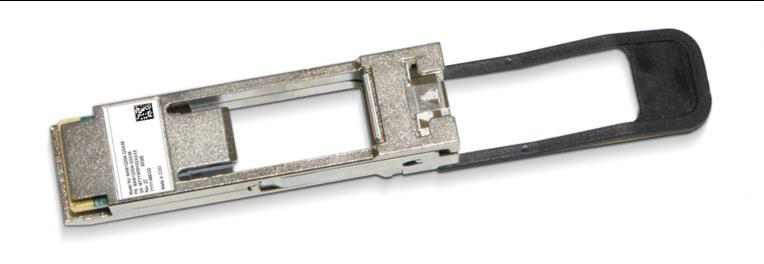

Images are for illustration purposes only. Product labels, colors, and lengths may vary.

Key Features

  • Industry-leading price and performance

  • Trouble-free installation and network bring-up

  • Compliant to industry standards

  • QSFP28 MSA SFF-8665

  • SFP28 MSA SFF-8402

  • Low insertion loss

  • Registered US patent 7,934,959

  • Matched impedance

  • Secure latching mechanism

  • Built-in EEPROM for product identification

  • RoHS compliant
