MCA7J65-Nxxx 800Gbps Twin-port OSFP to 2x400Gbps QSFP112 ACC Splitter

MCA7J65-Nxxx 800Gb_s Twin-port OSFP to 2x400Gb_s QSFP112 ACC Splitter Product Specifications Download PDF

Introduction

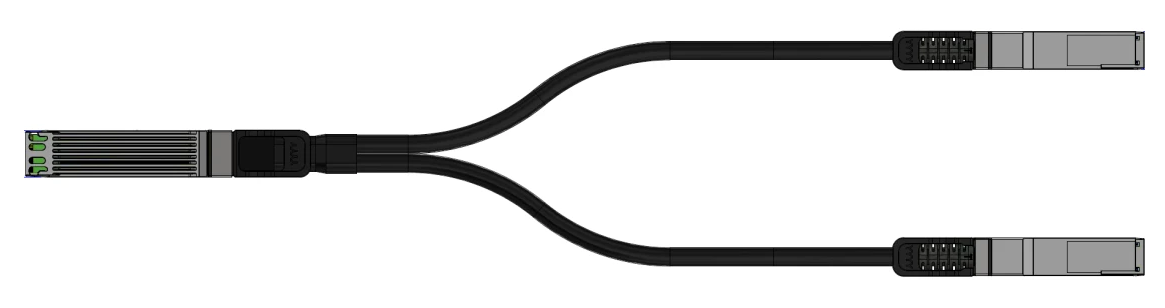

NVIDIA® MCA7J65 is an 800Gb/s twin-port OSFP (Octal Small Formfactor Pluggable) to 2x400Gb/s QSFP112 (Quad Small Form-factor Pluggable 112G) Active Copper Cable (ACC) dual breakout (aka splitter) cable for InfiniBand NDR networking.

The switch end OSFP has a finned top for additional cooling and the QSFP112 DPU (Datacenter Processing Units) end is flat topped and uses riding heat sinks on the HCA OSFP cage. The ACC contains eight high-speed electrical copper pairs, each operating at data rates of up to 100Gb/s using 100G-PAM4 modulation.

The “active” term refers to the passive copper cable with an equalizer integrated circuit to extend the length to 4 and 5-meters while maintaining very low-latency and very low-power at 1.5 Watts and 0.6 Watts per split end. Thin 30AWG is used for 4m lengths and thicker 26AWG for 5m. Each end includes an EEPROM which provides product identification and characteristics to the host system. For lengths less than 4-meters, use passive DAC cables.

Main use is to link an 800Gb/s Quantum-2 switch to two QSFP112-based 400Gb/s NDR DPUs at medium lengths of 4 and 5-meters.

NVIDIA’s cable solutions provide power-efficient connectivity enabling higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability.


Note

Images are for illustration purposes only. Product labels, colors, and lengths may vary.

Key Features

  • Up to 800Gb/s to two 400Gb/s data rates

  • Based on 100G-PAM4 modulation

  • OSFP switch end 1.5 Watts

  • QSFP112 ends 0.6 Watts

  • 4 and 5-meter lengths

  • Operating case temperature 0-70°C

  • Single 3.3V supply voltage

  • Hot pluggable

  • RoHS based

  • LSZH (Low Smoke Zero Halogen) jacket

  • LF (Lead Free) HF (Halogen Free) PCB

  • CMIS compliant

Applications

  • InfiniBand 800Gb/s Quantum-2 switch-to-two 400Gb/s QSFP112 BlueField-3 DPUs
