Introduction

NVIDIA® MCP7H60-C0XX DAC (Direct Attach Copper) splitter cables are a high speed, cost-effective 200GbE QSFP-DD to 2x 100GbE QSFP28 Ethernet connectivity solution, designed to meet the growing needs for higher bandwidth in data centers.

MCP7H60 cables provide connectivity between system units with a QSFP-DD port on one side and up to 2 different QSFP28 ports on the other. These cables connect the data signals from the QSFP-DD ends to each of the QSFP28 ends on the multiport side. Each of the ports comprises an EEPROM providing product information, which can be read by the host system.

NVIDIA’s unique-quality cable solutions provide power-efficient connectivity for short distance interconnects, enabling higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability.


Warning

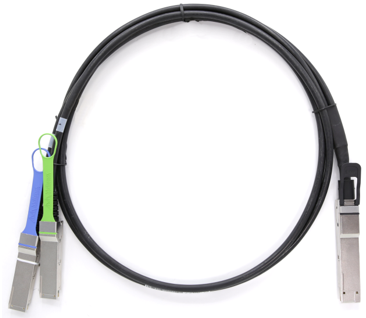

Images are for illustration purposes only. Product labels, colors, and form may vary.

Key Features

  • 200GbE to 2x100GbE data rate

  • SFF-8636 compliant I2C management interface

  • Operating case temperature of 0-70°C

  • Hot pluggable

  • RoHS compliant

  • LSZH (Low Smoke Zero Halogen) jacket

  • LF (Lead Free) HF (Halogen Free) PCB

Applications

  • Supports 200GbE and 100GbE data rates
