MCP7H60-C0xx 200GbE to 2x100GbE, QSFP-DD to 2xQSFP28 DAC Splitter Cable Product Specifications
MCP7H60-C0xx 200GbE to 2x100GbE, QSFP-DD to 2xQSFP28 DAC Splitter Cable Product Specifications

Specifications

Absolute maximum ratings are those beyond which damage to the device may occur.
Prolonged operation between the operational specifications and absolute maximum ratings is not intended and may cause permanent device degradation.

Parameter

Min

Max

Units

Supply voltage

-0.3

3.6

V

Data input voltage

-0.3

3.6

V

Control input voltage

-0.3

3.6

V

This table shows the environmental specifications for the product.

Parameter

Min

Max

Units

Storage temperature

-40

85

°C

This section shows the range of values for normal operation.

Parameter

Min

Typ

Max

Units

Supply voltage (Vcc)

3.135

3.3

3.465

V

Power consumption

---

---

0.1

W

Operating case temperature

0

70

°C

Operating relative humidity

5

85

%

Parameter (per lane)

Min

Typ

Max

Units

Notes

Characteristic Impedance

90

100

110

Ω

---

Time propagation delay

---

---

4.5

ns/m

Informative

Note: Minimum insertion loss for up to 1m cable length is 6dB @ 12.89GHz.

This product is compatible with ESD levels in typical data center operating environments and certified in accordance with the standards listed in the Regulatory Compliance Section. The product is shipped with protective caps on all connectors to protect it during shipping. In normal handling and operation of high-speed cables and optical transceivers, ESD is of concern during insertion into the QSFP cage of the server/switch. Hence, standard ESD handling precautions must be observed. These include use of grounded wrist/shoe straps and ESD floor wherever a cable/transceiver is extracted/inserted. Electrostatic discharges to the exterior of the host equipment chassis after installation are subject to system level ESD requirements.

The head-end of the MCP7H60 cable is QSFP-DD. Hence the memory map of its EEPROM is formatted in compliance with CMIS 4.0 ‎[1]. The key parameters are listed below. The EEPROMs of the QSFP ‘tails’ are SFF-8636 ‎[4] compliant. The memory map of the QSFPs is found in the "QSFP28 Memory Map – SFF-8636 compliant - I2C Address A0h" table further down.

QSFP-DD Memory Map – CMIS 4.0 compliant - I2C Address A0h

Page 00h/Dec. Byte Address

Register Name

Description

0

Identifier

18h: QSFP-DD

1

Spec Version

40h: QSFP-DD Hardware Spec version 4.0

86

Electrical Interface Code

1Ch: 200G CR4

87

Interface Advertising Code

01h: Copper cable

88

Host/Media Lane Count

7-4 Host Lane Count / 3-0 Media Lane Count:
44h: Host uses 4 lanes / cable uses 4 lanes

89

Lane Assignment

Bits 7-0 correspond to Host Lanes 8-1:

11h: Two applications allowed, each starting at lane 1

128

Identifier

18h: QSFP-DD

129-144

Vendor name

NVIDIA: ASCII

145-147

QSFP vendor IEEE number

00-02-C9: NVIDIA OUI.

148-163

Part number

MCP7H60-C0XX: Part number per backshell label (ASCII)

164-165

Product revision

ZZ: Revision per backshell label (ASCII)

166-181

Serial number

MTYYWWXXSSSSS: Serial number per backshell label (ASCII).

182-187

Date code

YYMMDD: Year YY, month MM, day DD.

202

Length

Length in multiples of the base length, which can be 0.1, 1, 10 or 100 [m], as set in bits 7-6. The multiple is set in bits 5-0.

Bits 7:6 (Base):
00 – base is 0.1m
01 – base is 1m
10 – base is 10m
11 – base is 100m

Examples:
41h: 1m (01000001 -> 1m * 1)
15h: 1.5m (00001111 -> 0.1m * 15)

According to SFF-8636 section 7.3.12 Length:
“For modules with non-separable media interfaces, this field specifies the link length of the cable assembly (copper) in units of 1 meter. Link length is as specified in the INF-8074 specification. Link lengths less than 1 meter shall indicate 1 meter.”

203

Connector type

23h: Direct attach assemblies with no separable interfaces

204

Attenuation 5GHz

Typical attenuation measured during production test, in 1dB. [dB]

205

Attenuation 7GHz

206

Attenuation 12.9GHz

207

Attenuation 25.8GHz

212

Interface technology

0Ah: Passive copper un-equalized

QSFP28 Memory Map – SFF-8636 compliant - I2C Address A0h

Page 00h/Dec. Byte Address

Register Name

Description

0

Identifier

11h: QSFP28 or later

1

Status

08h: Support for SFF-8636 Rev. 2.8 and 2.9

128

Identifier

11h: QSFP28 or later

130

Connector

23h: Direct attach assemblies with no separable interfaces

131

10 Gigabit Ethernet Compliance Codes

88h: 40GbE + extended code support

134

SAS/SATA compliance codes

04h: 1000BASE-CX

139

Code for Serial Encoding Algorithm

08h: PAM4

140

Nominal bit rate

FFh: Above 25GbE

146

Length

Length in units of 1 m of direct attach copper cable (integer part – see byte Address 236)

147

Device technology

A0h: Un-equalized copper cable (passive)

148-163

Vendor name

NVIDIA: ASCII

165-167

QSFP vendor IEEE number

00-02-C9: NVIDIA OUI.

168-183

Part number

MCP7H60-C0XX: Part number per backshell label (ASCII)

184-185

Product revision

ZZ: Revision per backshell label (ASCII)

186

Attenuation 2.5 GHz

Typical attenuation measured during production test, in 1dB. [dB]

187

Attenuation 5 GHz

188

Attenuation 7 GHz

189

Attenuation 12.9 GHz

190

Max case temperature

46h: Support for 70ºC

192

Link codes

40h: 200GBASE-CR4

196-217

Serial number

MTYYWWXXSSSSS: Serial number per backshell label (ASCII).

236

Length 0.1m

Total cable length is the sum of byte 146 for number of meters and byte 236 for 0.1m.

Values:
00h: 0m

09h: 0.9m

Examples:
2.5m: Byte 146 = 02h, Byte 236 = 05h
2.25m: Byte 146 = 02h, Byte 236 = 03h

237

AWG

DAC cable AWG information.
1Ah: AWG=26
1Eh: AWG=30

OPN

AWG

Single Cable Diameter

Minimum Bend Radius

Length Tolerance

Cable Color

MCP7H60-C001

30

6.9 +/- 0.3mm

Jacket: Thermoplastic copolymer (FRNC) BK

Single bend: 34.5mm

Repeated bend: 69mm

+/-25mm

Black

MCP7H60-C01A

MCP7H60-C002

26

9.0 +/- 0.3mm

Jacket: Thermoplastic copolymer (FRNC) BK

Single bend: 45mm

Repeated bend: 90mm

+/-50mm

MCP7H60-C02A

MCP7H60-C003

Pull-tab Colors

QSFP-DD Side

Black

Dual QSFP28 Side

Port 1: Green

Port 2: Blue

Promo Green

Nice Blue

Hex = #6faa55

Hex = #3b5998

RGB = 111, 170, 85

RGB = 59, 89, 152

CMYK = 52, 0, 86, 0

CMYK = 86, 64, 10, 0

Pantone = 368 Coated / 368 Uncoated

Pantone = 660 Coated / 661 Uncoated

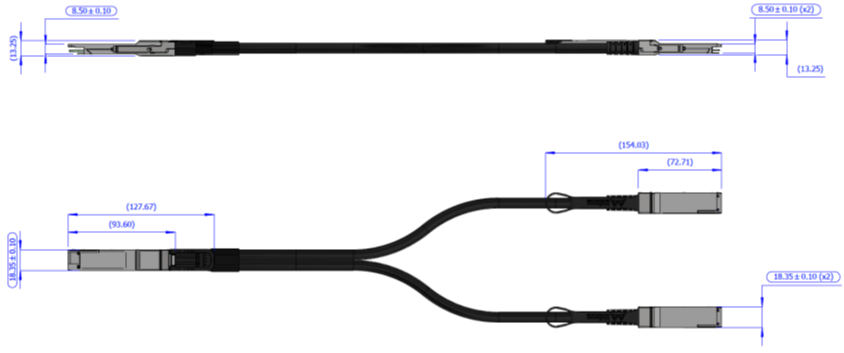

Mechanical Dimensions

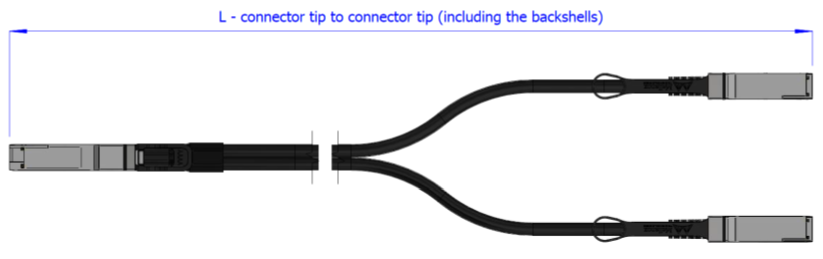

*Ordered OPN length.

Connectivity Schematic

QSFP-DD Side

2x QSFP28 Side

QSFP-DD Side

2x QSFP28 Side

Port 1 Green

Port 2 Blue

TX1

RX1

TX5

RX1

RX1

TX1

RX5

TX1

TX2

RX2

TX6

RX2

RX2

TX2

RX6

TX2

TX3

RX3

TX7

RX3

RX3

TX3

RX7

TX3

TX4

RX4

TX8

RX4

RX4

TX4

RX8

TX4

The following label is applied on the cable’s backshell:

Backshell Label of QSFP-DD Side (200GbE)


(sample illustration)

Legend: COO – Country of Origin

Backshell Label of QSFP28 (100GbE) Side


(sample illustration)

The following label is applied on the cable’s jacket:

Copper Cable Jacket Label


(sample illustration)

The following labels are applied on the cable’s jacket at the tail:

Splitter Copper Cable Labels Identifying the Tails


(sample illustration)

Warning

Images are for illustration purposes only. Product labels, colors, and lengths may vary.

Backshell Label Legend

Symbol

Meaning

Notes

SN – Serial Number

MT

Manufacturer name

2 characters, e.g. MT

YY

Year of manufacturing

2 digits

WW

Week of manufacturing

2 digits

XX

Manufacturer site

2 characters

SSSSS

Serial number

5 digits for serial number, starting from 00001. Reset at start of week to 00001.

Miscellaneous

ZZ

HW and SW revision

2 alpha-numeric characters

YYYY

Year of manufacturing

4 digits

MM

Month of manufacturing

2 digits

DD

Day of manufacturing

2 digits

COO

Country of origin

E.g. China or Malaysia


Quick response code

Serial number (MTYYWWXXSSSSS)

The MCP7H60 is qualified in accordance with the following standards:

  • Safety: CB, UL, CE

  • EMC: CE, FCC, ICES, RCM, VCCI

Ask your NVIDIA field engineer or the support team for a zip file of the certifications for this product.

Each of the devices complies with CFR47 FCC Class A Part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference.

  2. This device must accept any interference received, including interference that may cause undesired

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur during installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.

  • Increase the separation between the equipment and receiver.

  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

  • Consult the dealer or an experienced radio/television technician for help.

Modifications: Any modifications made to this device that are not approved by NVIDIA may void the authority granted to the user by the FCC to operate this equipment.


© Copyright 2023, NVIDIA. Last updated on Sep 4, 2023.
