The device is is compliant with the Specification for OSFP (Octal Small Form Factor Pluggable) Modules for the head end (www.osfpmsa.org) and the SFF-8636 specification for the tails (www.snia.org/technology-communities/sff/specifications).

The pin assignment for the interface is shown below.

OSFP Pin Description

Pin	Symbol	Description	Pin	Symbol	Description
1	GND	Ground	31	GND	Ground
2	Tx2p	Transmitter Non-Inverted Data Input	32	Rx2p	Receiver Non-Inverted Data Output
3	Tx2n	Transmitter Inverted Data Input	33	Rx2n	Receiver Inverted Data Output
4	GND	Ground	34	GND	Grounds
5	Tx4p	Transmitter Non-Inverted Data Input	35	Rx4p	Receiver Non-Inverted Data Output
6	Tx4n	Transmitter Inverted Data Input	36	Rx4n	Receiver Inverted Data Output
7	GND	Ground	37	GND	Ground
8	Tx6p	Transmitter Non-Inverted Data Input	38	Rx6p	Receiver Non-Inverted Data Output
9	Tx6n	Transmitter Inverted Data Input	39	Rx6n	Receiver Inverted Data Output
10	GND	Ground	40	GND	Ground
11	Tx8p	Transmitter Non-Inverted Data Input	41	Rx8p	Receiver Non-Inverted Data Output
12	Tx8n	Transmitter Inverted Data Input	42	Rx8n	Receiver Inverted Data Output
13	GND	Ground	43	GND	Ground
14	SCL	2-wire serial interface clock	44	INT / RSTn	Module Interrupt / Module Reset
15	VCC	+3.3V Power	45	VCC	+3.3V Power
16	VCC	+3.3V Power	46	VCC	+3.3V Power
17	LPWn / PRSn	Low-Power Mode / Module Present	47	SDA	2-wire Serial interface data
18	GND	Ground	48	GND	Ground
19	Rx7n	Receiver Inverted Data Output	49	Tx7n	Transmitter Inverted Data Input
20	Rx7p	Receiver Non-Inverted Data Output	50	Tx7p	Transmitter Non-Inverted Data Input
21	GND	Ground	51	GND	Ground
22	Rx5n	Receiver Inverted Data Output	52	Tx5n	Transmitter Inverted Data Input
23	Rx5p	Receiver Non-Inverted Data Output	53	Tx5p	Transmitter Non-Inverted Data Input
24	GND	Ground	54	GND	Ground
25	Rx3n	Receiver Inverted Data Output	55	Tx3n	Transmitter Inverted Data Input
26	Rx3p	Receiver Non-Inverted Data Output	56	Tx3p	Transmitter Non-Inverted Data Input
27	GND	Ground	57	GND	Ground
28	Rx1n	Receiver Inverted Data Output	58	Tx1n	Transmitter Inverted Data Input
29	Rx1p	Receiver Non-Inverted Data Output	59	Tx1p	Transmitter Non-Inverted Data Input
30	GND	Ground	60	GND	Ground

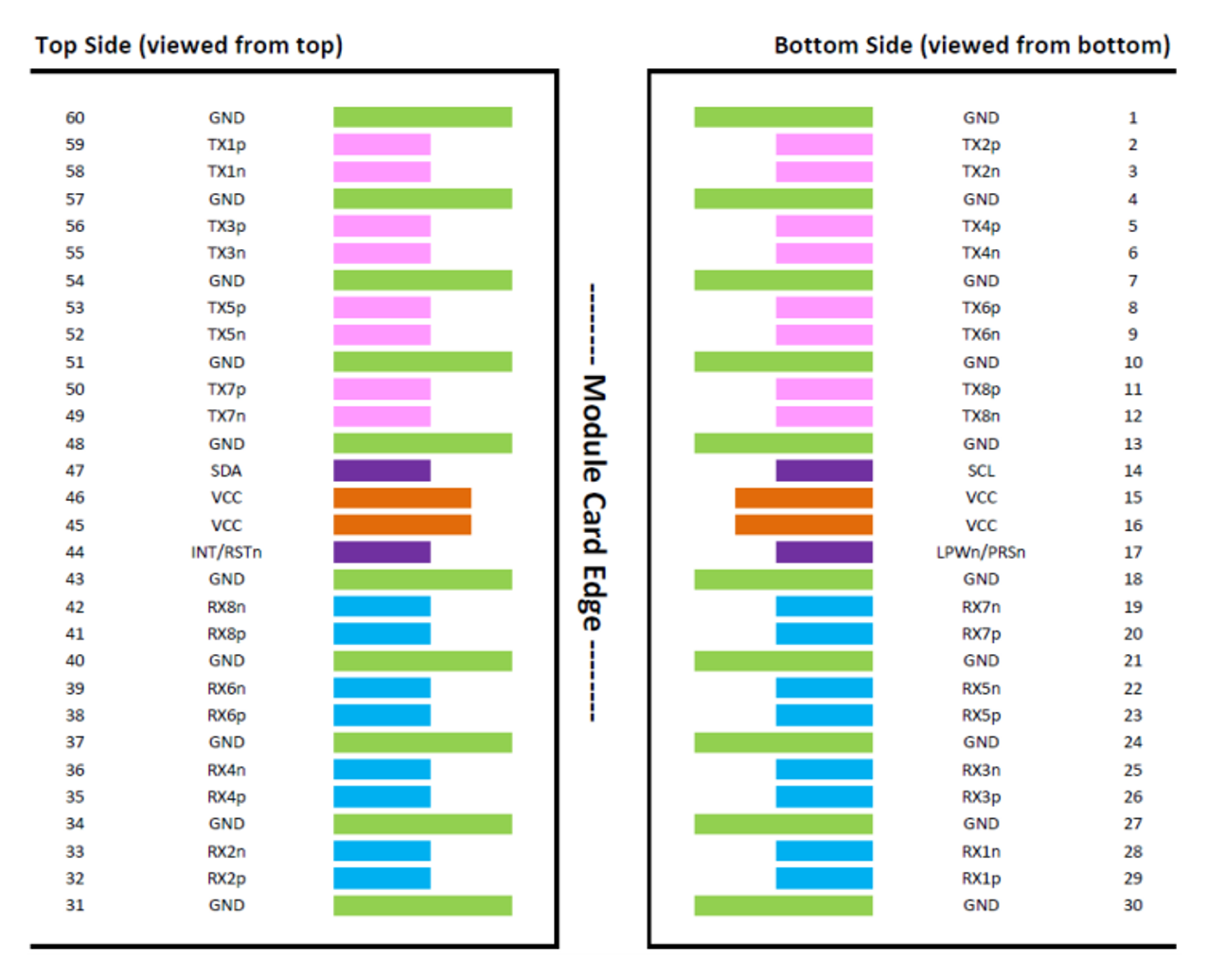

OSFP Module Pad Layout

QSFP56 Pin Description

The MCP7Y60 pin assignment is SFF-8679 compliant for the two 200G ‘tails’ with QSFP56 form factor:

Pin	Symbol	Description	Pin	Symbol	Description
1	Ground	Ground	20	Ground	Ground
2	Tx2n	Connected to lane Rx2 Inverted Data	21	Rx2n	Connected to lane Tx2 Inverted Data
3	Tx2p	Connected to lane Rx2 Non-Inverted Data	22	Rx2p	Connected to lane Tx2 Non-Inverted Data
4	Ground	Ground	23	Ground	Grounds
5	Not connected	Not connected	24	Not connected	Not connected
6	Not connected	Not connected	25	Not connected	Not connected
7	Ground	Ground	26	Ground	Ground
8	Mod-SelL	Cable Select	27	ModPrsL	Cable Present
9	ResetL	Cable Reset	28	IntL	Interrupt
10	Vcc Rx	+3.3V Power supply receiver	29	Vcc Tx	+3.3V Power supply transmitter
11	SCL	2-wire serial interface clock	30	Vcc1	+3.3V Power Supply
12	SDA	2-wire serial interface data	31	LPMode	Low Power Mode
13	Ground	Ground	32	Ground	Ground
14	Not connected	Not connected	33	Not connected	Not connected
15	Not connected	Not connected	34	Not connected	Not connected
16	Ground	Ground	35	Ground	Ground
17	Rx1p	Connected to lane Tx1 Non-Inverted Data	36	Tx1p	Connected to lane Rx1 Non-Inverted Data
18	Rx1n	Connected to lane Tx1 Inverted Data	37	Tx1n	Connected to lane Rx1 Inverted Data
19	Ground	Ground	38	Ground	Ground

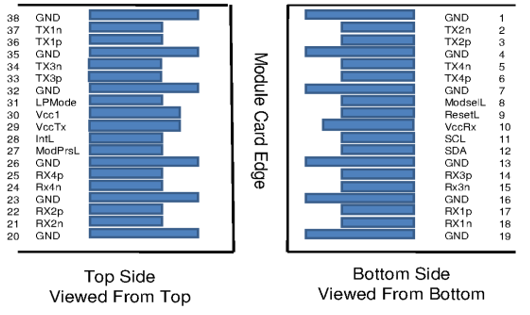

QSFP56 Module Pad Layout
