MCP7Y60-Hxxx 400Gb/s Twin-port 2x200G OSFP to 2x200G QSFP56 DAC Splitter & 2x100GbE/EDR Product Specifications
MCP7Y60-Hxxx 400Gb_s Twin-port 2x200G OSFP to 2x200G QSFP56 DAC Splitter & 2x100GbE_EDR Product Specifications

Specifications

Absolute maximum ratings are those beyond which damage to the device may occur.

Between the operational specifications and absolute maximum ratings, prolonged operation is not intended and permanent device degradation may occur.

Parameter

Min

Max

Max

Supply Voltage

-0.3

3.6

V

Data Input Voltage

-0.3

3.6

V

Control Input Voltage

-0.3

3.6

V

This table shows the environmental specifications for the product.

Parameter

Min

Max

Units

Storage Temperature

-40

85

°C

This section shows the range of values for normal operation.

Parameter

Min

Typ

Max

Units

Supply Voltage (Vcc)

3.135

3.3

3.465

V

Power Consumption

--

--

0.1

W

Operating Case Temperature

0

70

°C

Operating Relative Humidity

5

85

%

Parameter

Min

Typ

Max

Units

Note

Characteristic impedance

90

100

110

Ω

Time propagation delay

--

--

4.5

ns/m

Informative

Page 00 Addr.

Register Name

Value and Description

0

SFF8024 Identifier

19h: OSFP form factor 8x pluggable transceiver

1

CMIS Revision Compliance

50h: CMIS Rev 5.0

2

Memory Model, MciMaxSpeed

80h: Flat memory (no paging), no CLEI, max 400 kHz TWI (I2C) frequency

3

Global status

07h: Module Ready, Interrupt not asserted

04 - 84

Lanes and flags

00h: No lane flags, no DDM flags

85

Media Type

03h: Passive Copper

86 - 117

Application Descriptors (8 x 4 bytes) numbered 1...8

Start Address

Application Descriptor

Host IF

Media IF

Host/Media Lane cnt

Host Lane Assignment

86 - 89

1

31h: InfiniBand NDR, 2 ports

01h: Copper Cable

44h: 4 host + 4 media

11h: Lane 1 and 5

90 - 93

2

2Ch: IB SDR (4x two ports)

01h

44h

11h

94 - 97

3

1Ch: Eth 800GBASE-CR8 (8x one port)

01h

44h

11h

98 - 101

4

1Bh: Eth 400GBASE-CR4 (4x two ports)

01h

22h

55h

102 -105

5

1Ah: 200GBASE-CR2 (four ports)

01h

44h

11h

106 - 109

6

45h: 100GBASE-CR1 (eight ports)

01h

22h

55h

110 -113

7

18h: 400GBASE-CR8 (one port)

01h

11h

FFh

114 - 117

8

16h: 200GBASE-CR4 (two ports)

01h

11h

FFh

118 - 121

Password Chg Entry

122 - 125

Password Entry

126

Bank Select Byte

127

Page Select Byte

128

SFF8024 Identifier

19h: OSFP form factor 8x pluggable transceiver (same as addr 00)

129 - 144

VendorName

Vendor name (ASCII), padded w spaces: 'NVIDIA '

145

VendorOUI

Nvidia OUI: 48h, B0h, 2Dh

148 - 163

VendorPN

Part number: 'MCP7Y60-Hxxx'

164 - 165

VendorRev

Revision

166 - 181

VendorSN

Serial number

182 - 189

DateCode

Date code, (YYMMDD__)

200

Power Class

00h: Power Class 1, 07h: max power in units of 0.25 W

201

Max power consumption

04/02 (multiplier x 0.25W)

202

Link Length

Cable Length (m), 7-6: multiplier x value in bits 5-0 (00 = multiplier of .1 \ 01 = multiplier of 1\10 = multiplier of 10 \11 = multiplier of 100), e.g. 41h: 1 m

203

Connector Type

Connector Type (SFF-8024) 23h: No separable connector

204 - 207

Attenuation

Cable attenuation at 5, 7, 12.9, 25.8 GHz

210

Media Lane Info

00h: all near end lanes are implemented

211

Far End Config.

03h: 2x applications with 4x lanes each (aaaa,eeee)

212

Media IF Technology

0Ah: Copper cable, unequalized

222

PageChecksum

Checksum of bytes 128-221 (low order 8 bits)

223 - 255

Custom Info

Custom data including traceability info

Page 00h

Register Name

Description

0

Identifier

11h: QSFP+ or later with SFF-8636 or SFF-8436 management interface

1

Status

08h: Support for SFF-8436 Rev. 2.8 and 2.9

113

Far End and Near End Implementations

0x10h: Both far ends and near ends has 4 lanes implemented.

128

Identifier

11h: QSFP+ or later with SFF-8636 or SFF-8436 management interface

130

Connector

23h: No separable connector (cable assembly with no separable interfaces)

139

Code for Serial Encoding Algorithm

08h: PAM4

146

Length

Length in units of 1 m:

According to SFF-8636 section 6.3.12 Length: “For modules with non-separable media interfaces, this field specifies the link length of the cable assembly (copper or AOC) in units of 1 meter. Link length is as specified in the INF-8074 specification. Link lengths less than 1 meter shall indicate 1 meter.”

147

Device technology

A0h: Copper cable unequalized

148-163

Vendor name

Mellanox: ASCII

164

Extended Module Codes for IB

3Fh: Supports HDR/FDR/EDR/QDR/DDR/SDR

165-167

QSFP vendor IEEE number

00-02-C9: Mellanox OUI. (different from OSFP)

168-183

Part number

Part number per backshell label (ASCII)

184-185

Product revision

ZZ: Revision per backshell label (ASCII)

186-189

Attenuation

@2.5G @5.0G @7.0G @12.9G

190

Max case temperature

46h: Support for 70ºC

192

Extended specifications compliance

40h: 200GBase CR4

196-211

Serial number

MTYYWWTTZZZZZ: Serial number per backshell label (ASCII).

212-217

Date code

YYMMDD: Year YY, month MM, day DD.

222

Signaling rate

6Ah: Nominal baud rate per channel, units of 250 MBd.

236

Vendor Specific

Floating part of length in units of 10cm (example: 1.5m = 0x1 in byte146 + 0x05 in byte 236)

237

Wire gauge

Wire thickness information.

1Eh: 30AWG

Parameter

Value

Units

Diameter

30AWG: 7.2 ±0.03

26AWG: 8.9 ±0.03

mm

Length tolerance

length < 2 m

±25

mm

length ≥ 2 m

±50

Minimum Bend Radius

OPN

Length (m)

Cable Diameter

Min bend radius R (mm)

Assembly Space L** (mm)

MCP7Y60-H001

1.0

7.2

72

135

MCP7Y60-H01A

1.5

7.2

72

135

MCP7Y60-H002

2.0

8.9

89

156

The minimum assembly bending radius (close to the connector) is 10x the cable’s outer diameter. The repeated bend (far from the connector) is also 10x the cable’s outer diameter. The single bend (far from the connector) is 5x the cable’s outer diameter.

**Combined end’ is the ‘head’ where the cables join together, inserted into the switch. ‘Single end’ is the ‘tail’ which plugs into the HCA/NIC in a server.

L = Assembly Space. Minimum value depends on the backshell (connector housing) dimensions = the space for the cable assembly behind the rack door.

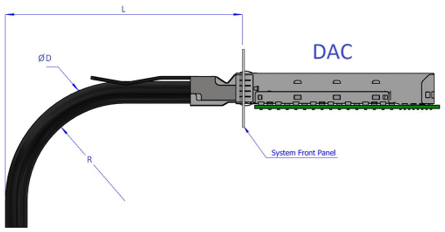

Assembly Bending Radius



Mechanical Drawings

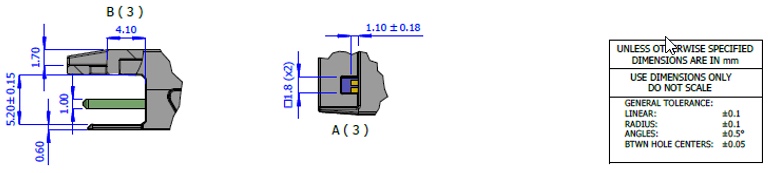

Dimensions

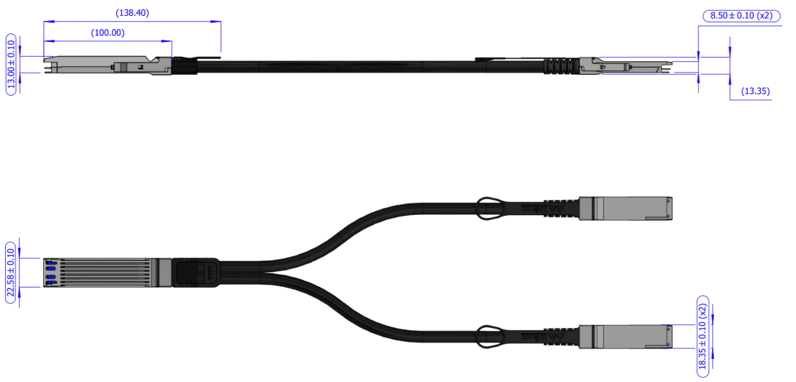

The splitting point is located at the head end, directly behind the strain relief.

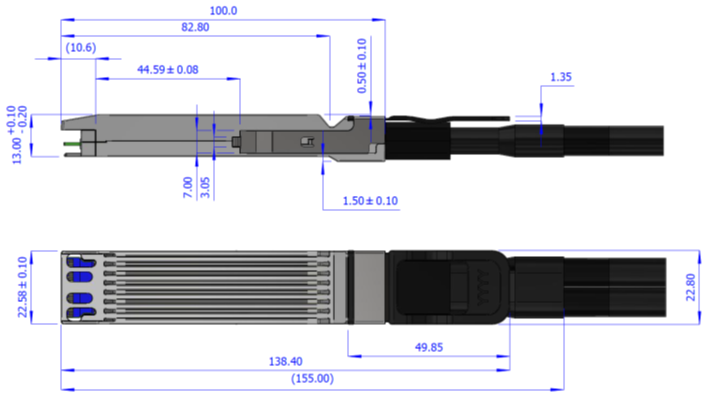

OSFP Finned Head Dimensions

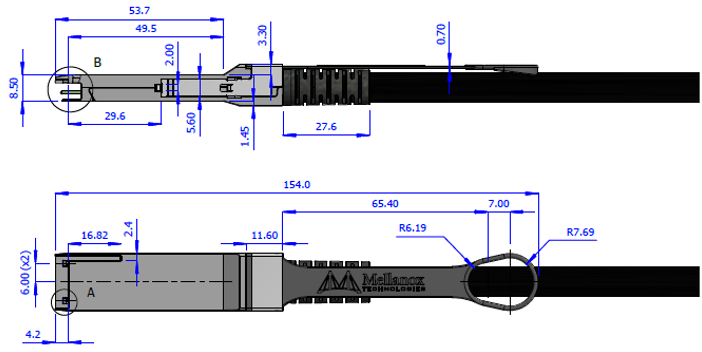

QSFP Flat Ends Dimensions



Backshell Label

The following label is applied on the cable’s backshell. Note that the images are for illustration purposes only. Labels look and placement may vary.

OSFP Head

QSFP56 Ends



(sample illustration)

Warning

Images are for illustration purposes only. Product labels, colors, and form may vary.

Backshell Label Legend

Symbol

Meaning

Notes

PN – Part Number

xx

Length

Meters

yy

Cable gauge

American wire gauge

SN – Serial Number

MN

Manufacturer name

2 characters MT

YY

Year of manufacturing

2 digits

WW

Week of manufacturing

2 digits

MS

Manufacturer Site

2 characters

XXXXX

Serial number

5 digits for serial number. Reset at start of week to 00001.

Miscellaneous

ZZ

HW and SW revision

2 alpha-numeric characters

Xm

Cable length

Meters

XXAWG

Cable gauge

American wire gauge

YYYY-MM-DD

Year-month-day

Year 4 digits, month 2 digits, day 2 digits

COO

Country of origin

E.g., China


Quick response code

Serial number

Cable Jacket Label (Middle of Cable)

The following label is applied on the cable’s jacket at each end. Note that the images are for illustration purposes only. Labels look and placement may vary.


(sample illustration)

Warning

The serial number and barcode are for NVIDIA internal use only. Images are for illustration purposes only. Product labels, colors, and form may vary.


  • Safety: CB, TUV, CE, EAC, UKCA

  • EMC: CE, FCC, ICES, RCM, VCCI

Ask your NVIDIA FAE for a zip file of the certifications for this product.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.


Handling Precautions and Electrostatic Discharge (ESD)

The cable is compatible with ESD levels in typical data center operating environments and certified in accordance with the standards listed in the Regulatory Compliance Section. The product is shipped with protective caps on its connectors to protect it until the time of installation. In normal handling and operation of high-speed cables and optical transceivers, ESD is of concern during insertion into the QSFP cage of the server/switch. Hence, standard ESD handling precautions must be observed. These include use of grounded wrist/shoe straps and ESD floor wherever a cable/transceiver is extracted/inserted. Electrostatic discharges to the exterior of the host equipment chassis after installation are subject to system level ESD requirements.

Cable Management Guidelines

It is important to follow the instructions and information detailed NVIDIA Cable Management Guidelines and FAQ Application Note to insure proper and optimal installation of this cable and avoid physical damage.

© Copyright 2023, NVIDIA. Last updated on Oct 9, 2023.
