MCP7Y60-Hxxx 400Gb_s Twin-port 2x200G OSFP to 2x200G QSFP56 DAC Splitter & 2x100GbE_EDR Product Specifications

Use Cases

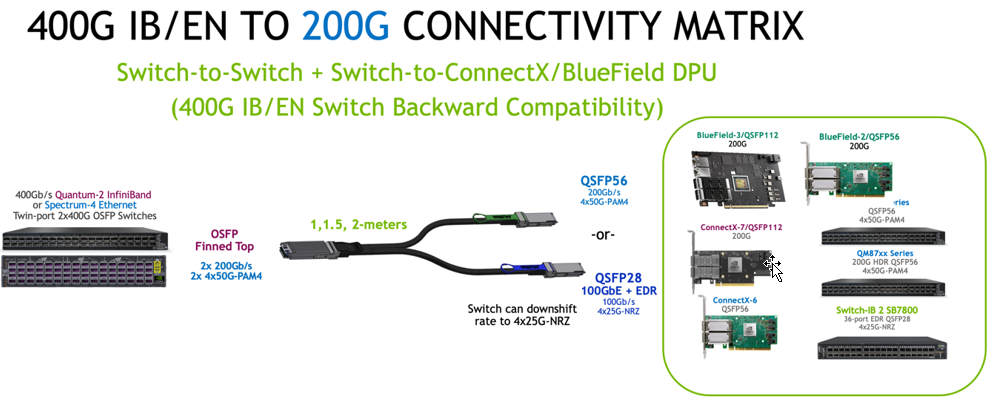

The MCP7Y60 is used to link Quantum-2 NDR InfiniBand and 400GbE Ethernet switches with Quantum based switches, ConnectX-6/QSFP56 adapters, and/or BlueField-2 DPUs spanning up to 2-meters.

  • Both a ConnectX-6 and BlueField-2 DPU can be linked at the same time.

  • 2x200G DAC can downshift the 4x50G-PM4 rate to 4x25G-NRZ supporting 100GbE and EDR InfiniBand
