Introduction
The NVIDIA MFP7E20-Nxxx, is a multimode, 4-channel-to-two 2-channel splitter fiber cable. The Multiple Push On, 12 fiber, Angled Polished Connectors (MPO-12/APC) uses 8 active fibers to transmit light and 4 inactive fibers as strength members. The Angled Polished Connector has a 8-degree polished angle to deflect internal optical back reflections from entering the transceivers and distorting the signal quality.
The 4-channel end is inserted into a Twin port OSFP, 800Gb/s transceiver. The 2-channel ends are inserted into two, single-port 400Gb/s OSFP and/or QSFP112 transceivers which with only 2 fibers can output 200G rates. Two splitter fiber cables are used in the twin-port OSFP transceiver enabling four, 2-channel ends to four transceivers.
The fibers are “crossover”, Type-B cables enable directly attaching two transceivers together and allow the transmit laser fiber on pin 1 to “crosses over” and align with pin 12 of the opposite fiber end transceiver photodetector.
The typical usecase is linking OSFP switches to in ConnectX-7® network adapters and/or BlueField-3® Data Processing Units (DPUs) in compute and storage servers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability. NVIDIA’s optical solutions provide short, medium, and long reach scalability for all topologies, utilizing innovative optical technologies to enable high signal integrity and reliability.

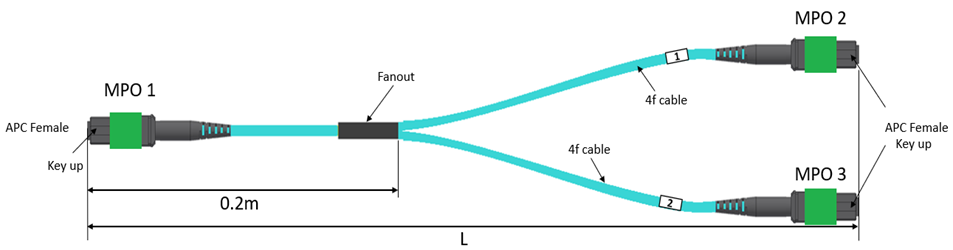

![image2022-10-6_12-41-41.png](https://docscontent.nvidia.com/dims4/default/fa14ec1/2147483647/strip/true/crop/953x250+0+0/resize/953x250!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018b-16cd-dec8-ad8b-b6cf64800000%2Fimages%2Fnetworking%2Fdownload%2Fattachments%2F125797041%2Fimage2022-10-6_12-41-41.png)
Images are for illustration purposes only. Product labels, colors, and lengths may vary.
Key Features
- Flexible round outer jacket for easier installation
- Push-pull latching for quick release
- Female-to-Female connectors
- 50/125 µm Multimode fibers
- 50m max reach
- Telcordia GR-1435 compliant
IEC Standard Connectors:
- MPO: IEC 61754-7 and ANSI/TIA/EIA 604-5-199
- OFNR/LSZH (low smoke zero halogen) jacket
- Supports InfiniBand, Ethernet and NVLink protocols
Applications
- Use with 400G OSFP or QSFP112 transceivers to achieve 200Gb/s using 2 fibers
- Optical short-reach high speed links in data centers
- Data processing and storage systems
