Introduction
The NVIDIA MFP7E30-Nxxx, MPO-12/APC-to-MPO12/APC (8 fibers) passive optical single-mode cable, is designed for linking InfiniBand and Ethernet multimode twin-port OSFP and single-port OSFP and QSFP112 transceivers together.
The Multiple Push On, 12 fiber, Angled Polished Connectors (MPO-12/APC) uses 8 active fibers to transmit light and 4 inactive fibers as strength members. The Angled Polished Connector has a 8-degree polished angle to deflect internal optical back reflections from entering the transceivers and distorting the signal quality.
Twin-port OSFP 800Gb/s transceivers support two, 4-channel fibers which are linked to other twin-port OSFP, single-port OSFP or QSFP112 400Gb/s transceivers.
The fibers are “crossover”, Type-B cables, which enables directly attaching two transceivers together and allow the transmit laser fiber on pin 1 to “crosses over” and align with pin 12 of the opposite fiber end transceiver photodetector.
A typical usecase is linking twin-port OSFP switches to each other, and to ConnectX-7® network adapters and/or BlueField-3® Data Processing Units (DPUs) in compute and storage servers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability. Mellanox optical solutions provide short, medium, and long reach scalability for all topologies, utilizing innovative optical technologies to enable high signal integrity and reliability.
![image2023-6-3_0-2-40.png](https://docscontent.nvidia.com/dims4/default/04f01cf/2147483647/strip/true/crop/577x276+0+0/resize/577x276!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018b-16cc-d788-a5ff-97cdb07e0000%2Fimages%2Fnetworking%2Fdownload%2Fattachments%2F127763923%2Fimage2023-6-3_0-2-40.png)

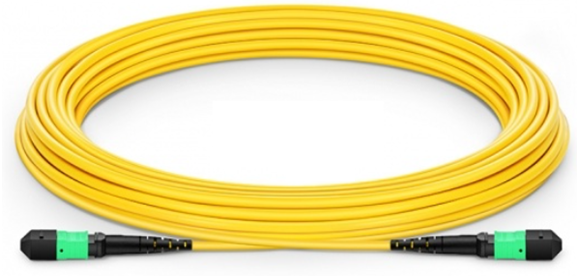

Images are for illustration purposes only. Product labels, colors, and lengths may vary.
Key Features
Flexible round outer jacket for easier installation
Push-pull latching for quick release
Female-to-Female connectors
9/125 µm Single-Mode fibers
150m max reach
Telcordia GR-1435 compliant
IEC Standard Connectors:
MPO: IEC 61754-7 and ANSI/TIA/EIA 604-5-199
OFNR/LSZH (low smoke zero halogen) jacket
Supports InfiniBand, Ethernet and NVLink protocols
Applications
Optical high speed links in data centers
Data processing and storage systems
