MFS1S00-HxxxE-LL 200Gb/s QSFP56 Low Latency MMF AOC Product Specifications

MFS1S00-HxxxE-LL 200Gb_s QSFP56 Low Latency MMF AOC Product Specifications


NVIDIA® MFS1S00 is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for 200Gb/s InfiniBand (IB) HDR (High Data Rate) systems.

The MFS1S00 AOC is hot pluggable, easy to install and replace, and offers high port density and configurability in the data center.

The MFS1S00 AOC has a standard SFF-8665 compliant QSFP56 connector towards the host system. It contains 4 multi-mode (MMF) optical transceivers per end, each operating at data rates of up to 50Gb/s per lane.

The MFS1S00 AOC series is qualified in Nvidia end-to-end InfiniBand HDR systems.

NVIDIA’s unique-quality cable solutions provide power-efficient connectivity for data center interconnects. It enables higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers.

Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

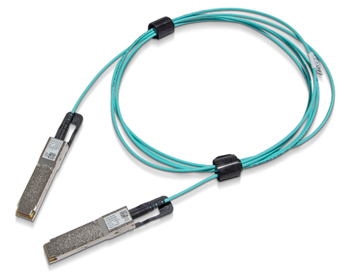

Images are for illustration purposes only. Product labels, colors, and lengths may vary.

Key Features

  • Supports IBTA IB HDR

  • Up to 200Gb/s data rate

  • 4x 50Gb/s PAM4 modulation

  • Programmable Rx output amplitude and pre-emphasis

  • SFF-8665 compliant QSFP56 port

  • Single 3.3V power supply

  • 0 W power consumption (typ., each end, with retiming)

  • Up to 30m length

  • Hot pluggable

  • RoHS compliant

  • SFF-8636 compliant I2C management interface


  • Supports 200Gb InfiniBand HDR systems

  • Supports 200 GbE between SN3700 and SN4600 switches
