MFS1S50-H0xxE 200Gb/s QSFP56 to 2x100Gb/s QSFP56 MMF AOC Product Specifications
MFS1S50-H0xxE 200Gb_s QSFP56 to 2x100Gb_s QSFP56 MMF AOC Product Specifications

Specifications

Absolute maximum ratings are those beyond which damage to the device may occur.

Prolonged operation between the operational specifications and absolute maximum ratings is not intended and may cause permanent device degradation.

Absolute Maximum Ratings

Parameter

Min

Max

Units

Supply voltage

-0.3

3.6

V

Data input voltage

-0.3

3.465

V

Control input voltage

-0.3

4.0

V

Damage Threshold

3.4

---

dBm

This table shows the environmental specifications for the product.

Parameter

Min

Max

Units

Storage temperature

-40

85

°C

This section shows the range of values for normal operation. The host board power supply filtering should be designed as recommended in the SFF Committee Spec.

Parameter

Min

Typ

Max

Units

Notes

Supply voltage (Vcc)

3.135

3.3

3.465

V

---

Power consumption 200Gb/s end

---

4.5

5.0

W

---

Power consumption 100Gb/s end

---

3.0

3.5

W

---

Supply noise tolerance (10Hz – 10MHz)

66

---

---

mVpp

---

Operating case temperature

0

---

70

°C

---

Operating relative humidity

5

---

85

%

---

Parameter (per lane)

Min

Typ

Max

Units

Signaling rate

-100 ppm

53.125

+100 ppm

GBd

Differential data input swing at TP1a

TBD

---

900

mVpp

Differential data output swing at TP4

---

---

900

mVpp

Near-end ESMW

0.265

---

---

UI

Near-end output eye height

70

---

---

mVpp

Output transition time, 20% to 80%

9.5

---

---

ps

Notes:

  • Multiple clock domains are supported only on line-side Rx. Host side Rx supports a single clock domain only.

  • QSFP Tx CDR lock can only occur if Tx lane 4 is transmitting data.

For configurations tested with the AOCs please refer to the system level product (SLP) qualification report.

The AOC supports rate select, which is controlled by writing to registers 0x57-0x58. Two bits are assigned for each receiver lane in byte 0x57 (87dec, Rxn_Rate_Select) and two bits for each transmitter lane in byte 0x58 (88dec, Txn_Rate_Select) to specify up to four bitrates, as defined in SFF-8636 Rev 2.9.2 Table 6-5 XN_RATE_SELECT ENCODINGS. All four lanes are required to have the same rate select value.

The below table specifies the rate for each rate select setting.

Rate Select Encodings

Rate Select Value

Operating Rate (GBd)

01

10.31250 NRZ

10

25.78125 NRZ

11

26.56250 PAM4

Parameter

Value

Units

Diameter

3 +/-0.2

mm

Minimum bend radius

30

mm

Length tolerance

length < 5 m

+300 /-0

mm

5 m ≤ length < 50 m

+500 / -0

50 m ≤ length

+1000 /-0

Cable color

Aqua

---

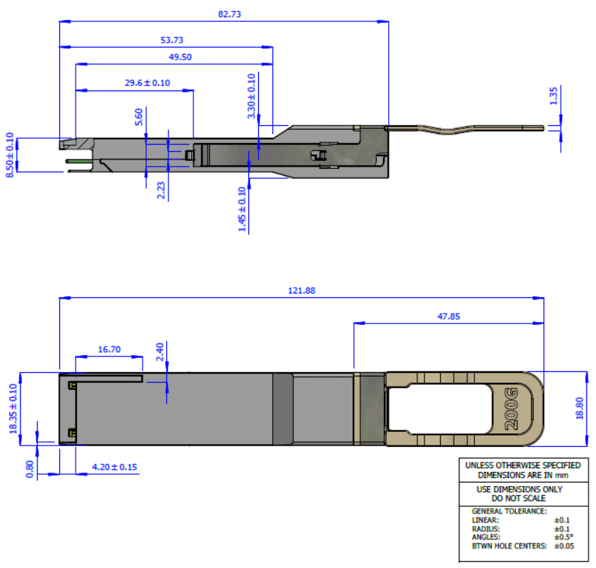

Mechanical Dimensions

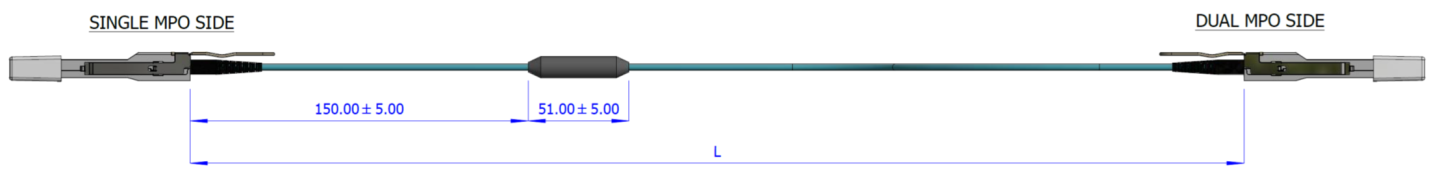

Splicing Point and Cable Length

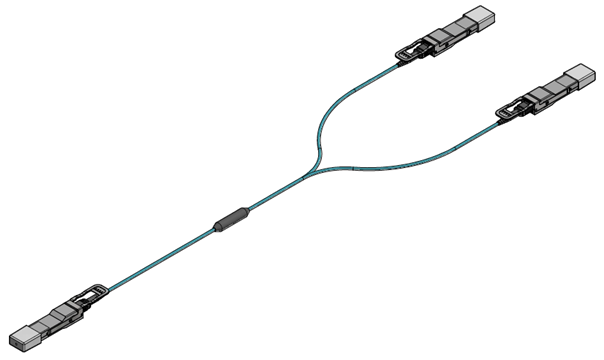

Connectivity Schematic

200Gb/s Side

2x100Gb/s Side

Port 1

TX1

RX1

RX1

TX1

TX2

RX2

RX2

TX2

Port 2

TX3

RX1

RX3

TX1

TX4

RX2

RX4

TX2

The following labels are applied on the AOC backshells:

200Gb/s Backshell Label


(sample illustration)

100Gb/s Backshell Label


(sample illustration)

Backshell Label Legend

Symbol

Meaning

Notes

PN – Part Number

xx

Length

Meter

SN – Serial Number

MT

Manufacturer name

2 characters, e.g. MT

YY

Year of manufacturing

2 digits

WW

Week of manufacturing

2 digits

XX

Manufacturer site

2 characters

SSSSS

Serial number

5 digits for serial number, starting from 00001. Reset at start of week to 00001.

Miscellaneous

ZZ

HW and SW revision

2 alpha-numeric characters

YYYY

Year of manufacturing

4 digits

MM

Month of manufacturing

2 digits

DD

Day of manufacturing

2 digits

COO

Country of origin

E.g. China or Malaysia

XXm

Cable length

Meter


Quick response code

Serial number (MTYYWWXXSSSSS)

The following label is applied on the cable’s jacket:

Fiber Cable Jacket Label


(sample illustration)

Note: The serial number and barcode are for NVIDIA internal use only.

Splitter Cable Labels Identifying the 2 QSFP56 Tails


(sample illustration)

The laser module is classified as class I according to IEC 60825-1, IEC 60825-2 and 21 CFR 1040 (CDRH).

  • Safety: CB, cTUVus, CE

  • EMC: CE, FCC, ICES, RCM, VCCI

Ask your NVIDIA FAE for a zip file of the certifications for this product.
