Specifications
Absolute maximum ratings are those beyond which damage to the device may occur.
Prolonged operation between the operational specifications and absolute maximum ratings is not intended and may cause permanent device degradation.
Parameter | Min | Max | Units |
Supply voltage | -0.3 | 3.6 | V |
Data input voltage | -0.3 | 3.465 | V |
Control input voltage | -0.3 | 4.0 | V |
Damage Threshold | 3.4 | --- | dBm |
This table shows the environmental specifications for the product.
Parameter | Min | Max | Units |
Storage temperature | -40 | 85 | °C |
This section shows the range of values for normal operation. The host board power supply filtering should be designed as recommended in the SFF Committee Spec.
Parameter | Min | Typ | Max | Units |
Supply voltage (Vcc) | 3.135 | 3.3 | 3.465 | V |
Power consumption 200Gb/s end | --- | 4.5 | 5.0 | W |
Supply noise tolerance (10Hz – 10MHz) | 66 | --- | --- | mVpp |
Operating case temperature | 0 | --- | 70 | °C |
Operating relative humidity | 5 | --- | 85 | % |
Parameter (per lane) | Min | Typ | Max | Units |
Signaling rate | -100 ppm | 53.125 | +100 ppm | GBd |
Differential data input swing at TP1a | TBD | --- | 900 | mVpp |
Differential data output swing at TP4 | --- | --- | 900 | mVpp |
Near-end ESMW | 0.265 | --- | --- | UI |
Near-end output eye height | 70 | --- | --- | mVpp |
Output transition time, 20% to 80% | 9.5 | --- | --- | ps |
Notes:
Multiple clock domains are supported only on line-side Rx. Host side Rx supports a single clock domain only.
QSFP Tx CDR lock can only occur if Tx lane 4 is transmitting data.
For configurations tested with the AOCs please refer to the system level product (SLP) qualification report.
The AOC supports rate select, which is controlled by writing to registers 0x57-0x58. Two bits are assigned for each receiver lane in byte 0x57 (87dec, Rxn_Rate_Select) and two bits for each transmitter lane in byte 0x58 (88dec, Txn_Rate_Select) to specify up to four bitrates, as defined in SFF-8636 Rev 2.9.2 Table 6-5 XN_RATE_SELECT ENCODINGS. All four lanes are required to have the same rate select value.
The below table specifies the rate for each rate select setting.
Rate Select Encodings
Rate Select Value | Operating Rate (GBd) |
00 | 2.500000 NRZ |
01 | 10.31250 NRZ |
10 | 25.78125 NRZ |
11 | 26.56250 PAM4 |
Parameter | Value | Units | |
Diameter | 3 +/-0.2 | mm | |
Minimum bend radius | 30 | mm | |
Length tolerance | length < 5 m | +300 /-0 | mm |
5 m ≤ length < 50 m | +500 / -0 | ||
Cable color | Aqua | --- |

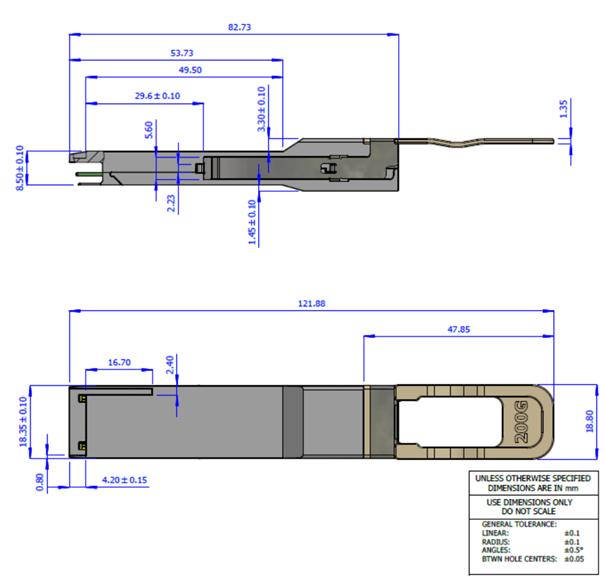

Mechanical Dimensions

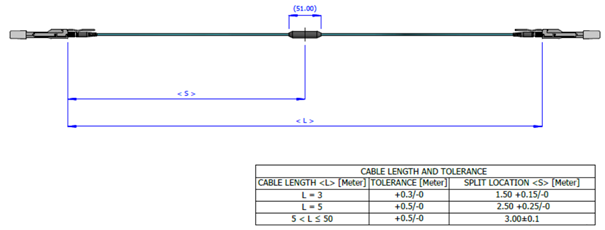

Fan-out Point and Cable Length

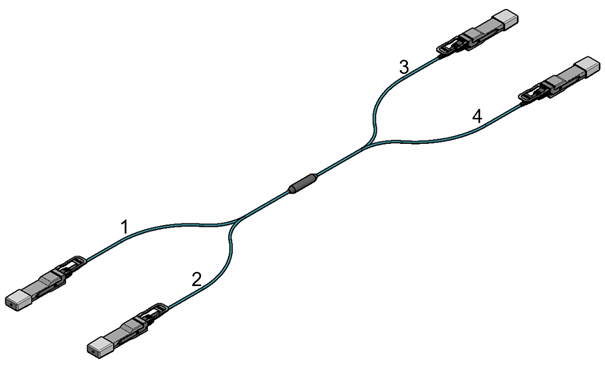

Cable Numbering
Connectivity Schematic for QSFP56 Configured as 2x100G
QSFP56 | Fiber | Lane | QSFP56 | Fiber | Lane |
1 | 12 | TX1 | 3 | 1 | RX1 |
11 | TX2 | 3 | 2 | RX2 | |
10 | TX1 | 4 | 1 | RX1 | |
9 | TX2 | 4 | 2 | RX2 | |
4 | RX2 | 4 | 11 | TX2 | |
3 | RX1 | 4 | 12 | TX1 | |
2 | RX2 | 3 | 11 | TX2 | |
1 | RX1 | 3 | 12 | TX1 | |
2 | 12 | TX1 | 3 | 3 | RX1 |
11 | TX2 | 3 | 4 | RX2 | |
10 | TX1 | 4 | 3 | RX1 | |
9 | TX2 | 4 | 4 | RX2 | |
4 | RX2 | 4 | 9 | TX2 | |
3 | RX1 | 4 | 10 | TX1 | |
2 | RX2 | 3 | 9 | TX2 | |
1 | RX1 | 3 | 10 | TX1 |
The following labels are applied on the AOC backshell:
QSFP56 Backshell Label (New)
(sample illustration)
QSFP56 Backshell Label (Old)
(sample illustration)
Backshell Label Legend
Symbol | Meaning | Notes | |
PN – Part Number | |||
xx | Length | Meter | |
SN – Serial Number | |||
MT | Manufacturer name | 2 characters, e.g. MT | |
YY | Year of manufacturing | 2 digits | |
WW | Week of manufacturing | 2 digits | |
XX | Manufacturer site | 2 characters | |
SSSSS | Serial number | 5 digits for serial number, starting from 00001. Reset at start of week to 00001. | |
Miscellaneous | |||
ZZ | HW and SW revision | 2 alpha-numeric characters | |
YYYY | Year of manufacturing | 4 digits | |
MM | Month of manufacturing | 2 digits | |
DD | Day of manufacturing | 2 digits | |
COO | Country of origin | E.g. China or Malaysia | |
XXm | Cable length | Meter | |
Quick response code | Serial number (MTYYWWXXSSSSS) |
The following label is applied on the cable’s jacket:
Fiber Cable Jacket Label (New)
(sample illustration)
Fiber Cable Jacket Label (Old)
(sample illustration)
Note: The serial number and barcode are for NVIDIA internal use only.
Splitter Cable Labels Identifying the QSFP56 Tails
(sample illustration)
The laser module is classified as class I according to IEC 60825-1, IEC 60825-2 and 21 CFR 1040 (CDRH).
Safety: CB, cTUVus, CE
EMC: CE, FCC, ICES, RCM, VCCI
Ask your NVIDIA FAE for a zip file of the certifications for this product.
