Ethernet Interface

Counters are used to provide information about how well an operating system, an application, a service, or a driver is performing. The counter data help determine system bottlenecks and fine-tune the system and application performance. The operating system, network, and devices provide counter data that an application can consume to provide users with a graphical view of how well the system is performing.
The counter index is a Queue Pair (QP) attribute given in the QP context. Multiple QPs may be associated with the same counter set. If multiple QPs share the same counter, the counter value will represent the cumulative total.

RoCE Counters

  • RoCE counters are available only through sysfs located under:

    • # /sys/class/infiniband/<device>/ports/*/counters/

    • # /sys/class/infiniband/<device>/ports/*/hw_counters/

For mlx5 port and RoCE counters, refer to the Understandingmlx5LinuxCounters Community post.

SR-IOV Counters

Physical Function can also read Virtual Functions' port counters through sysfs located under # /sys/class/net/<interface_name>/device/sriov/<index>/stats/

ethtool Counters

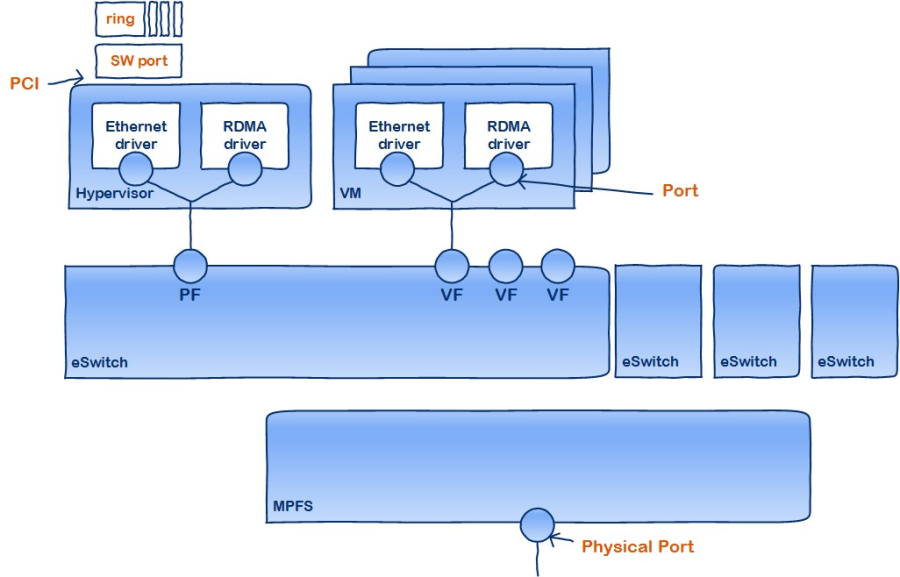

The ethtool counters are counted in different places, according to which they are divided into groups. Each counters group may also have different counter types.


For the full list of supported ethtool counters, refer to the Understanding mlx5 ethtool Counters community post.

To avoid network interface renaming after boot or driver restart, set the desired constant interface name in the "/etc/udev/rules.d/70-persistent-net.rules" file.

  • Example for Ethernet interfaces:

    Copy
    Copied!


    PCI device 15b3:1019 (mlx5_core) SUBSYSTEM=="net", ACTION=="add", DRIVERS=="?*", ATTR{address}=="00:02:c9:fa:c3:50", ATTR{dev_id}=="0x0", ATTR{type}=="1", KERNEL=="eth*", NAME="eth1" SUBSYSTEM=="net", ACTION=="add", DRIVERS=="?*", ATTR{address}=="00:02:c9:fa:c3:51", ATTR{dev_id}=="0x0", ATTR{type}=="1", KERNEL=="eth*", NAME="eth2" SUBSYSTEM=="net", ACTION=="add", DRIVERS=="?*", ATTR{address}=="00:02:c9:e9:56:a1", ATTR{dev_id}=="0x0", ATTR{type}=="1", KERNEL=="eth*", NAME="eth3" SUBSYSTEM=="net", ACTION=="add", DRIVERS=="?*", ATTR{address}=="00:02:c9:e9:56:a2", ATTR{dev_id}=="0x0", ATTR{type}=="1", KERNEL=="eth*", NAME="eth4"

  • Example for IPoIB interfaces:

    Copy
    Copied!


    SUBSYSTEM=="net", ACTION=="add", DRIVERS=="?*", ATTR{dev_id}=="0x0", ATTR{type}=="32", NAME="ib0" SUBSYSTEM=="net", ACTION=="add", DRIVERS=="?*", ATTR{dev_id}=="0x1", ATTR{type}=="32", NAME="ib1"

Once IRQs are allocated by the driver, they are named mlx5_comp<x>@pci:<pci_addr>. The IRQs corresponding to the channels in use are renamed to <interface>-<x>, while the rest maintain their default name.
The mlx5_core driver allocates all IRQs during loading time to support the maximum possible number of channels. Once the driver is up, no further IRQs are freed or allocated. Changing the number of working channels does not re-allocate or free the IRQs.

The following example demonstrates how reducing the number of channels affects the IRQs names.

Copy
Copied!


$ ethtool -l ens1 Channel parameters for ens1: Pre-set maximums: RX: 0 TX: 0 Other: 0 Combined: 12   Current hardware settings: RX: 0 TX: 0 Other: 0 Combined: 12   $ cat /proc/interrupts   98: 0 0 0 0 0 0 7935 0 0 0 0 0 IR-PCI-MSI-edge mlx5_async@pci:0000:81:00.0 99: 0 0 0 0 0 0 1 0 0 0 0 0 IR-PCI-MSI-edge ens1-0 100: 0 0 0 0 0 0 1 0 0 0 0 0 IR-PCI-MSI-edge ens1-1 101: 0 0 0 0 0 0 1 0 0 0 0 0 IR-PCI-MSI-edge ens1-2  102: 0 0 0 0 0 0 1 0 0 0 0 0 IR-PCI-MSI-edge ens1-3 103: 0 0 0 0 0 0 1 0 0 0 0 0 IR-PCI-MSI-edge ens1-4 104: 0 0 0 0 0 0 1 0 0 0 0 0 IR-PCI-MSI-edge ens1-5 105: 0 0 0 0 0 0 1 0 0 0 0 0 IR-PCI-MSI-edge ens1-6 106: 0 0 0 0 0 0 1 0 0 0 0 0 IR-PCI-MSI-edge ens1-7 107: 0 0 0 0 0 0 1 0 0 0 0 0 IR-PCI-MSI-edge ens1-8 108: 0 0 0 0 0 0 1 0 0 0 0 0 IR-PCI-MSI-edge ens1-9 109: 0 0 0 0 0 0 1 0 0 0 0 0 IR-PCI-MSI-edge ens1-10 110: 0 0 0 0 0 0 1 0 0 0 0 0 IR-PCI-MSI-edge ens1-11       $ ethtool -L ens1 combined 4  $ ethtool -l ens1 Channel parameters for ens1: … Current hardware settings: RX: 0 TX: 0 Other: 0 Combined: 4   $ cat /proc/interrupts 98: 0 0 0 0 0 0 8455 0 0 0 0 0 IR-PCI-MSI-edge mlx5_async@pci:0000:81:00.0 99: 0 0 0 0 0 0 1 2 0 0 0 0 IR-PCI-MSI-edge ens1-0 100: 0 0 0 0 0 0 1 0 2 0 0 0 IR-PCI-MSI-edge ens1-1 101: 0 0 0 0 0 0 1 0 0 2 0 0 IR-PCI-MSI-edge ens1-2 102: 0 0 0 0 0 0 1 0 0 0 2 0 IR-PCI-MSI-edge ens1-3 103: 0 0 0 0 0 0 1 0 0 0 0 1 IR-PCI-MSI-edge mlx5_comp4@pci:0000:81:00.0 104: 0 0 0 0 0 0 2 0 0 0 0 0 IR-PCI-MSI-edge mlx5_comp5@pci:0000:81:00.0 105: 0 0 0 0 0 0 1 1 0 0 0 0 IR-PCI-MSI-edge mlx5_comp6@pci:0000:81:00.0 106: 0 0 0 0 0 0 1 0 1 0 0 0 IR-PCI-MSI-edge mlx5_comp7@pci:0000:81:00.0 107: 0 0 0 0 0 0 1 0 0 1 0 0 IR-PCI-MSI-edge mlx5_comp8@pci:0000:81:00.0 108: 0 0 0 0 0 0 1 0 0 0 1 0 IR-PCI-MSI-edge mlx5_comp9@pci:0000:81:00.0 109: 0 0 0 0 0 0 1 0 0 0 0 1 IR-PCI-MSI-edge mlx5_comp10@pci:0000:81:00.0 110: 0 0 0 0 0 0 2 0 0 0 0 0 IR-PCI-MSI-edge mlx5_comp11@pci:0000:81:00.0
