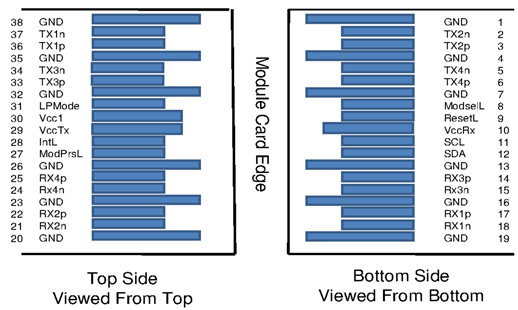

Pin Description

1

GND

Ground

20

GND

Ground

2

Tx2n

Transmitter Inverted Data Input

21

Rx2n

Receiver Inverted Data Output

3

Tx2p

Transmitter Non-Inverted Data Input

22

Rx2p

Receiver Non-Inverted Data

Output

4

GND

Ground

23

GND

Ground

5

Tx4n

Transmitter Inverted Data Input

24

Rx4n

Receiver Inverted Data Output

6

Tx4p

Transmitter Non-Inverted Data Input

25

Rx4p

Receiver Non-Inverted Data

Output

7

GND

Ground

26

GND

Ground

8

ModSelL

Module Select

27

ModPrsL

Module Present

9

ResetL

Module Reset

28

IntL

Interrupt

10

Vcc Rx

+3.3V Power Supply Receiver

29

Vcc Tx

+3.3V Power Supply Transmitter

11

SCL

2-wire Serial Interface Clock

30

Vcc1

+3.3V Power Supply

12

SDA

2-wire Serial Interface Data

31

LPMode

Low Power Mode

13

GND

GND

32

GND

Ground

14

Rx3p

Receiver Non-Inverted Data Output

33

Tx3p

Transmitter Non-Inverted Data Input

15

Rx3n

Receiver Inverted Data Output

34

Tx3n

Transmitter Inverted Data Input

16

GND

Ground

35

GND

Ground

17

Rx1p

Receiver Non-Inverted Data Output

36

Tx1p

Transmitter Non-Inverted Data Input

18

Rx1n

Receiver Inverted Data Output

37

Tx1n

Transmitter Inverted Data Input

19

GND

Ground

38

GND

Ground

Name

Description

ModPrsL

Module Present pin, grounded inside the module. Terminated with pull-up in the host system. Asserted low when the transceiver is inserted, whereby the host detects the presence of the transceiver.

ModSelL

Module Select input pin, terminated high in the module. Only when held low by the host, the module responds to 2-wire serial communication commands. The ModSelL enables multiple modules to share a single 2-wire interface bus.

ResetL

Reset input pin, pulled high in the module. A low level on the ResetL pin for longer than the minimum pulse length (t_Reset_init) initiates a complete module reset, returning all user module settings to their default state. During reset the host shall disregard all status bits until the module indicates completion of the reset interrupt by asserting IntL signal low with the Data_Not_Ready bit negated.

Note that on power up (including hot insertion) the module completes the reset interrupt without requiring a reset.

LPMode

Low Power Mode input, pulled up inside the module. The transceiver starts up in low-power mode, i.e. <1.5 W with the two-wire interface active. The host system can read the power class declaration from the transceiver and determine if it has enough power to enable the high-speed operation/high power mode of the transceiver. This can be done by asserting LPMode low or by use of the Power_over-ride and Power_set control bits (Address A0h, byte 93 bits 0,1).

IntL

Interrupt Low is an open-collector output, terminated high in the host system. A “Low” indicates a possible module operational fault or a status critical to the host system, e.g. temperature alarm. The host identifies the source of the interrupt using the 2-wire serial interface. The INTL pin is de-asserted “High” after completion of reset, when byte 2 bit 0 (Data Not Ready) is read with a value of ‘0’.
