Recommended NVIDIA Supplied Crossover Fiber Cables Part Numbers
Multimode, Straight Crossover Fibers
|
OPN |
4-channel MPO/APC to 4-channel MPO/APC |
|
MFP7E10-N003 |
3m |
|
MFP7E10-N005 |
5m |
|
MFP7E10-N007 |
7m |
|
MFP7E10-N010 |
10m |
|
MFP7E10-N015 |
15m |
|
MFP7E10-N020 |
20m |
|
MFP7E10-N030 |
30m |
|
MFP7E10-N050 |
50m |

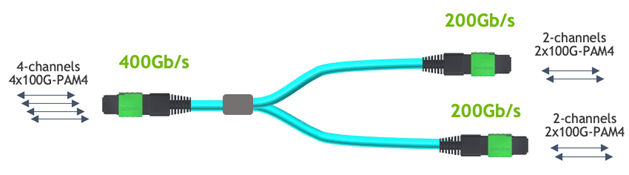

Multimode, 1:2 Splitter Crossover Fibers
|
OPN |
4-channel MPO/APC to Two 2-channel MPO/APC |
|
MFP7E20-N003 |
3m |
|
MFP7E20-N005 |
5m |
|
MFP7E20-N007 |
7m |
|
MFP7E20-N010 |
10m |
|
MFP7E20-N015 |
15m |
|
MFP7E20-N020 |
20m |
|
MFP7E20-N030 |
30m |
|
MFP7E20-N050 |
50m |
