Telemetry

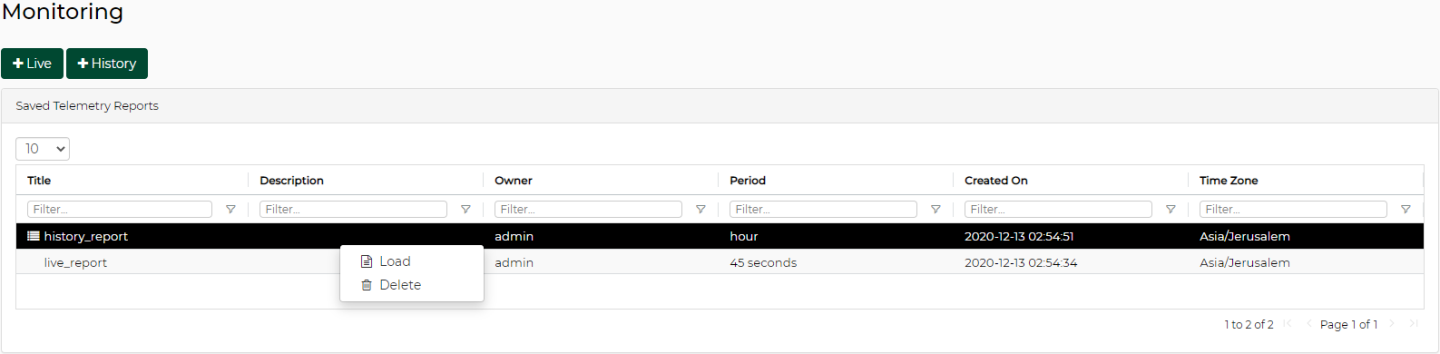

Telemetry may be used to monitor the success and faults of the network and its operations. The initial view lists the saved reports. Administrators can view all saved reports, while standard users can only view the reports they create. A right-click on a specific report opens a menu with the options to load the report or delete it from the list. Multiple reports can be selected and deleted at once.


There are four types of reports that users can generate:

  • History Monitoring

  • Live Monitoring

  • Performance

  • Snapshot

The monitoring actions can be performed from multiple windows:

  • Managed Elements --> Devices --> Right-click on one or more devices

  • Managed Elements --> Ports --> Right-click on one or more ports

  • Managed Elements --> Groups --> Right-click on a group (available only for History Monitoring)

  • Telemetry streaming – refer to History Monitoring and Live Monitoring sections below.

History Monitoring

Provides a report of the device attributes values history.

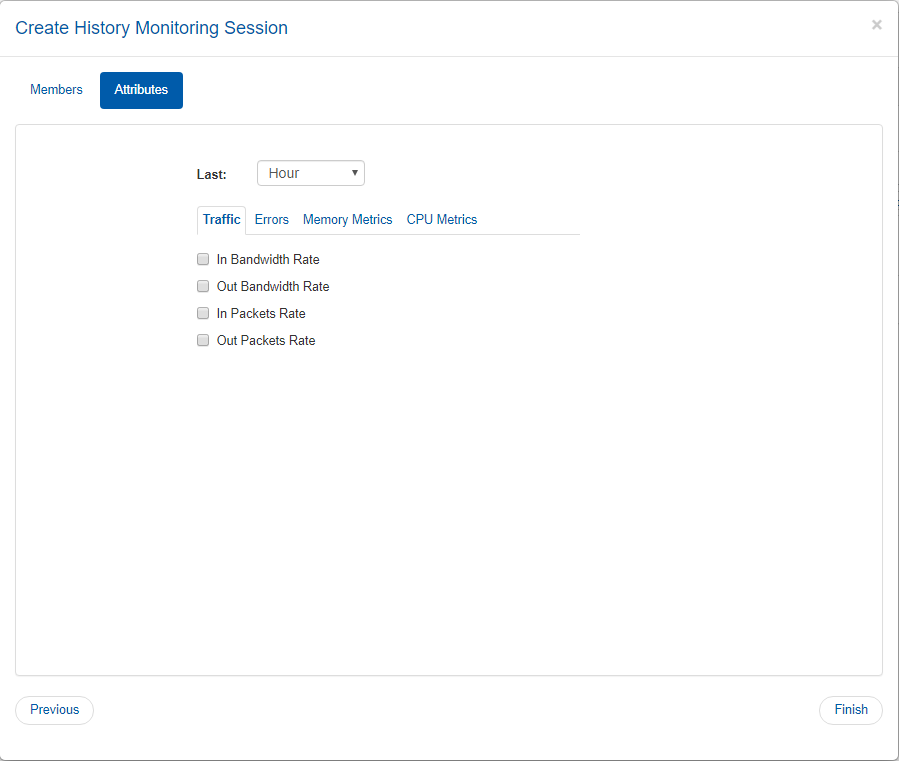

To create a history monitoring report:

  1. Click the


    button.

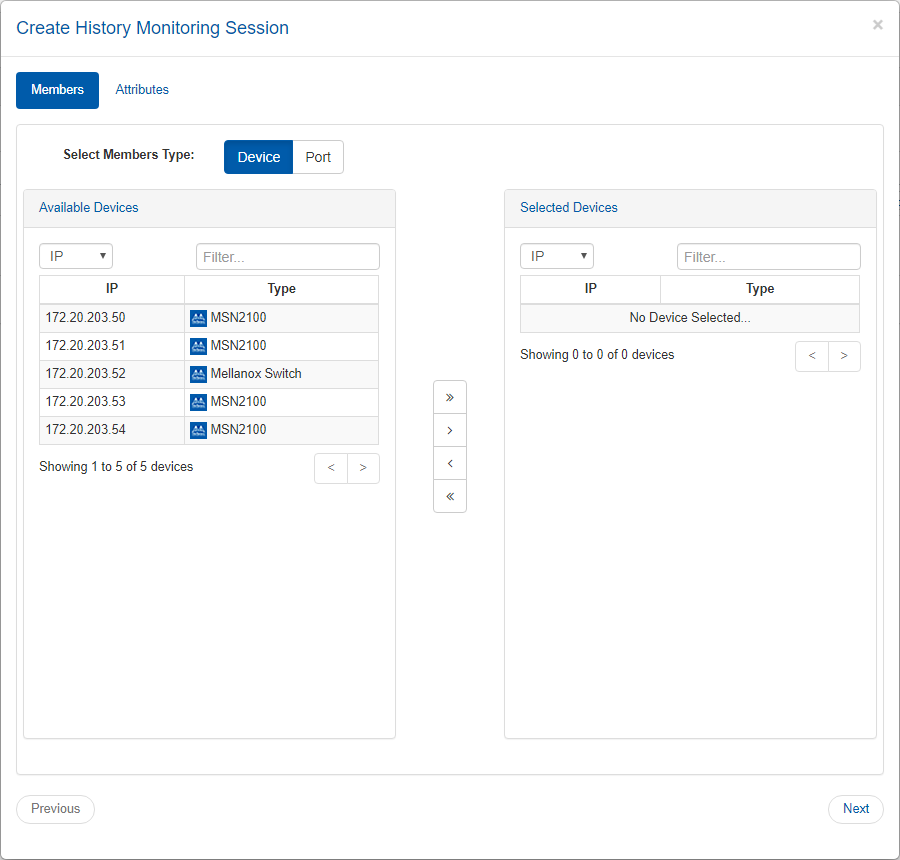

  2. Choose the devices or ports you wish to generate a report for under “Members” (available objects: device, port).


  3. Check the checkboxes of the attributes you wish to monitor their values (available attributes are listed in the table below), and define the time frame of the report (over the last hour, day, week or month).


    History Monitoring Available Attributes

    Available Objects

    Available Attributes

    Devices

    Counters

    Errors

    Memory Metrics

    CPU Metrics

    Ports

    Counters

    Errors

  4. Once clicked “Finish”, the report will be generated.



For saving the generated reports, see “Saving Reports”.

Live Monitoring

Provides a live report of the device attributes values.

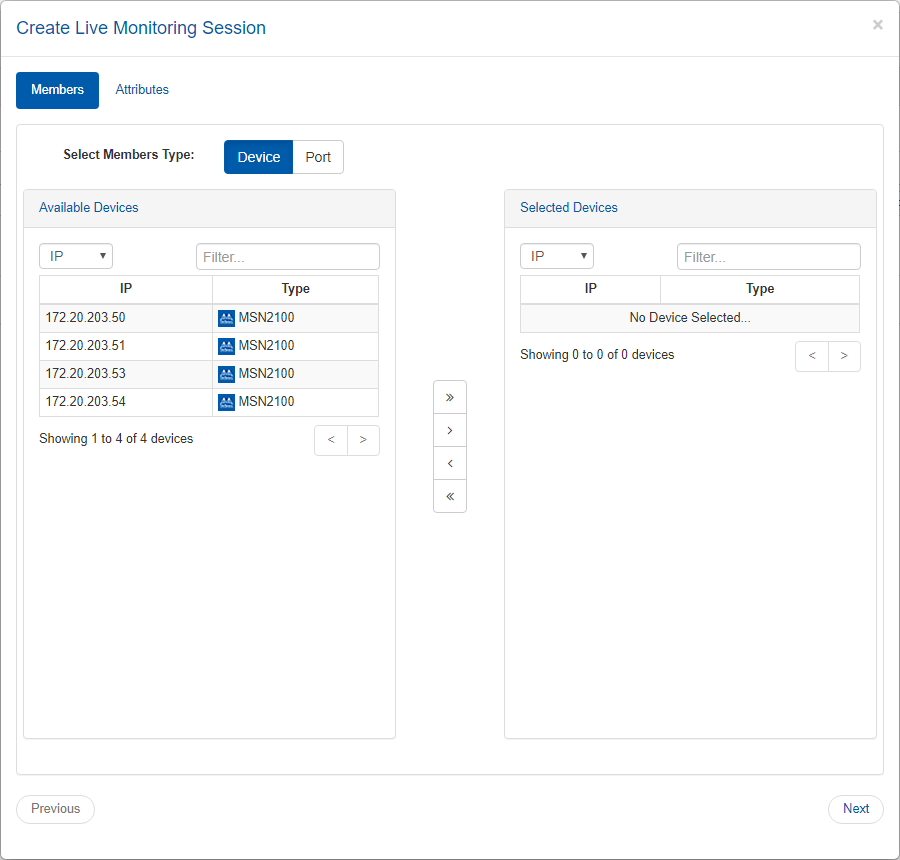

To create a live monitoring session:

  1. Click the


    button.

  2. Choose the devices or ports you wish to generate a report for under “Members” (available objects: device, port).

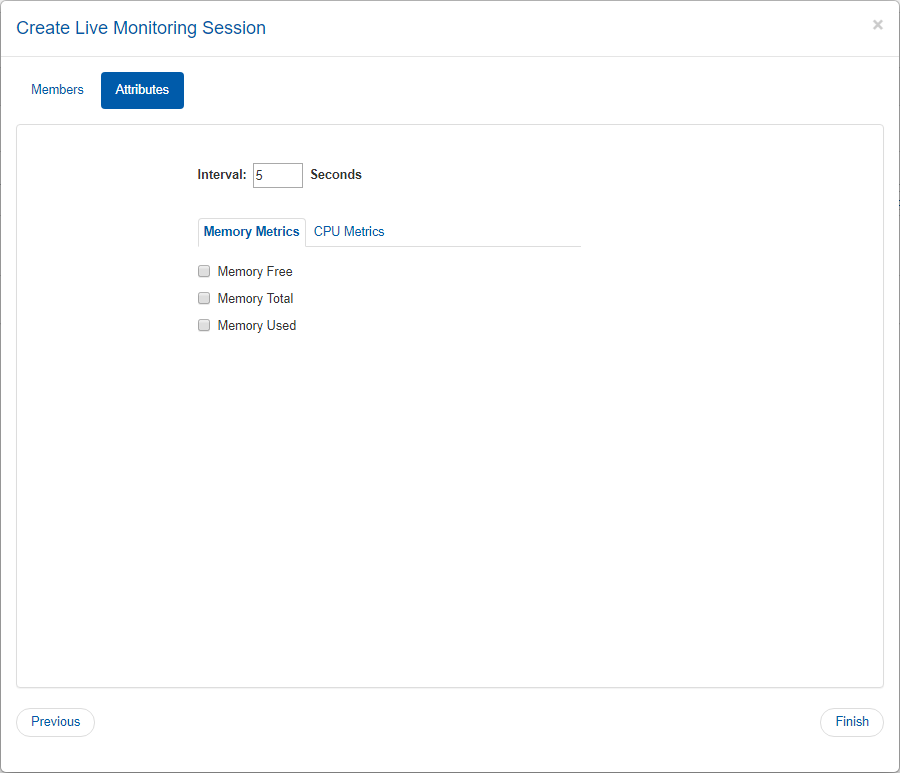

  3. Check the checkboxes of the attributes you wish to monitor their values (available attributes are listed in the table below), and define the interval of the monitoring (the minimal monitoring interval can be as low as 2 seconds).

    Warning

    The minimal interval of 2 seconds applies to Spectrum and SwitchX switches, while for other devices, the minimal interval is 20 seconds for ports, and 5 seconds for devices.


    Live Monitoring Available Attributes

    Available Objects

    Available Attributes

    Devices

    Memory Metrics

    CPU Metrics

    Ports

    Counters

    Errors

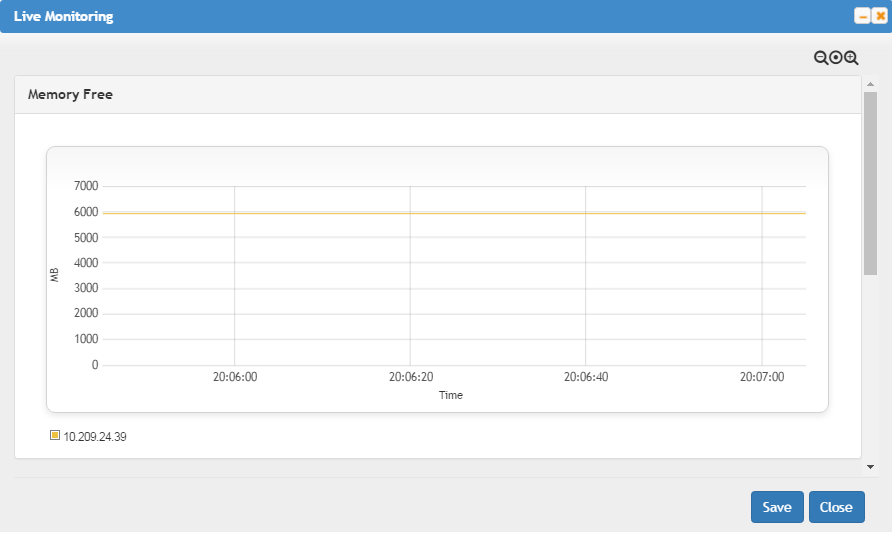

  4. Clicking Finish starts the monitoring session.

For saving the monitoring session, see "Saving Reports" section.

Warning

Live Monitoring is not supported for third party switches (non-Mellanox switches), but is supported for the ports of those switches.


Saving Reports

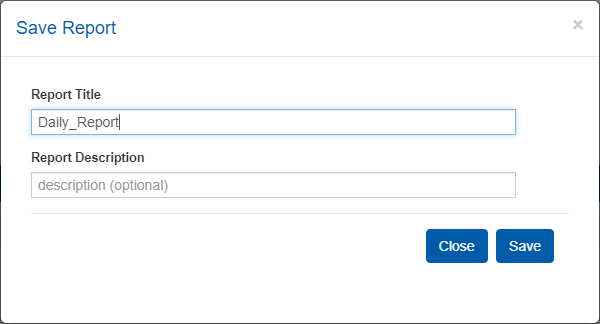

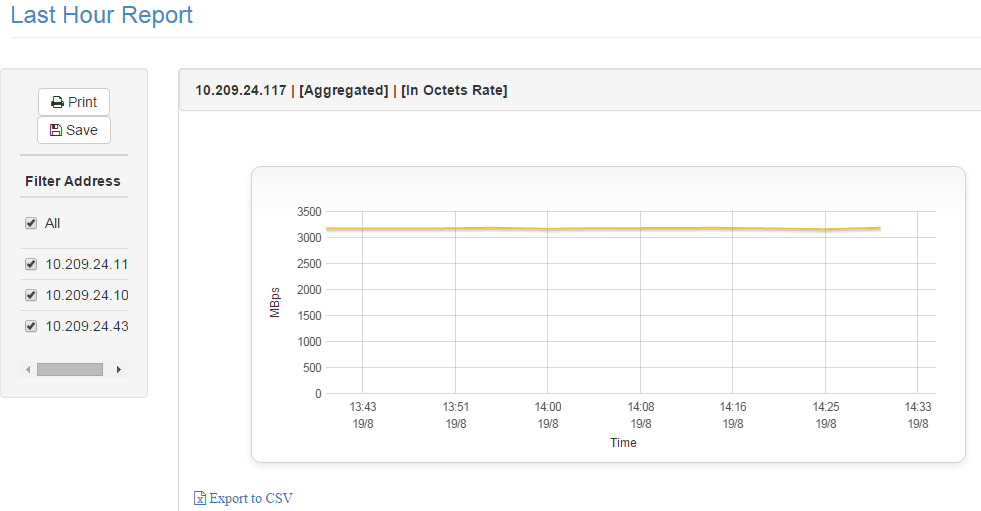

The generated reports can be saved or printed by clicking on the designated buttons.


  • Users can save a report within 30 minutes from its creation time.

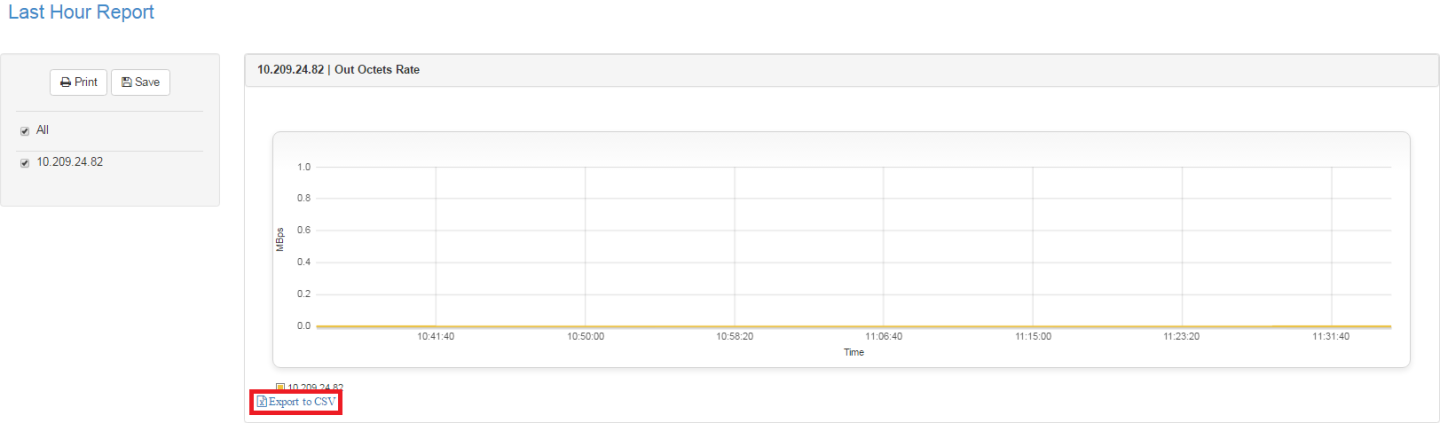

  • Once a report is generated, it can be exported to a CSV file.

    • If the report was generated for multiple devices – the CSV file can only be created if each graph contains a single device (“Group by Counter” checkbox on the left side of the graph is unchecked).

    • If the report was generated for a single device – the option of creating a CSV file will automatically become available.


  • Removing temporary reports is done by a garbage collector mechanism that is activated every 5 minutes.

  • By default, the maximum number of reports that can be saved is 200, while each user can save up to 20 reports (the administrator can keep saving reports even after reaching the 20 report limit, but once the system’s 200 report limit is met, no additional reports could be saved, unless reconfiguration is performed).

To configure the maximum number of reports to save:

  1. Open the /opt/neo/controller/conf /controller.cfg file.

  2. Find the Report section.

  3. Set the maximum allowed number of saved reports in the system by changing the max_reports_per_system value (the default is 200).

  4. Set the maximum allowed number of saved reports per user by changing the max_reports_per_user value (the default is 20).

  5. Restart Mellanox NEO-controller.

To configure the report’s garbage collector cycle interval:

  1. Open the /opt/neo/controller/conf /controller.cfg file.

  2. Find the Report section.

  3. Set the garbage_collector_interval value to the desired number (the default is 5 minutes).

  4. Restart Mellanox NEO-controller.

Streaming is supported on Spectrum systems with either Onyx or Cumulus operating systems.

Predefined Sessions

For every Telemetry Agent controlled by Mellanox NEO, the sessions below are defined by default:

  • WJH

  • Interface Counters

  • Buffer Events

Warning

By default (when Telemetry Agent is started on the switch) only “Interface Counters" session is enabled (activated).

These sessions retrieve information for various NEO views. They cannot be edited or deleted, and devices will be automatically added to/removed from them according to their telemetry capability. Some of them can be enabled or disabled by need.

To perform an action on an added session, right-click on it, and select "Disable/Enable", "Modify Members" or "Delete".

The default streaming sessions are:


  • WJH – samples the dropped packets buffer, and streams the data to Mellanox NEO.

  • Interface Counters – samples interface counters. Please refer to the "Supported Telemetry Data Streaming" page of the Telemetry Agent User Manual for more information on the supported profiles and the available counters per profile.

  • Buffer Events – samples the buffer histogram and creates an event every time the defined threshold is crossed. To view the buffer histogram when an event is created, go to Network Map, and click on "Buffers Utilization" under Network Analysis. For more information, see “Network Analysis”.

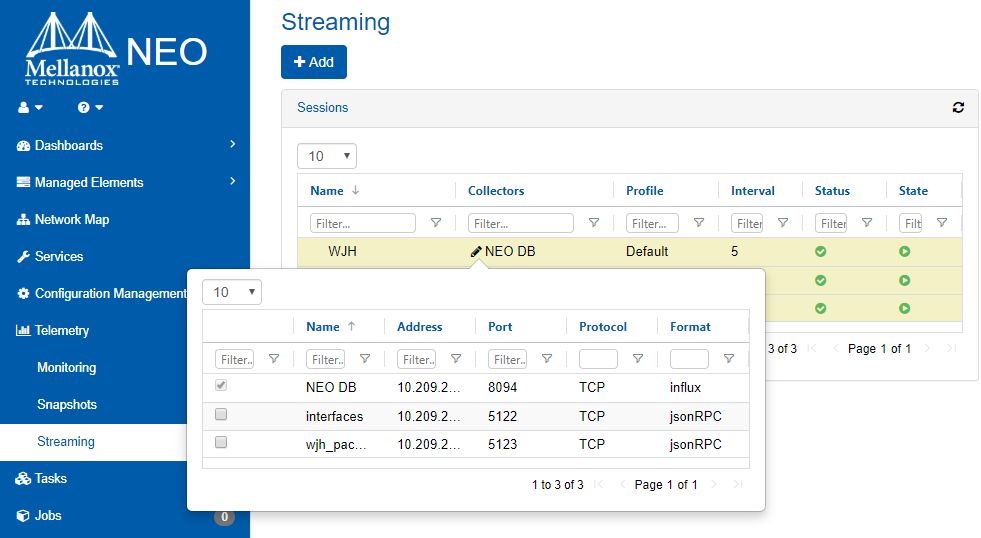

To perform a change of collectors to an existing session, go over the pencil mark under Collectors and mark the relevant collectors to add.


Sessions Management

View Session

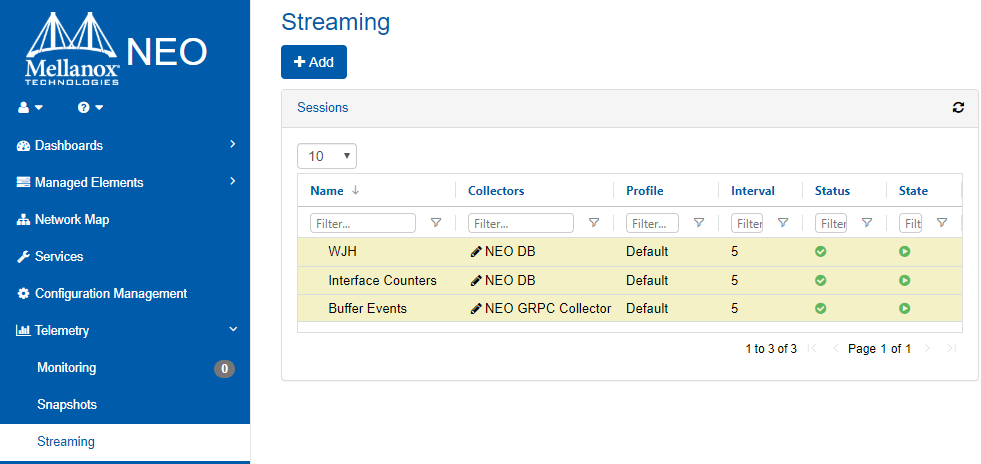

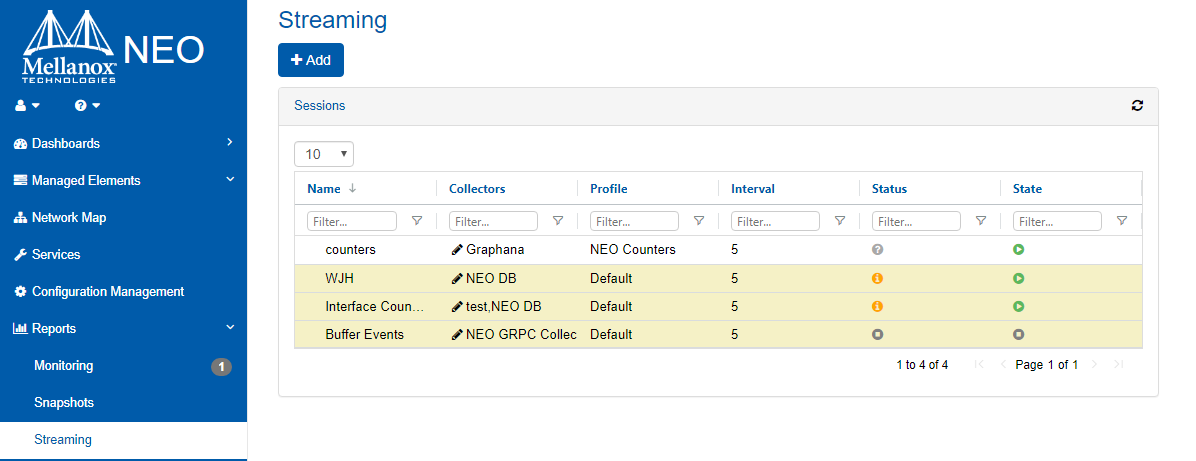

In order to view all available sessions, go to “Telemetry”→”Streaming”. A table will appear with a list of all sessions, including the predefined sessions marked in yellow.



Create a New Session

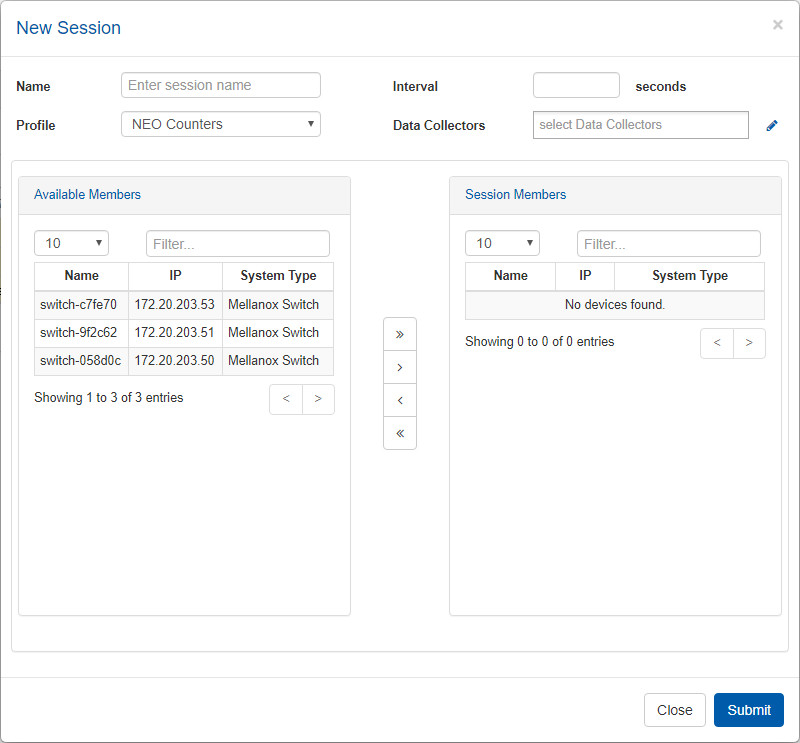

To add a new streaming session, click on the “New” button, insert the new session’s name, and fill-in the required parameters:

  • Profile: Select one of the profiles -

    • NEO Counters

    • Traffic Counters

    • Priority Counters

    • Buffer Histograms

    • FDB Table

    • Routing Table

  • Interval: The time interval for the data collection

  • Data Collectors: The collectors to which the data will be sent. For more information on defining the collectors, you can use the pencil icon, or refer to “Data Collector”.

    Warning

    It is possible to define up to five sessions per system, and one per type.

    Warning

    It is impossible to create more than one session on the same profile for a specific device.

    Warning

    Before starting a buffer histogram session, make sure to configure the relevant traffic class on the switch using the “Enable Histogram” template.

    Warning

    Use the “Enable Histogram” template to configure default session “buffer events”.

    Warning

    Before running the routing profile, make sure it is enabled on the switch (run "ip routing").


Telemetry Agent Supported Counters Per Profile

Please visit the Telemetry Agent User Manual under Appendixes>Supported Telemetry Data Streaming>Supported Counters Per Profile for more information.

Enable/Disable Session

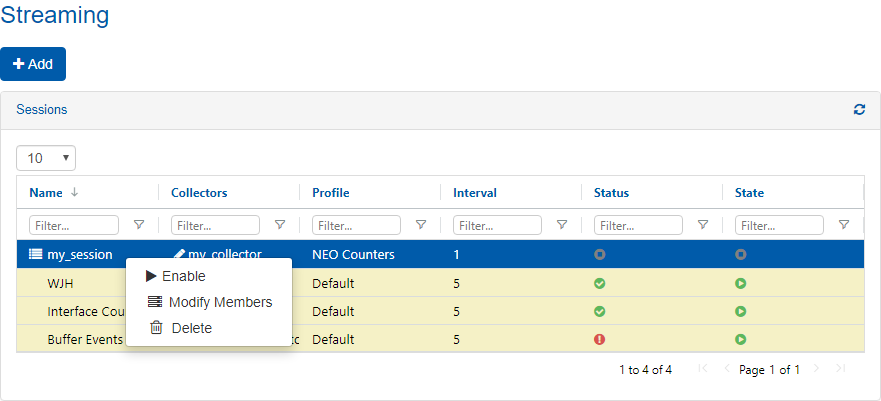

To enable or disable a session, right-click on it, and select the desired action: Enable/Disable.

Important

Warning: Running multiple sessions in high frequency may lead to high switch CPU conception.



Edit Sessions Members

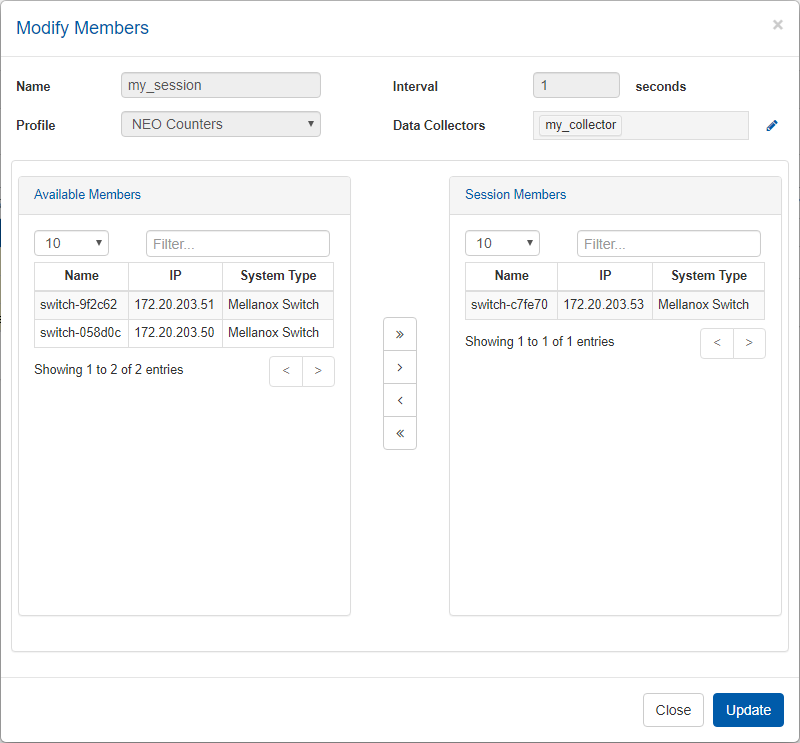

To modify the session members, right click on a session, and select “Modify Members”. The session member's view will open. You can use the arrows to add and remove members from a session. You can run only one session per profile and no more than 5 sessions (in total) per switch. Each session can be sent to several collectors.


Warning

You can run up to one session per profile, and each session can be sent to up to 3 different collectors (destinations).


Delete Session

To delete a session, right-click on it, and select "Delete". When deleting a session from the sessions table, the specified session will be stopped on all session members (switches) that are currently running it.



Session Members Status

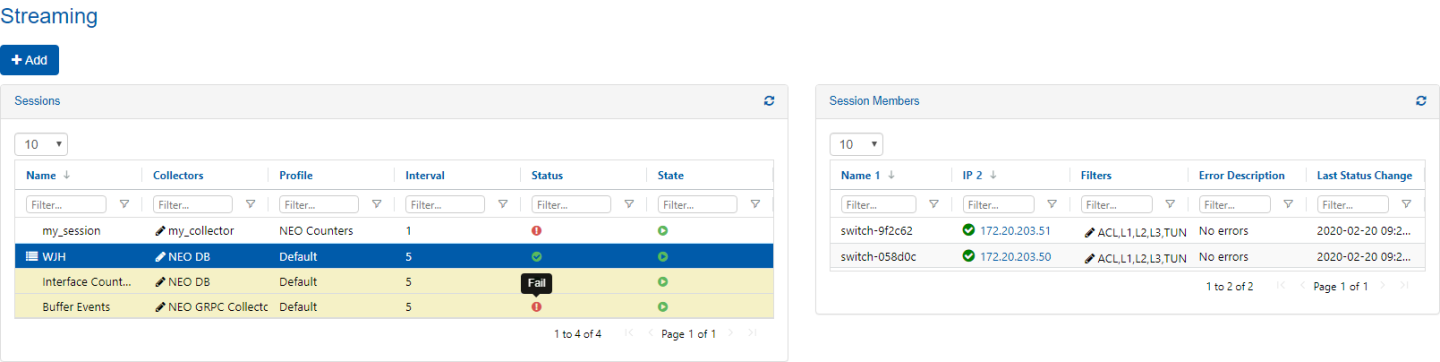

To view the status of session members, click on the session, and a table with the following parameters will appear on the right side of the screen:

  • IP: System IP

  • Status: OK, Fail/Warning or Stop (green, yellow or gray icon, respectively)

  • Error Description: Will be displayed only in case there is a general telemetry error

  • Last Status Change: Specifies the exact time in which the last status change occurred.



Device Sessions Information

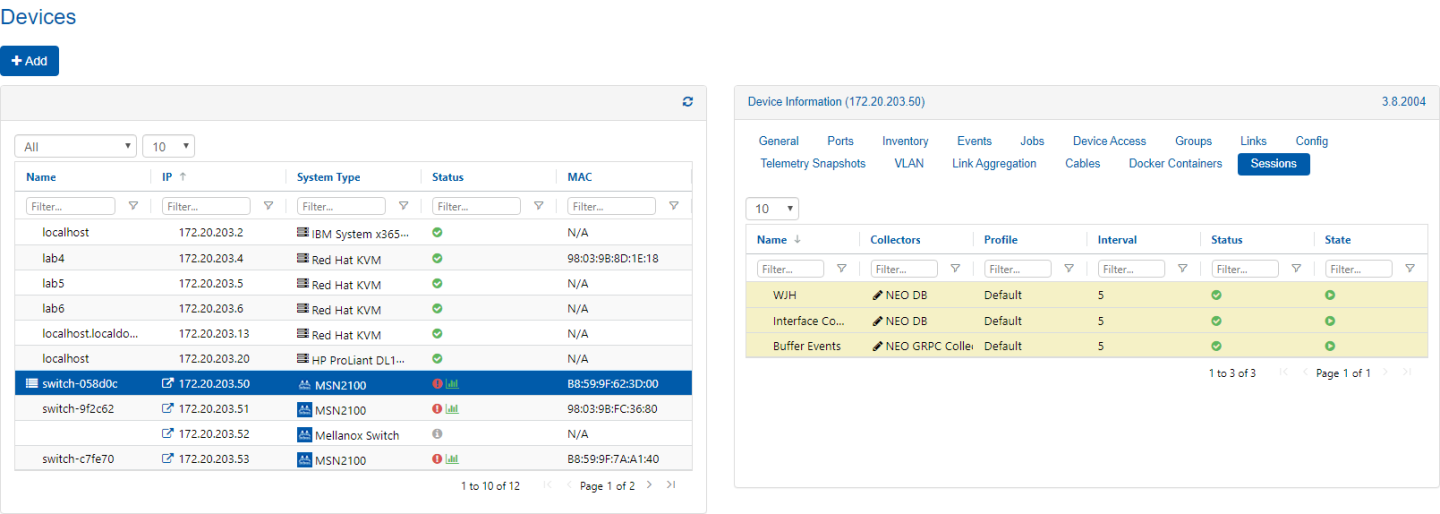

You may view the running sessions and the sessions status of each device, by selecting “Managed Elements”-->”Devices”, and clicking on the relevant device. The “Sessions” tab will appear in the “Device Information” panel on the right, as shown below. In case of a problem with the session, the problem type will be reflected in the session status.


Warning

Running multiple sessions in high frequency may lead to high switch CPU conception.


What Just Happened Filtering

For WJH session, it is possible to get drops of specific categories only and silence alerts about other categories. Unselected categories will not be streamed, thus it is recommended to select all the wanted categories.


Telemetry snapshots allow the user to store snapshots of commands running periodically if the output was changed, and allow the user to search, view and compare these snapshots. 

To create a telemetry snapshot:

  1. Click the


    button:


  2. Select devices or group of devices.

  3. Select a template or a command.

  4. Select snapshot interval.

  5. Click Finish.

Warning

Right clicking an existing snapshot allows the user to run it immediately, edit, or delete it.

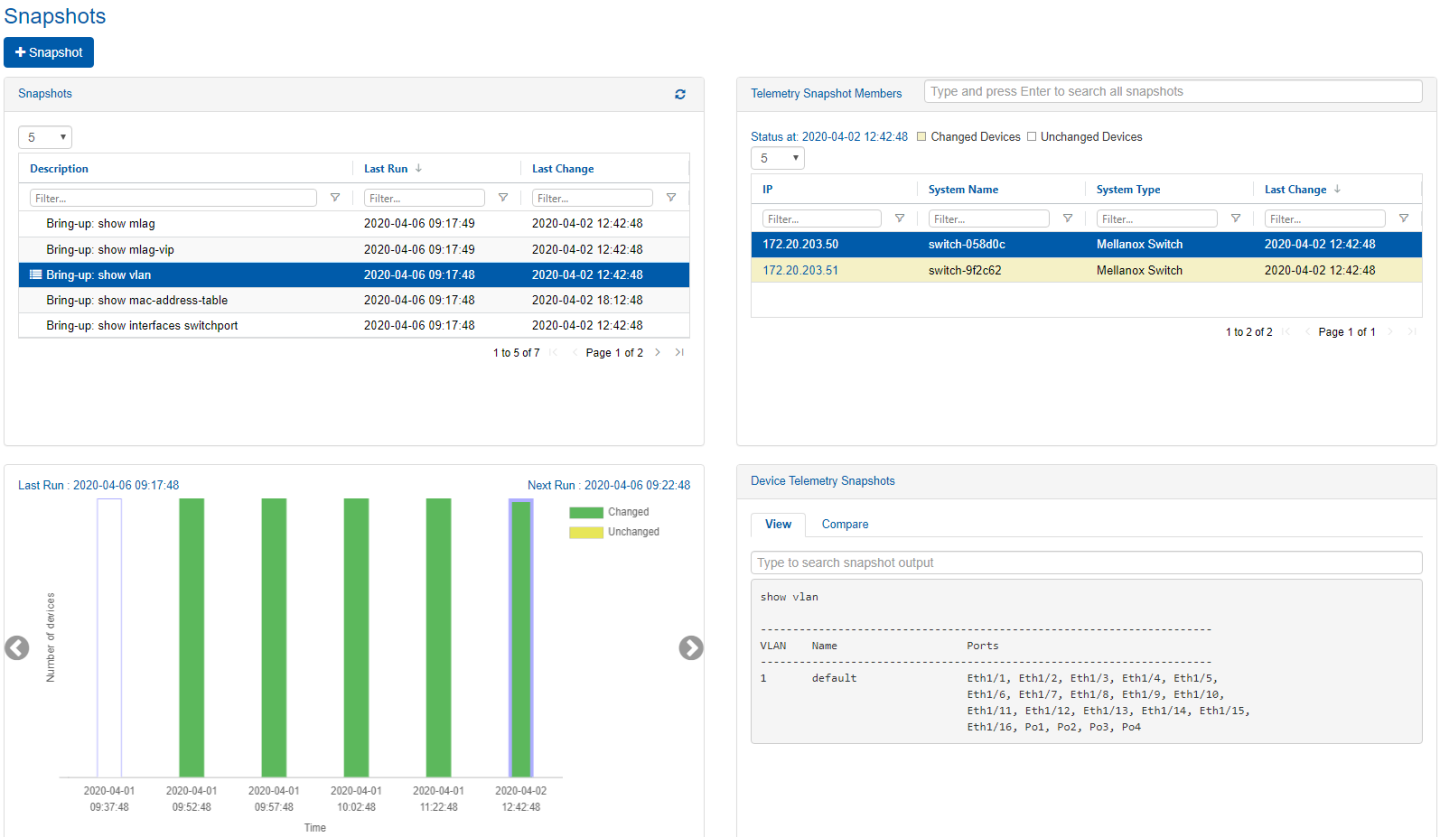

Snapshots Tab

The Snapshots tab displays information about all the snapshots that were taken, and it is divided to four sections:

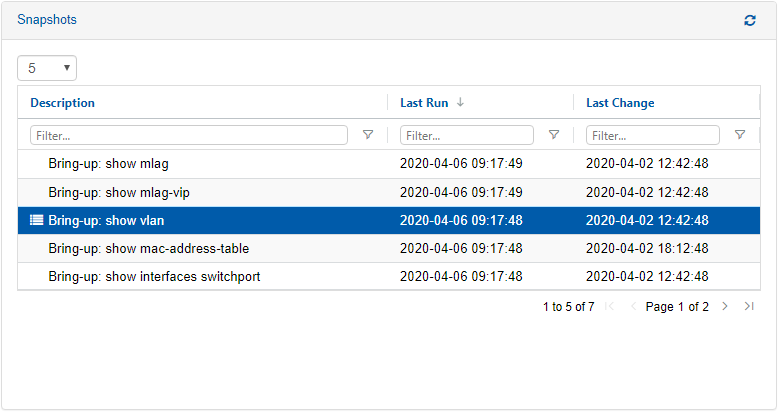

  • The snapshots section displays all the telemetry snapshots configured by the user.

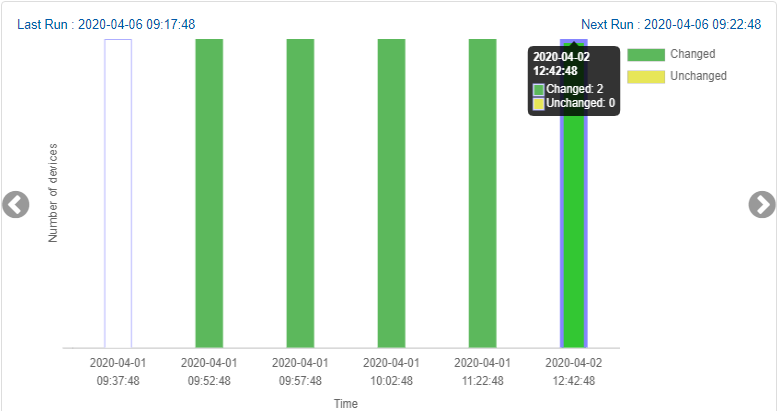

  • The selected snapshot timeline displays the times of latest changes detected.

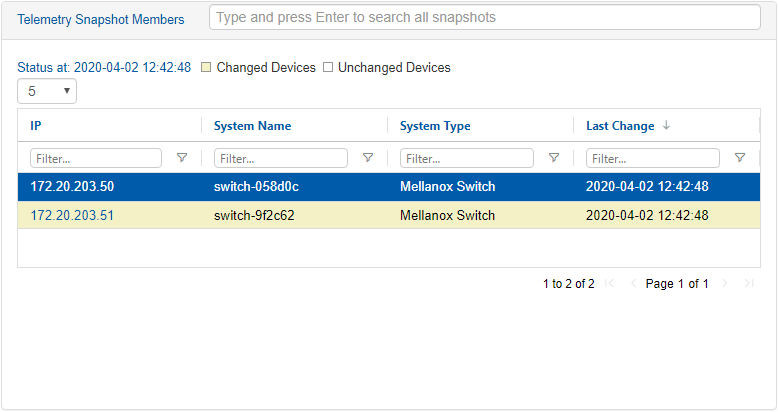

  • Telemetry Snapshots Members displays a list of the devices which are members in the selected telemetry snapshots.

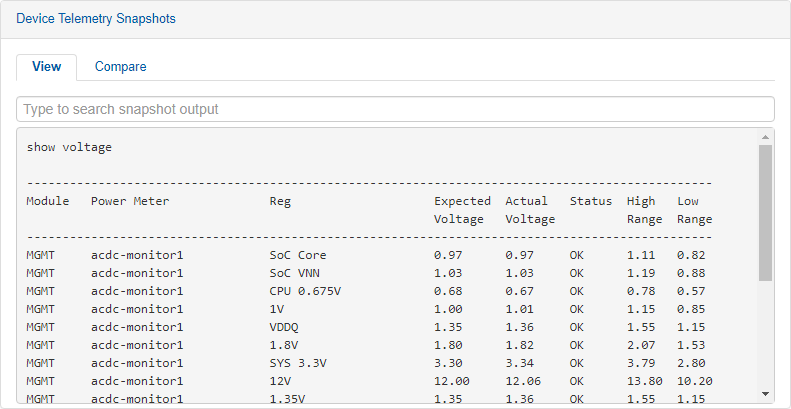

  • Device Telemetry Snapshots displays the content of the selected device snapshot.


  • The Compare tab displays the differences between the selected snapshot and any other snapshots.
