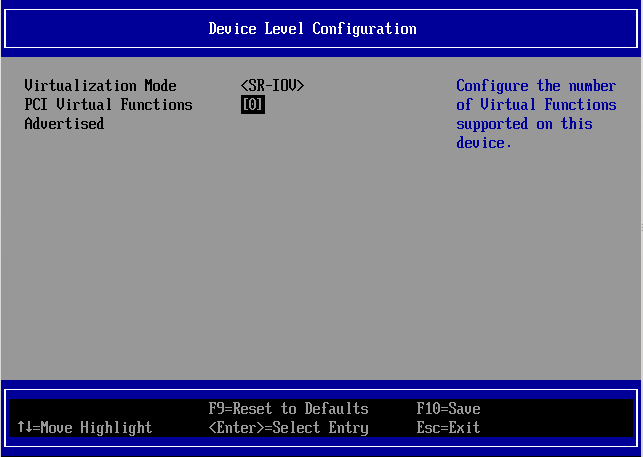

HII Device Level Configuration
In the following menu, you can set the following options:
Location: | Main Configuration Form /Device Level Configuration |
Description: | Specifies the type of virtualization used by the controller on all ports. Only valid for adapters that support SR-IOV virtualization mode. |
Configurable: | Yes – built-in options |
Persistency: | Persistent through AC cycle |
Reboot required: | Yes – reboot is needed in order for this change to apply |
Available options: | 1 - None 2 - SR-IOV |
Location: | Main Configuration Form /Device Level Configuration |
Description: | The number of virtual functions advertised and usable by the driver. Only valid for adapters that support SR-IOV virtualization mode. |
Configurable: | Yes – via input – If virtualization mode is SR-IOV |
Persistency: | Persistent through AC cycle |
Reboot required: | Yes – reboot is needed in order for this change to apply |
Value restrictions: | Minimum integer value is 0. Maximum integer value is the value supported by the firmware installed. |
