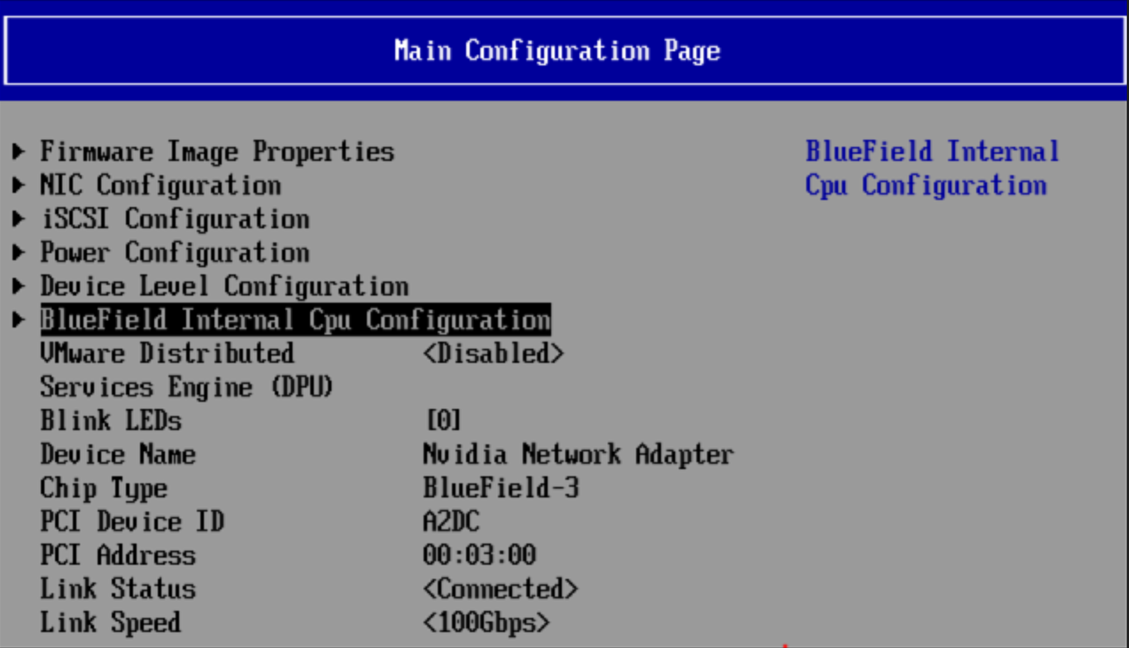

In the following menu, you can set the following options:
![image2023-12-5_14-15-20.png](https://docscontent.nvidia.com/dims4/default/da654f2/2147483647/strip/true/crop/1129x648+0+0/resize/1129x648!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018c-629a-dc9e-abee-6afbd8300000%2Fimages%2Fnetworking%2Fdownload%2Fattachments%2F144714190%2Fimage2023-12-5_14-15-20.png)
Location: |
Main Configuration Form |
Description: |
Displays submenu of VMware configurations. |
Configurable: |
Yes |
Persistency: |
Persistent through AC cycle |
Reboot required: |
Yes |
Available options: |
|
Default Value: |
Disable |
Blink LEDs will not appear in the boot menu if the feature is not supported by the firmware.
Location: |
Main Configuration Form |
Description: |
Specifies the number of seconds the LEDs on physical network port should blink to assist with port identification. Only valid for adapters with blink LEDs. |
Configurable: |
Yes – via input |
Persistency: |
Valid only for current cycle |
Reboot required: |
No |
Available options: |
0-15 sec |
Default Value: |
0 |
Location: |
Main Configuration Form |
Description: |
The device's product name |
Configurable: |
No |
Location: |
Main Configuration Form |
Description: |
Specifies the chip type |
Configurable: |
No |
Location: |
Main Configuration Form |
Description: |
The PCI Device ID of the controller |
Configurable: |
No |
Location: |
Main Configuration Form |
Description: |
Specifies the BIOS assigned PCI Bus:Device:Function identifier of the card |
Configurable: |
No |
Location: |
Main Configuration Form |
Description: |
Displays current link status on port |
Configurable |
No |
Network Link Type will not appear in the boot menu if the feature is not supported by the firmware.
Location: |
Main Configuration Form |
Description: |
Allows user to manually choose link type on selected VPI devices |
Configurable: |
Yes – via input |
Persistency: |
Persistent through AC cycle |
Reboot required: |
Yes – reboot is needed for this change to take effect. |
Available options: |
Ethernet/InfiniBand/VPI |
Location: |
Main Configuration Form |
Description: |
Defines link working speed. |
Configurable: |
No |
Value restrictions: |
- |
Location: |
Main Configuration Form |
Description: |
Permanent MAC address assigned during manufacturing |
Configurable: |
No |
Location: |
Main Configuration Form |
Description: |
Displays device's virtual MAC address |
Configurable: |
No |
Location: |
Main Configuration Form |
Description: |
Indicates whether Socket Direct functionality is enabled or not. |
Configurable: |
No |
