Technology Preview of Kubernetes Cluster Deployment with Accelerated Bridge CNI and NVIDIA Ethernet Networking

Created on April 3, 2023 by Vitaliy Razinkov

Scope

NVIDIA's hardware Accelerated Linux Bridge is a new solution that allows to significantly accelerate network performance and CPU overhead while using Linux bridge.
This Technology Preview document provides background and guidelines on how to evaluate the technology and its benefits for various use cases.

Abbreviations and Acronyms

Term

Definition

Term

Definition

CNI

Container Network Interface

LLDP

Link Layer Discovery Protocol

CR

Custom Resources

NFD

Node Feature Discovery

CRD

Custom Resources Definition

OCI

Open Container Initiative

CRI

Container Runtime Interface

PF

Physical Function

DHCP

Dynamic Host Configuration Protocol

QSG

Quick Start Guide

DNS

Domain Name System

RDG

Reference Deployment Guide

DP

Device Plugin

RoCE

RDMA over Converged Ethernet

DPDK

Data Plane Development Kit

SR-IOV

Single Root Input Output Virtualization

IPAM

IP Address Management

VF

Virtual Function

K8s

Kubernetes

VF-LAG

Virtual Function over Link Aggregation

Introduction

This document provides a step-by-step guide on how to install and configure hardware Accelerated Linux Bridge on a Kubernetes cluster with NVIDIA® ConnectX®-6 Dx SmartNIC to enhance the network performance and efficiency.

Linux bridge is a well know software component of the Linux OS, used to bridge between VMs and/or Containers. As it is implemented in software and executed on the main host CPU, it is not optimally performant and may utilize significant CPU resources. Legacy SRIOV on the other hand allows direct connectivity of the VM/Container to the NIC and by that allows for optimal performance and efficiency. However, Legacy SRIOV lacks many features that Linux bridge provides such as bonding or VLAN trunking.

Accelerated Linux bridge uses NVIDIA ASAP2 framework to allow the VM/container to still be connected with an SRIOV VF while the Linux bridge is used as the control plane. This way we get both the functionality of Linux bridge with the performance of SRIOV.

Accelerated Bridge CNI is used to enable accelerated Linux bridge in a K8s environment.

In this guide, we use the NVIDIA Network Operator and Accelerated Bridge CNI to enable high-performance secondary network for Kubernetes clusters. The NVIDIA Network Operator automates the installation and configuration of network components in K8s cluster. The Accelerated Bridge CNI provides a fast and efficient way for connecting pods to secondary network in a HW accelerated manner using VF-LAG.

The solution deployment is based on x86 standard servers for K8s worker nodes and K8s control plane node with the Ubuntu 22.04 operating system. Both Kubernetes management and secondary networks are handled by NVIDIA end-to-end Ethernet fabrics.

Note

This guide applies to a greenfield deployment.

References

Solution Architecture

Key Components and Technologies

  • NVIDIA Spectrum SN3000 Open Ethernet Switches

    NVIDIA® Spectrum®-2 SN3000 Ethernet switches are ideal for leaf and spine data center network solutions, allowing maximum flexibility with port speeds from 1GbE to 200GbE per port and port density that enables full-rack connectivity to any server at any speed.

    SN3000 carries a whopping bidirectional switching capacity of up to 12.8Tb/s with a landmark 8.33Bpps packet processing rate. Purpose-built for the modern data center, SN3000 combines high performance, rich features, scalability, and visibility with flexible form factors.

  • NVIDIA Cumulus Linux

    NVIDIA® Cumulus® Linux is the industry's most innovative open network operating system that allows you to automate, customize, and scale your data center network like no other.

  • NVIDIA® ConnectX®-6 Dx SmartNIC

    ConnectX-6 Dx SmartNIC is the industry’s most secure and advanced cloud network interface card to accelerate mission-critical data-center applications, such as security, virtualization, SDN/NFV, big data, machine learning, and storage. The SmartNIC provides up to two ports of 100Gb/s or a single-port of 200Gb/s Ethernet connectivity and delivers the highest return on investment (ROI) of any smart network interface card. ConnectX-6 Dx is a member of NVIDIA's world-class, award-winning ConnectX series of network adapters powered by leading 50Gb/s (PAM4) and 25/10Gb/s (NRZ) SerDes technology and novel capabilities that accelerate cloud and data-center payloads.

  • NVIDIA LinkX Cables

    The NVIDIA® LinkX® product family of cables and transceivers provides the industry’s most complete line of 10, 25, 40, 50, 100, 200, and 400GbE in Ethernet and 100, 200 and 400Gb/s InfiniBand products for Cloud, HPC, hyperscale, Enterprise, telco, storage and artificial intelligence, data center applications.

  • Kubernetes

    Kubernetes is an open-source container orchestration platform for deployment automation, scaling, and management of containerized applications.

  • Kubespray

    Kubespray is a composition of Ansible playbooks, inventory, provisioning tools, and domain knowledge for generic OS/Kubernetes clusters configuration management tasks and provides:

    • A highly available cluster

    • Composable attributes

    • Support for most popular Linux distributions

  • NVIDIA Network Operator

    An analog to the NVIDIA GPU Operator, the NVIDIA Network Operator simplifies scale-out network design for Kubernetes by automating aspects of network deployment and configuration that would otherwise require manual work. It loads the required drivers, libraries, device plugins, and CNIs on any cluster node with an NVIDIA network interface. Paired with the NVIDIA GPU Operator, the Network Operator enables GPUDirect RDMA, a key technology that accelerates cloud-native AI workloads by orders of magnitude. The NVIDIA Network Operator uses Kubernetes CRD and the Operator Framework to provision the host software needed for enabling accelerated networking.

Logical Design

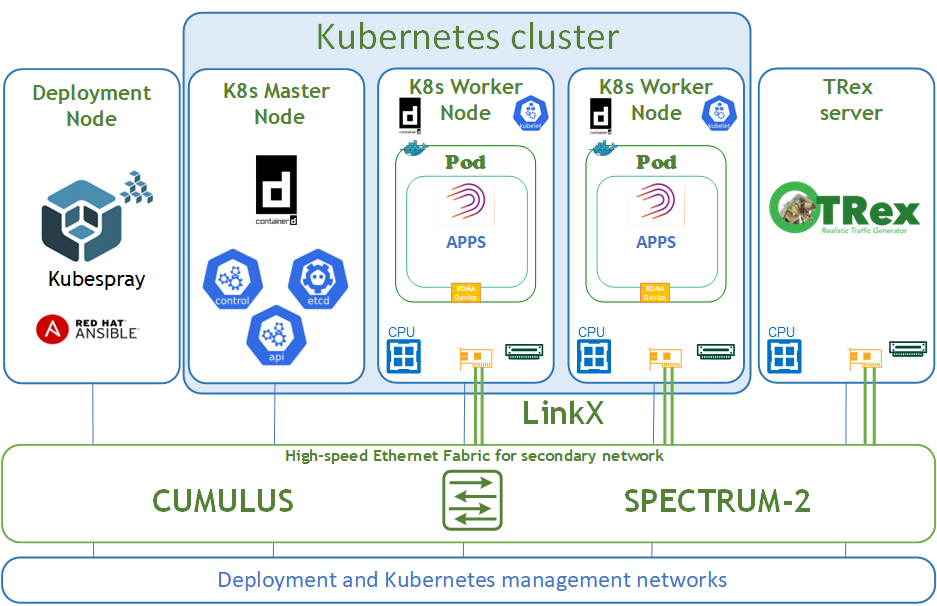

The logical design includes the following parts:

  • Deployment node running Kubespray that deploys a Kubernetes cluster

  • K8s Master node running all Kubernetes management components

  • K8s Worker nodes with NVIDIA ConnectsX-6 Dx adapters

  • TRex server for DPDK traffic emulation

  • High-speed Ethernet fabric (secondary K8s network)

  • Deployment and K8s management networks


Network / Fabric Design

This guide shows the simplest deployment which is based on one switch for K8s deployment and management networks and one switch for the high-speed Ethernet network.

The high-speed network is a secondary network for the Kubernetes cluster and requires an L2 network topology.

The Kubernetes Management network and DNS/DHCP network services are parts of the IT infrastructure and are beyond the scope of this document.

Host Design

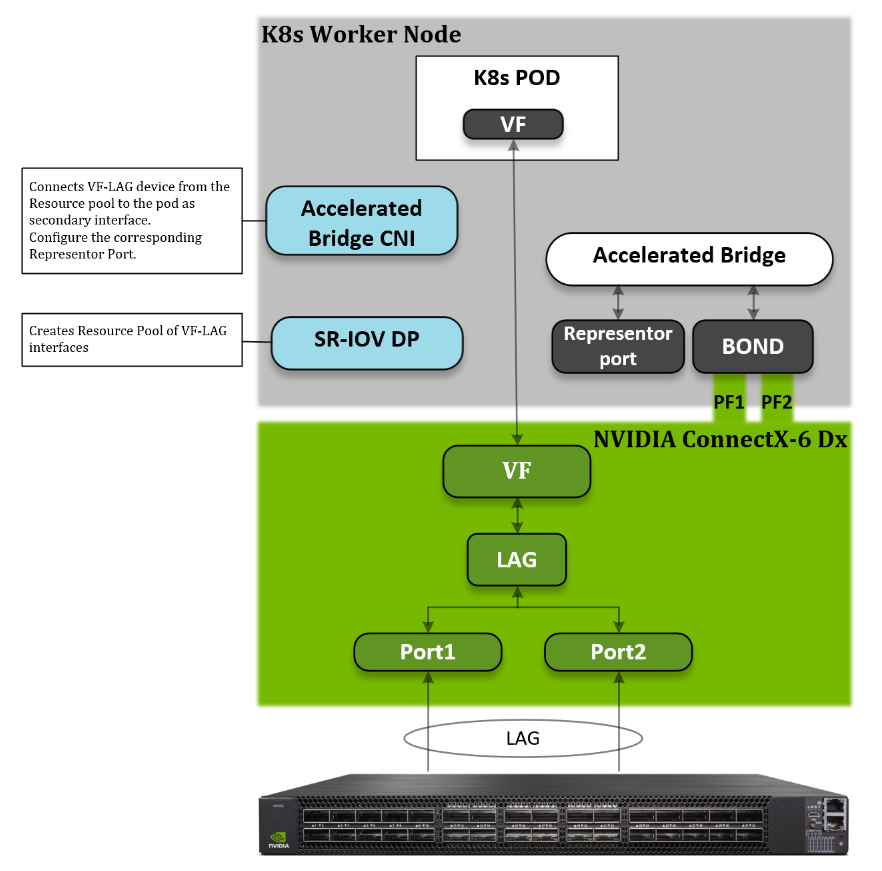

The following diagram shows the logical design of a K8s Worker Node. The host binds the two physical functions (PFs) network interfaces from the same NIC. With NVIDIA VF-LAG technology, the VFs of these two ports will be binded as well using the same bond mode applies on the physical ports. For example: If BOND is configured in LACP mode, then all VF-LAG interfaces have the same configuration.
To use VF-LAG, the NIC must be in SR-IOV switchdev mode and we will use the Linux bridge as the SR-IOV switchdev control plane. We use a K8s SR-IOV device plugin in “Hostdev mode” and Accelerated Bridge CNI to configure a secondary POD interface.

SR-IOV Device Plugin is responsible for providing a VF-LAG interface for a pod. The Accelerated Bridge CNI plumbs the VF-LAG interface into a pod and configures the Representor port on the Accelerated Bridge.


Software Stack Components

The following software components have been used to deploy the system:

Bill of Materials

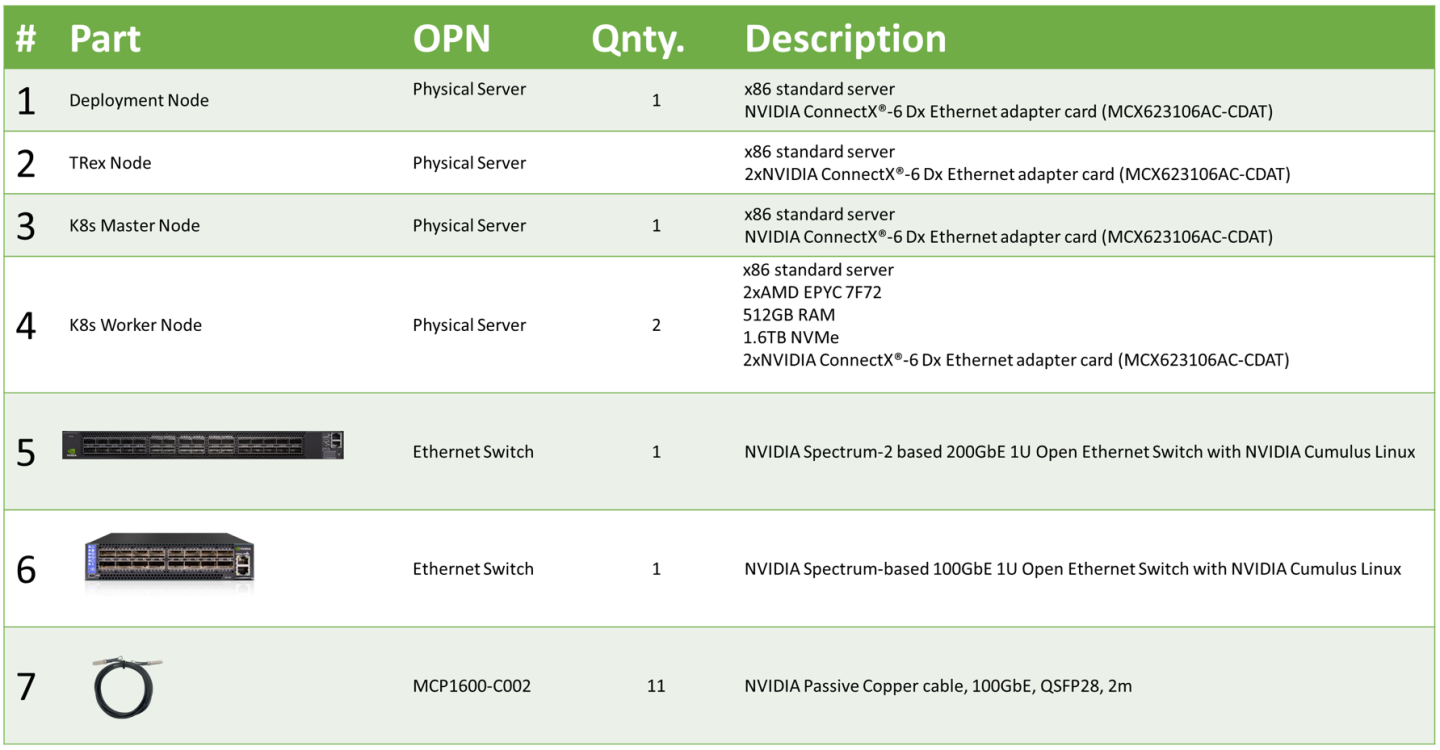

The following table lists the hardware components used for the setup.


Deployment and Configuration

Network / Fabric

Network Configuration

Below are the server names along with their relevant network configurations.

Server/Switch type

Server/Switch name

IP and NICS

High-speed network

Management network

100GbE

Deployment node

depserver

ens4f0: DHCP

192.168.100.202

Master node

node1

ens4f0: DHCP

192.168.100.25

Worker node

node2

bond0: no IP set

ens4f0: DHCP

192.168.100.34

Worker node

node3

bond0: no IP set

ens4f0: DHCP

192.168.100.39

TRex server

node4

ens2f0: no IP set

ens2f1: no IP set

ens4f0: DHCP

192.168.100.50

High-speed switch

switch01

mgmt0: From DHCP

192.168.100.201

bond0 high-speed network interface does not require additional configuration.

Wiring

On each K8s Worker Node, both ports of the NVIDIA NIC are wired to an NVIDIA switch in a high-performance fabric using NVIDIA® LinkX® DAC cables. Also, the management port of all nodes is wired to an NVIDIA SN2100 Ethernet switch .

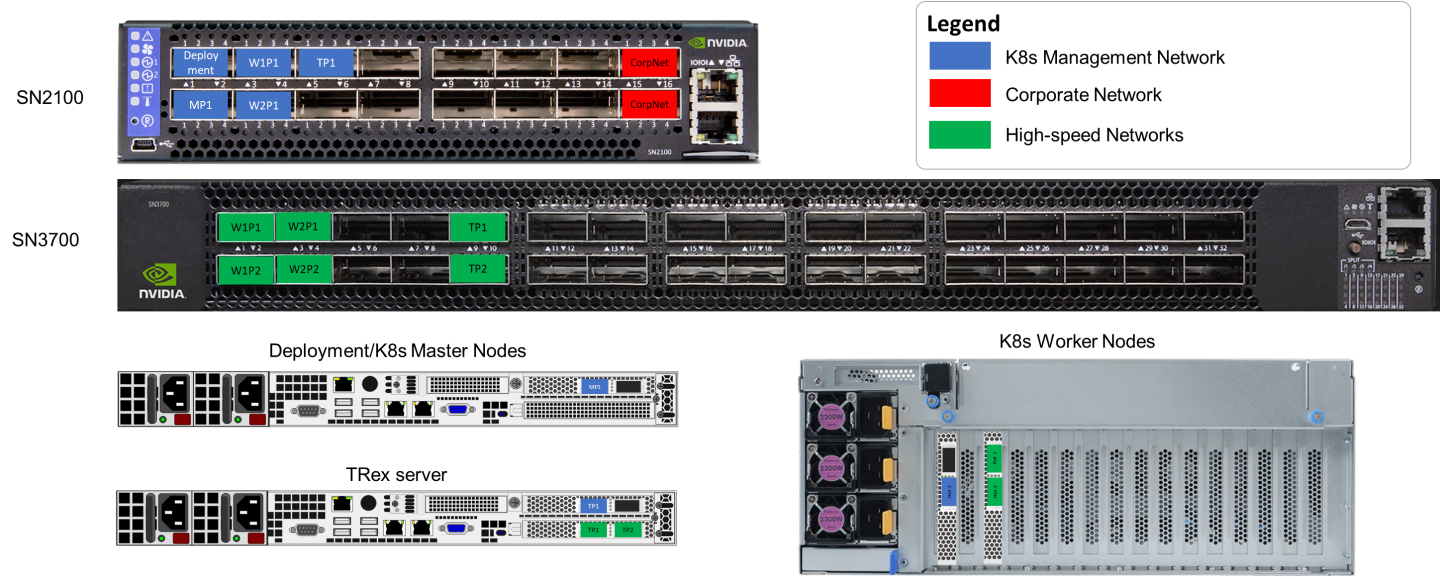

The following figure illustrates the required wiring for building a K8s cluster.


Note

Server remote management and switch management wiring over a 1GbE network are beyond the scope of this guide.

Fabric Configuration

This solution was deployed with Cumulus Linux v5.4 network operating system.

Check that your Cumulus Linux switch has passed its initial configuration stages (see the Quick-Start Guide for version 5.4 for more information).

Fabric configuration steps:

  1. As Administrator, enable all physical ports.

  2. Create bonds.

  3. Create a bridge and configure it.

  4. Create VLANs.

  5. Add VLANs to bridge.

  6. Commit configuration.

Switch configuration steps:

Copy
Copied!


nv set interface swp1-32 nv set system hostname switch01 nv config apply nv set interface bond1 bond member swp1-2 nv set interface bond2 bond member swp3-4 nv set interface swp5-32 bridge domain br_default nv set interface bond1-2 bridge domain br_default nv set bridge domain br_default vlan 2001-2005 nv config apply -y nv config save

To view link status, use the " nv show interface" command.

Node Configuration

General Prerequisites:

  • Hardware

    All the K8s Worker nodes have the same hardware specification and ConnectX-6 Dx NIC installed in the same PCIe slot.

  • Host BIOS

    Verify that an SR-IOV supported server platform is being used and review the BIOS settings in the server platform vendor documentation to enable SR-IOV in the BIOS.

  • Host OS

    Ubuntu Server 22.04 operating system should be installed on all servers with OpenSSH server packages.

  • Experience with Kubernetes

    Familiarization with the Kubernetes Cluster architecture is essential.

Host OS Prerequisites

Make sure that Ubuntu Server 22.04 operating system is installed on all servers with OpenSSH server packages and create a non-root depuser account with sudo privileges without a password.

Update the Ubuntu software packages and install a specific Linux kernel by running the following commands:

Copy
Copied!


$ sudo apt-get update $ sudo apt-get upgrade -y $ sudo apt install -y lldpd rdma-core linux-image-5.19.0-32-generic linux-modules-extra-5.19.0-32-generic $ sudo reboot

In this solution we added the following line to the EOF /etc/sudoers:

Copy
Copied!


$ sudo vim /etc/sudoers #includedir /etc/sudoers.d #K8s cluster deployment user with sudo privileges without password depuser ALL=(ALL) NOPASSWD:ALL

NIC Firmware Upgrade

It is recommended to upgrade NIC firmware on all nodes to the latest version released.

Download the mlxup firmware update and query utility to each Worker node and update NIC firmware.

The most recent version of mlxup can be downloaded from the official download page.

The utility execution requires sudo privileges:

Copy
Copied!


# chmod +x mlxup # ./mlxup -online -u -y

Netplan Configuration

Note

This step should be applied to all K8s Worker nodes.

Netplan is the network configuration abstraction renderer used for easily configuring networking on a Linux system. Configuration is performed by creating a simple YAML description of the required network interfaces and what each interface should be configured to do. Below is a YAML file example which is required for our deployment.

The default configuration file for Netplan is /etc/netplan/00-installer-config.yaml.

In our deployment, NICs enp57s0f0np0 and enp57s0f1np1 were used as part of Linux Accelerated Bridge.

Copy
Copied!


# This is the network config written by 'subiquity' network: version: 2 ethernets: enp57s0f0np0: dhcp4: false mtu: 9216 embedded-switch-mode: switchdev virtual-function-count: 8 delay-virtual-functions-rebind: true enp57s0f1np1: dhcp4: false mtu: 9216 embedded-switch-mode: switchdev virtual-function-count: 8 delay-virtual-functions-rebind: true enp64s0f0np0: dhcp4: true dhcp-identifier: mac enp64s0f0np1: dhcp4: false bonds: bond0: dhcp4: false mtu: 9216 interfaces: - enp57s0f0np0 - enp57s0f1np1 parameters: mode: 802.3ad transmit-hash-policy: layer3+4 lacp-rate: fast mii-monitor-interval: 100

Apply Netplan configuration.

Copy
Copied!


# netplan apply

Reboot is required to apply the configuration.

After the server is started, please review the dmesg log file, which should include lines as shown below. These lines indicate that VF-LAG is activated properly.

Copy
Copied!


[ 48.305593] mlx5_core 0000:39:00.1: E-Switch: Enable: mode(OFFLOADS), nvfs(8), active vports(9) [ 49.195354] mlx5_core 0000:39:00.0: lag map active ports: 1 [ 49.195361] mlx5_core 0000:39:00.0: shared_fdb:1 mode:hash [ 49.321334] mlx5_core 0000:39:00.0: Operation mode is single FDB [ 49.733106] mlx5_core 0000:39:00.0: lag map active ports: 1, 2

Manage HugePages

Note

This step should be applied to all K8s Worker nodes.

Kubernetes supports the allocation and consumption of pre-allocated HugePages by applications in a Pod. The nodes will automatically discover and report all HugePages resources as schedulable resources. For additional information about K8s HugePages management, please see here. For additional information on the kernel’s command-line parameters and parameter descriptions please see here.

To allocate, HugePages needs to modify the GRUB_CMDLINE_LINUX_DEFAULT parameter in /etc/default/grub. GRUB_CMDLINE_LINUX_DEFAULT parameters for our K8s Worker nodes are provided below:

Copy
Copied!


...   GRUB_CMDLINE_LINUX_DEFAULT="iommu=pt numa_balancing=disable processor.max_cstate=0 default_hugepagesz=1G hugepagesz=1G hugepages=64 isolcpus=2-45 nohz_full=2-45 rcu_nocbs=2-45"   ...

Run update-grub to apply the config to grub and reboot server:

Copy
Copied!


# update-grub # reboot

Linux Bridge Configuration

Note

This step should be applied to all K8s Worker nodes.

Linux Bridge is a standard interface widely supported by various Linux distributions. Basic functionality of the Linux Bridge is implemented in the upstream Linux kernel. Linux bond support is also included in the upstream Linux kernel. Specific Linux Bridge features are implemented in the following upstream Linux kernels:

  1. Bridge offload with VLAN - 5.14

  2. Bridge LAG support - 5.15

  3. Bridge spoof check - 5.16

  4. Bridge QinQ support - 6.0

Accelerated Linux Bridge is an innovative technology that aims to replace legacy SR-IOV. It provides a kernel-space-only solution for basic connectivity between the physical uplink and the VFs, without relying on user-space components such as Open vSwitch. This solution can be enhanced with additional features (LAG/Bond, VGT+, etc).

Now we create and enable the systemd service to start the Accelerated Bridge on system startup.

Accelerated Linux Bridge in our deployment is created by a standard service - /etc/systemd/system/ab-configuration.service.

Copy
Copied!


[Unit] Description=Configures Linux Bridge for using by K8s AB CNI Wants=sys-devices-virtual-net-bond0.device Before=sys-devices-virtual-net-bond0.device   [Service] Type=oneshot ExecStart=/usr/local/bin/configure-ab.sh StandardOutput=journal+console StandardError=journal+console   [Install] WantedBy=online.target

Script execution file - /usr/local/bin/configure-ab.sh.

Copy
Copied!


#!/bin/bash set -eux   #Create and configure bridge - accelbr for using it by K8s AB CNI   ip link add name accelbr type bridge ip link set accelbr mtu 9216 ip link set bond0 master accelbr ip link set accelbr up ip link set accelbr type bridge ageing_time 200 ip link set accelbr type bridge vlan_filtering 1 ip link set accelbr type bridge fdb_flush

Apply configuration.

Copy
Copied!


# chmod +x /usr/local/bin/configure-ab.sh # systemctl daemon-reload # systemctl enable ab-configuration.service

Warning

Server reboot is required for proper service activation.

K8s Cluster Deployment and Configuration

The Kubernetes cluster in this solution is installed using Kubespray with a non-root depuser account from the Deployment node.

SSH Private Key and SSH Passwordless Login

Log into the Deployment node as a deployment user (in this case, depuser) and create an SSH private key for configuring the passwordless authentication on your computer by running the following commands:

Copy
Copied!


$ ssh-keygen Generating public/private rsa key pair. Enter file in which to save the key (/home/depuser/.ssh/id_rsa): Created directory '/home/depuser/.ssh'. Enter passphrase (empty for no passphrase): Enter same passphrase again: Your identification has been saved in /home/depuser/.ssh/id_rsa Your public key has been saved in /home/depuser/.ssh/id_rsa.pub The key fingerprint is: SHA256:IfcjdT/spXVHVd3n6wm1OmaWUXGuHnPmvqoXZ6WZYl0 depuser@depserver The key's randomart image is: +---[RSA 3072]----+ | *| | .*| | . o . . o=| | o + . o +E| | S o .**O| | . .o=OX=| | . o%*.| | O.o.| | .*.ooo| +----[SHA256]-----+

Copy your SSH private key, such as ~/.ssh/id_rsa, to all nodes in the deployment by running the following command (example):

Copy
Copied!


$ ssh-copy-id depuser@192.168.100.25 /usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/home/depuser/.ssh/id_rsa.pub" The authenticity of host '192.168.100.25 (192.168.100.25)' can't be established. ECDSA key fingerprint is SHA256:6nhUgRlt9gY2Y2ofukUqE0ltH+derQuLsI39dFHe0Ag. Are you sure you want to continue connecting (yes/no/[fingerprint])? yes /usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed /usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys depuser@192.168.100.25's password:   Number of key(s) added: 1   Now try logging into the machine, with: "ssh 'depuser@192.168.100.25'" and check to make sure that only the key(s) you wanted were added.

Verify that you have passwordless SSH connectivity to all nodes in your deployment by running the following command (example):

Copy
Copied!


$ ssh depuser@192.168.100.25

Kubespray Deployment and Configuration

General Setting

To install dependencies for running Kubespray with Ansible on the deployment node, run following commands:

Copy
Copied!


$ cd ~ $ sudo apt -y install python3-pip jq $ wget https://github.com/kubernetes-sigs/kubespray/archive/refs/tags/v2.21.0.tar.gz $ tar zxf v2.21.0.tar.gz # cd kubespray-2.21.0/ $ sudo pip3 install -r requirements.txt

Warning

The default folder for subsequent commands is ~/kubespray-2.21.0.

Deployment Customization

Create a new cluster configuration and host configuration file .
Replace the IP addresses below with your nodes' IP addresses:

Copy
Copied!


$ cp -rfp inventory/sample inventory/mycluster $ declare -a IPS=(192.168.100.25 192.168.100.34 192.168.100.39) $ CONFIG_FILE=inventory/mycluster/hosts.yaml python3 contrib/inventory_builder/inventory.py ${IPS[@]}

As a result, the inventory/mycluster/hosts.yaml file will be created.

Review and change the host configuration in the file. Below is an example for this deployment.

Copy
Copied!


all: hosts:    node1: ansible_host: 192.168.100.25 ip: 192.168.100.25 access_ip: 192.168.100.25 node2: ansible_host: 192.168.100.34 ip: 192.168.100.34 access_ip: 192.168.100.34 node_labels: "node-role.kubernetes.io/worker": "" node3: ansible_host: 192.168.100.39 ip: 192.168.100.39 access_ip: 192.168.100.39 node_labels: "node-role.kubernetes.io/worker": "" children: kube_control_plane: hosts:        node1: kube_node: hosts: node2: node3: etcd: hosts:        node1: k8s_cluster: children: kube_control_plane: kube_node:

Review and change cluster installation parameters in the file inventory/mycluster/group_vars/k8s-cluster/k8s-cluster.yml.

In this file, set a d efault Kubernetes CNI by setting the desired kube_network_plugin value: flannel (default : calico ) .

Copy
Copied!


... # Choose network plugin (cilium, calico, contiv, weave or flannel. Use cni for generic cni plugin) # Can also be set to 'cloud', which lets the cloud provider setup appropriate routing kube_network_plugin: flannel # Setting multi_networking to true will install Multus: https://github.com/intel/multus-cni kube_network_plugin_multus: false ...

Deploying the Cluster Using KubeSpray Ansible Playbook

Run the following line to start the deployment process:

Copy
Copied!


$ ansible-playbook -i inventory/mycluster/hosts.yaml --become --become-user=root cluster.yml

It takes a while for this deployment to complete. Make sure no errors are encountered.

If the deployment is successful, lines such as in the following should be displayed.

Copy
Copied!


... PLAY RECAP ***********************************************************************************************************************************************************************************   localhost : ok=3 changed=0 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0 node1 : ok=674 changed=114 unreachable=0 failed=0 skipped=1195 rescued=0 ignored=5 node2 : ok=482 changed=68 unreachable=0 failed=0 skipped=707 rescued=0 ignored=1 node3 : ok=487 changed=92 unreachable=0 failed=0 skipped=712 rescued=0 ignored=1   Sunday 12 March 2023 12:20:05 +0000 (0:00:00.115) 0:09:56.967 ***** =============================================================================== kubernetes/kubeadm : Join to cluster ------------------------------------------------------------------------------------------------------------------------------------------------- 30.36s kubernetes/control-plane : kubeadm | Initialize first master ------------------------------------------------------------------------------------------------------------------------- 13.83s download : download_container | Download image if required ---------------------------------------------------------------------------------------------------------------------------- 9.79s kubernetes-apps/ansible : Kubernetes Apps | Start Resources --------------------------------------------------------------------------------------------------------------------------- 8.39s kubernetes/preinstall : Preinstall | wait for the apiserver to be running ------------------------------------------------------------------------------------------------------------- 7.67s kubernetes-apps/ansible : Kubernetes Apps | Lay Down CoreDNS templates ---------------------------------------------------------------------------------------------------------------- 7.29s download : download_container | Download image if required ---------------------------------------------------------------------------------------------------------------------------- 6.89s etcd : reload etcd -------------------------------------------------------------------------------------------------------------------------------------------------------------------- 6.15s container-engine/validate-container-engine : Populate service facts ------------------------------------------------------------------------------------------------------------------- 5.89s download : download_container | Download image if required ---------------------------------------------------------------------------------------------------------------------------- 5.66s download : download_file | Download item ---------------------------------------------------------------------------------------------------------------------------------------------- 5.58s download : download_container | Download image if required ---------------------------------------------------------------------------------------------------------------------------- 5.51s etcd : Configure | Check if etcd cluster is healthy ----------------------------------------------------------------------------------------------------------------------------------- 5.46s download : download_container | Download image if required ---------------------------------------------------------------------------------------------------------------------------- 5.45s kubernetes-apps/network_plugin/flannel : Flannel | Wait for flannel subnet.env file presence ------------------------------------------------------------------------------------------ 5.45s download : download_container | Download image if required ---------------------------------------------------------------------------------------------------------------------------- 5.28s download : download_container | Download image if required ---------------------------------------------------------------------------------------------------------------------------- 5.13s container-engine/containerd : containerd | Unpack containerd archive ------------------------------------------------------------------------------------------------------------------ 5.01s container-engine/nerdctl : download_file | Download item ------------------------------------------------------------------------------------------------------------------------------ 4.91s etcd : Configure | Ensure etcd is running --------------------------------------------------------------------------------------------------------------------------------------------- 4.90s

K8S Cluster Deployment Verification

The following is an output example of K8s cluster deployment information using the Flannel CNI plugin.

To ensure that the Kubernetes cluster is installed correctly, run the following commands:

Copy
Copied!


# kubectl get nodes -o wide NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME node1 Ready control-plane 1d v1.25.6 192.168.100.25 <none> Ubuntu 22.04.1 LTS 5.19.0-32-generic containerd://1.6.15 node2 Ready worker 1d v1.25.6 192.168.100.34 <none> Ubuntu 22.04.2 LTS 5.19.0-32-generic containerd://1.6.15 node3 Ready worker 1d v1.25.6 192.168.100.39 <none> Ubuntu 22.04.2 LTS 5.19.0-32-generic containerd://1.6.15   # kubectl -n kube-system get pods -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES coredns-588bb58b94-8wccf 1/1 Running 0 1d 10.233.64.2 node2 <none> <none> coredns-588bb58b94-zr62x 1/1 Running 0 1d 10.233.67.89 node3 <none> <none> dns-autoscaler-5b9959d7fc-9rc8r 1/1 Running 0 1d 10.233.64.3 node1 <none> <none> kube-accelerated-bridge-cni-ds-amd64-bskjh 1/1 Running 0 1d 192.168.100.39 node3 <none> <none> kube-accelerated-bridge-cni-ds-amd64-lnhrm 1/1 Running 0 1d 192.168.100.34 node2 <none> <none> kube-apiserver-node1 1/1 Running 0 1d 192.168.100.25 node1 <none> <none> kube-controller-manager-node1 1/1 Running 0 1d 192.168.100.25 node1 <none> <none> kube-flannel-6g2kj 1/1 Running 0 1d 192.168.100.34 node2 <none> <none> kube-flannel-9xnbz 1/1 Running 0 1d 192.168.100.25 node1 <none> <none> kube-flannel-skdnh 1/1 Running 0 1d 192.168.100.39 node3 <none> <none> kube-proxy-rxvnj 1/1 Running 0 1d 192.168.100.34 node2 <none> <none> kube-proxy-wgjjq 1/1 Running 0 1d 192.168.100.25 node1 <none> <none> kube-proxy-wn8xj 1/1 Running 0 1d 192.168.100.39 node3 <none> <none> kube-scheduler-node1 1/1 Running 0 1d 192.168.100.25 node1 <none> <none> nginx-proxy-node2 1/1 Running 0 1d 192.168.100.34 node2 <none> <none> nginx-proxy-node3 1/1 Running 0 1d 192.168.100.39 node3 <none> <none> nodelocaldns-72zsq 1/1 Running 0 1d 192.168.100.25 node1 <none> <none> nodelocaldns-9db7z 1/1 Running 0 1d 192.168.100.39 node3 <none> <none> nodelocaldns-nt94k 1/1 Running 0 1d 192.168.100.34 node2 <none> <none>

NVIDIA Network Operator Installation for K8s Cluster

NVIDIA Network Operator leverages Kubernetes CRDs and an Operator SDK to manage networking-related components in order to enable fast networking and RDMA for workloads in K8s cluster. The Fast Network is a secondary network of the K8s cluster for applications that require high bandwidth or low latency.

To make it work, several components need to be provisioned and configured. All operator configuration and installation steps should be performed from the K8s Master node with the root user account.

Prerequisites

Install Helm.

Copy
Copied!


# snap install helm --classic

Deployment

Add the NVIDIA Network Operator Helm repository.

Copy
Copied!


# helm repo add mellanox https://mellanox.github.io/network-operator # helm repo update

Create the values.yaml file in user's home folder (e xample).

Copy
Copied!


nfd: enabled: true sriovNetworkOperator: enabled: false   ofedDriver: deploy: false nvPeerDriver: deploy: false rdmaSharedDevicePlugin: deploy: false   sriovDevicePlugin: deploy: true resources: - name: vflag pfNames: ["enp57s0f0np0"] devices: ["101e"] deployCR: true secondaryNetwork: deploy: true cniPlugins: deploy: true multus: deploy: true ipamPlugin: deploy: true

Deploy the operator.

Copy
Copied!


# helm install -f ./values.yaml -n network-operator --create-namespace --wait mellanox/network-operator --generate-name NAME: network-operator-1676546312 LAST DEPLOYED: Mon Mar 13 11:18:32 2023 NAMESPACE: network-operator STATUS: deployed REVISION: 1 TEST SUITE: None NOTES: Get Network Operator deployed resources by running the following commands:   $ kubectl -n network-operator get pods

To ensure that the Operator is deployed correctly, run the commands below.

Copy
Copied!


# kubectl -n network-operator get pods -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES cni-plugins-ds-vxzmq 1/1 Running 0 18s 192.168.100.34 node2 <none> <none> cni-plugins-ds-z526k 1/1 Running 0 18s 192.168.100.39 node3 <none> <none> kube-multus-ds-5lznw 1/1 Running 0 18s 192.168.100.39 node3 <none> <none> kube-multus-ds-jds9c 1/1 Running 0 18s 192.168.100.34 node2 <none> <none> network-operator-1676546312-85ccdf64cf-zmr65 1/1 Running 0 43s 10.233.64.5 node1 <none> <none> network-operator-1676546312-node-feature-discovery-master-gnwp5 1/1 Running 0 43s 10.233.64.6 node1 <none> <none> network-operator-1676546312-node-feature-discovery-worker-8tbdp 1/1 Running 0 43s 10.233.64.4 node1 <none> <none> network-operator-1676546312-node-feature-discovery-worker-k8gdk 1/1 Running 0 43s 10.233.65.3 node2 <none> <none> network-operator-1676546312-node-feature-discovery-worker-ss4dx 1/1 Running 0 43s 10.233.66.2 node3 <none> <none> sriov-device-plugin-5p2xt 0/1 ContainerCreating 0 18s 192.168.100.39 node3 <none> <none> sriov-device-plugin-n9pjp 0/1 ContainerCreating 0 18s 192.168.100.34 node2 <none> <none> whereabouts-2dng2 0/1 ContainerCreating 0 18s 192.168.100.34 node2 <none> <none> whereabouts-xjhq6 0/1 ContainerCreating 0 18s 192.168.100.39 node3 <none> <none>

Check worker node resources.

Copy
Copied!


# kubectl describe nodes node2 ...   Addresses: InternalIP: 192.168.100.34 Hostname: node2 Capacity: cpu: 48 ephemeral-storage: 459283568Ki hugepages-1Gi: 64Gi hugepages-2Mi: 0 memory: 528157216Ki nvidia.com/vflag: 8 pods: 110 Allocatable: cpu: 46 ephemeral-storage: 421128251920 hugepages-1Gi: 64Gi hugepages-2Mi: 0 memory: 456751648Ki nvidia.com/vflag: 8 pods: 110   ...

Deploy Accelerated Bridge CNI Plugin

This plugin enables Linux Bridge with hardware offloading in containers and orchestrators in Kubernetes. The Accelerated Bridge CNI plugin requires a NIC with support for SR-IOV technology with VFs in switchdev mode and support of Linux Bridge offloading.

  1. Deploy CNI plugin using the following YAML files.

    Copy
    Copied!


    # kubectl apply -f https://raw.githubusercontent.com/k8snetworkplumbingwg/accelerated-bridge-cni/master/images/accelerated-bridge-cni-daemonset.yaml

    By default, the plugin will be deployed in kube-system K8s namespace.

    Copy
    Copied!


    # kubectl -n kube-system get pod -o wide | grep bridge   kube-accelerated-bridge-cni-ds-amd64-bskjh 1/1     Running 0 43s   192.168.100.39 node3 <none> <none> kube-accelerated-bridge-cni-ds-amd64-lnhrm 1/1     Running 0 43s   192.168.100.34 node2 <none> <none>

  2. Create a Linux Bridge network attachment definition and deploy it.
    You need to create a Linux Bridge network attachment definition in order to connect the POD to secondary networks. Accelerated Bridge CNI supports a few deployment modes: VLAN or TRUNK.
    Below is an example with VLAN mode - net-vst.yaml.

    Copy
    Copied!


    apiVersion: "k8s.cni.cncf.io/v1" kind: NetworkAttachmentDefinition metadata: name: net-vst annotations: k8s.v1.cni.cncf.io/resourceName: nvidia.com/vflag spec: config: '{ "type": "accelerated-bridge", "cniVersion": "0.3.1", "name": "net-vst", "vlan": 2001, "mtu": 9000, "setUplinkVlan": true, "bridge": "accelbr", "capabilities": {"CNIDeviceInfoFile": true}, "ipam": { "datastore": "kubernetes", "kubernetes": { "kubeconfig": "/etc/cni/net.d/whereabouts.d/whereabouts.kubeconfig" }, "log_file": "/tmp/whereabouts.log", "log_level": "debug", "type": "whereabouts", "range": "192.168.101.0/24" } }'

    Copy
    Copied!


    # kubectl create -f net-vst.yaml

  3. Check if the network attachment definition has deployed successfully.

    Copy
    Copied!


    # kubectl get network-attachment-definitions.k8s.cni.cncf.io NAME AGE net-vst 1m

Enable CPU and Topology Management

CPU Manager manages groups of CPUs and constrains workloads to specific CPUs.

CPU Manager is useful for workloads that have some of the following attributes:

  • Require as much CPU time as possible

  • Are sensitive to processor cache misses

  • Are low-latency network applications

  • Coordinate with other processes and benefit from sharing a single processor cache

Topology Manager uses topology information from collected hints to decide if a POD can be accepted or rejected on a node, based on the configured Topology Manager policy and POD resources requested. In order to obtain the best performance, optimizations related to CPU isolation and memory and device locality are required.

Topology Manager is useful for workloads that use hardware accelerators to support latency-critical execution and high throughput parallel computation.

Important

To use Topology Manager, CPU Manager with static policy must be used.

For additional information, refer to Control Topology Management Policies on a node and Control Topology Management Policies on a node.

In order to enable CPU Manager and Topology Manager, add the following lines to the kubelet configuration file /etc/kubernetes/kubelet-config.yaml on each K8s Worker node.

Copy
Copied!


... systemReserved: cpu: "2" memory: "4Gi" ephemeral-storage: "2Gi" reservedSystemCpus: 0,1,46,47 cpuManagerPolicy: static cpuManagerReconcilePeriod: 10s topologyManagerPolicy: single-numa-node featureGates: CPUManager: true TopologyManager: true

Due to changes in cpuManagerPolicy, remove /var/lib/kubelet/cpu_manager_state and restart the kubelet service on each of the affected K8s Worker nodes.

Copy
Copied!


# rm -f /var/lib/kubelet/cpu_manager_state # service kubelet restart

Application

For application tests, a container image based on Ubuntu 22.04 with inbox packages has been used. A Dockerfile example of container image creation is provided below.

Copy
Copied!


FROM ubuntu:22.04 # Ubuntu 22.04 container with inbox Mellanox drivers   # LABEL about the custom image LABEL maintainer=vitaliyra@nvidia.com LABEL description="This is custom Container Image with inbox perftest package."   WORKDIR /tmp/ ENV DEBIAN_FRONTEND=noninteractive RUN apt-get clean -y && apt-get -y update && apt-get install -y apt-utils udev vim bash sysstat && apt-get -y upgrade RUN apt-get install -y iproute2 rdma-core libibmad5 ibutils ibverbs-utils infiniband-diags perftest \ mstflint strace iputils-ping iperf3 netperf iperf dpdk dpdk-dev RUN ln -fs /usr/share/zoneinfo/America/New_York /etc/localtime RUN dpkg-reconfigure --frontend noninteractive tzdata && apt-get clean all -y CMD bash

Note

Please use your favorite container building tools (docker, podman, etc.) to create a container image from Dockerfile for use in the below deployment.

After creating the image, push it to the container registry.

Warning

The performance results listed in this guide are indicative and should not be considered as formal performance targets for NVIDIA products.

RoCE and TCP traffic testing

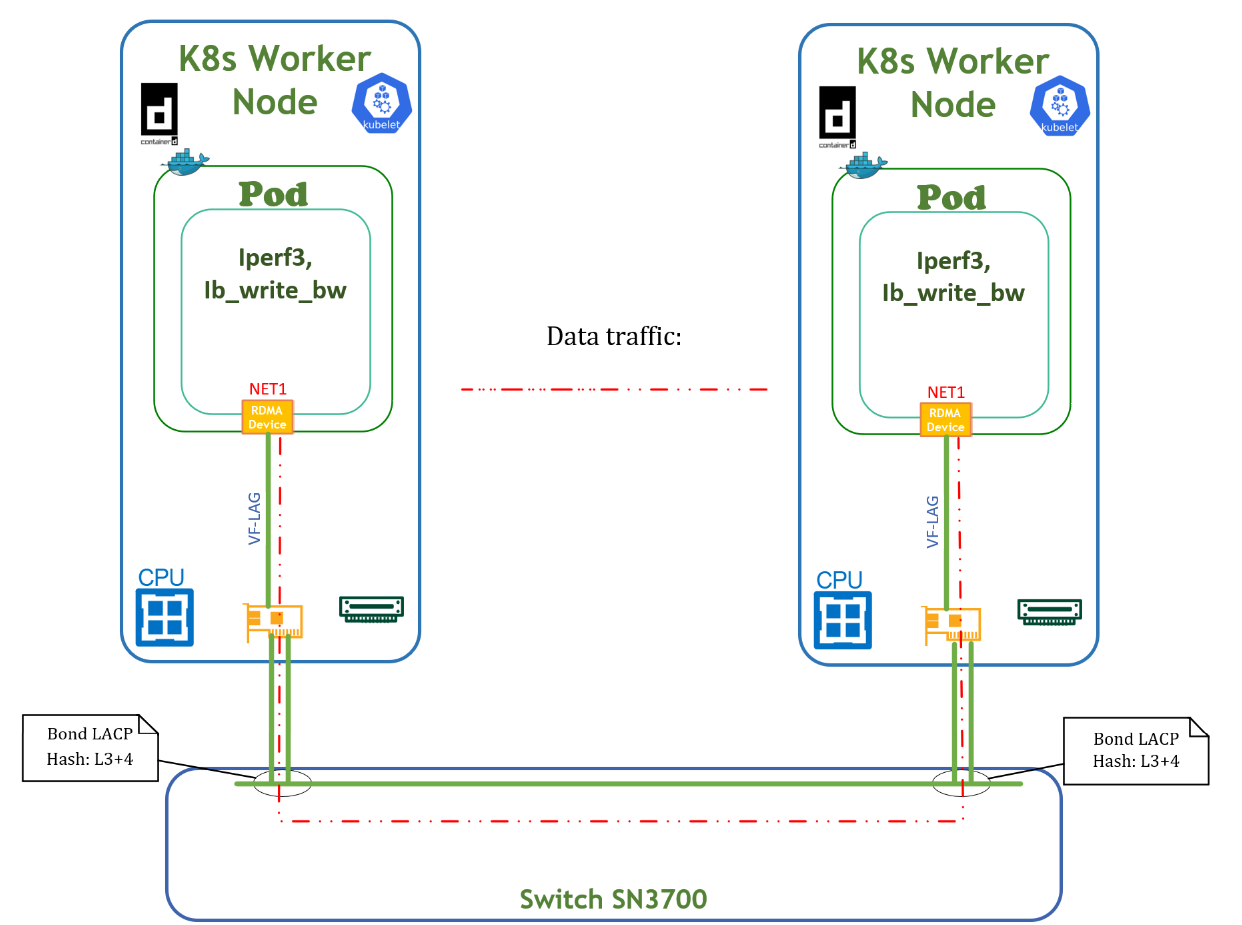

Traffic is shown in the Testbed Flow Diagram below. Traffic is pushed from one POD via network interface net1 to another POD via network interface net1 . Traffic is distributed between both physical ports of the network adapter. The RoCE traffic test was performed using the ib_write_bw command from the Ubuntu PERFTEST inbox package and is shown below. The TCP traffic test is similar to the RoCE based test and can be performed using the iperf3 command.


Below is an example of a deployment for running benchmark tests.

Copy
Copied!


apiVersion: apps/v1 kind: Deployment metadata: name: test-inbox-dep labels: app: sriov spec: replicas: 2 selector: matchLabels: app: sriov template: metadata: labels: app: sriov annotations: k8s.v1.cni.cncf.io/networks: net-vst spec: containers: - image: < container image name > name: test-pod securityContext: capabilities: add: [ "IPC_LOCK" ] resources: requests: cpu: 10 memory: 64Gi nvidia.com/vflag: 1 limits: cpu: 10 memory: 64Gi nvidia.com/vflag: 1 command: - sh - -c - sleep inf

IB_WRITE_BW test server command:

ib_write_bw -d rocep57s0f0v1 -q 20 -F a

IB_WRITE_BW test client command:

ib_write_bw -d rocep57s0f0v0 192.168.101.4 --report_gbits -q 20 -F -a

Output example:

Copy
Copied!


... --------------------------------------------------------------------------------------- #bytes #iterations BW peak[Gb/sec] BW average[Gb/sec] MsgRate[Mpps] 2 100000 0.067015 0.066925 4.182788 4 100000 0.14 0.14 4.248459 8 100000 0.27 0.27 4.248299 16 100000 0.54 0.54 4.246437 32 100000 1.09 1.09 4.247007 64 100000 2.18 2.17 4.247745 128 100000 4.35 4.35 4.247277 256 100000 8.69 8.68 4.239377 512 100000 17.36 17.35 4.236006 1024 100000 34.54 34.52 4.213616 2048 100000 68.45 68.37 4.173146 4096 100000 135.30 129.47 3.951161 8192 100000 169.81 169.68 2.589131 16384 100000 170.64 170.58 1.301397 32768 100000 170.29 169.29 0.645800 65536 100000 169.69 169.03 0.322402 131072 100000 169.28 167.92 0.160142 262144 100000 169.12 167.85 0.080038 524288 100000 169.19 167.79 0.040004 1048576 100000 168.54 168.19 0.020050 2097152 100000 168.30 167.79 0.010001 4194304 100000 168.34 167.97 0.005006 8388608 100000 168.34 168.20 0.002506 ---------------------------------------------------------------------------------------

The POD VF-LAG Accelerated network port received ~170Gb/s traffic according to the test.

DPDK traffic emulation

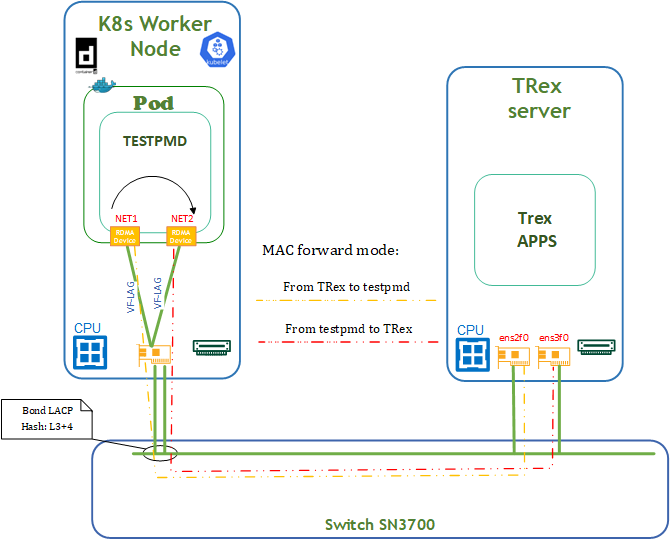

DPDK traffic emulation is shown in the Testbed Flow Diagram below.

Traffic is pushed from Trex Server via ens2f0 interface to TestPMD POD via network interface net1 . TestPMD POD forwards mac-address and re-routes ingress traffic via the same net2 to ens3f0 interface on Trex Server. For testing, we use 64B messages. Traffic is distributed between both physical ports of the network adapter.


TRex Server Deployment

We use TRex package v3.02 in our setup.
For a detailed TRex installation and configuration guide, see TRex Documentation.

TRex Installation and configuration steps are performed with the root user account.

1. Prerequisites.

For TRex Server, a standard server with an installed RDMA subsystem is used.

Activate the network interfaces that are used by the TRex application with netplan.

In our deployment, interfaces ens2f0 and ens2f1 are used:

Copy
Copied!


# This is the network config written by 'subiquity' network: ethernets: ens4f0: dhcp4: true dhcp-identifier: mac ens2f0: {} ens2f1: {} version: 2

Then re-apply netplan and check link status for ens2f0/ens2f1 network interfaces.

Copy
Copied!


# netplan apply # rdma link link mlx5_0/1 state ACTIVE physical_state LINK_UP netdev ens2f0 link mlx5_1/1 state ACTIVE physical_state LINK_UP netdev ens2f1 link mlx5_2/1 state ACTIVE physical_state LINK_UP netdev ens4f0 link mlx5_3/1 state DOWN physical_state DISABLED netdev ens4f1

Update MTU sizes for interfaces ens2f0 and ens2f1.

Copy
Copied!


# ip link set ens2f0 mtu 9000 # ip link set ens2f1 mtu 9000

2. Installation.

Create a TRex work directory and extract the TRex package.

Copy
Copied!


# cd /tmp # wget https://trex-tgn.cisco.com/trex/release/v3.02.tar.gz --no-check-certificate # mkdir /scratch # cd /scratch # tar -zxf /tmp/v3.02.tar.gz # chmod 777 -R /scratch

3. First-Time Scripts.

The next step continues from folder /scratch/v3.02.

Run the TRex configuration script in interactive mode. Follow the instructions on the screen to create a basic config file /etc/trex_cfg.yaml.

Copy
Copied!


# ./dpdk_setup_ports.py -i

The /etc/trex_cfg.yaml configuration file is created. This file will be changed later to suit our setup.

Performance Testing

A performance test is shown next for DPDK traffic emulation between the TRex traffic generator and a TESTPMD application running on a K8s Worker node, in accordance with the Testbed diagram presented above.

Prerequisites

Before starting the test, update the TRex configuration file /etc/trex_cfg.yaml with a mac-address of the high-performance interface from the TESTPMD pod. Below are the steps to complete this update.

  1. Run pod on the K8s cluster with TESTPMD apps according to the YAML configuration file testpmd-inbox.yaml (container image should include InfiniBand userspace drivers and TESTPMD apps).

    Copy
    Copied!


    apiVersion: apps/v1 kind: Deployment metadata: name: dpdk-inbox-dep labels: app: sriov spec: replicas: 2 selector: matchLabels: app: sriov template: metadata: labels: app: sriov annotations: k8s.v1.cni.cncf.io/networks: net-vst,net-vst spec: containers: - image: < container image name >       name: dpdk-pod securityContext: capabilities: add: [ "IPC_LOCK", "NET_ADMIN" ] volumeMounts: - mountPath: /hugepages name: hugepage resources: requests: cpu: 10 memory: 64Gi nvidia.com/vflag: 2 hugepages-1Gi: 16Gi limits: cpu: 10 memory: 64Gi nvidia.com/vflag: 2 hugepages-1Gi: 16Gi command: - sh - -c - sleep inf volumes: - name: hugepage emptyDir: medium: HugePages

    Deploy using the following command:

    Copy
    Copied!


    # kubectl apply -f testpmd-inbox.yaml

  2. Get the network information from the deployed pod by running the following commands:

    Copy
    Copied!


    # kubectl get pod -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES dpdk-inbox-dep-676476c78d-glbfs 1/1 Running 0 30s 10.233.92.5 node3 <none> <none>   # kubectl exec -it dpdk-inbox-dep-676476c78d-glbfs -- ip a s  1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo valid_lft forever preferred_lft forever inet6 ::1/128 scope host valid_lft forever preferred_lft forever 3: eth0@if72: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default link/ether d2:c5:68:a5:47:36 brd ff:ff:ff:ff:ff:ff link-netnsid 0 inet 10.233.65.239/24 brd 10.233.65.255 scope global eth0 valid_lft forever preferred_lft forever inet6 fe80::d0c5:68ff:fea5:4736/64 scope link valid_lft forever preferred_lft forever 50: net1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 9000 qdisc mq state UP group default qlen 1000 link/ether be:24:2d:ea:9a:73 brd ff:ff:ff:ff:ff:ff inet 192.168.101.3/24 brd 192.168.101.255 scope global net1 valid_lft forever preferred_lft forever inet6 fe80::bc24:2dff:feea:9a73/64 scope link valid_lft forever preferred_lft forever 57: net2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 9000 qdisc mq state UP group default qlen 1000 link/ether 76:c8:42:33:bf:94 brd ff:ff:ff:ff:ff:ff inet 192.168.101.5/24 brd 192.168.101.255 scope global net2 valid_lft forever preferred_lft forever inet6 fe80::74c8:42ff:fe33:bf94/64 scope link valid_lft forever preferred_lft forever

  3. Update the TRex configuration file /etc/trex_cfg.yaml with mac-address of the NET1 and NET2 network interfaces.

    Copy
    Copied!


    ### Config file generated by dpdk_setup_ports.py ###   - version: 2 interfaces: ['81:00.0', '81:00.1'] port_info: - dest_mac: be:24:2d:ea:9a:73 # MAC OF NET1 INTERFACE src_mac: 0c:42:a1:1d:d1:7a - dest_mac: 76:c8:42:33:bf:94 # MAC OF NET2 INTERFACE src_mac: 0c:42:a1:1d:d1:7b   platform: master_thread_id: 0 latency_thread_id: 12 dual_if: - socket: 0 threads: [2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23]

  4. Run TESTPMD apps in container:

    Copy
    Copied!


    # kubectl exec -it test-deployment-676476c78d-glbfs -- bash root@test-deployment-676476c78d-glbfs:/tmp# # cat /sys/fs/cgroup/cpuset.cpus 12-21 # export | grep VFLAG declare -x PCIDEVICE_NVIDIA_COM_VFLAG="0000:39:01.1,0000:39:00.2" # dpdk-testpmd -l 12-21 -m 1024 -a 0000:39:01.1 -a 0000:39:00.2 -- --burst=64 --txd=1024 --rxd=1024 --mbcache=512 --rxq=4 --txq=4 --nb-cores=1 --rss-udp --forward-mode=mac --eth-peer=0,0c:42:a1:1d:d1:63 --eth-peer=1,0c:42:a1:1d:d1:7b -a -i ... testpmd>

    Warning

    Specific TESTPMD parameters:

    $PCIDEVICE_NVIDIA_COM_VFLAG - system variable PCI addresses of NET1, NET2

    More information about additional TESTPMD parameters:
    https://doc.dpdk.org/guides/testpmd_app_ug/run_app.html?highlight=testpmd
    https://doc.dpdk.org/guides/linux_gsg/linux_eal_parameters.html

  5. Run the TRex traffic generator on the TRex server:

    Copy
    Copied!


    # cd /scratch/v3.02/ # ./t-rex-64 -i -c 14 --no-ofed-check

    Open a second screen on TRex server and create the traffic generation file mlnx-trex.py in folder /scratch/v3.02:

    Copy
    Copied!


    from trex_stl_lib.api import *   class STLS1(object):       def create_stream (self):                  pkt = Ether()/IP(src="16.0.0.1",dst="48.0.0.1")/UDP(dport=12)/(22*'x')                            vm = STLScVmRaw( [                                 STLVmFlowVar(name="v_port",                                                 min_value=4337,                                                   max_value=5337,                                                   size=2, op="inc"),                                 STLVmWrFlowVar(fv_name="v_port",                                             pkt_offset= "UDP.sport" ),                                 STLVmFixChecksumHw(l3_offset="IP",l4_offset="UDP",l4_type=CTRexVmInsFixHwCs.L4_TYPE_UDP),                               ]                         )           return STLStream(packet = STLPktBuilder(pkt = pkt ,vm = vm ) ,                                 mode = STLTXCont(pps = 8000000) )         def get_streams (self, direction = 0, **kwargs):         # create 1 stream         return [ self.create_stream() ]     # dynamic load - used for trex console or simulator def register():     return STLS1()

    Next, run the TRex console and generate traffic to TESTPMD pod,

    Copy
    Copied!


    # cd /scratch/v3.02/ # ./trex-console Using 'python3' as Python interpeter   Connecting to RPC server on localhost:4501 [SUCCESS]   Connecting to publisher server on localhost:4500 [SUCCESS]   Acquiring ports [0, 1]: [SUCCESS]   Server Info: Server version: v3.02 @ STL Server mode: Stateless Server CPU: 11 x Intel(R) Xeon(R) CPU E5-2650 v4 @ 2.20GHz Ports count: 2 x 100Gbps @ MT2892 Family [ConnectX-6 Dx]   -=TRex Console v3.0=-   Type 'help' or '?' for supported actions   trex> tui<enter> ... tui> start -f mlnx-trex.py -m 30mpps -p 0 ... Global Statistitcs   connection : localhost, Port 4501 total_tx_L2 : 23.9 Gbps version : STL @ v3.02 total_tx_L1 : 20.93 Gbps cpu_util. : 82.88% @ 11 cores (11 per dual port) total_rx : 17.31 Gbps rx_cpu_util. : 0.0% / 0 pps total_pps : 29.51 Mpps async_util. : 0.05% / 11.22 Kbps drop_rate : 0 bps total_cps. : 0 cps queue_full : 0 pkts ...

    Summary

    From the above test, it is evident that the desired traffic is ~30mpps with a VF-LAG network port in POD.

    Warning

    TRex and TESTPMD are powerful tools for network performance testing, but they need some fine-tuning to achieve optimal results.

    Warning

    The performance results listed in this guide are indicative and should not be considered as formal performance targets for NVIDIA products.

    Done!

Authors


Vitaliy Razinkov

Over the past few years, Vitaliy Razinkov has been working as a Solutions Architect on the NVIDIA Networking team, responsible for complex Kubernetes/OpenShift and Microsoft's leading solutions, research and design. He previously spent more than 25 years in senior positions at several companies. Vitaliy has written several reference design guides on Microsoft technologies, RoCE/RDMA accelerated machine learning in Kubernetes/OpenShift, and container solutions, all of which are available on the NVIDIA Networking Documentation website.


Amir Zeidner

For the past several years, Amir has worked as a Solutions Architect primarily in the Telco space, leading advanced solutions to answer 5G, NFV, and SDN networking infrastructures requirements. Amir’s expertise in data plane acceleration technologies, such as Accelerated Switching and Network Processing (ASAP²) and DPDK, together with a deep knowledge of open source cloud-based infrastructures, allows him to promote and deliver unique end-to-end NVIDIA Networking solutions throughout the Telco world.


Itai Levy

Over the past few years, Itai Levy has worked as a Solutions Architect and member of the NVIDIA Networking “Solutions Labs” team. Itai designs and executes cutting-edge solutions around Cloud Computing, SDN, SDS and Security. His main areas of expertise include NVIDIA BlueField Data Processing Unit (DPU) solutions and accelerated OpenStack/K8s platforms.

Last updated on Oct 23, 2023.
