LED Notifications

NVIDIA Spectrum-3 SN4000 1U and 2U Switch Systems Hardware User Manual

The system’s LEDs are an important tool for hardware event notification and troubleshooting.

LED Symbols

Symbol

Name

Description

Normal Conditions


System Status LED

Shows the health of the system.

Green/Flashing green when booting


Fan Status LED

Shows the health of the fans.

Green


Power Supply Units LEDs

Shows the health of the power supply units.

Green


Unit Identifier LED

Lights up on command through the CLI.

Off or blue when activated by the user

The LED in the red oval shows the system’s status.

Front (Ports Side):


*The figure is provided for Illustration purposes only. The design may slightly vary in different systems.

Warning

It may take up to five minutes to turn on the system. If the System Status LED shows amber after five minutes, unplug the system and call your NVIDIA representative for assistance.

System Status LED Assignments

LED Behavior

Description

Action Required

Solid Green

The system is up and running normally.

N/A

Flashing Green

The system is booting up.

Wait up to five minutes for the end of the booting process.

Solid Amber

An error has occurred. For example, corrupted firmware, system is overheated etc..

In case the System Status LED shows amber five minutes after starting the system, refer to Troubleshooting for further instructions.

Fan Status LED - Front and Rear Sides

Front (Ports Side):


Both of these LEDs in the red ovals show the fans’ status.

*The figures are provided for Illustration purposes only. The design may slightly vary in different systems.

Rear (FRUs Side):


Fan Status Front LED Assignments

LED Behavior

Description

Action Required

Solid Green

All fans are up and running.

N/A

Solid Amber

Error, one or more fans are not operating properly.

The faulty FRUs should be replaced.

Fan Status Rear LED Assignments (One LED per Fan)

LED Behavior

Description

Action Required

Solid Green

A specific fan unit is operating.

N/A

Solid Amber

A specific fan unit is missing or not operating properly.

The fan unit should be replaced.

Warning

Risk of Electric Shock! With the fan module removed, power pins are accessible within the module cavity. Do not insert tools or body parts into the fan module cavity.

The LED in the red oval shows the power supply status.

Front (Ports Side):


*The figure is provided for Illustration purposes only. The design may slightly vary in different systems.

There are two power supply inlets in the system (for redundancy). The system can operate with only one power supply connected. Each power supply unit has two single color LEDs on the right side of the unit, that indicate the status of the unit.

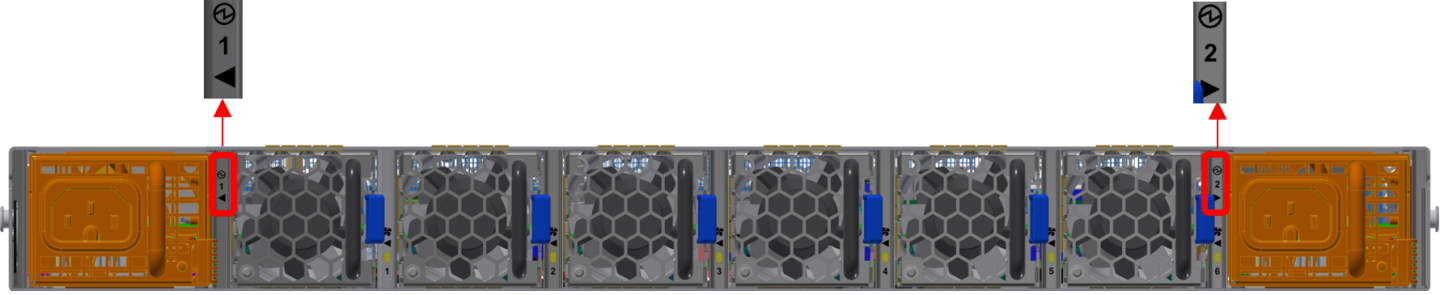

When looking from the FRUs side, the primary power supply (PS) unit is located on the left side of the system, and the secondary unit is located on the right side.

Rear Side Panel


*The figure is provided for Illustration purposes only. The design may slightly vary in different systems.

Power Supply Unit Status Front LED Assignments

LED Behavior

Description

Action Required

Solid Green

All power supply units are connected and running normally.

N/A

Solid Amber

One or both of the power supplies are not operational or not powered up/ the power cord is disconnected.

Make sure the power cord is plugged in and active. If the problem resumes, refer to Troubleshooting for further instructions.

Power Supply Unit Status Rear LED Assignments

LED Behavior

Description

Action Required

Solid Green

The PSU is running normally.

N/A

Flashing Green 1Hz

AC Present, Standby – On, Main Output - Off

Refer to Troubleshooting. For further assistance, call your NVIDIA representative.

Flashing Amber 1Hz

PSU warning - events where the PSU continues to operate

Solid Amber

PSU failure (voltage, current, temperature or fan related issue)

Off

No AC power to all power supplies.

Plug in the AC cor

The UID LED is a debug feature, that the user can use to find a particular system within a cluster by turning on the UID blue LED.

To activate the UID LED on a switch system, run:

Copy
Copied!


switch (config) # led MGMT uid on

To verify the LED status, run:

Copy
Copied!


switch (config) # show leds Module LED Status -------------------------------------------------------------------------- MGMT UID Blues

To deactivate the UID LED on a switch system, run:

Copy
Copied!


switch (config) # led MGMT uid off

SN4600/SN4600C Port LEDs

SN4600/SN4600C


SN4600/SN4600C Port LEDs Indications

LED Behavior

Description

Action Required

Off

Link is down

Refer to Troubleshooting.

Solid Green

Link is up with no traffic

N/A

Flashing Green

Link is up with traffic

N/A

Flashing Amber

A problem with the link

Refer to Troubleshooting.


SN4410/SN4700 Port LEDs

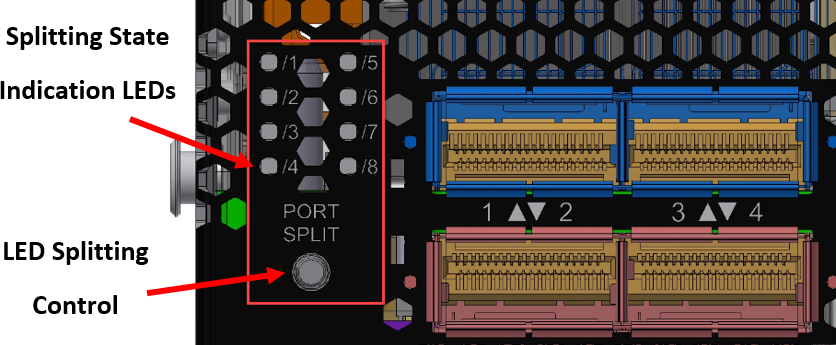

Each QSFP module can be used as two 4X ports/four 2X ports/eight 1X ports. Each QSFP-DD has one dedicated bi-color LED. In order to provide link information for more than one port by using one LED, LED splitting control button is available. You may use the button to select between 8 indication states. By pressing the button, the next indication state will be selected in a cyclic manner. The current state can be identified by the LED splitting state indication LEDs. The states and their indications are detailed in the below table.

SN4410/SN4700 LED Splitting Options

State

State Indication LEDs

[/1 /2 /3 /4]

QSFP Module LED Indication

Comments

0


Any link is up

See details in Port LEDs Indications (State 0)

1


8x/4xA/2xA/1xA

  • See details in Port LEDs Indications (States 1-8).

  • Only one of the link types can be up at a given time.

2


8x/4xB/2xB/1xB

3


8x/2xC/1xC

4


8x/2xD/1xD

5



8x/1xE

6



8x/1xF

7



8x/1xG

8



8x/1xH

The port LED behavior indicates the port state, as follows:

SN4410/SN4700 Port LEDs Indications

State

LED Behavior

Description

Action Required

0

Off

No 8x/4x/2x/1x link was established on this QSFP module

N/A

Solid Green

At list one link was established: 8x/4x/2xA/2xB/1xA/1xB/1xC/1xD/1xE/1xF/1xG/1xH

Flashing Green

Traffic is running in linked ports

Flashing Amber

N/A

1-8

Off

Link is down

Solid Green

Link is up with no traffic

Flashing Green

Link is up with traffic

Flashing Amber

A problem with the link

Refer to Troubleshooting.
