Appendix - Secure Boot Activation and Deactivation
This section provides instructions on how to enable/disable the Secure Boot feature in UFM Enterprise Appliance.
The NVIDIA public certificate needs to be imported to the Machine Owner Key DB (MOK DB) before enabling secure boot. To do so, follow the below steps:
Add NVIDIA Certificate to MOK DB
Download NVIDIA certificate mlnx_signing_key_pub.der to a temporary folder.
checksums:
MD5: c3ce3dcad0f38b02a9cbb991ce1bc7f4
sha256: ff7fe8c650e936079a8add2900b190f9e7f3806e5ad42e48c2b88408a6ce70aacd/tmp wget http://www.mellanox.com/downloads/ofed/mlnx_signing_key_pub.derls-ltrh ./mlnx_signing_key_pub.derExample:
Import the mlnx_signing_key_pub.der to MOK DB using mok-util:
cd/tmp mokutil --import./mlnx_signing_key_pub.der --root-pwImportantThe certificate is in the enrolled queue at this point. Upon the next server reboot, a 10 second prompt appears at the start of the boot process to confirm the certificate addition. It is important to confirm the certificate addition at this stage. Failure to do so requires you to repeat the procedure.
To be able to interact with the prompt, a console connection is needed either from the serial port or from the web console available via Remote Management.

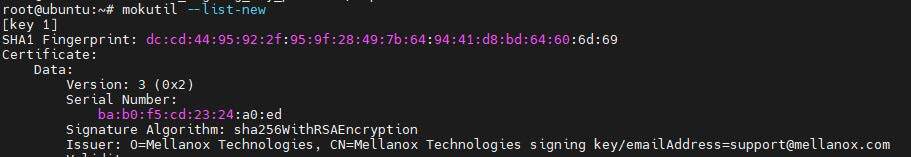

Verify the certificate in the enrolled queue:
mokutil --list-new
Login to Remote Management via https://<iDRAC-ip address>

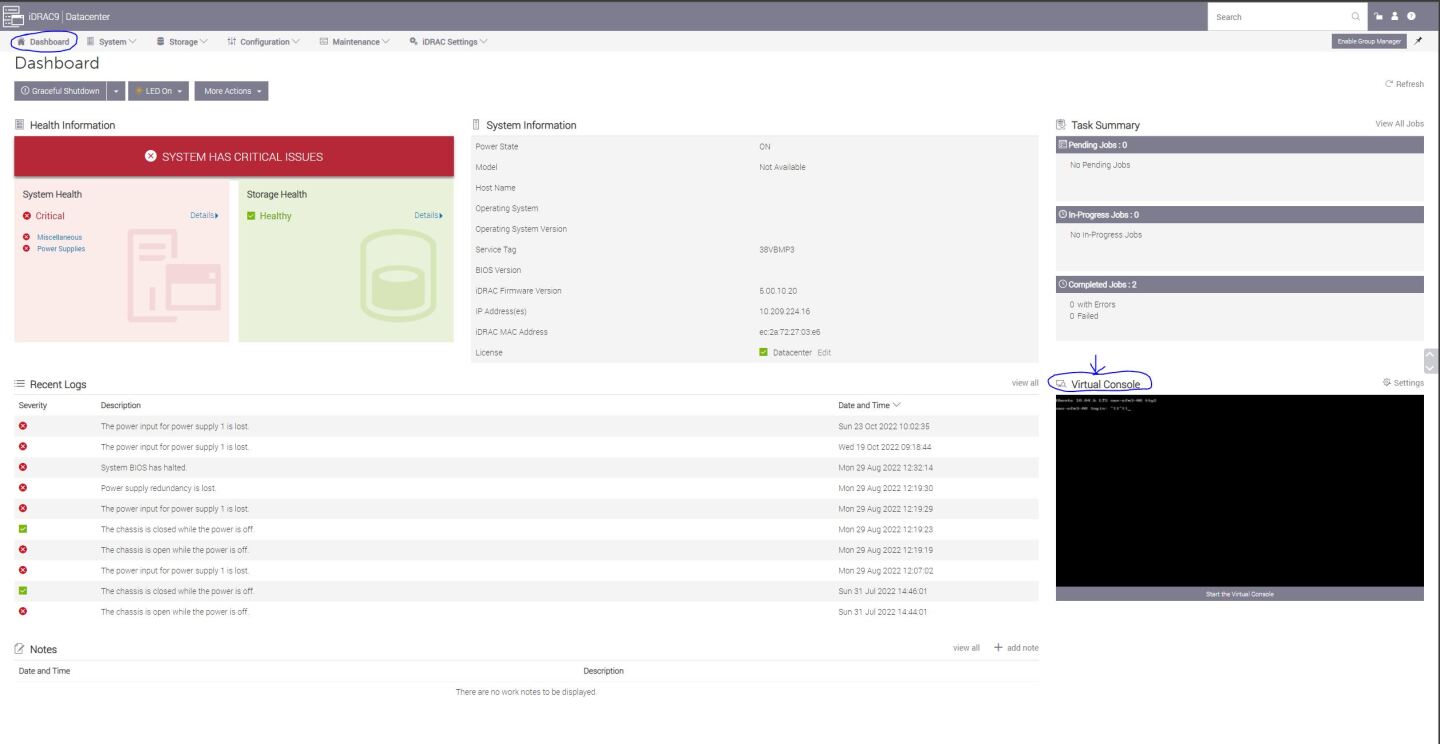

To open the virtual web console, click on "Dashboard"→"Virtual Console"
Power cycle the server (at boot startup a 10 second prompt appears to verify the certificate addition)
On the top menu, go to "Power"→"Reset System (warm boot)"
The server will now reboot.

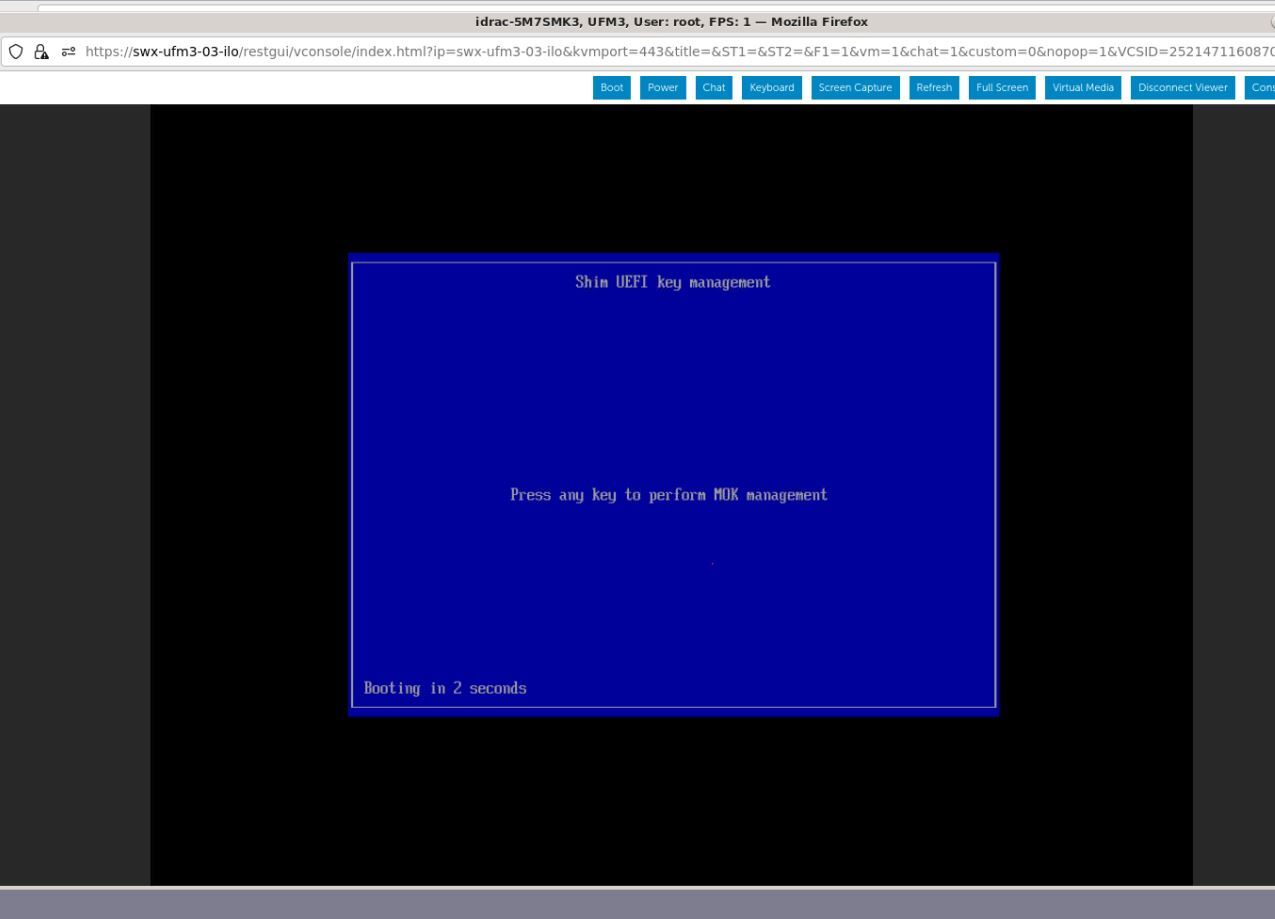

At boot startup, a confirmation prompt appears to verify certificate addition. The prompt closes after 10 seconds, so if missed, the certificate addition procedure needs to be done again.
When the prompt appears, press any key to interact.

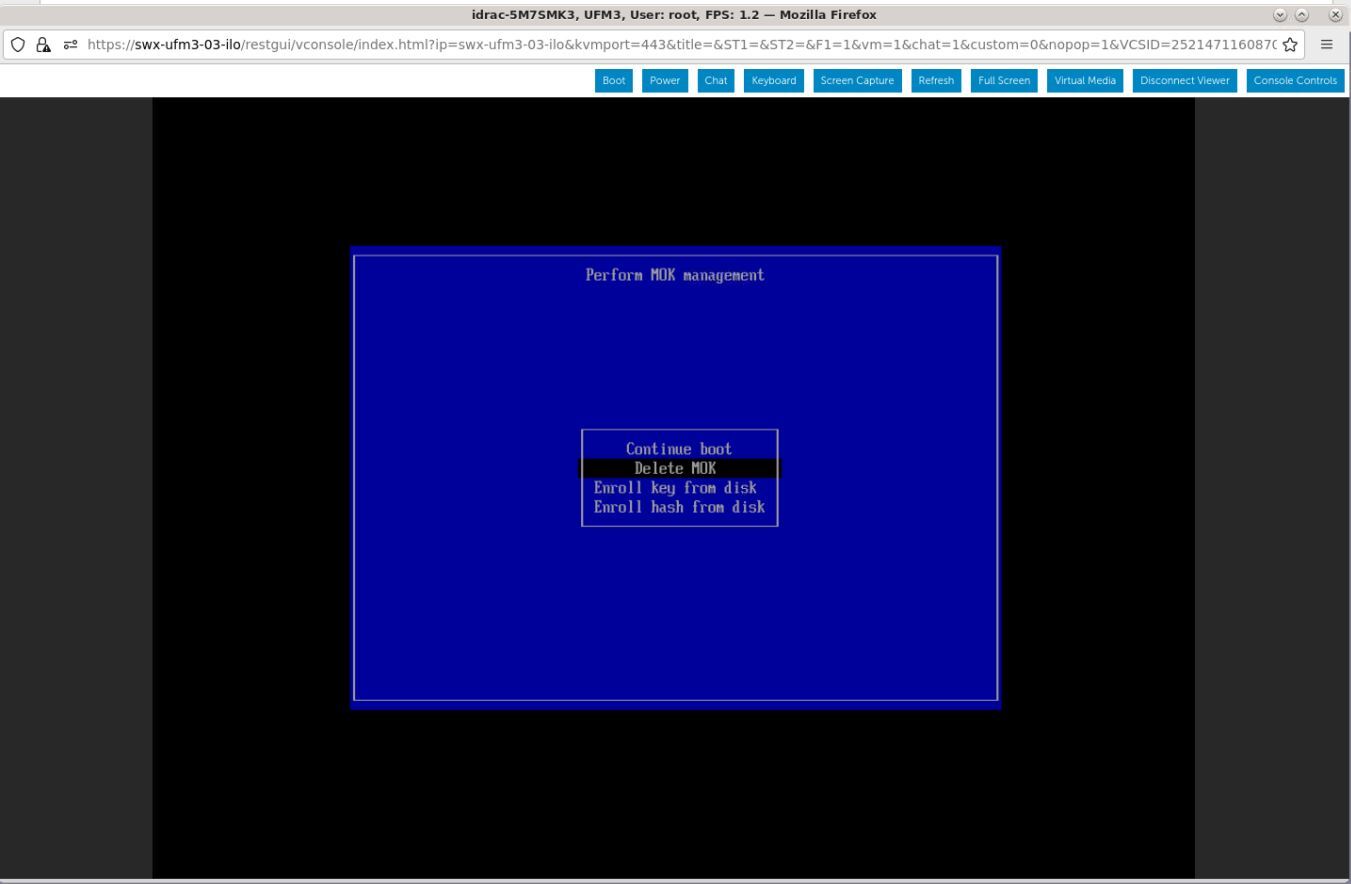

Navigate to "Delete MOK"

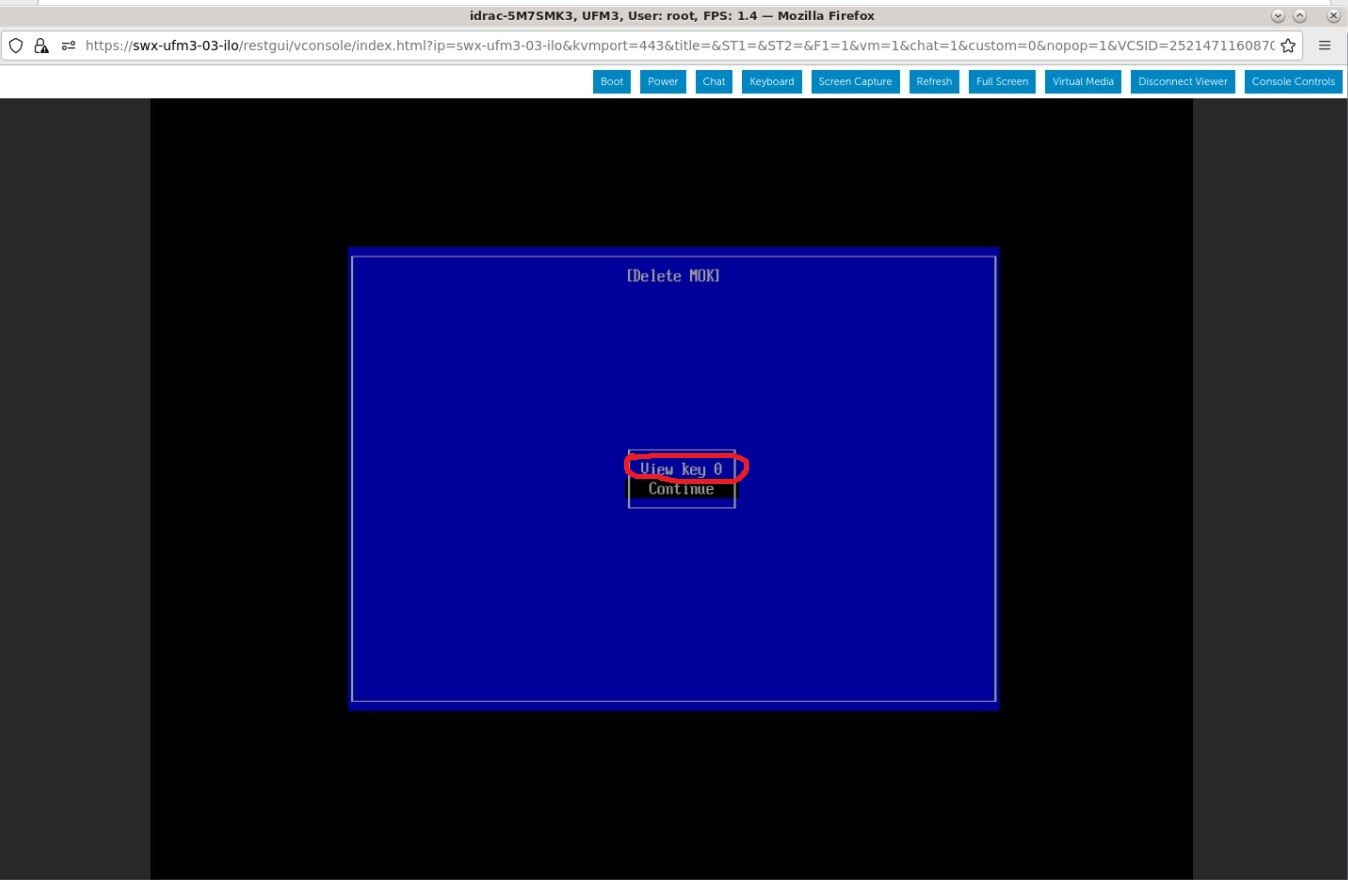

View the certificate to be enrolled. To verify, press "View key0".
Press "Enter" to exit the view.

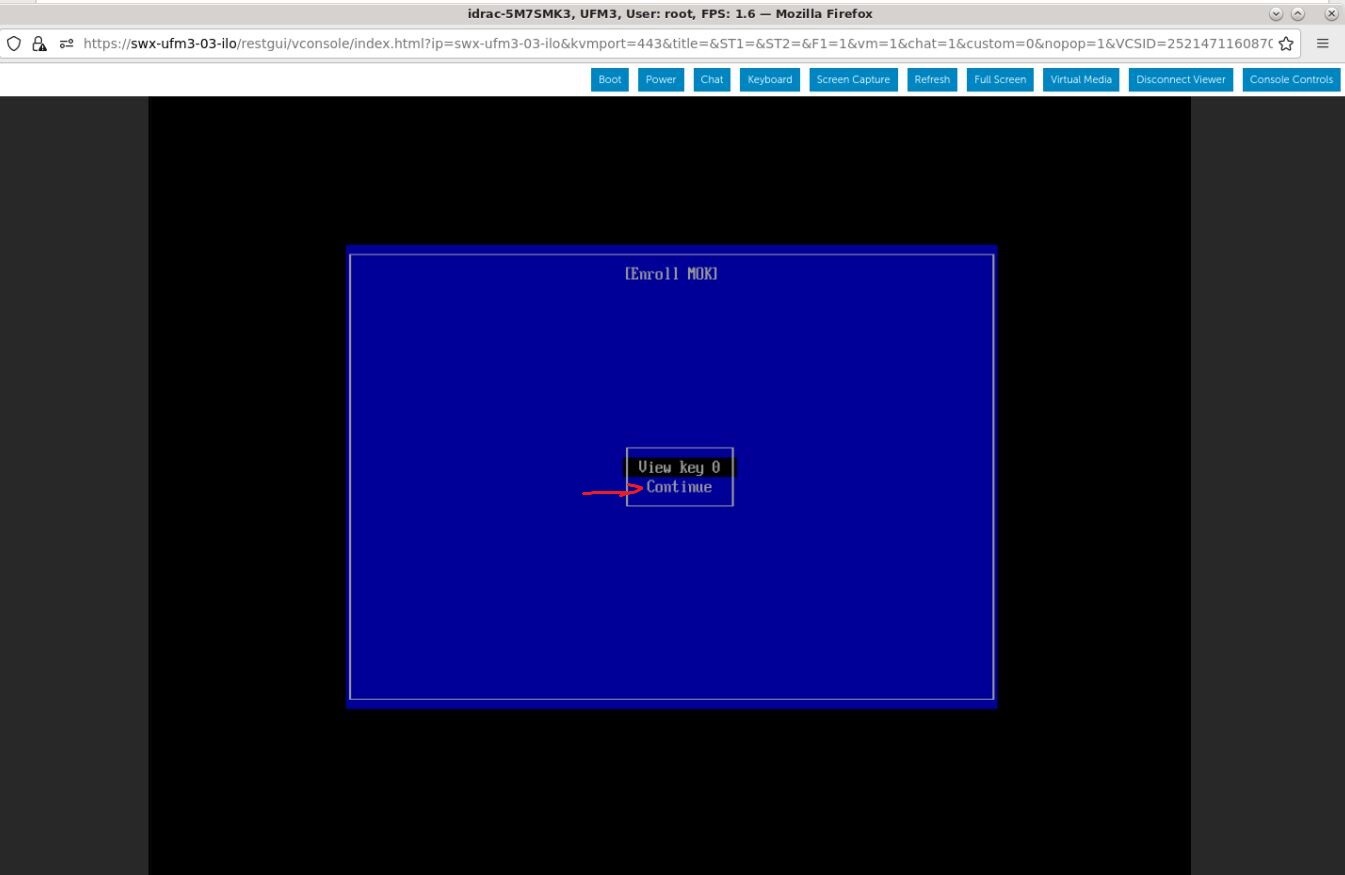

Select "Continue" from the menu and press Enter.

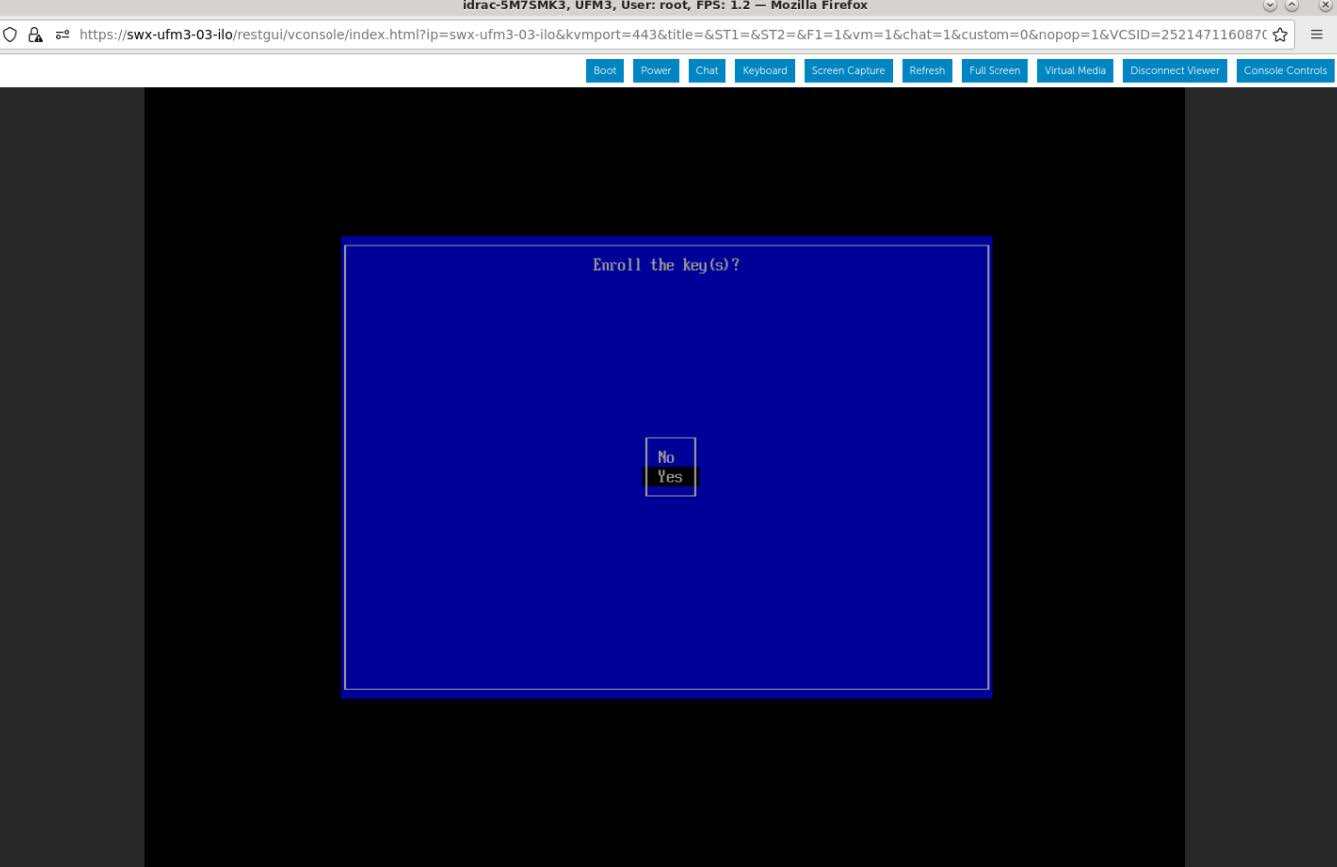

Select "Yes" from the menu, and press Enter.
A password prompt appears, then, enter the OS Root user credentials.
Select "Reboot" and press Enter. After the reboot is completed, the certificate is removed.
Enable Secure Boot
Login to Remote Management available via https://<iDRAC-ip address>

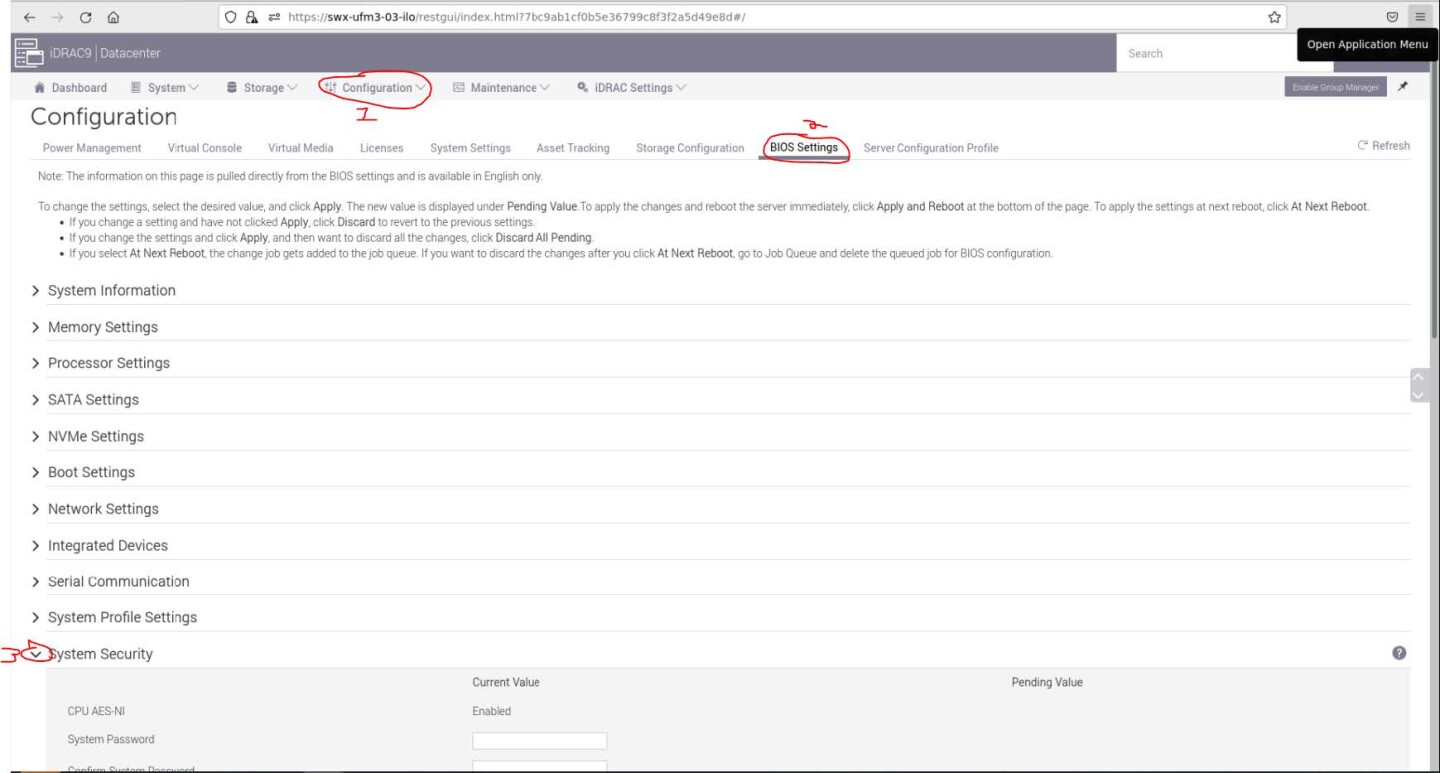

Navigate to "Configuration" → "BIOS Settings" → "System Security" and press the drop down menu (arrow).

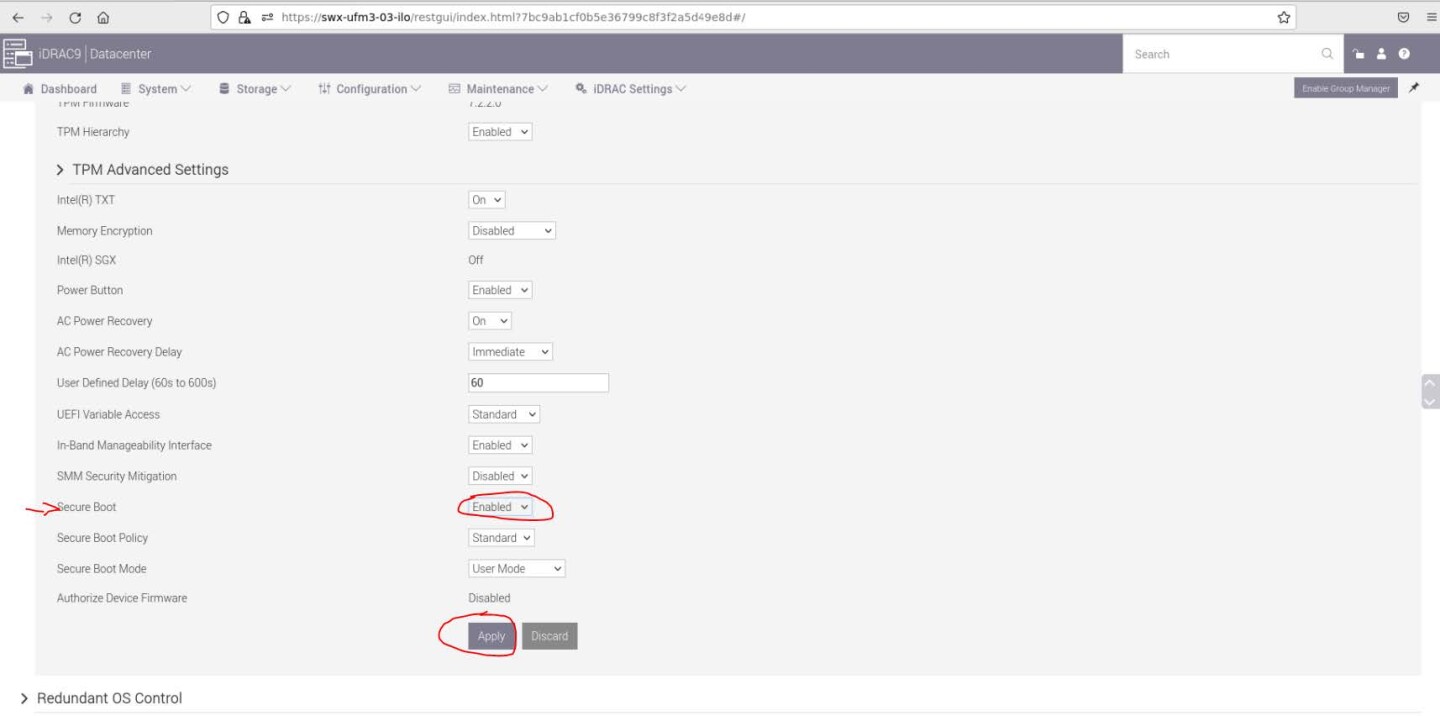

Scroll down to "Secure Boot" and select "Enabled" from the drop menu. Click the "Apply" button.
Scroll to the bottom of the page and click on "Apply And Reboot" button, this will reboot the server and perform the configuration

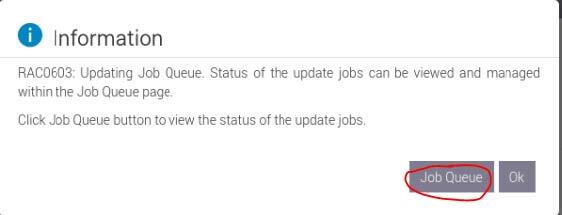

An Information Popup is prompted. Click on the "Job Queue" button (can also be navigated from "Maintenance" → "Job Queue").

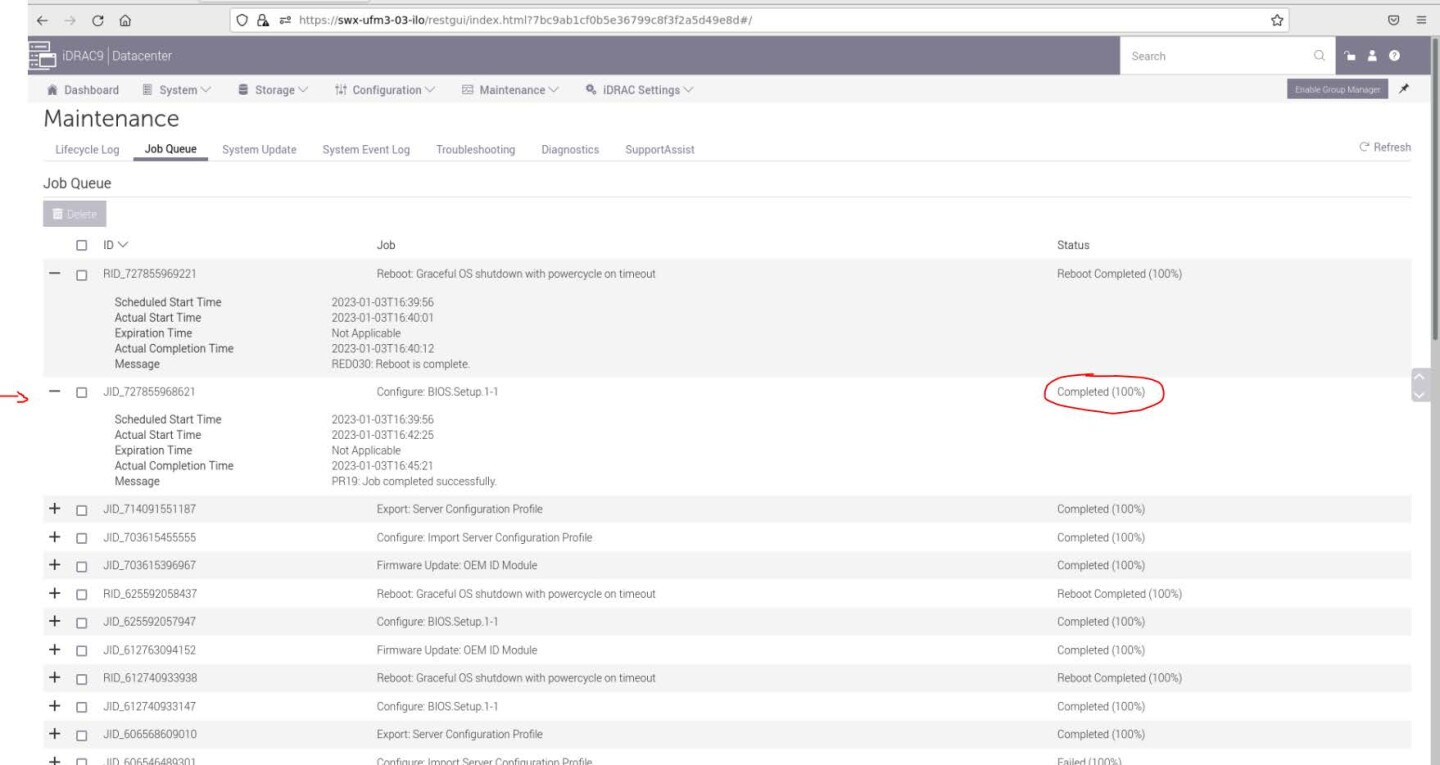

Wait for the Jobs to finish and reach 100%
Validate that secure boot is enabled and active (from the terminal).
mokutil --sb-state
mokutil --list-enrolled |
grep-i mellanox
Disabling secure boot is not recommended and may cause security issues.
Secure Boot needs to be disabled prior to removing the NVIDIA public certificate.
The removal of the certificate is optional and can be skipped if secure boot should be re-enabled at some point in the future.
Disable Secure Boot in the BIOS
Login to Remote Management (https://<iDRAC-ip address>
Navigate to "Configuration" → "BIOS Settings" → "System Security" and press the drop menu (arrow).

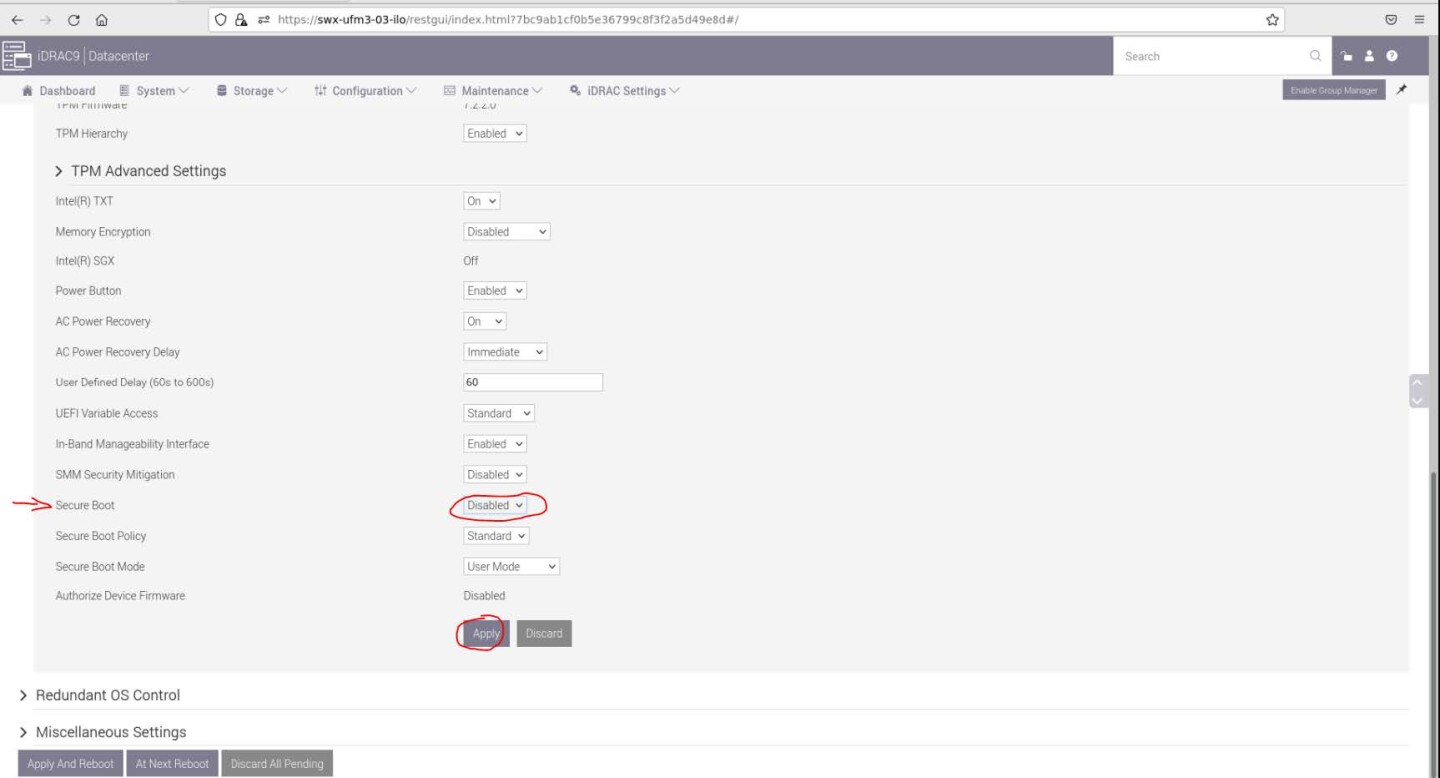

Scroll down to "Secure Boot" and select "Disabled" from the drop menu, and click the "Apply" button.

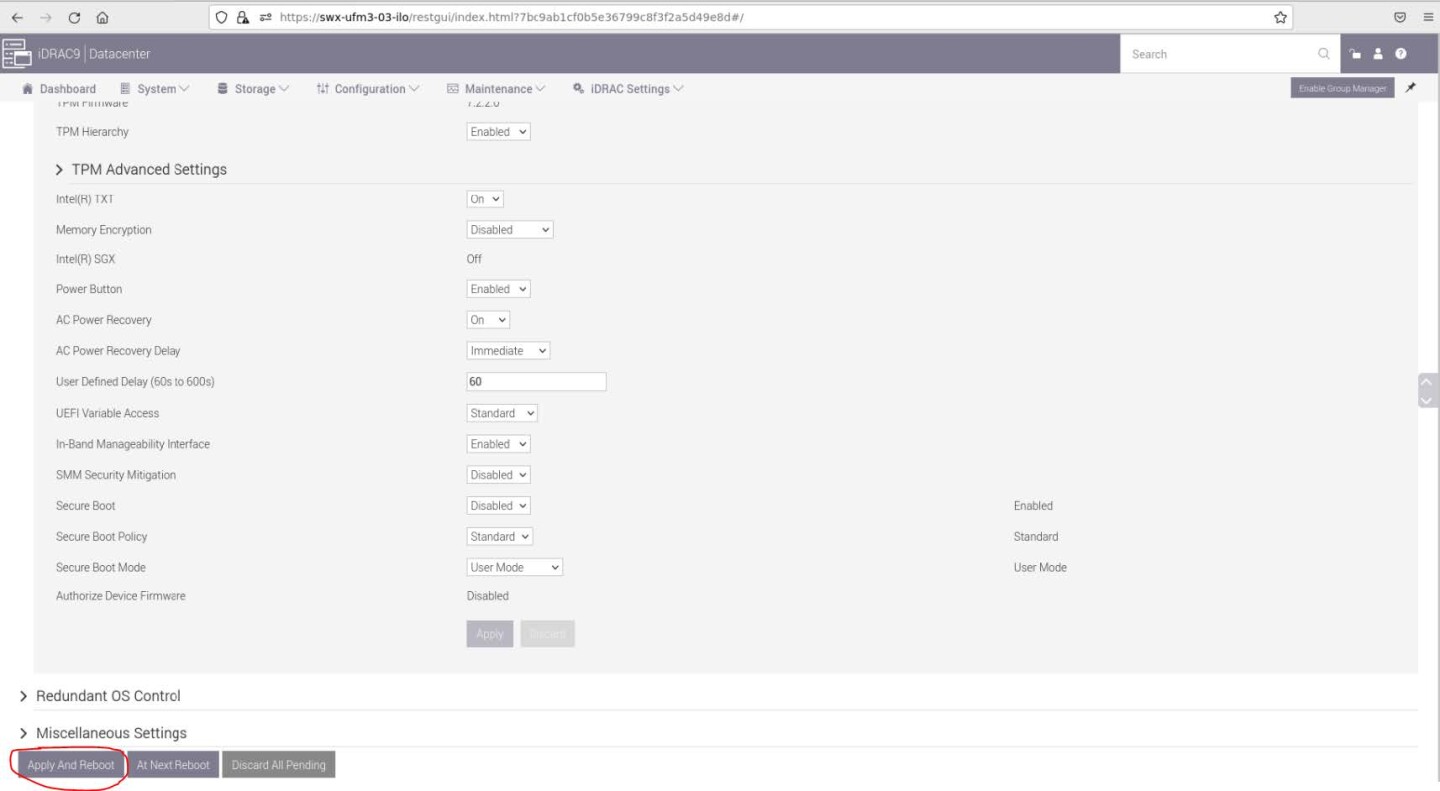

Scroll to the bottom of the page and click on the "Apply And Reboot" button; this will reboot the server and perform the configuration.
An Information Popup is prompted. Click on the "Job Queue" button (can also be navigated from "Maintenance" → "Job Queue").
Wait for the completion of the jobs (reach 100%).
Validate that secure boot is Disabled (from the terminal).
mokutil --sb-state
Remove the NVIDIA Certificate from MOK db
Perform this step if you want to entirely remove NVIDIA's certificate from MOK DB. This step is optional and is not required to disable secure boot. Skip this if you wish to enable secure boot at a later time.
Login as root to the UFM server.
Check current enrolled certificates.
mokutil --list-enrolled
Search for "Issuer: O=Mellanox Technologies.." and note the key ID above the start of this certificate:
Download the mlnx_signing_key_pub.der to a temporary folder (the DER certificate file must be present to be deleted). If the certificate is not available, it can be exported.
ct /tmp wget http://www.mellanox.com/downloads/ofed/mlnx_signing_key_pub.der
Or export from current keys (all the keys are named MOK-000X.der) and search the NVIDIA certificate.
cd/tmp mokutil --exportgrep"Mellanox"MOK-0*
Validate the certificate:openssl x509 -inform der -
inMOK-0002.der -noout -issuer
Remove the certificate from the MOK db. The below example lists MOK-0002.der, the naming convention might be different.
mokutil --delete ./MOK-0002.der --root-pw

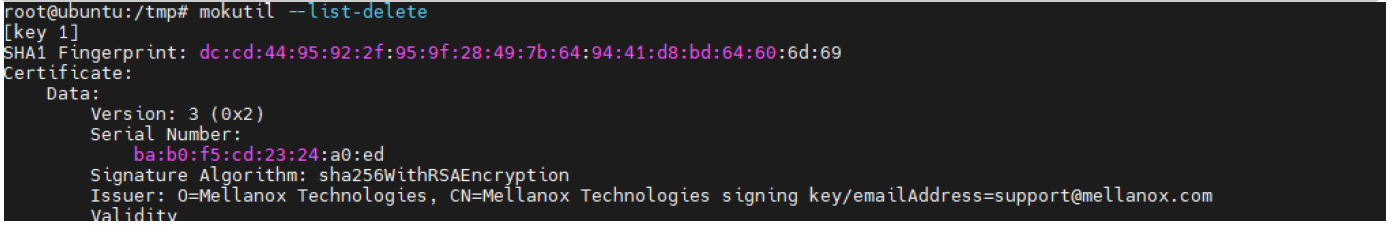

The above can be validated by running
mokutil --list-delete
0000018a-66a7-dd68-a38e-f7a7c42d0001
Login to Remote Management (https://<iDRAC-ip address>
click on "Dashboard"→"Virtual Console" to open the virtual web console.
Power cycle the server (at boot startup, a 10 second prompt appears to verify the certificate deletion).

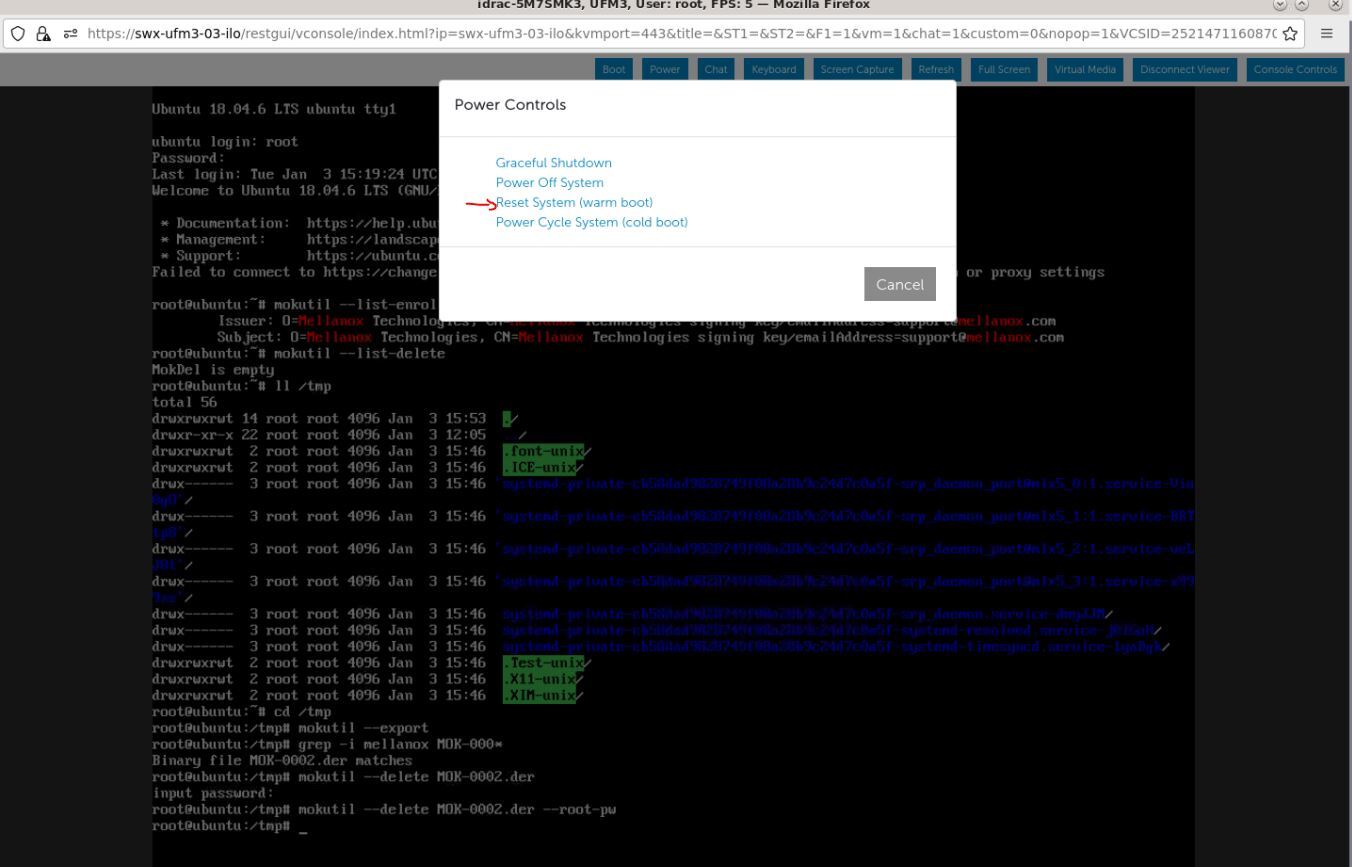

On the top menu: "Power" → "Reset System (warm boot)".
The server now performs reboot.
Once the startup procedure begins, a confirmation prompt appears to verify certificate deletion. The prompt closes after 10 seconds, if missed, the certificate deletion procedure needs to be repeated.
Once the prompt appears, press any key to interact.

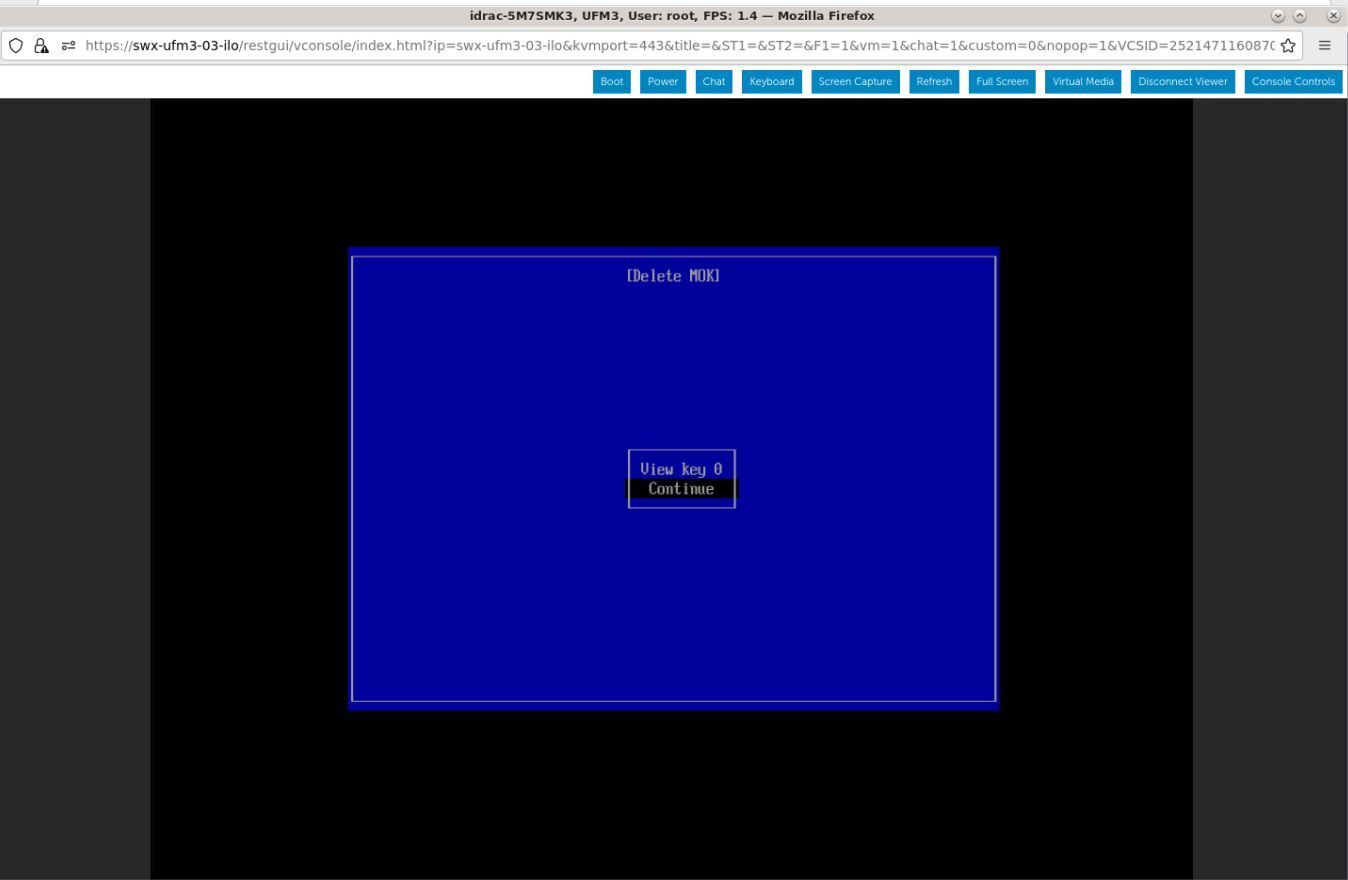

Navigate to "Delete MOK".

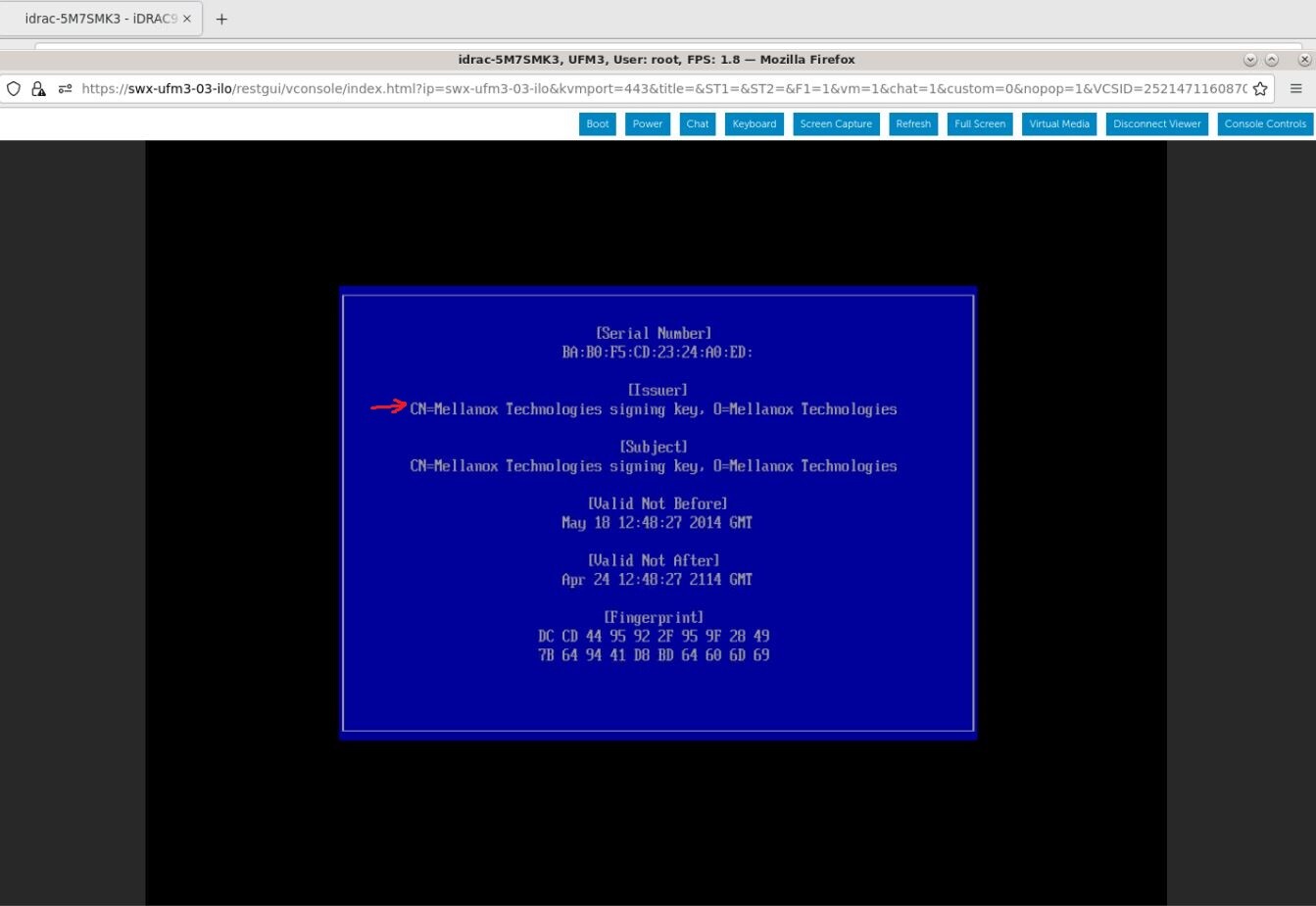

View the certificate to be deleted. To verify, press "View key0".
Press "Enter" to exit the view.
Select "Continue" from the menu and press the Enter key.

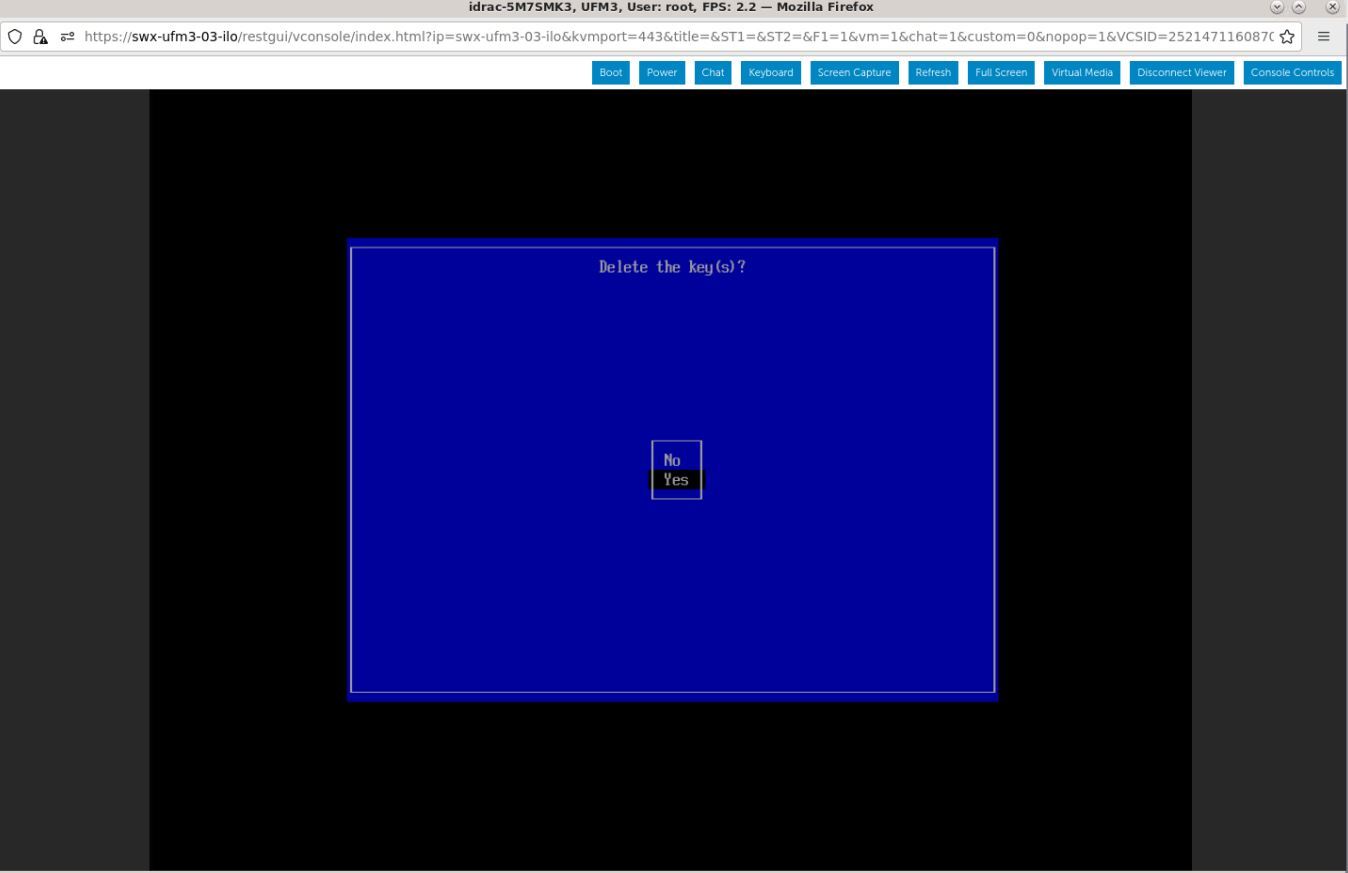

Select "Yes" from the menu and press the Enter key.

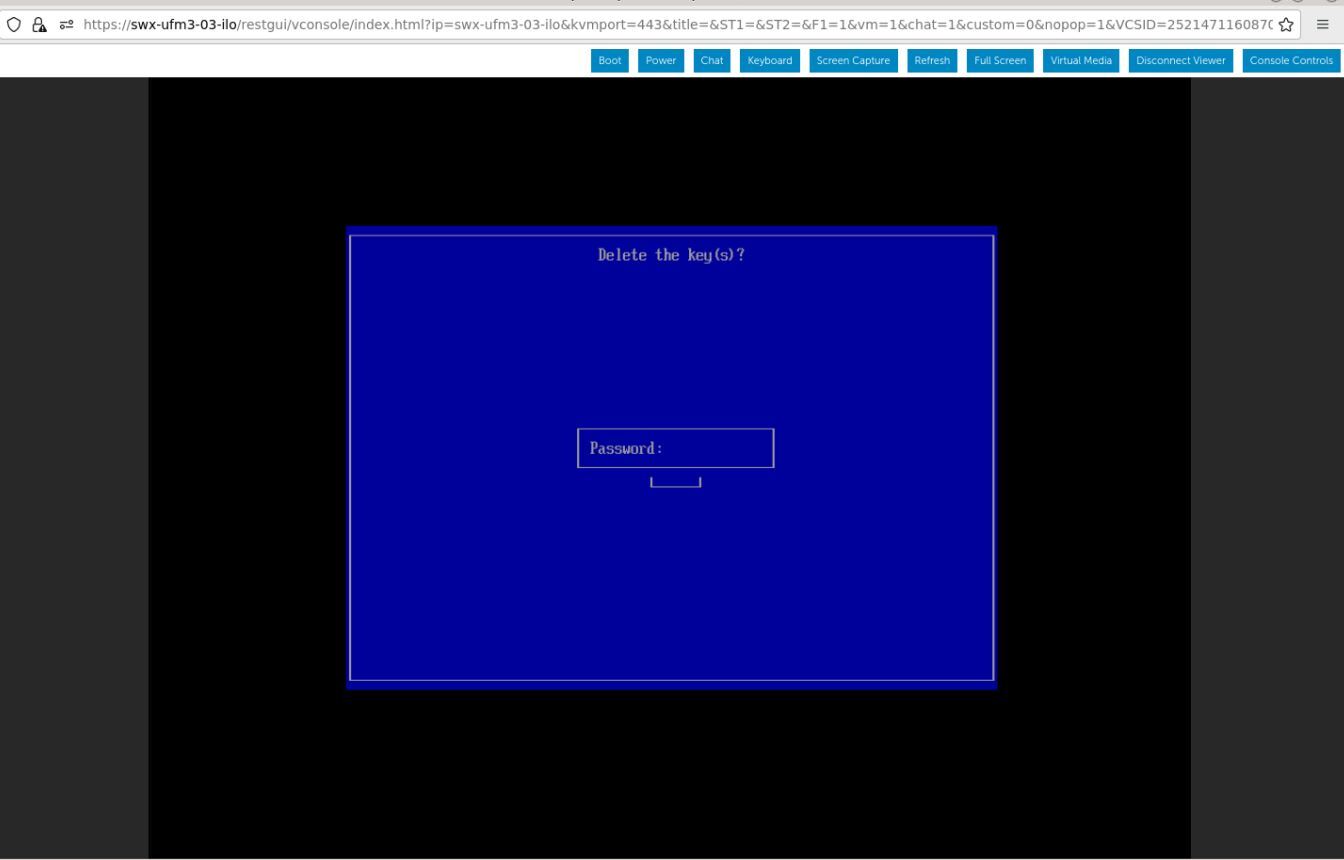

Once a password prompt appears, enter the OS root user credential.

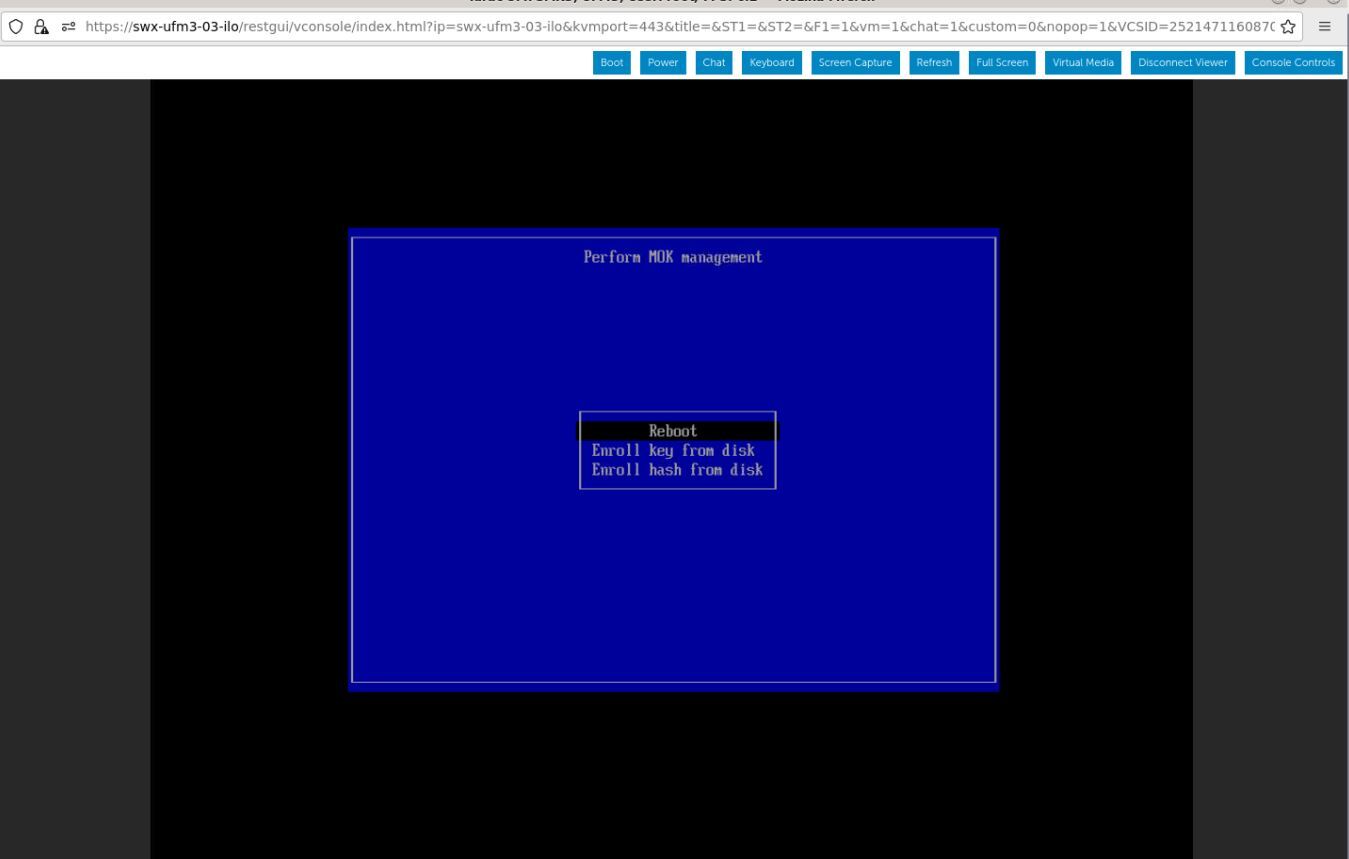

Select "Reboot" from the menu and press Enter. Upon reboot completion, the certificate is removed.
