DTS Plugin

The DTS Monitor can be run either as a standalone tool or as a plugin within UFM. It collects all the endpoint information for DPUs and consolidates it into a single interface.

DPU Requirements

• OS: ubuntu 20/22

• BlueField: BlueField-2 or BlueField-3

• DTS: version > 1.12

• DPE service up and running

• yaml configured with "DTS_CONFIG_DIR=ufm"

• • Add to the following line in file doca_telemetry_standalone.yaml

• • • Command:

      Copy

      Copied!




      /bin/bash", "-c", "/usr/bin/telemetry-init.sh && /usr/bin/enable-fluent-forward.sh


    • Command:

      Copy

      Copied!




      /bin/bash", "-c", " DTS_CONFIG_DIR=ufm /usr/bin/telemetry-init.sh && /usr/bin/enable-fluent-forward.sh


Installation

you need to load the image on the UFM server; either using the UFM GUI -> Settings -> Plugins Management tab or by loading the image via the following command:

1. Login to the UFM server terminal.

2. Run: docker load -I

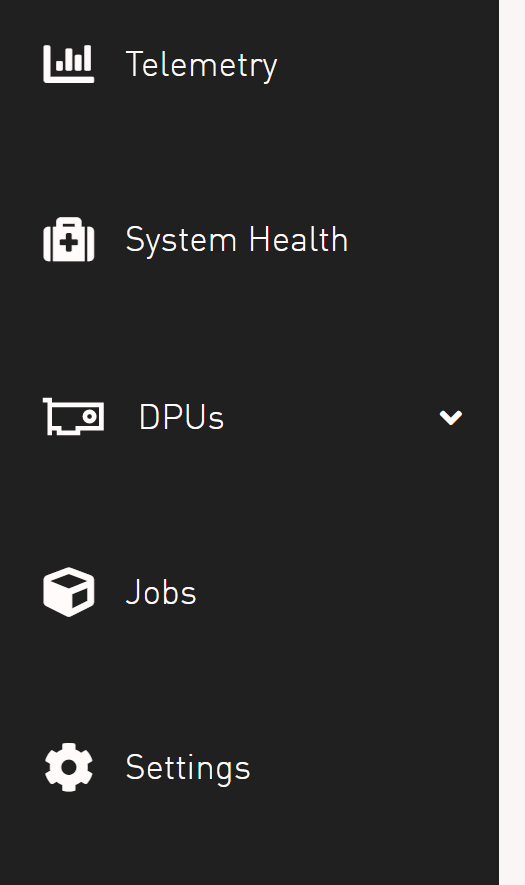

After completing the plugin addition and refreshing the UFM GUI, a new menu item, titled DPUs, will be added to the left navigation bar.

Info

Health

Telemetry

Data Sources
