The DTS Monitor can be run either as a standalone tool or as a plugin within UFM. It collects all the endpoint information for DPUs and consolidates it into a single interface.
DPU Requirements
OS: ubuntu 20/22
BlueField: BlueField-2 or BlueField-3
DTS: version > 1.12
DPE service up and running
yaml configured with "DTS_CONFIG_DIR=ufm"
Add to the following line in file doca_telemetry_standalone.yaml
Command:
/bin/bash
", "
-c", "
/usr/bin/telemetry-init.sh && /usr/bin/enable-fluent-forward.shCommand:
/bin/bash
", "
-c", "
DTS_CONFIG_DIR=ufm /usr/bin/telemetry-init.sh && /usr/bin/enable-fluent-forward.sh
Installation
you need to load the image on the UFM server; either using the UFM GUI -> Settings -> Plugins Management tab or by loading the image via the following command:

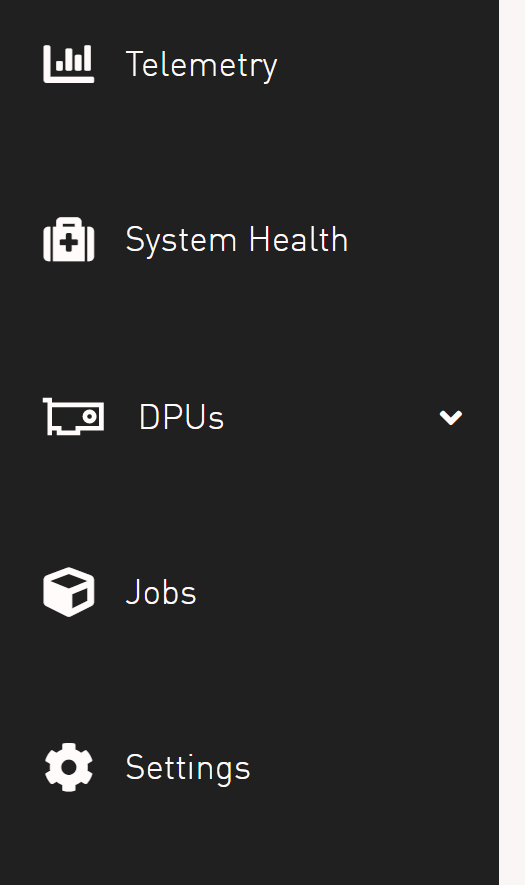

After completing the plugin addition and refreshing the UFM GUI, a new menu item, titled DPUs, will be added to the left navigation bar.
![dts-plugin-1-version-1-modificationdate-1704380831000-api-v2.png](https://docscontent.nvidia.com/dims4/default/e62fafa/2147483647/strip/true/crop/525x885+0+0/resize/525x885!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018c-d944-da68-ab9f-f9ec7f140000%2Fimages%2Fdownload%2Fattachments%2F2474996903%2Fdts-plugin-1-version-1-modificationdate-1704380831000-api-v2.png)
