Configuring UFM-SDN Appliance for the First Time

The appliance has multiple Ethernet management interfaces. The primary management interface is eth0. An additional interface exists, for connecting to a remote management controller (It usually connects to the same management network as eth0). For using out-of-the-box DHCP settings: Default hostname for the appliance (over eth0) is "ufm-appliance-[MAC ADDRESS]". The MAC address for eth0 is available on the pull-tab and can be configured in the DHCP server. To use the remote management controller with DHCP, the free-range IP allocation must be enabled on the DHCP server. A static IP address for remote management interface can be configured via the CLI ("chassis remote-management ip" command).

The following are two methods of connecting UFM SDN Appliance:

  • "Connecting UFM®-SDN Appliance via a Serial Port"

  • "Connecting UFM®-SDN Appliance via Remote Management"

Connecting UFM-SDN Appliance via Serial Port

The appliance supports a direct connection via a serial port. Please follow the steps below to connect to the appliance.

Warning

Configuration via a serial port is only required if you want to use a static IP address and not the out-of-the-box DHCP setting for eth0. Otherwise, an IP is assigned by the DHCP server and you can login to the CLI over LAN.

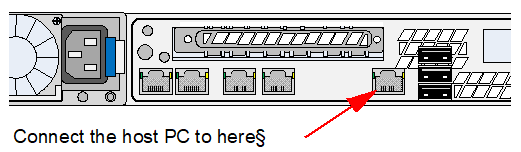

  1. Connect the host PC to the (RJ-45) port of the appliance system using the supplied cable. The Console ports for the appliance is shown below.


    0000018a-669f-dd68-a38e-f79f21300001

  2. Configure a serial terminal program (for example, HyperTerminal, minicom, or Tera Term) on your host PC with the settings described in the following table.

    Serial Terminal Program Configuration

    Parameter

    Setting

    Baud Rate

    Gen1: 9600 Gen2: 115200

    Data bits

    8

    Stop bits

    1

    Parity

    None

    Flow Control

    None

Connecting UFM-SDN Appliance via Remote Management

UFM-SDN Appliance includes an Intel® motherboard and a built-in remote management controller. The Remote Management Controller module features remote KVM access and control through LAN or Internet. The Remote Management can be configured either via the UFM-SDN Appliance CLI or the Remote Management Web Console.
For further information, please refer to the UFM-SDN Command Reference Guide, section UFM-SDN Appliance Chassis Management, and UFM-SDN Appliance Remote Management User Manual.

Configuring UFM-SDN Appliance Using CLI Wizard

  1. Login as admin and use "admin" as the password.
    This starts the Mellanox configuration wizard.

  2. Go through the configuration wizard. The table below shows an example of a wizard session.

Mellanox UFM-SDN Appliance Configuration Wizard

Wizard Session Display (Example)

Comments

Do you want to use the wizard for initial configuration? yes

You must perform this configuration the first time you operate the appliance or after resetting the appliance to the factory defaults. Type ‘y’ and then press <Enter>.

Step 1: Hostname? [ufm-appliance-898b4e]

If you wish to accept the default hostname, then press <Enter>. Otherwise, type a different hostname and press <Enter>.

Step 2: Use DHCP on eth0 interface? [yes]

Perform this step to obtain an IP address for the appliance. (eth0 is the management port of the appliance.)

If you wish the DHCP server to assign the IP address, type ‘yes’ and press <Enter>.

If you type ‘no’ (no DHCP), then you will be asked whether you wish to use the ‘zeroconf’ configuration or not. If you enter ’yes’ (yes Zeroconf), the session will continue as shown in Configuration Wizard Session - IP Zeroconf Configuration table below.

If you enter "no" (no Zeroconf), then you need to enter a static IP, and the session will continue as shown in the Static IP configuration table below.

Step 3: Enable IPv6 [yes]

Perform this step to enable IPv6 on management ports.

If you wish to enable IPv6, type "yes" and press <Enter>.

If you enter "no" (no IPv6), then you will automatically be referred to Step 5.

Step 4: Enable IPv6 autoconfig (SLAAC) on eth0 interface

Perform this step to enable StateLess address autoconfig on external management port.

If you wish to enable it, type "yes" and press <Enter>.

If you wish to disable it, enter "no".

Step 5: Use DHCPv6 on eth0 interface? [yes]

Perform this step to enable DHCPv6 on the eth0 interface.

Step 6: Admin password (Must be typed)?

Step 6: Confirm admin password?

To avoid illegal access to the machine, please type a password for the admin user and then press <Enter>.

Confirm the password by re-entering it.

Warning

Note that password characters are not printed.

Step 7: Monitor password (Must be typed)?

Step 7: Confirm monitor password?

To avoid illegal access to the machine, please type a password for the monitor user and then press <Enter>.

Confirm the password by re-entering it.

Warning

Note that password characters are not printed.

Step 8: bond0 IP address and masklen? [0.0.0.0/0]

Allows defying IP address for IPoIB bond (bond is pre-configured with ib0 & ib1 ports).

You have entered the following information:

1. Hostname: ufm-appliance-898b4e
2. Use DHCP on eth0 interface: yes
3. Enable IPv6: yes
4. Enable IPv6 autoconfig (SLAAC) on eth0 interface: no
5. Enable DHCPv6 on eth0 interface: yes
6. Admin password (Must be typed): (CHANGED)
7. Monitor password (Must be typed): (CHANGED)
8. bond0 IPv4 address and masklen: 1.1.1.1/24

To change an answer, enter the step number to return to.
Otherwise hit <enter> to save changes and exit.

Choice:

Configuration changes saved.

To return to the wizard from the CLI, enter the "configuration jump-start"
command from configure mode. Launching CLI...

The wizard displays a summary of your choices and then asks you to confirm the choices or to re-edit them.

Either press <Enter> to save changes and exit, or enter the configuration step number that you wish to return to.

To run the command "configuration jump-start", you must be in Config mode.

Configuration Wizard Session – IP Zeroconf Configuration

Wizard Session Display – IP Zeroconf Configuration (Example)


Step 1: Hostname? [r-ufm236]
Step 2: Use DHCP on eth0 interface? [no]
Step 3: Use zeroconf on eth0 interface? [no]
Step 4: Primary IPv4 address and masklen? [0.0.0.0/0]
Step 5: Default gateway?
Step 6: Primary DNS server?
Step 7: Domain name?
Step 8: Enable IPv6? [yes]
Step 9: Enable IPv6 autoconfig (SLAAC) on eth0 interface? [no]
Step 10: Enable DHCPv6 on eth0 interface? [yes]
Step 11: Admin password (Enter to leave unchanged)?
Step 12: Monitor password (Enter to leave unchanged)?
Step 13: bond0 IPv4 address and masklen? [1.1.1.1/24]
You have entered the following information:
 1. Hostname: r-ufm236
 2. Use DHCP on eth0 interface: no
 3. Use zeroconf on eth0 interface: no
 4. Primary IPv4 address and masklen: 0.0.0.0/0
 5. Default gateway:
 6. Primary DNS server:
 7. Domain name:
 8. Enable IPv6: yes
 9. Enable IPv6 autoconfig (SLAAC) on eth0 interface: no
 10. Enable DHCPv6 on eth0 interface: yes
 11. Admin password (Enter to leave unchanged): (unchanged)
 12. Monitor password (Enter to leave unchanged): (unchanged)
 13. bond0 IPv4 address and masklen: 1.1.1.1/24
To change an answer, enter the step number to return to.
Otherwise hit <enter> to save changes and exit.
Choice:
Configuration changes saved.
To return to the wizard from the CLI, enter the "configuration jump-start"
command from configure mode. Launching CLI...
<hostname> [standalone: master] >

Static IP Configuration

Wizard Session Display – Static IP Configuration (Example)


Do you want to use the wizard for initial configuration? y
Step 1: Hostname? [r-ufm236]
Step 2: Use DHCP on eth0 interface? [no]
Step 3: Use zeroconf on eth0 interface? [no]
Step 4: Primary IPv4 address and masklen? [0.0.0.0/0] 10.209.36.38/24
Step 5: Default gateway? 10.209.36.1
Step 6: Primary DNS server?
Step 7: Domain name?
Step 8: Enable IPv6? [yes]
Step 9: Enable IPv6 autoconfig (SLAAC) on eth0 interface? [no]
Step 10: Enable DHCPv6 on eth0 interface? [yes]
Step 11: Admin password (Enter to leave unchanged)?
Step 12: Monitor password (Enter to leave unchanged)?
Step 12: Confirm monitor password?
Step 13: bond0 IPv4 address and masklen? [1.1.1.1/24]
You have entered the following information:
 1. Hostname: r-ufm236
 2. Use DHCP on eth0 interface: no
 3. Use zeroconf on eth0 interface: no
 4. Primary IPv4 address and masklen: 10.209.36.38/24
 5. Default gateway: 10.209.36.1
 6. Primary DNS server:
 7. Domain name:
 8. Enable IPv6: yes
 9. Enable IPv6 autoconfig (SLAAC) on eth0 interface: no
 10. Enable DHCPv6 on eth0 interface: yes
 11. Admin password (Enter to leave unchanged): (unchanged)
 12. Monitor password (Enter to leave unchanged): (CHANGED)
 13. bond0 IPv4 address and masklen: 1.1.1.1/24
To change an answer, enter the step number to return to.
Otherwise hit <enter> to save changes and exit.
Choice:
Configuration changes saved.
To return to the wizard from the CLI, enter the "configuration jump-start"
command from configure
mode. Launching CLI...
<hostname>[standalone: master] >
