Set User Preferences

This section describes how to customize your UFM display settings and change your password,

  1. Select Preferences.

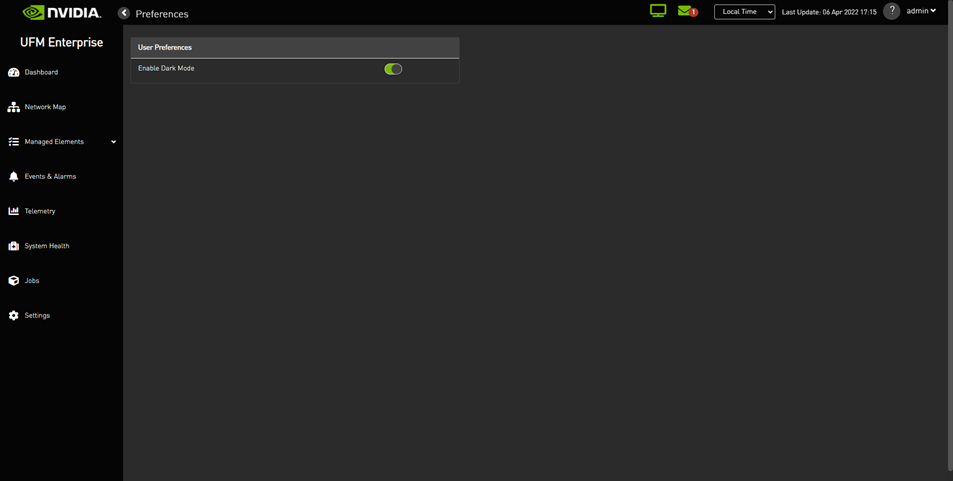

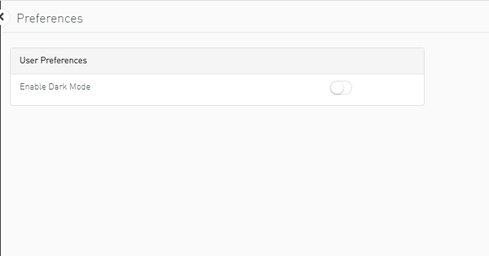

  2. In User Preferences, enable dark mode for UFM presentation in a dark theme. The following figure shows the dark theme:


Allows you to unify all times in UFM like events and alarms, ibdiagnet, telemetry and logs. You can switch between local and machine time.

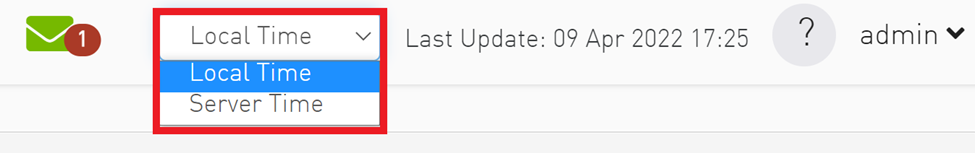

In the status bar drop-down menu, switch between local and server/machine time.




Note

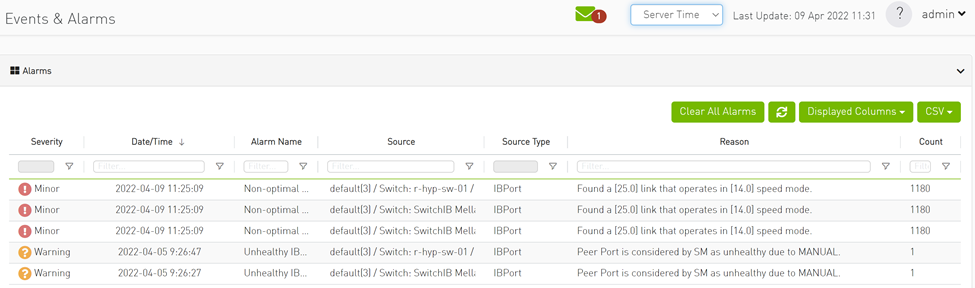

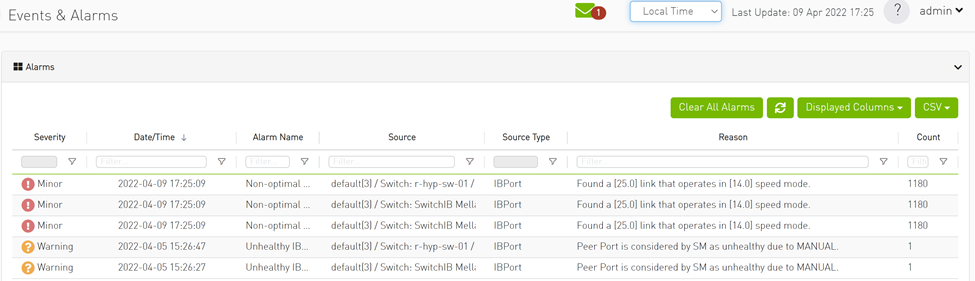

In the screenshots, the difference between Server Time and Local Time is 6 hours.

Look and Feel Improvements

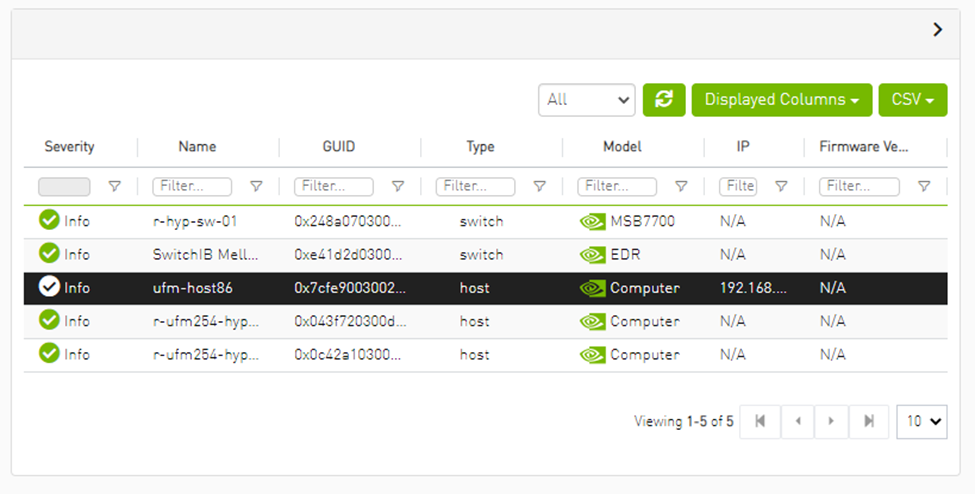

Displayed Columns



Note

Displayed columns of all tables are persistent per user, with the option to restore defaults.

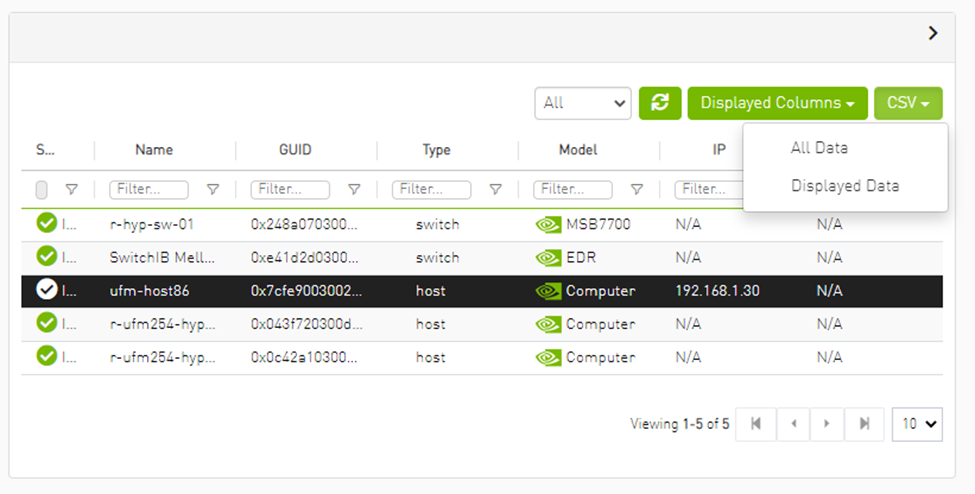

There are two options for exporting as CSV

  • All Data: all data returned from server.

  • Displayed Data: only displayed rows.
