Virtual Ports Window

Note

This page is only available if Virtualization is enabled in gv.cfg.

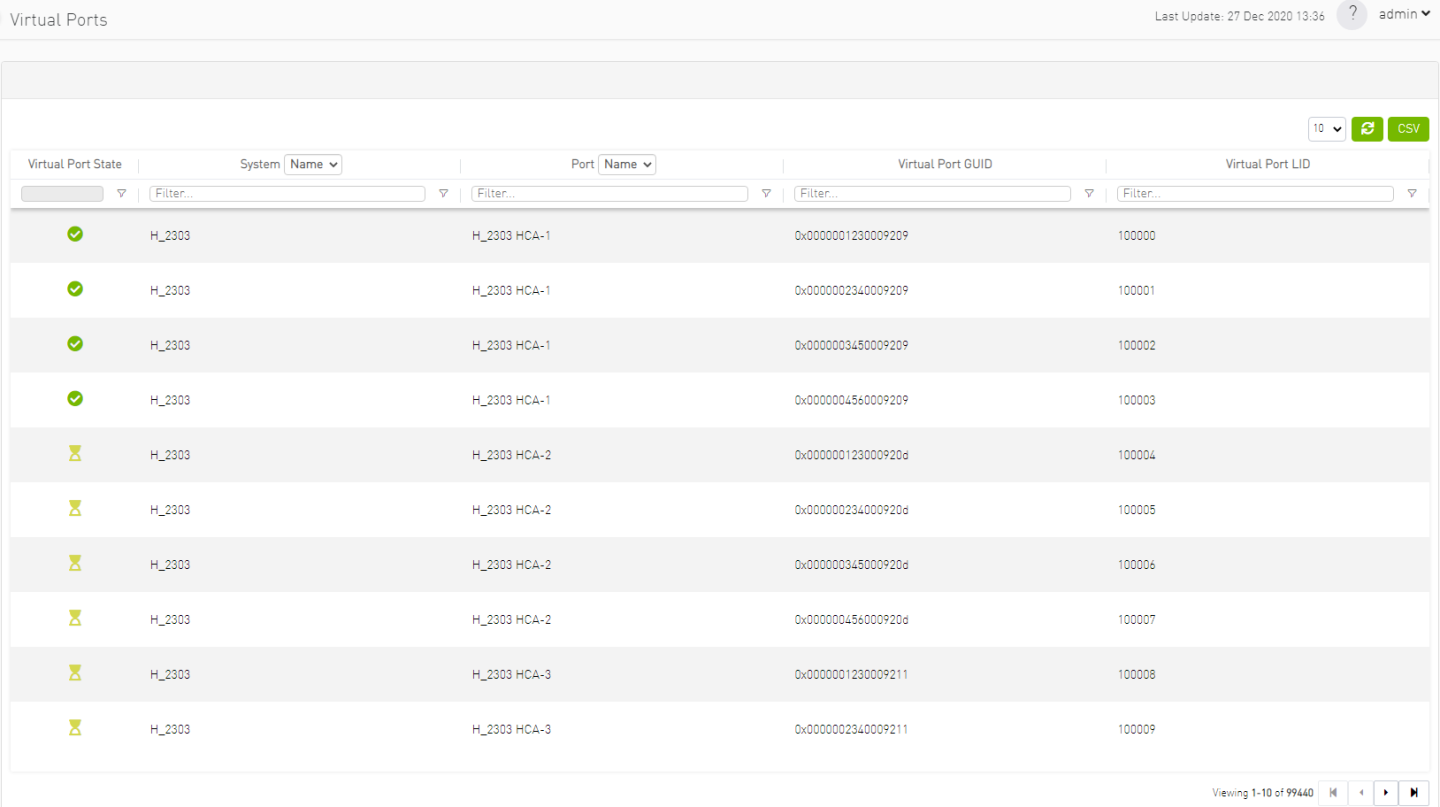

Provides a list of all virtual ports in UFM.

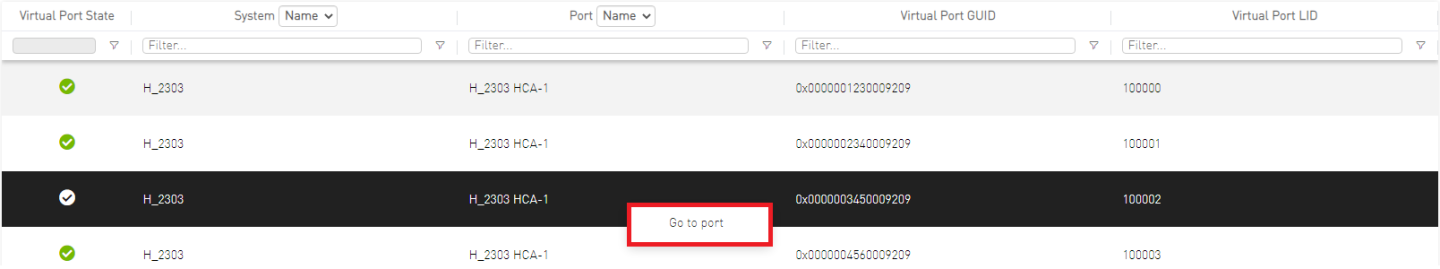

Right-clicking a virtual port allows navigation to the physical port mapped it is mapped to.

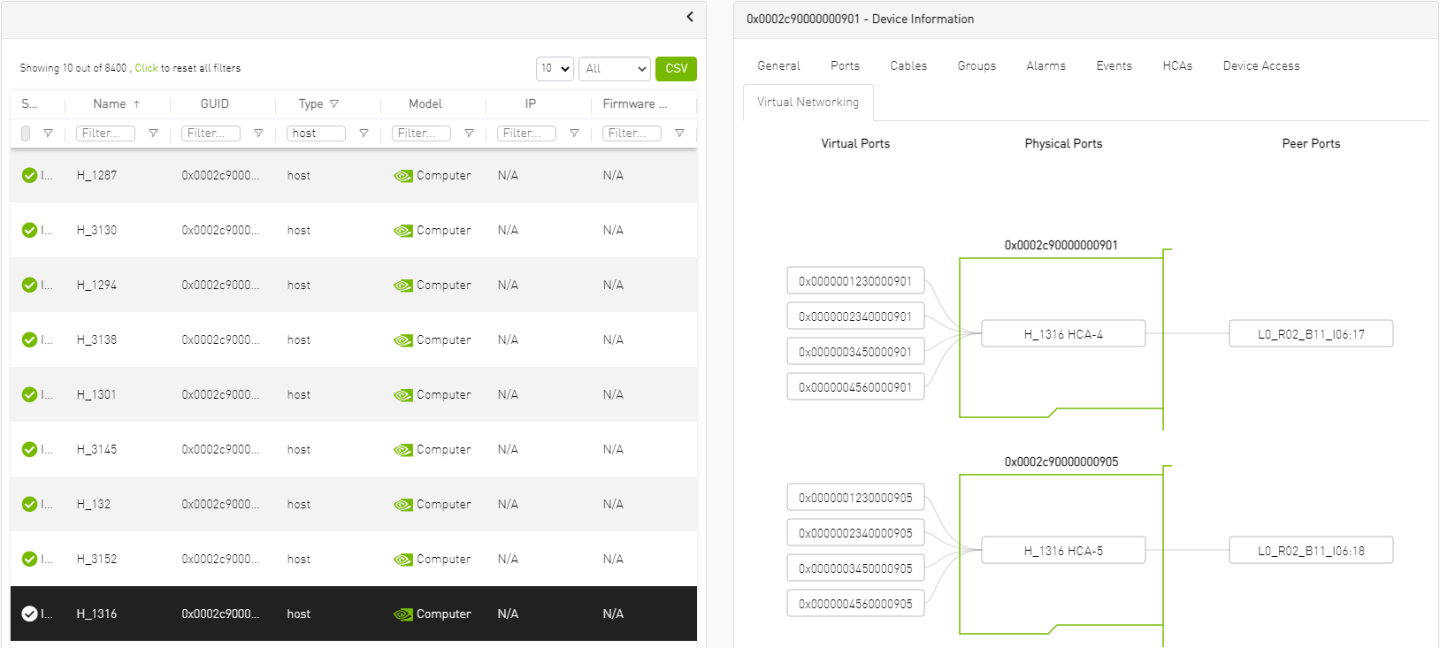

Clicking "Go to port" navigates to the Virtual Networking tab of the Device Information screen.
