Using Cloud Functions

gRPC Function Invocation

View as Markdown

gRPC invocation executes requests against Cloud Functions functions that expose a gRPC service. gRPC functions use the gRPC proxy instead of the HTTP invocation route.

In self-hosted deployments, the gRPC route is exposed on the Gateway TCP listener. See Gateway Routing for listener and DNS configuration.

$export GRPC_GATEWAY_ADDR=<grpc-gateway-address>
$export FUNCTION_ID=<function-id>
$export FUNCTION_VERSION_ID=<function-version-id>
$export API_KEY=<api-key>

Metadata

Set these gRPC metadata values when invoking a function:

Metadata keyRequiredDescription
authorizationYesAPI key, formatted as Bearer <api-key>. You can also use gRPC call credentials.
function-idYesFunction ID to invoke.
function-version-idNoFunction version ID to target.

The data sent to your gRPC function is defined by the Protobuf messages your function implements. gRPC functions do not have an input request size limit.

gRPC connections stay alive for 30 seconds when idle. Close the gRPC client connection after your client is finished so function workers are not held longer than needed.

Python Example

This example uses a plaintext local or test gateway on port 10081. For a production TLS endpoint, use grpc.secure_channel("grpc.<domain>:443", grpc.ssl_channel_credentials()).

1import os
2import grpc
3
4import grpc_service_pb2_grpc
5
6
7def call_grpc(model_infer_request) -> None:
8    channel = grpc.insecure_channel(f"{os.environ['GRPC_GATEWAY_ADDR']}:10081")
9    grpc_client = grpc_service_pb2_grpc.GRPCInferenceServiceStub(channel)
10
11    metadata = [
12        ("function-id", os.environ["FUNCTION_ID"]),
13        ("function-version-id", os.environ["FUNCTION_VERSION_ID"]),
14        ("authorization", f"Bearer {os.environ['API_KEY']}"),
15    ]
16
17    infer = grpc_client.ModelInfer(model_infer_request, metadata=metadata)
18    _ = infer
19
20    channel.close()

The official gRPC term for authorization handling is call credentials. The example above sets the authorization metadata directly for clarity.

Connection Reuse and Streaming

The gRPC proxy pins sessions to the TCP connection to support unmodified gRPC clients that ignore cookie headers. This matters when an intermediary proxy for streaming, such as Kit streaming or Low Latency Streaming (LLS), uses HTTP/2 and reuses connections.

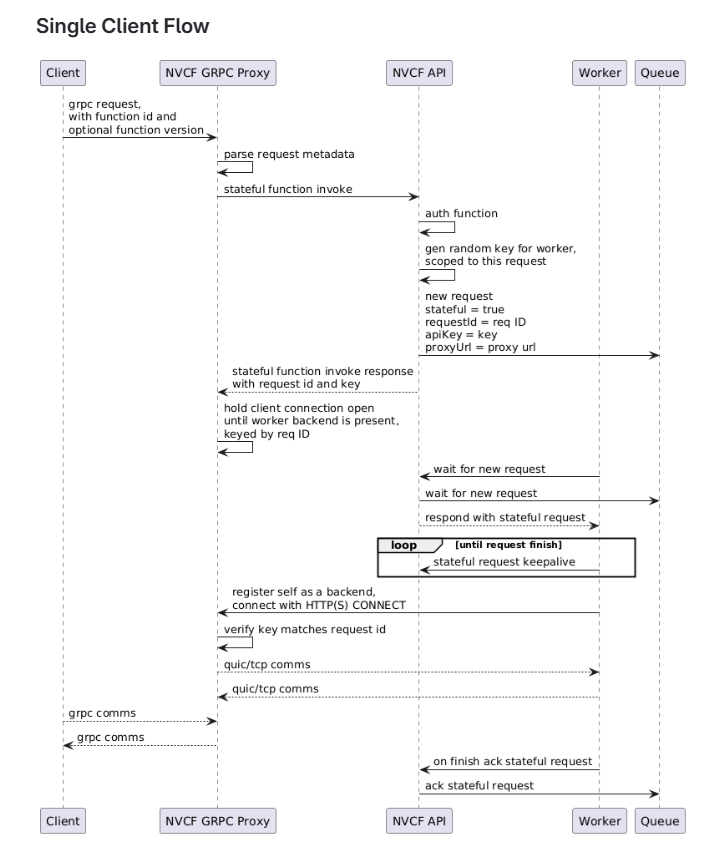

Single-client flow

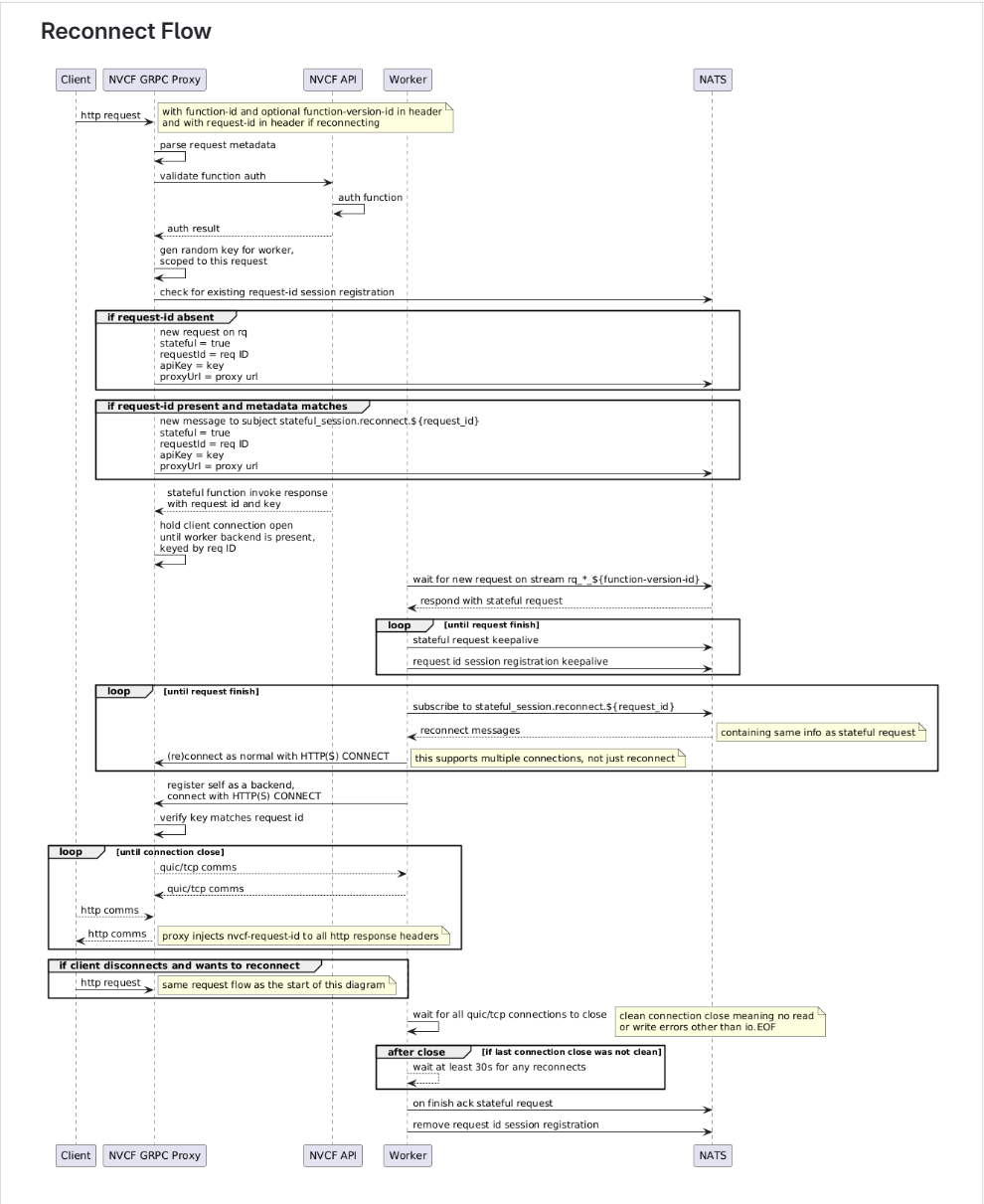

Reconnect flow

Do not pre-allocate streaming sessions with POST plus X-NVCF-ABSORB when a shared HTTP/2 client can reuse one TCP connection across multiple users or flows. Two separate requests sent over the same connection can receive the same request ID from the proxy, which can bind different users or flows to the same Kit pod.

Use on-demand binding through the WebSocket instead: establish the WebSocket, obtain the request ID from the proxy, and use that ID for subsequent requests.

For requirements and a sample intermediary proxy implementation, see Intermediary Proxy.
