Topograph in Kubernetes

Topograph is a tool designed to enhance scheduling decisions in Kubernetes clusters by leveraging network topology information.

Overview

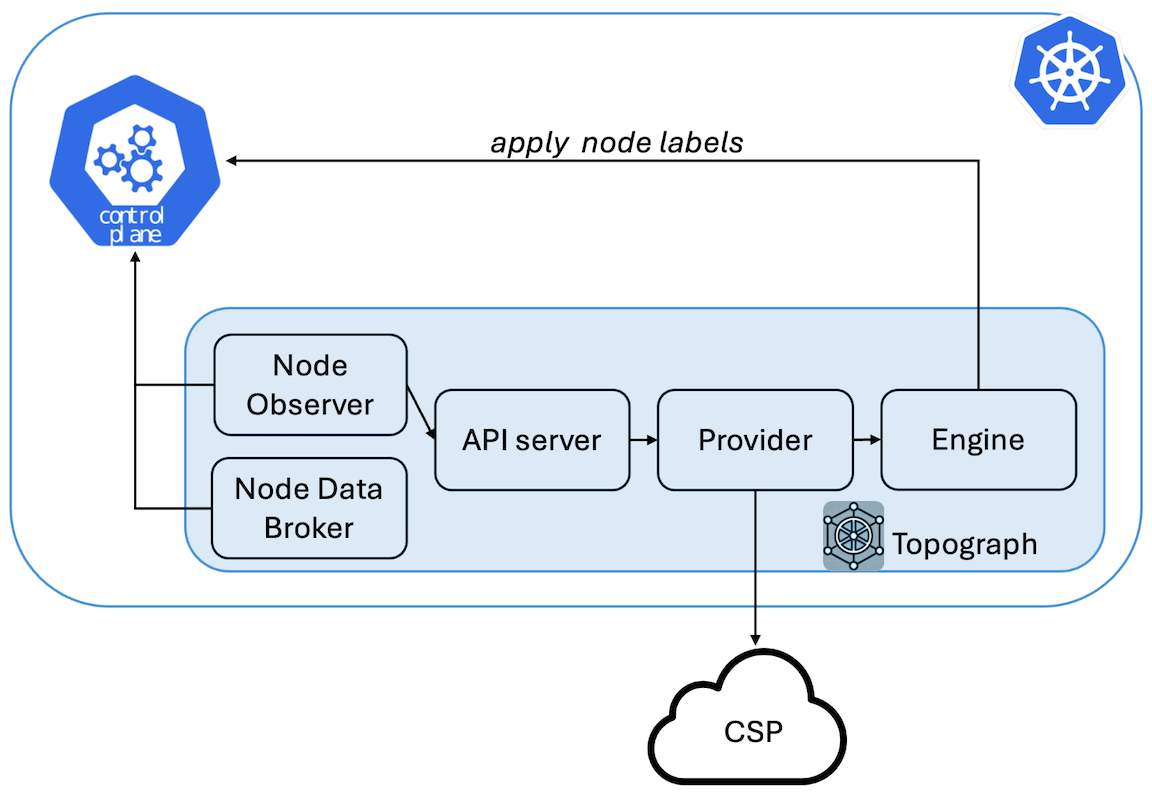

Topograph maps both the multi-tier network hierarchy and accelerated network domains (such as NVLink) using node labels. Most cloud providers expose three levels of network topology through their APIs. To provide a unified view, Topograph assigns four labels to each node:

• network.topology.nvidia.com/accelerator: Identifies high-speed interconnect domains, such as NVLink.
• network.topology.nvidia.com/leaf: Indicates the switches directly connected to compute nodes.
• network.topology.nvidia.com/spine: Represents the next tier of switches above the leaf level.
• network.topology.nvidia.com/core: Denotes the top-level switches.

The names of these node labels are configurable via the Helm chart.

For example, if a node belongs to NVLink domain nvl1 and connects to switch s1, which connects to switch s2, and then to switch s3, Topograph will apply the following labels to the node:

  network.topology.nvidia.com/accelerator: nvl1
  network.topology.nvidia.com/leaf: s1
  network.topology.nvidia.com/spine: s2
  network.topology.nvidia.com/core: s3

Relationship to the kubelet Topology Manager

Kubernetes includes a Topology Manager (GA since Kubernetes 1.27) that aligns CPU, GPU, and NIC allocations to the same NUMA domain within a single node, reducing memory access latency for a Pod’s containers. These two features are complementary and address different scopes:

Both can be active simultaneously. Topology Manager optimizes resource allocation within a node; Topograph labels tell the scheduler which nodes belong together on the network.

Relationship to nvidia.com/gpu.clique

The GPU Operator device plugin sets nvidia.com/gpu.clique on nodes with Multi-Node NVLink (MNNVL) GPUs (e.g., GB200 NVL72). This label identifies the NVLink clique a node belongs to and can be used as a topology key for Pod placement.

Topograph’s network.topology.nvidia.com/accelerator label and nvidia.com/gpu.clique are complementary:

• On MNNVL systems: the InfiniBand provider’s accelerator value is derived from the same ClusterUUID.CliqueId hardware identifiers as gpu.clique. The two labels carry the same value and can be correlated.
• On non-MNNVL systems (e.g., DGX B200, B300): nvidia.com/gpu.clique is not set (see the node labels reference for the Fabric Manager init and GPU_FABRIC_STATE_COMPLETED details). Topograph with an InfiniBand provider is the only source of network topology labels on these clusters.

In addition to NVLink domain membership, Topograph provides the IB switch hierarchy (leaf, spine, core) — giving schedulers both dimensions of topology simultaneously.

Use of Topograph

While there is currently no fully network-aware scheduler capable of optimally placing groups of pods based on network considerations, Topograph serves as a stepping stone toward developing such a scheduler.

Topograph can be used in conjunction with Kubernetes’ existing PodAffinity feature. This combination enhances pod distribution based on network topology information.

The following excerpt describes a Kubernetes object specification for a cluster with a three-tier network switch hierarchy. The goal is to improve inter-pod communication by assigning pods to nodes within closer network proximity.

1
    affinity:
2
      podAffinity:
3
        preferredDuringSchedulingIgnoredDuringExecution:
4
          - weight: 70
5
            podAffinityTerm:
6
              labelSelector:
7
                matchExpressions:
8
                  - key: app
9
                    operator: In
10
                    values:
11
                      - myapp
12
              topologyKey: network.topology.nvidia.com/spine
13
          - weight: 90
14
            podAffinityTerm:
15
              labelSelector:
16
                matchExpressions:
17
                  - key: app
18
                    operator: In
19
                    values:
20
                      - myapp
21
              topologyKey: network.topology.nvidia.com/leaf

Pods are prioritized to be placed on nodes sharing the label network.topology.nvidia.com/leaf. These nodes are connected to the same network switch, ensuring the lowest latency for communication.

Nodes with the label network.topology.nvidia.com/spine are next in priority. Pods on these nodes will still be relatively close, but with slightly higher latency.

In the three-tier network, all nodes will share the same network.topology.nvidia.com/core label, so it doesn’t need to be included in pod affinity settings.

Since the default Kubernetes scheduler places one pod at a time, the placement may vary depending on where the first pod is placed. As a result, each scheduling decision might not be globally optimal. However, by aligning pod placement with network-aware labels, we can significantly improve inter-pod communication efficiency within the limitations of the scheduler.

Mixed Workload Considerations

Topology labels are most valuable when nodes in a topology domain are available for topology-sensitive workloads together. Mixed clusters running both distributed training and topology-insensitive workloads (single-GPU inference, CPU services) present a scheduling challenge: topology-insensitive Pods will consume nodes that could otherwise form complete leaf-switch groups or NVLink domains, forcing training jobs to communicate across additional hops. Schedulers that honor topology labels — such as KAI Scheduler and Kueue with Topology-Aware Scheduling — can minimize this fragmentation, but only when topology information is available. Topograph’s labels are a prerequisite for making these decisions.

Configuration

Topograph is deployed as a standard Kubernetes application using a Helm chart. Topograph is configured using a configuration file stored in a ConfigMap and mounted to the Topograph container at /etc/topograph/topograph-config.yaml. In addition, when sending a topology request, the request payload includes additional parameters. The parameters for the configuration file and topology request are defined in the global section of the Helm values file, as shown below:

1
global:
2
  # provider – name of the cloud provider or on-prem environment.
3
  # Supported values: "aws", "gcp", "oci", "nebius", "netq", "infiniband-k8s".
4
  provider: "aws"
5
6
  engine: "k8s"

Exposing the Topograph API

The Topograph API server listens on port 49021 by default. The Helm chart always creates a Kubernetes Service; how that Service is exposed depends on your deployment topology and access requirements.

The API server does not implement built-in authentication. Access controls are always applied at a network layer (NetworkPolicy, service mesh, ingress auth, etc.). Deployments that expose the API outside the cluster must add an authentication layer in front of it.

Access pattern matrix

Default: ClusterIP

By default, global.service.type: ClusterIP and ingress.enabled: false. This means:

• The API is not exposed outside the cluster
• In-cluster components (Node Observer, Node Data Broker) reach the API via the Service DNS name <release>.<namespace>.svc.cluster.local:49021
• Cluster operators can reach the API via port-forward for debugging:

$
kubectl -n <namespace> port-forward svc/<release>-topograph 49021:49021
$
curl http://localhost:49021/healthz

The Service name is <release>-topograph by default (rendered from the chart’s fullname template); substitute your Helm release name and the namespace you deployed it into.

This is the recommended pattern for production deployments where Topograph is consumed only by in-cluster callers.

Exposing via Ingress

Enable the bundled Ingress template:

1
# values.yaml
2
ingress:
3
  enabled: true
4
  className: nginx
5
  hosts:
6
    - host: topograph.example.com
7
      paths:
8
        - path: /
9
          pathType: Prefix
10
  tls:
11
    - hosts:
12
        - topograph.example.com
13
      secretName: topograph-tls

Authentication must be added at the Ingress or mesh layer. Common patterns:

• nginx-ingress nginx.ingress.kubernetes.io/auth-url + oauth2-proxy
• Istio RequestAuthentication + AuthorizationPolicy
• mTLS termination at the ingress with client certificate validation

Exposing via Gateway API (HTTPRoute)

The chart ships an optional HTTPRoute template (charts/topograph/templates/httproute.yaml) that attaches to an existing platform-owned Gateway. Enable with:

1
# values.yaml
2
gatewayAPI:
3
  enabled: true
4
  parentRefs:
5
    - name: topograph-gateway
6
      namespace: gateway-system
7
  hostnames:
8
    - topograph.example.com

Mutually exclusive with ingress.enabled. The chart refuses to render if both are enabled — deploying both routing resources against the same Service is almost always a misconfiguration.

A complete example values file is provided at charts/topograph/values.k8s.gateway-api-example.yaml.

Prerequisites (operator responsibility, outside this chart):

1. Gateway API CRDs installed in the cluster — standard channel gateway.networking.k8s.io/v1. The chart fails cleanly with a clear error if they are absent.
2. A Gateway API implementation running — kgateway, Cilium, Istio, Envoy Gateway, Nginx Gateway Fabric, or any other conformant implementation. The chart’s HTTPRoute uses only standard gateway.networking.k8s.io/v1 fields with no implementation-specific annotations, so it is portable across any of them.
3. A Gateway resource provisioned with a listener this HTTPRoute can attach to. The chart does not author Gateway or GatewayClass resources — both are platform-owned.
4. A ReferenceGrant in the Gateway’s namespace if it lives in a different namespace from the release, per Gateway API cross-namespace attachment rules.

Default routing. If gatewayAPI.rules is empty, the chart emits a single catch-all rule routing all requests to the Topograph Service (which serves /v1/generate, /v1/topology, /healthz, and /metrics on a single port). Override gatewayAPI.rules to provide path-specific matching — for example, to expose only /v1/:

1
gatewayAPI:
2
  enabled: true
3
  parentRefs:
4
    - name: topograph-gateway
5
      namespace: gateway-system
6
  rules:
7
    - matches:
8
        - path:
9
            type: PathPrefix
10
            value: /v1/
11
      backendRefs:
12
        - name: topograph
13
          port: 49021

Authentication. Topograph’s binary has no built-in authentication on /v1/generate. When exposing the API externally, enforce authentication at the Gateway layer via the implementation’s policy mechanism (kgateway TrafficPolicy + ExtAuth, Istio RequestAuthentication, Envoy Gateway SecurityPolicy, Nginx Gateway Fabric ClientSettingsPolicy, Cilium L7). These attach to the rendered HTTPRoute via targetRefs (or equivalent) as separate resources — no chart changes required. See values.k8s.gateway-api-example.yaml for a concrete kgateway example.

GRPCRoute, TLSRoute, BackendTLSPolicy are not supported in this chart. Topograph’s API is HTTP-only; TLS termination (when needed) happens at the Gateway listener.

Metrics endpoint

The /metrics endpoint exposes Prometheus metrics on the same port. Enable the bundled ServiceMonitor for Prometheus Operator scraping:

1
serviceMonitor:
2
  enabled: true

This creates a monitoring.coreos.com/v1 ServiceMonitor selecting the Topograph Service.

NetworkPolicy

The chart does not ship a NetworkPolicy template at this time. For clusters that enforce NetworkPolicy, a recommended starting point allows ingress to port 49021 only from the Topograph namespace and from the Prometheus scraper namespace (when serviceMonitor.enabled: true), and denies all other ingress. Replace <topograph-namespace> with the namespace you deployed the chart into and <prometheus-namespace> with the namespace running your Prometheus instance:

1
apiVersion: networking.k8s.io/v1
2
kind: NetworkPolicy
3
metadata:
4
  name: topograph
5
  namespace: <topograph-namespace>
6
spec:
7
  podSelector:
8
    matchLabels:
9
      app.kubernetes.io/name: topograph
10
  policyTypes: [Ingress]
11
  ingress:
12
    - from:
13
        - namespaceSelector:
14
            matchLabels:
15
              kubernetes.io/metadata.name: <topograph-namespace>
16
      ports:
17
        - protocol: TCP
18
          port: 49021
19
    - from:
20
        - namespaceSelector:
21
            matchLabels:
22
              kubernetes.io/metadata.name: <prometheus-namespace>
23
      ports:
24
        - protocol: TCP
25
          port: 49021

Apply alongside the chart. A bundled template is under consideration.

Validation and Testing

The Helm chart ships two layers of validation for operators.

Schema-backed values validation at install time

charts/topograph/values.schema.json is a JSON Schema that Helm enforces during helm template and helm install. Misspelled provider names, wrong engine enums, out-of-range replica counts, bad pull policies, invalid service port numbers, and malformed serviceMonitor / tests / ingress shapes are rejected with a clear at '/field/path': <explanation> error before any template rendering happens. For example, --set global.provider.name=bogus produces:

Error: values don't meet the specifications of the schema(s) in the following chart(s):
topograph:
- at '/global/provider/name': value must be one of 'aws', 'aws-sim', 'cw', 'dra', 'dsx-sim', 'gcp', 'gcp-sim', 'infiniband-bm', 'infiniband-k8s', 'lambdai', 'lambdai-sim', 'nebius', 'netq', 'oci', 'oci-imds', 'oci-sim', 'test'

The schema is deliberately narrow: per-provider credential requirements are documented in prose in docs/providers/<name>.md rather than enforced in the schema, because credential field sets evolve with upstream provider changes.

helm test hooks

The chart ships two helm test hook pods (charts/topograph/templates/tests/) that probe the running Topograph API via its in-cluster Service after install:

• test-healthz — GET /healthz; expects HTTP 200 (liveness check).
• test-metrics — GET /metrics; expects HTTP 200 and the topograph_version Prometheus metric present in the response body (topograph-specific identity check; distinguishes topograph from any other service that might return 200).

Run the suite after installation:

$
helm install topograph oci://ghcr.io/nvidia/topograph/topograph \
>
  --namespace topograph --create-namespace
$
helm test topograph --namespace topograph

Expected output:

TEST SUITE:     topograph-test-healthz
Phase:          Succeeded
TEST SUITE:     topograph-test-metrics
Phase:          Succeeded

Both pods clean themselves up on success (helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded). On failure the pods persist so operators can inspect logs via kubectl logs -n <ns> <pod-name>; the next helm test invocation replaces the prior pods.

Air-gapped environments. The test pods reuse the main topograph image by default — they invoke busybox wget from the Alpine-based ghcr.io/nvidia/topograph image already pulled by the Deployment. No additional image pull is required by helm test, so the suite works in environments where only mirrored images are reachable. Operators running a topograph image variant without busybox wget (notably the ubuntu-based IB variant built from Dockerfile.ib) can either override the test image:

1
tests:
2
  image:
3
    repository: my-registry.internal/wget
4
    tag: v1.0.0

or disable the test hooks entirely:

1
tests:
2
  enabled: false

Chart README

For installation, prerequisites, values reference, and configuration examples, see charts/topograph/README.md — also surfaced via helm show readme oci://ghcr.io/nvidia/topograph/topograph.
