Topograph Slinky Engine

Overview

The slinky engine is Topograph’s engine for SLURM clusters running on Kubernetes. It is designed to work with the Slinky project - an open-source set of integration tools by SchedMD that brings SLURM capabilities into Kubernetes environments.

While the Slinky project provides comprehensive SLURM-on-Kubernetes orchestration (operators, schedulers, exporters, etc.), Topograph’s slinky engine complements this ecosystem by providing topology discovery and configuration management for SLURM clusters running in Kubernetes.

The Slinky engine bridges the gap between Kubernetes infrastructure and SLURM workload management by updating SLURM topology configurations stored in Kubernetes ConfigMaps.

How It Works

1. Node Discovery: Queries Kubernetes nodes and SLURM pods to build a topology map
2. Topology Generation: Creates SLURM topology configuration (tree or block format)
3. ConfigMap Management: Updates the specified ConfigMap with new topology data including metadata annotations for tracking and debugging

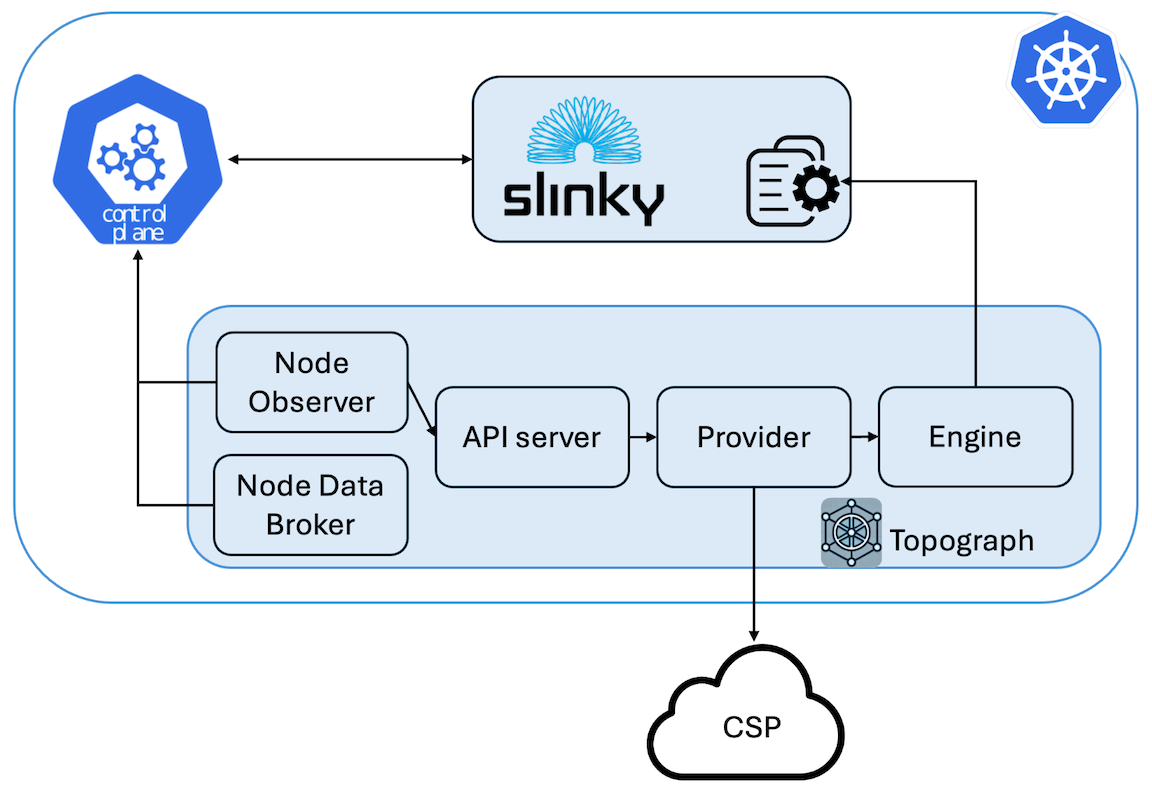

<p align=“center”><img src=”../assets/topograph-slinky.png” width=“600” alt=“Design” /></p>

Configuration

Topograph is deployed as a standard Kubernetes application using a Helm chart. Topograph is configured using a configuration file stored in a ConfigMap and mounted to the Topograph container at /etc/topograph/topograph-config.yaml. In addition, when sending a topology request, the request payload includes additional parameters. The provider and engine are defined as top-level Helm values, as shown below:

Shared with the Kubernetes engine: because the Topograph API server runs as a Kubernetes workload regardless of the engine, anything about the chart’s deployment surface — values-schema validation, helm test hooks, access patterns (ClusterIP port-forward, Ingress, Gateway API HTTPRoute), Prometheus ServiceMonitor, NetworkPolicy guidance, and the chart’s README.md — is shared with the Kubernetes engine and documented authoritatively in engines/k8s.md and engines/k8s.md#exposing-the-topograph-api. Those sections apply equally to Slinky deployments.

1
provider:
2
  # Name of the cloud provider or on-prem environment.
3
  name: aws
4
engine:
5
  name: slinky
6
  params:
7
    namespace: ns-slinky                     # Namespace where Slinky is running
8
    podSelector:                             # Label selector for pods running SLURM nodes
9
      matchLabels:
10
        app.kubernetes.io/component: compute
11
    plugin: topology/block                   # Name of the topology plugin
12
    blockSizes: [4]                          # (Optional) Block size for the block topology plugin
13
    blockName:                               # (Optional) Derive block names from node names
14
      nodeNameRegexp: 'd([0-9]{2})-r([0-9]{2})'
15
      format: 'domain${1}_rack${2}'
16
    topologyConfigmapName: slurm-config      # Name of the ConfigMap containing the topology config
17
    topologyConfigPath: topology.conf        # Key in the ConfigMap for the topology config

When blockSizes is omitted for topology/block, the Slinky engine uses the same automatic block-size inference as the SLURM engine.

Per-partition topologies

When per-partition topologies are configured, each entry may declare how its node membership is resolved:

nodes and podSelector are mutually exclusive on the same entry; configuring both returns a validation error at engine load time.

1
engine:
2
  name: slinky
3
  params:
4
    namespace: ns-slinky
5
    podSelector:
6
      matchLabels:
7
        app.kubernetes.io/component: compute
8
    topologies:
9
      gpu-partition:
10
        plugin: topology/block
11
        blockSizes: [8, 16]
12
        blockName:
13
          nodeNameRegexp: 'd([0-9]{2})-r([0-9]{2})'
14
          format: 'domain${1}_rack${2}'
15
        podSelector:                                 # partition membership by pod labels
16
          matchLabels:
17
            app.kubernetes.io/component: compute
18
            slurm.partition: gpu
19
      cpu-partition:
20
        plugin: topology/tree
21
        nodes: ["cpu-[001-032]"]                     # explicit list
22
      default:
23
        plugin: topology/flat
24
        clusterDefault: true                         # no podSelector, no nodes → scontrol fallback

blockName.nodeNameRegexp uses Go regular-expression syntax and may match anywhere in the node name; use anchors when needed. blockName.format uses Go regexp expansion syntax, including numeric captures such as ${1} and named captures such as ${domain}. Every node in a non-empty block must match and produce the same non-empty name, and names must be unique across blocks. Invalid expressions, unmatched nodes, inconsistent names within a block, and duplicate names are rejected. Empty complemented blocks retain their generated names.

Using an existing Node label for block topology

Set acceleratorDomainSourceLabel when another component already publishes the desired accelerator domain as a Kubernetes Node label. For topology/block, the Slinky engine uses that label instead of accelerator domains returned by the provider. There is no default source label, and existing labels receive no special treatment when the parameter is omitted.

The option only affects block topology. Tree topology still comes from the selected provider, and the engine still maps Kubernetes nodes to Slurm nodes through the configured slurmd pod selector.

1
engine:
2
  name: slinky
3
  params:
4
    namespace: ns-slinky
5
    podSelector:
6
      matchLabels:
7
        app.kubernetes.io/component: compute
8
    plugin: topology/block
9
    blockSizes: [8, 16]
10
    topologyConfigmapName: slurm-config
11
    topologyConfigPath: topology.conf
12
    acceleratorDomainSourceLabel: example.com/accelerator-domain

Nodes without the configured label retain the existing label-backed behavior: they are skipped rather than falling back individually to provider domains. If no usable domains can be built from the configured label and the Topograph instance annotation, topology generation fails with an actionable 502 error that reports the configured key and why nodes were skipped. Replacing provider domains also suppresses provider accelerator sub-domains.

For example, an operator may explicitly select nvidia.com/gpu.clique, but the Slinky engine no longer assumes that key.

Kubernetes API rate limiting

The Slinky engine uses client-go’s default Kubernetes client limits of 5 QPS and a burst of 10 unless deployment-level limits are configured. Dynamic-node reconciliation compares each desired topology annotation with the Node objects returned by the cluster-wide list, skips nodes that are already current, and patches only changed annotations. This avoids a separate Node GET for every node during steady-state reconciliation.

Large reconciliations that legitimately change many nodes can still exceed the default client-side limit. Increase the limits conservatively and monitor API server latency and throttling:

1
kubeClient:
2
  qps: 50
3
  burst: 100

The chart exposes these values as KUBE_QPS and KUBE_BURST to the DRA provider and the Kubernetes, NFD, and Slinky engines. Outside Helm, set those environment variables on the Topograph process. Kubernetes client limits are deployment settings and cannot be overridden by a topology request. Increasing the limits reduces client-side waiting but does not reduce API-server load; narrow nodeSelector and podSelector values remain the preferred first mitigation.

ConfigMap Annotations

Slinky automatically adds metadata annotations to managed ConfigMaps for improved observability:

1
apiVersion: v1
2
kind: ConfigMap
3
metadata:
4
  name: slurm-config
5
  annotations:
6
    # Topograph metadata
7
    topograph.run/engine: "slinky"
8
    topograph.run/topology-managed-by: "topograph"
9
    topograph.run/last-updated: "2024-01-01T10:11:00Z"
10
    topograph.run/slurm-namespace: "slurm"
11
    topograph.run/plugin: "topology/tree"
12
    topograph.run/block-sizes: "8,16,32"
13
14
    # Original annotations preserved
15
    meta.helm.sh/release-name: slurm
16
    meta.helm.sh/release-namespace: slurm
17
data:
18
  topology.conf: |
19
    SwitchName=sw1 Switches=sw[2-3]
20
    SwitchName=sw2 Nodes=node[1-4]
21
    SwitchName=sw3 Nodes=node[5-8]

Annotation Reference

Usage Examples

Topograph runs autonomously in Kubernetes environments, including Slinky. When the Node Observer detects a selected node or pod change, or sees the Topograph API server become ready after startup or a container restart, it sends topology requests to the API server. The API server then triggers an update to the network topology information within the cluster. However, if you want to manually trigger network topology discovery, you can send HTTP requests to the API server, as shown below.

Topology Configuration in the Tree Format

$
curl -X POST -H "Content-Type: application/json" \
>
  -d '{
>
    "provider": {"name": "aws"},
>
    "engine": {
>
      "name": "slinky",
>
      "params": {
>
        "namespace": "ns-slinky",
>
        "podSelector": {
>
          "matchLabels": {
>
            "app.kubernetes.io/component": "compute"
>
          }
>
        },
>
        "topologyConfigPath": "topology.conf",
>
        "topologyConfigmapName": "slurm-config"
>
      }
>
    }
>
  }' \
>
  http://localhost:49021/v1/generate

Topology Configuration in the Block Format

$
curl -X POST -H "Content-Type: application/json" \
>
  -d '{
>
    "provider": {"name": "aws"},
>
    "engine": {
>
      "name": "slinky",
>
      "params": {
>
        "namespace": "ns-slinky",
>
        "podSelector": {
>
          "matchLabels": {
>
            "app.kubernetes.io/component": "compute"
>
          }
>
        },
>
        "topologyConfigPath": "topology.conf",
>
        "topologyConfigmapName": "slurm-config",
>
        "plugin": "topology/block",
>
        "blockSizes": [8,16,32]
>
      }
>
    }
>
  }' \
>
  http://localhost:49021/v1/generate
