#include <stdint.h>

Include dependency graph for Types.h:

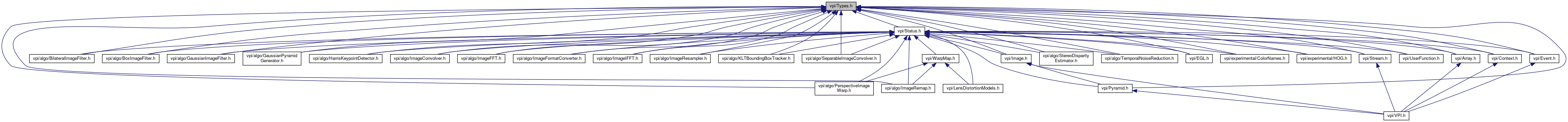

This graph shows which files directly or indirectly include this file:

Data Structures
struct	VPIParallelForConfig
	Stores the ParallelFor configuration. More...

struct	VPIKeypoint
	Stores a keypoint coordinate. More...

struct	VPIHomographyTransform2D
	Stores a generic 2D homography transform. More...

struct	VPIBoundingBox
	Stores a generic 2D bounding box. More...

struct	VPIKLTTrackedBoundingBox
	Stores a bounding box that is being tracked by KLT Tracker. More...

Macros
Memory creation flags.
These flags can be used when creating images, pyramids or arrays.
#define	VPI_BACKEND_DISABLE_PVA (0x01)
	Memory won't be used in a PVA stream.

#define	VPI_BACKEND_DISABLE_CPU (0x02)
	Memory won't be used in a CPU stream.

#define	VPI_BACKEND_DISABLE_CUDA (0x04)
	Memory won't be used in a CUDA stream.

#define	VPI_BACKEND_ONLY_PVA (VPI_BACKEND_DISABLE_CUDA \| VPI_BACKEND_DISABLE_CPU)
	Memory will only be used in a PVA stream.

#define	VPI_BACKEND_ONLY_CPU (VPI_BACKEND_DISABLE_PVA \| VPI_BACKEND_DISABLE_CUDA)
	Memory will only be used in a CPU stream.

#define	VPI_BACKEND_ONLY_CUDA (VPI_BACKEND_DISABLE_PVA \| VPI_BACKEND_DISABLE_CPU)
	Memory will only be used in a CUDA stream.

Typedefs
typedef void(*	VPIParallelTask) (int taskId, int threadId, void *vpiData)
	Parallel task function pointer type.

typedef void(*	VPIParallelForCallback) (VPIParallelTask task, int taskCount, void vpiData, void userData)
	Parallel for callback function pointer type. More...

typedef void *	VPINativeThreadHandle
	A handle to OS-specific thread handle.

typedef struct VPIArrayImpl *	VPIArray
	A handle to an array.

typedef struct VPIContextImpl *	VPIContext
	A handle to a context.

typedef struct VPIEventImpl *	VPIEvent
	A handle to an event.

typedef struct VPIStreamImpl *	VPIStream
	A handle to a stream.

typedef struct VPIImageImpl *	VPIImage
	A handle to an image.

typedef struct VPIPyramidImpl *	VPIPyramid
	A handle to an image pyramid.

typedef struct VPIPayloadImpl *	VPIPayload
	A handle to an algorithm payload.

typedef VPIStatus(*	VPIUserFunction) (void *)
	Pointer to user function. More...

typedef float	VPICameraIntrinsic[2][3]
	Camera intrinsic matrix. More...

typedef float	VPICameraExtrinsic[3][4]
	Camera extrinsic matrix. More...

typedef float	VPIPerspectiveTransform[3][3]
	Represents a 2D perspective transform. More...

Enumerations
enum	VPIImageType { VPI_IMAGE_TYPE_INVALID = 0, VPI_IMAGE_TYPE_U8, VPI_IMAGE_TYPE_S8, VPI_IMAGE_TYPE_U16, VPI_IMAGE_TYPE_S16, VPI_IMAGE_TYPE_NV12, VPI_IMAGE_TYPE_RGB8, VPI_IMAGE_TYPE_RGBA8, VPI_IMAGE_TYPE_F32, VPI_IMAGE_TYPE_2F32, VPI_IMAGE_TYPE_BGR8, VPI_IMAGE_TYPE_BGRA8, VPI_IMAGE_TYPE_Y8 = VPI_IMAGE_TYPE_U8, VPI_IMAGE_TYPE_Y8I = VPI_IMAGE_TYPE_S8, VPI_IMAGE_TYPE_Y16 = VPI_IMAGE_TYPE_U16, VPI_IMAGE_TYPE_Y16I = VPI_IMAGE_TYPE_S16, VPI_IMAGE_TYPE_1C_F32 = VPI_IMAGE_TYPE_F32, VPI_IMAGE_TYPE_2C_F32 = VPI_IMAGE_TYPE_2F32 }
	Image formats. More...

enum	VPIPixelType { VPI_PIXEL_TYPE_DEFAULT = 0, VPI_PIXEL_TYPE_INVALID, VPI_PIXEL_TYPE_U8, VPI_PIXEL_TYPE_S8, VPI_PIXEL_TYPE_U16, VPI_PIXEL_TYPE_S16, VPI_PIXEL_TYPE_2U8, VPI_PIXEL_TYPE_3U8, VPI_PIXEL_TYPE_4U8, VPI_PIXEL_TYPE_F32, VPI_PIXEL_TYPE_2F32, VPI_PIXEL_TYPE_1C_U8 = VPI_PIXEL_TYPE_U8, VPI_PIXEL_TYPE_1C_S8 = VPI_PIXEL_TYPE_S8, VPI_PIXEL_TYPE_1C_U16 = VPI_PIXEL_TYPE_U16, VPI_PIXEL_TYPE_1C_S16 = VPI_PIXEL_TYPE_S16, VPI_PIXEL_TYPE_2C_U8 = VPI_PIXEL_TYPE_2U8, VPI_PIXEL_TYPE_3C_U8 = VPI_PIXEL_TYPE_3U8, VPI_PIXEL_TYPE_4C_U8 = VPI_PIXEL_TYPE_4U8, VPI_PIXEL_TYPE_1C_F32 = VPI_PIXEL_TYPE_F32, VPI_PIXEL_TYPE_2C_F32 = VPI_PIXEL_TYPE_2F32 }
	Pixel formats. More...

enum	VPIBoundaryCond { VPI_BOUNDARY_COND_ZERO, VPI_BOUNDARY_COND_CLAMP }
	Image boundary condition specify how pixel values outside of the image domain should be constructed. More...

enum	VPIArrayType { VPI_ARRAY_TYPE_INVALID = 0, VPI_ARRAY_TYPE_S8, VPI_ARRAY_TYPE_U8, VPI_ARRAY_TYPE_S16, VPI_ARRAY_TYPE_U16, VPI_ARRAY_TYPE_U32, VPI_ARRAY_TYPE_KEYPOINT, VPI_ARRAY_TYPE_HOMOGRAPHY_TRANSFORM_2D, VPI_ARRAY_TYPE_KLT_TRACKED_BOUNDING_BOX }
	Array element formats. More...

enum	VPIInterpolationType { VPI_INTERP_NEAREST, VPI_INTERP_LINEAR_PRECISE, VPI_INTERP_LINEAR_FAST, VPI_INTERP_LINEAR = VPI_INTERP_LINEAR_FAST, VPI_INTERP_CATMULL_ROM_PRECISE, VPI_INTERP_CATMULL_ROM_FAST, VPI_INTERP_CATMULL_ROM = VPI_INTERP_CATMULL_ROM_FAST }
	Interpolation types supported by several algorithms. More...

enum	VPIConversionPolicy { VPI_CONVERSION_INVALID = 0, VPI_CONVERSION_CAST, VPI_CONVERSION_CLAMP }
	Policy used when converting between image types. More...

enum	VPILockMode { VPI_LOCK_READ = 1, VPI_LOCK_WRITE = 2, VPI_LOCK_READ_WRITE = 3 }
	Defines the lock modes used by memory lock functions. More...

enum	VPIStatus { VPI_SUCCESS = 0, VPI_ERROR_NOT_IMPLEMENTED, VPI_ERROR_INVALID_ARGUMENT, VPI_ERROR_INVALID_IMAGE_TYPE, VPI_ERROR_INVALID_ARRAY_TYPE, VPI_ERROR_INVALID_PYRAMID_TYPE, VPI_ERROR_INVALID_PAYLOAD_TYPE, VPI_ERROR_INVALID_OPERATION, VPI_ERROR_INVALID_CONTEXT, VPI_ERROR_DEVICE, VPI_ERROR_NOT_READY, VPI_ERROR_BUFFER_LOCKED, VPI_ERROR_OUT_OF_MEMORY, VPI_ERROR_INTERNAL }
	Status codes. More...

enum	VPIDeviceType { VPI_DEVICE_TYPE_INVALID, VPI_DEVICE_TYPE_CPU, VPI_DEVICE_TYPE_CUDA, VPI_DEVICE_TYPE_PVA }
	Device types. More...

Detailed Description

Defines all types needed for programming with VPI.

Definition in file Types.h.

Enumeration Type Documentation

◆ VPIArrayType

enum VPIArrayType

Array element formats.

Enumerator
VPI_ARRAY_TYPE_INVALID	Signal type conversion errors.
VPI_ARRAY_TYPE_S8	signed 8-bit.
VPI_ARRAY_TYPE_U8	unsigned 8-bit.
VPI_ARRAY_TYPE_S16	signed 16-bit.
VPI_ARRAY_TYPE_U16	unsigned 16-bit.
VPI_ARRAY_TYPE_U32	unsigned 32-bit.
VPI_ARRAY_TYPE_KEYPOINT	VPIKeypoint element.
VPI_ARRAY_TYPE_HOMOGRAPHY_TRANSFORM_2D	VPIHomographyTransform2D element.
VPI_ARRAY_TYPE_KLT_TRACKED_BOUNDING_BOX	VPIKLTTrackedBoundingBox element.

Definition at line 277 of file Types.h.
