KLT Bounding Box Tracker

Overview

This application tracks bounding boxes on an input video, draws them on each frame and saves the result in video file. The user can define what backend will be used for processing.

Note

The output will be in grayscale as the algorithm currently doesn't support color inputs.

Instructions

The usage is:

./vpi_sample_06_klt_tracker <backend> <input video> <input bboxes>

where

• backend: either cpu, cuda or pva; it defines the backend that will perform the processing.
• input video: input video file name, it accepts all video types that OpenCV's cv::VideoCapture accepts.
• input bboxes: file with input bounding boxes and in what frame they appear. The file is composed of multiple lines with the following format:

     <frame> <bbox_x> <bbox_y> <bbox_width> <bbox_height>

  It's important that the lines are sorted with frames in ascending order.

Here's one example:

./vpi_sample_06_klt_tracker cuda ../assets/dashcam.mp4 ../assets/dashcam_bboxes.txt

This is using the CUDA backend and one of the provided sample videos and bounding boxes. It'll render the tracked bounding boxes into klt_cuda.mp4.

Note

If using OpenCV-2.4 or older (i.e. on Ubuntu 16.04), output file is klt_cuda.avi.

Results

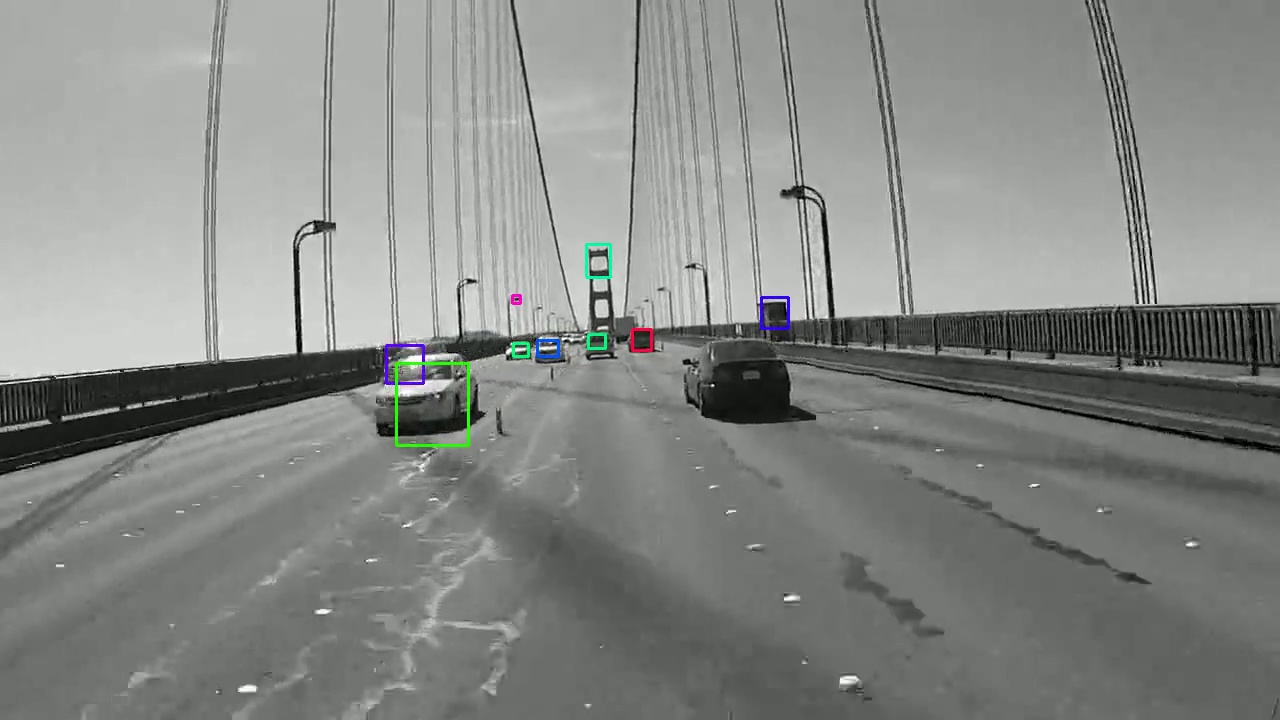

Tracking Result

Note

Video output requires HTML5-capable browser that supports H.264 mp4 video decoding.

Source Code

For convenience, here's the code that is also installed in the samples directory.

Language: C++

#include <opencv2/core/version.hpp>
#if CV_MAJOR_VERSION >= 3
#    include <opencv2/imgcodecs.hpp>
#    include <opencv2/videoio.hpp>
#else
#    include <opencv2/highgui/highgui.hpp>
#endif

#include <opencv2/imgproc/imgproc.hpp>
#include <vpi/OpenCVInterop.hpp>

#include <vpi/Array.h>
#include <vpi/Image.h>
#include <vpi/Status.h>
#include <vpi/Stream.h>
#include <vpi/algo/KLTFeatureTracker.h>

#include <cstring> // for memset
#include <fstream>
#include <iostream>
#include <map>
#include <sstream>
#include <vector>

#define CHECK_STATUS(STMT)                                    \
    do                                                        \
    {                                                         \
        VPIStatus status = (STMT);                            \
        if (status != VPI_SUCCESS)                            \
        {                                                     \
            char buffer[VPI_MAX_STATUS_MESSAGE_LENGTH];       \
            vpiGetLastStatusMessage(buffer, sizeof(buffer));  \
            std::ostringstream ss;                            \
            ss << vpiStatusGetName(status) << ": " << buffer; \
            throw std::runtime_error(ss.str());               \
        }                                                     \
    } while (0);

// Utility to draw the bounding boxes into an image and save it to disk.
static cv::Mat WriteKLTBoxes(VPIImage img, VPIArray boxes, VPIArray preds)
{
    // Convert img into a cv::Mat
    cv::Mat out;
    {
        VPIImageData imgdata;
        CHECK_STATUS(vpiImageLock(img, VPI_LOCK_READ, &imgdata));

        int cvtype;
        switch (imgdata.format)
        {
        case VPI_IMAGE_FORMAT_U8:
            cvtype = CV_8U;
            break;

        case VPI_IMAGE_FORMAT_S8:
            cvtype = CV_8S;
            break;

        case VPI_IMAGE_FORMAT_U16:
            cvtype = CV_16UC1;
            break;

        case VPI_IMAGE_FORMAT_S16:
            cvtype = CV_16SC1;
            break;

        default:
            throw std::runtime_error("Image type not supported");
        }

        cv::Mat cvimg(imgdata.planes[0].height, imgdata.planes[0].width, cvtype, imgdata.planes[0].data,
                      imgdata.planes[0].pitchBytes);

        if (cvimg.type() == CV_16U)
        {
            cvimg.convertTo(out, CV_8U);
            cvimg = out;
            out   = cv::Mat();
        }

        cvtColor(cvimg, out, cv::COLOR_GRAY2BGR);

        CHECK_STATUS(vpiImageUnlock(img));
    }

    // Now draw the bounding boxes.
    VPIArrayData boxdata;
    CHECK_STATUS(vpiArrayLock(boxes, VPI_LOCK_READ, &boxdata));

    VPIArrayData preddata;
    CHECK_STATUS(vpiArrayLock(preds, VPI_LOCK_READ, &preddata));

    auto *pboxes = reinterpret_cast<VPIKLTTrackedBoundingBox *>(boxdata.data);
    auto *ppreds = reinterpret_cast<VPIHomographyTransform2D *>(preddata.data);

    // Use random high-saturated colors
    static std::vector<cv::Vec3b> colors;
    if ((int)colors.size() != *boxdata.sizePointer)
    {
        colors.resize(*boxdata.sizePointer);

        cv::RNG rand(1);
        for (size_t i = 0; i < colors.size(); ++i)
        {
            colors[i] = cv::Vec3b(rand.uniform(0, 180), 255, 255);
        }
        cvtColor(colors, colors, cv::COLOR_HSV2BGR);
    }

    // For each tracked bounding box...
    for (int i = 0; i < *boxdata.sizePointer; ++i)
    {
        if (pboxes[i].trackingStatus == 1)
        {
            continue;
        }

        float x, y, w, h;
        x = pboxes[i].bbox.xform.mat3[0][2] + ppreds[i].mat3[0][2];
        y = pboxes[i].bbox.xform.mat3[1][2] + ppreds[i].mat3[1][2];
        w = pboxes[i].bbox.width * pboxes[i].bbox.xform.mat3[0][0] * ppreds[i].mat3[0][0];
        h = pboxes[i].bbox.height * pboxes[i].bbox.xform.mat3[1][1] * ppreds[i].mat3[1][1];

        rectangle(out, cv::Rect(x, y, w, h), cv::Scalar(colors[i][0], colors[i][1], colors[i][2]), 2);
    }

    CHECK_STATUS(vpiArrayUnlock(preds));
    CHECK_STATUS(vpiArrayUnlock(boxes));

    return out;
}

int main(int argc, char *argv[])
{
    // OpenCV image that will be wrapped by a VPIImage.
    // Define it here so that it's destroyed *after* wrapper is destroyed
    cv::Mat cvTemplate, cvReference;

    // Arrays that will store our input bboxes and predicted transform.
    VPIArray inputBoxList = NULL, inputPredList = NULL;

    // Other VPI objects that will be used
    VPIStream stream         = NULL;
    VPIArray outputBoxList   = NULL;
    VPIArray outputEstimList = NULL;
    VPIPayload klt           = NULL;
    VPIImage imgReference    = NULL;
    VPIImage imgTemplate     = NULL;

    int retval = 0;
    try
    {
        if (argc != 4)
        {
            throw std::runtime_error(std::string("Usage: ") + argv[0] + " <cpu|pva|cuda> <input_video> <bbox descr>");
        }

        std::string strBackend     = argv[1];
        std::string strInputVideo  = argv[2];
        std::string strInputBBoxes = argv[3];

        // Load the input video
        cv::VideoCapture invid;
        if (!invid.open(strInputVideo))
        {
            throw std::runtime_error("Can't open '" + strInputVideo + "'");
        }

        // Open the output video for writing using input's characteristics
#if CV_MAJOR_VERSION >= 3
        int w                      = invid.get(cv::CAP_PROP_FRAME_WIDTH);
        int h                      = invid.get(cv::CAP_PROP_FRAME_HEIGHT);
        int fourcc                 = cv::VideoWriter::fourcc('a', 'v', 'c', '1');
        double fps                 = invid.get(cv::CAP_PROP_FPS);
        std::string extOutputVideo = ".mp4";
#else
        // MP4 support with OpenCV-2.4 has issues, we'll use
        // avi/mpeg instead.
        int w                      = invid.get(CV_CAP_PROP_FRAME_WIDTH);
        int h                      = invid.get(CV_CAP_PROP_FRAME_HEIGHT);
        int fourcc                 = CV_FOURCC('M', 'P', 'E', 'G');
        double fps                 = invid.get(CV_CAP_PROP_FPS);
        std::string extOutputVideo = ".avi";
#endif

        cv::VideoWriter outVideo("klt_" + strBackend + extOutputVideo, fourcc, fps, cv::Size(w, h));
        if (!outVideo.isOpened())
        {
            throw std::runtime_error("Can't create output video");
        }

        // Load the bounding boxes
        // Format is: <frame number> <bbox_x> <bbox_y> <bbox_width> <bbox_height>
        // Important assumption: bboxes must be sorted with increasing frame numbers.

        // These arrays will actually wrap these vectors.
        std::vector<VPIKLTTrackedBoundingBox> bboxes;
        int32_t bboxesSize = 0;
        std::vector<VPIHomographyTransform2D> preds;
        int32_t predsSize = 0;

        // Stores how many bboxes there are in each frame. Only
        // stores when the bboxes count change.
        std::map<int, size_t> bboxes_size_at_frame; // frame -> bbox count

        // PVA requires that array capacity is 128.
        bboxes.reserve(128);
        preds.reserve(128);

        // Read bounding boxes
        {
            std::ifstream in(strInputBBoxes);
            if (!in)
            {
                throw std::runtime_error("Can't open '" + strInputBBoxes + "'");
            }

            // For each bounding box,
            int frame, x, y, w, h;
            while (in >> frame >> x >> y >> w >> h)
            {
                if (bboxes.size() == 64)
                {
                    throw std::runtime_error("Too many bounding boxes");
                }

                // Convert the axis-aligned bounding box into our tracking
                // structure.

                VPIKLTTrackedBoundingBox track = {};
                // scale
                track.bbox.xform.mat3[0][0] = 1;
                track.bbox.xform.mat3[1][1] = 1;
                // position
                track.bbox.xform.mat3[0][2] = x;
                track.bbox.xform.mat3[1][2] = y;
                // must be 1
                track.bbox.xform.mat3[2][2] = 1;

                track.bbox.width     = w;
                track.bbox.height    = h;
                track.trackingStatus = 0; // valid tracking
                track.templateStatus = 1; // must update

                bboxes.push_back(track);

                // Identity predicted transform.
                VPIHomographyTransform2D xform = {};
                xform.mat3[0][0]               = 1;
                xform.mat3[1][1]               = 1;
                xform.mat3[2][2]               = 1;
                preds.push_back(xform);

                bboxes_size_at_frame[frame] = bboxes.size();
            }

            if (!in && !in.eof())
            {
                throw std::runtime_error("Can't parse bounding boxes, stopped at bbox #" +
                                         std::to_string(bboxes.size()));
            }

            // Wrap the input arrays into VPIArray's
            VPIArrayData data = {};
            data.format       = VPI_ARRAY_TYPE_KLT_TRACKED_BOUNDING_BOX;
            data.capacity     = bboxes.capacity();
            data.sizePointer  = &bboxesSize;
            data.data         = &bboxes[0];
            CHECK_STATUS(vpiArrayCreateHostMemWrapper(&data, 0, &inputBoxList));

            data.format      = VPI_ARRAY_TYPE_HOMOGRAPHY_TRANSFORM_2D;
            data.sizePointer = &predsSize;
            data.data        = &preds[0];
            CHECK_STATUS(vpiArrayCreateHostMemWrapper(&data, 0, &inputPredList));
        }

        // Now parse the backend
        VPIBackend backend;

        if (strBackend == "cpu")
        {
            backend = VPI_BACKEND_CPU;
        }
        else if (strBackend == "cuda")
        {
            backend = VPI_BACKEND_CUDA;
        }
        else if (strBackend == "pva")
        {
            backend = VPI_BACKEND_PVA;
        }
        else
        {
            throw std::runtime_error("Backend '" + strBackend +
                                     "' not recognized, it must be either cpu, cuda or pva.");
        }

        // Create the stream for the given backend.
        CHECK_STATUS(vpiStreamCreate(backend, &stream));

        // Helper function to fetch a frame from input
        int nextFrame   = 0;
        auto fetchFrame = [&invid, &nextFrame, backend]() {
            cv::Mat frame;
            if (!invid.read(frame))
            {
                return cv::Mat();
            }

            // We only support grayscale inputs
            if (frame.channels() == 3)
            {
                cvtColor(frame, frame, cv::COLOR_BGR2GRAY);
            }

            if (backend == VPI_BACKEND_PVA)
            {
                // PVA only supports 16-bit unsigned inputs,
                // where each element is in 0-255 range, so
                // no rescaling needed.
                cv::Mat aux;
                frame.convertTo(aux, CV_16U);
                frame = aux;
            }
            else
            {
                assert(frame.type() == CV_8U);
            }

            ++nextFrame;
            return frame;
        };

        // Fetch the first frame and wrap it into a VPIImage.
        // Templates will be based on this frame.
        cvTemplate = fetchFrame();
        CHECK_STATUS(vpiImageCreateOpenCVMatWrapper(cvTemplate, 0, &imgTemplate));

        // Create the reference image wrapper. Let's wrap the cvTemplate for now just
        // to create the wrapper. Later we'll set it to wrap the actual reference image.
        CHECK_STATUS(vpiImageCreateOpenCVMatWrapper(cvTemplate, 0, &imgReference));

        VPIImageFormat imgFormat;
        CHECK_STATUS(vpiImageGetFormat(imgTemplate, &imgFormat));

        // Using this first frame's characteristics, create a KLT Bounding Box Tracker payload.
        // We're limiting the template dimensions to 64x64.
        CHECK_STATUS(vpiCreateKLTFeatureTracker(backend, cvTemplate.cols, cvTemplate.rows, imgFormat, NULL, &klt));

        // Parameters we'll use. No need to change them on the fly, so just define them here.
        VPIKLTFeatureTrackerParams params = {};
        params.numberOfIterationsScaling  = 20;
        params.nccThresholdUpdate         = 0.8f;
        params.nccThresholdKill           = 0.6f;
        params.nccThresholdStop           = 1.0f;
        params.maxScaleChange             = 0.2f;
        params.maxTranslationChange       = 1.5f;
        params.trackingType               = VPI_KLT_INVERSE_COMPOSITIONAL;

        // Output array with estimated bbox for current frame.
        CHECK_STATUS(vpiArrayCreate(128, VPI_ARRAY_TYPE_KLT_TRACKED_BOUNDING_BOX, 0, &outputBoxList));

        // Output array with estimated transform of input bbox to match output bbox.
        CHECK_STATUS(vpiArrayCreate(128, VPI_ARRAY_TYPE_HOMOGRAPHY_TRANSFORM_2D, 0, &outputEstimList));

        size_t curNumBoxes = 0;

        do
        {
            size_t curFrame = nextFrame - 1;

            // Get the number of bounding boxes in current frame.
            auto tmp          = --bboxes_size_at_frame.upper_bound(curFrame);
            size_t bbox_count = tmp->second;

            assert(bbox_count >= curNumBoxes && "input bounding boxes must be sorted by frame");

            // Does current frame have new bounding boxes?
            if (curNumBoxes != bbox_count)
            {
                // Update the input array sizes, the new frame is already there as we populated
                // these arrays with all input bounding boxes.
                CHECK_STATUS(vpiArrayLock(inputBoxList, VPI_LOCK_READ_WRITE, NULL));
                CHECK_STATUS(vpiArraySetSize(inputBoxList, bbox_count));
                CHECK_STATUS(vpiArrayUnlock(inputBoxList));

                CHECK_STATUS(vpiArrayLock(inputPredList, VPI_LOCK_READ_WRITE, NULL));
                CHECK_STATUS(vpiArraySetSize(inputPredList, bbox_count));
                CHECK_STATUS(vpiArrayUnlock(inputPredList));

                for (size_t i = 0; i < bbox_count - curNumBoxes; ++i)
                {
                    std::cout << curFrame << " -> new " << curNumBoxes + i << std::endl;
                }
                assert(bbox_count <= bboxes.capacity());
                assert(bbox_count <= preds.capacity());

                curNumBoxes = bbox_count;
            }

            // Save this frame to disk.
            outVideo << WriteKLTBoxes(imgTemplate, inputBoxList, inputPredList);

            // Fetch a new frame
            cvReference = fetchFrame();

            // Video ended?
            if (cvReference.data == NULL)
            {
                // Just end gracefully.
                break;
            }

            // Make the reference wrapper point to the reference frame
            CHECK_STATUS(vpiImageSetWrappedOpenCVMat(imgReference, cvReference));

            // Estimate the bounding boxes in current frame (reference) given their position in previous
            // frame (template).
            CHECK_STATUS(vpiSubmitKLTFeatureTracker(stream, backend, klt, imgTemplate, inputBoxList, inputPredList,
                                                    imgReference, outputBoxList, outputEstimList, &params));

            // Wait for processing to finish.
            CHECK_STATUS(vpiStreamSync(stream));

            // Now we lock the output arrays to properly set up the input for the next iteration.
            VPIArrayData updatedBBoxData;
            CHECK_STATUS(vpiArrayLock(outputBoxList, VPI_LOCK_READ, &updatedBBoxData));

            VPIArrayData estimData;
            CHECK_STATUS(vpiArrayLock(outputEstimList, VPI_LOCK_READ, &estimData));

            auto *updated_bbox = reinterpret_cast<VPIKLTTrackedBoundingBox *>(updatedBBoxData.data);
            auto *estim        = reinterpret_cast<VPIHomographyTransform2D *>(estimData.data);

            // For each bounding box,
            for (size_t b = 0; b < curNumBoxes; ++b)
            {
                // Did tracking failed?
                if (updated_bbox[b].trackingStatus)
                {
                    // Do we have to update the input bbox's tracking status too?
                    if (bboxes[b].trackingStatus == 0)
                    {
                        std::cout << curFrame << " -> dropped " << b << std::endl;
                        bboxes[b].trackingStatus = 1;
                    }

                    continue;
                }

                // Must update template for this bounding box??
                if (updated_bbox[b].templateStatus)
                {
                    std::cout << curFrame << " -> update " << b << std::endl;

                    // There are usually two approaches here:
                    // 1. Redefine the bounding box using a feature detector such as
                    //    \ref algo_harris_corners "Harris keypoint detector", or
                    // 2. Use updated_bbox[b], which is still valid, although tracking
                    //    errors might accumulate over time.
                    //
                    // We'll go to the second option, less robust, but simple enough
                    // to implement.
                    bboxes[b] = updated_bbox[b];

                    // Signal the input that the template for this bounding box must be updated.
                    bboxes[b].templateStatus = 1;

                    // Predicted transform is now identity as we reset the tracking.
                    preds[b]            = VPIHomographyTransform2D{};
                    preds[b].mat3[0][0] = 1;
                    preds[b].mat3[1][1] = 1;
                    preds[b].mat3[2][2] = 1;
                }
                else
                {
                    // Inform that the template for this bounding box doesn't need to be pdated.
                    bboxes[b].templateStatus = 0;

                    // We just update the input transform with the estimated one.
                    preds[b] = estim[b];
                }
            }

            // We're finished working with the output arrays.
            CHECK_STATUS(vpiArrayUnlock(outputBoxList));
            CHECK_STATUS(vpiArrayUnlock(outputEstimList));

            // Since we've updated the input arrays, tell VPI to invalidate
            // any internal buffers that might still refer to the old data.
            CHECK_STATUS(vpiArrayInvalidate(inputBoxList));
            CHECK_STATUS(vpiArrayInvalidate(inputPredList));

            // Next's reference frame is current's template.
            std::swap(imgTemplate, imgReference);
            std::swap(cvTemplate, cvReference);
        } while (true);
    }
    catch (std::exception &e)
    {
        std::cerr << e.what() << std::endl;
        retval = 1;
    }

    vpiStreamDestroy(stream);
    vpiPayloadDestroy(klt);
    vpiArrayDestroy(inputBoxList);
    vpiArrayDestroy(inputPredList);
    vpiArrayDestroy(outputBoxList);
    vpiArrayDestroy(outputEstimList);
    vpiImageDestroy(imgReference);
    vpiImageDestroy(imgTemplate);

    return retval;
}

// vim: ts=8:sw=4:sts=4:et:ai
