Background Subtractor

Overview

This application fetches frames from input video source, runs the algorithms on current images, and then calculate foreground mask. The output foreground mask will be saved to a video file.

Instructions

The command line parameters are:

<backend> <input video>

where

• backend: Defines the backend that will perform the processing. Only cpu and cuda are currently supported.
• input video: Input video file name, it accepts .mp4, .avi and possibly others, depending on OpenCV's support.

Here's one example:

• C++

  ./vpi_sample_14_background_subtractor cpu ../assets/pedestrians.mp4

• Python

  python main.py cpu ../assets/pedestrians.mp4

The application will process pedestrians.mp4 and create fgmask_cpu.mp4 and bgimage_cpu.mp4.

Note

If using OpenCV-2.4 or older (i.e. on Ubuntu 16.04), output files are fgmask_cpu.avi and bgimage_cpu.mp4.

Results

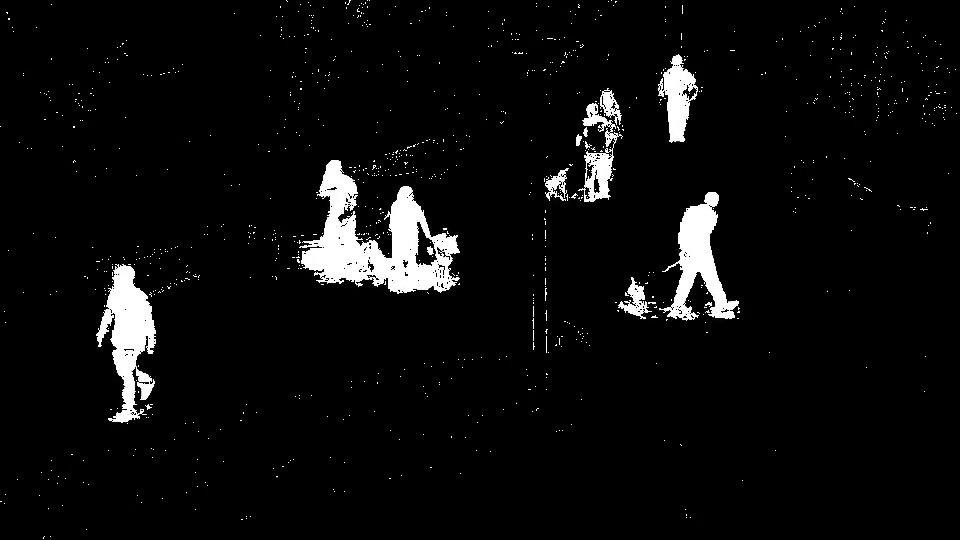

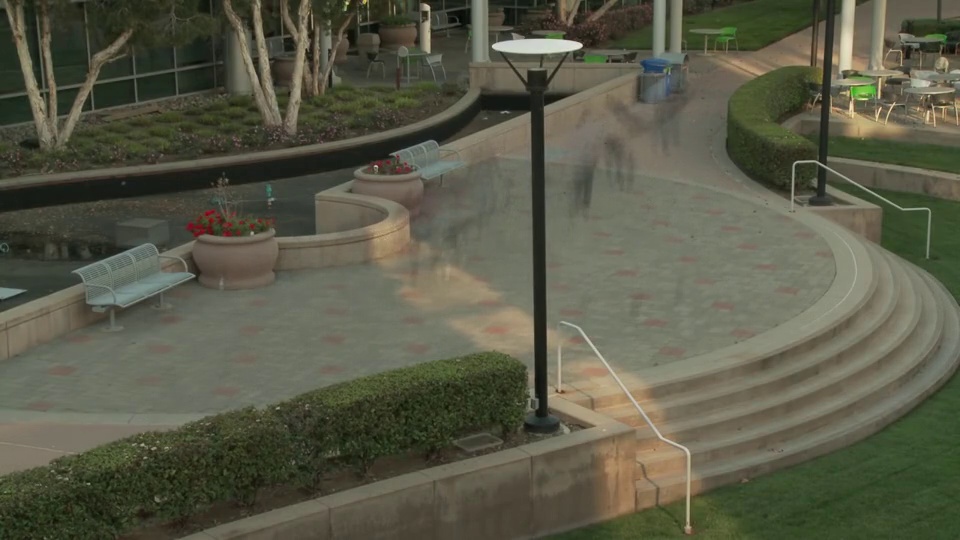

Input video	Foreground video	Background video

Source Code

For convenience, here's the code that is also installed in the samples directory.

Language: C++ Python

import cv2
import sys
import vpi
import numpy as np
from argparse import ArgumentParser

# ----------------------------
# Parse command line arguments

parser = ArgumentParser()
parser.add_argument('backend', choices=['cpu','cuda'],
                    help='Backend to be used for processing')

parser.add_argument('input',
                    help='Input video to be denoised')

args = parser.parse_args();

if args.backend == 'cuda':
    backend = vpi.Backend.CUDA
else:
    assert args.backend == 'cpu'
    backend = vpi.Backend.CPU

# -----------------------------
# Open input and output videos

inVideo = cv2.VideoCapture(args.input)

if int(cv2.__version__.split('.')[0]) >= 3:
    extOutputVideo = '.mp4'
    fourcc = cv2.VideoWriter_fourcc(*'avc1')
    inSize = (int(inVideo.get(cv2.CAP_PROP_FRAME_WIDTH)), int(inVideo.get(cv2.CAP_PROP_FRAME_HEIGHT)))
    fps = inVideo.get(cv2.CAP_PROP_FPS)
else:
    # MP4 support with OpenCV-2.4 has issues, we'll use
    # avi/mpeg instead.
    extOutputVideo = '.avi'
    fourcc = cv2.cv.CV_FOURCC('M','P','E','G')
    inSize = (int(inVideo.get(cv2.cv.CV_CAP_PROP_FRAME_WIDTH)), int(inVideo.get(cv2.cv.CV_CAP_PROP_FRAME_HEIGHT)))
    fps = inVideo.get(cv2.cv.CV_CAP_PROP_FPS)

outVideoFGMask = cv2.VideoWriter('fgmask_python'+str(sys.version_info[0])+'_'+args.backend+extOutputVideo,
                                 fourcc, fps, inSize)

outVideoBGImage = cv2.VideoWriter('bgimage_python'+str(sys.version_info[0])+'_'+args.backend+extOutputVideo,
                                  fourcc, fps, inSize)

#--------------------------------------------------------------
# Create the Background Subtractor object using the backend specified by the user
with backend:
    bgsub = vpi.BackgroundSubtractor(inSize, vpi.Format.BGR8)

#--------------------------------------------------------------
# Main processing loop
idxFrame = 0
while True:
    print("Processing frame {}".format(idxFrame))
    idxFrame+=1

    # Read one input frame
    ret, cvFrame = inVideo.read()
    if not ret:
        break

    # Get the foreground mask and background image estimates
    fgmask, bgimage = bgsub(vpi.asimage(cvFrame, vpi.Format.BGR8), learnrate=0.01)

    # Mask needs to be converted to BGR8 for output
    fgmask = fgmask.convert(vpi.Format.BGR8, backend=vpi.Backend.CUDA);

    # Write images to output videos
    with fgmask.rlock(), bgimage.rlock():
        outVideoFGMask.write(fgmask.cpu())
        outVideoBGImage.write(bgimage.cpu())

# vim: ts=8:sw=4:sts=4:et:ai

#include <opencv2/core/version.hpp>
#if CV_MAJOR_VERSION >= 3
#    include <opencv2/imgcodecs.hpp>
#    include <opencv2/videoio.hpp>
#else
#    include <opencv2/highgui/highgui.hpp>
#endif

#include <opencv2/imgproc/imgproc.hpp>
#include <vpi/OpenCVInterop.hpp>

#include <vpi/Array.h>
#include <vpi/Image.h>
#include <vpi/ImageFormat.h>
#include <vpi/Pyramid.h>
#include <vpi/Status.h>
#include <vpi/Stream.h>
#include <vpi/algo/BackgroundSubtractor.h>
#include <vpi/algo/ConvertImageFormat.h>

#include <iostream>
#include <sstream>

#define CHECK_STATUS(STMT)                                    \
    do                                                        \
    {                                                         \
        VPIStatus status = (STMT);                            \
        if (status != VPI_SUCCESS)                            \
        {                                                     \
            char buffer[VPI_MAX_STATUS_MESSAGE_LENGTH];       \
            vpiGetLastStatusMessage(buffer, sizeof(buffer));  \
            std::ostringstream ss;                            \
            ss << vpiStatusGetName(status) << ": " << buffer; \
            throw std::runtime_error(ss.str());               \
        }                                                     \
    } while (0);

int main(int argc, char *argv[])
{
    // OpenCV image that will be wrapped by a VPIImage.
    // Define it here so that it's destroyed *after* wrapper is destroyed
    cv::Mat cvCurFrame;

    // VPI objects that will be used
    VPIStream stream     = NULL;
    VPIImage imgCurFrame = NULL;
    VPIImage bgimage     = NULL;
    VPIImage fgmask      = NULL;
    VPIPayload payload   = NULL;

    int retval = 0;

    try
    {
        if (argc != 3)
        {
            throw std::runtime_error(std::string("Usage: ") + argv[0] + " <cpu|cuda> <input_video>");
        }

        // Parse input parameters
        std::string strBackend    = argv[1];
        std::string strInputVideo = argv[2];

        VPIBackend backend;
        if (strBackend == "cpu")
        {
            backend = VPI_BACKEND_CPU;
        }
        else if (strBackend == "cuda")
        {
            backend = VPI_BACKEND_CUDA;
        }
        else
        {
            throw std::runtime_error("Backend '" + strBackend + "' not recognized.");
        }

        // Load the input video
        cv::VideoCapture invid;
        if (!invid.open(strInputVideo))
        {
            throw std::runtime_error("Can't open '" + strInputVideo + "'");
        }

#if CV_MAJOR_VERSION >= 3
        int32_t width  = invid.get(cv::CAP_PROP_FRAME_WIDTH);
        int32_t height = invid.get(cv::CAP_PROP_FRAME_HEIGHT);

        int fourcc                 = cv::VideoWriter::fourcc('a', 'v', 'c', '1');
        double fps                 = invid.get(cv::CAP_PROP_FPS);
        std::string extOutputVideo = ".mp4";
#else
        int32_t width  = invid.get(CV_CAP_PROP_FRAME_WIDTH);
        int32_t height = invid.get(CV_CAP_PROP_FRAME_HEIGHT);

        // MP4 support with OpenCV-2.4 has issues, we'll use
        // avi/mpeg instead.
        int fourcc                 = CV_FOURCC('M', 'P', 'E', 'G');
        double fps                 = invid.get(CV_CAP_PROP_FPS);
        std::string extOutputVideo = ".avi";
#endif

        // Create the stream where processing will happen. We'll use user-provided backend.
        CHECK_STATUS(vpiStreamCreate(backend, &stream));

        // Create background subtractor payload to be executed on the given backend
        // OpenCV delivers us BGR8 images, so the algorithm is configured to accept that.
        CHECK_STATUS(vpiCreateBackgroundSubtractor(backend, width, height, VPI_IMAGE_FORMAT_BGR8, &payload));

        // Create foreground image
        CHECK_STATUS(vpiImageCreate(width, height, VPI_IMAGE_FORMAT_U8, 0, &fgmask));

        // Create background image
        CHECK_STATUS(vpiImageCreate(width, height, VPI_IMAGE_FORMAT_BGR8, 0, &bgimage));

        cv::VideoWriter outVideo("fgmask_" + strBackend + extOutputVideo, fourcc, fps, cv::Size(width, height), false);
        if (!outVideo.isOpened())
        {
            throw std::runtime_error("Can't create output video");
        }

        cv::VideoWriter bgimageVideo("bgimage_" + strBackend + extOutputVideo, fourcc, fps, cv::Size(width, height));
        if (!outVideo.isOpened())
        {
            throw std::runtime_error("Can't create output video");
        }

        // Fetch a new frame until video ends
        int idxFrame = 1;

        while (invid.read(cvCurFrame))
        {
            printf("Processing frame %d\n", idxFrame++);
            // Wrap frame into a VPIImage
            if (imgCurFrame == NULL)
            {
                CHECK_STATUS(vpiImageCreateOpenCVMatWrapper(cvCurFrame, 0, &imgCurFrame));
            }
            else
            {
                CHECK_STATUS(vpiImageSetWrappedOpenCVMat(imgCurFrame, cvCurFrame));
            }

            VPIBackgroundSubtractorParams params;
            CHECK_STATUS(vpiInitBackgroundSubtractorParams(&params));
            params.learningRate = 0.01;

            CHECK_STATUS(
                vpiSubmitBackgroundSubtractor(stream, backend, payload, imgCurFrame, fgmask, bgimage, &params));

            // Wait for processing to finish.
            CHECK_STATUS(vpiStreamSync(stream));

            {
                // Now add it to the output video stream
                VPIImageData imgdata;
                CHECK_STATUS(vpiImageLock(fgmask, VPI_LOCK_READ, &imgdata));

                cv::Mat outFrame;
                CHECK_STATUS(vpiImageDataExportOpenCVMat(imgdata, &outFrame));

                outVideo << outFrame;

                CHECK_STATUS(vpiImageUnlock(fgmask));
            }

            {
                VPIImageData bgdata;
                CHECK_STATUS(vpiImageLock(bgimage, VPI_LOCK_READ, &bgdata));

                cv::Mat outFrame;
                CHECK_STATUS(vpiImageDataExportOpenCVMat(bgdata, &outFrame));

                bgimageVideo << outFrame;

                CHECK_STATUS(vpiImageUnlock(bgimage));
            }
        }
    }
    catch (std::exception &e)
    {
        std::cerr << e.what() << std::endl;
        retval = 1;
    }

    // Destroy all resources used
    vpiStreamDestroy(stream);
    vpiPayloadDestroy(payload);

    vpiImageDestroy(imgCurFrame);
    vpiImageDestroy(fgmask);
    vpiImageDestroy(bgimage);

    return retval;
}

// vim: ts=8:sw=4:sts=4:et:ai
