NVIDIA BioNeMo Inference Runtime

About BioNeMo Inference Runtime

NVIDIA BioNeMo Inference Runtime (BioIR) is NVIDIA’s Python library for accelerating biomolecular structure model inference on NVIDIA GPUs. It provides biology-aware PyTorch modules, GPU kernels, and graph optimizations for architecture-specific operations. These operations include Evoformer stacks and triangle operations ¹, and Pairformer stacks, attention with pair bias (pairwise attention), diffusion transformers, and atom-level modules ².

General-purpose inference stacks do not fully optimize these specialized operations. BioIR is designed for foundation-model developers and machine learning researchers who create or modify biomolecular architectures. It improves model-execution throughput and reduces GPU memory pressure while preserving a Python development workflow.

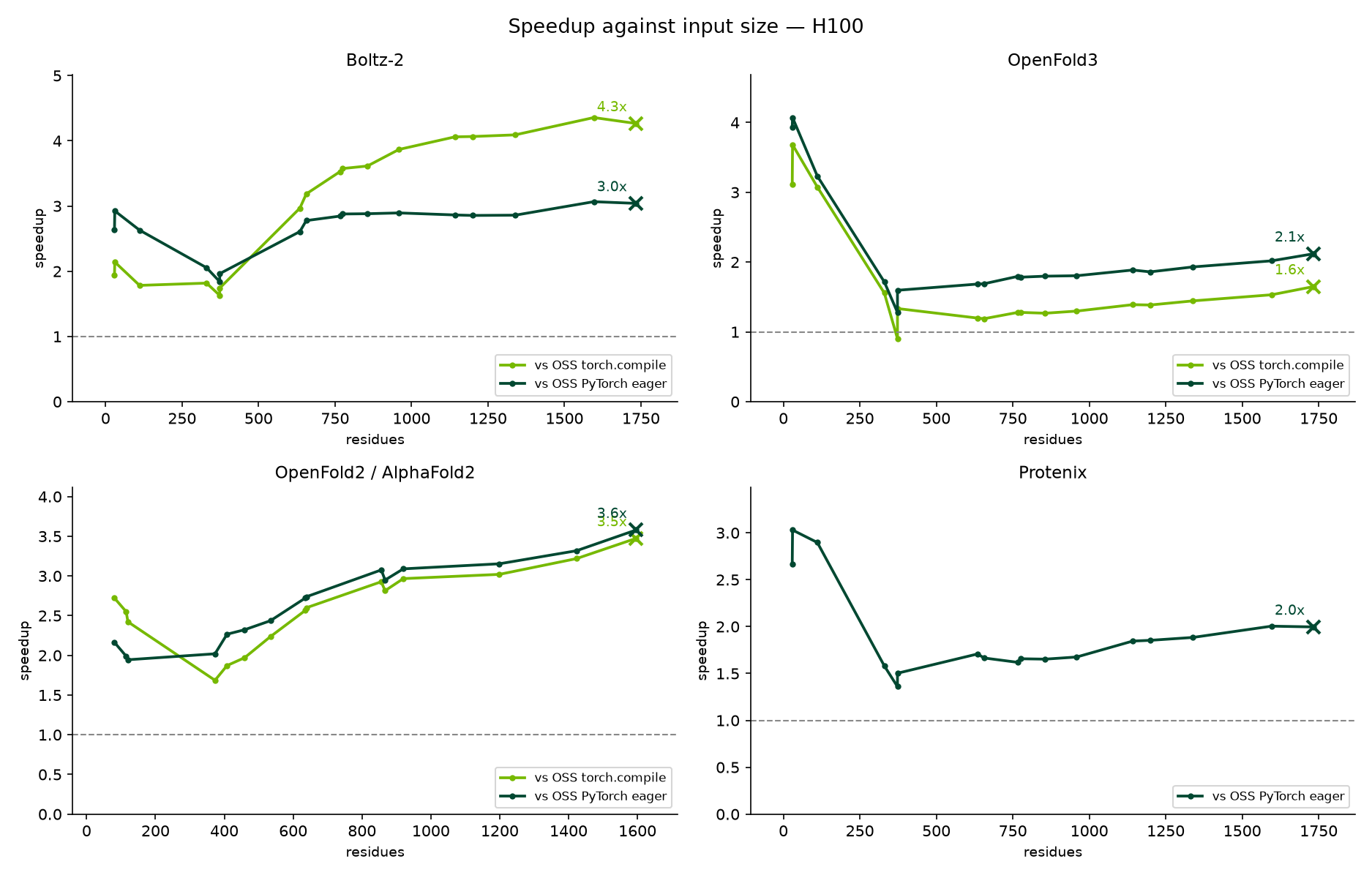

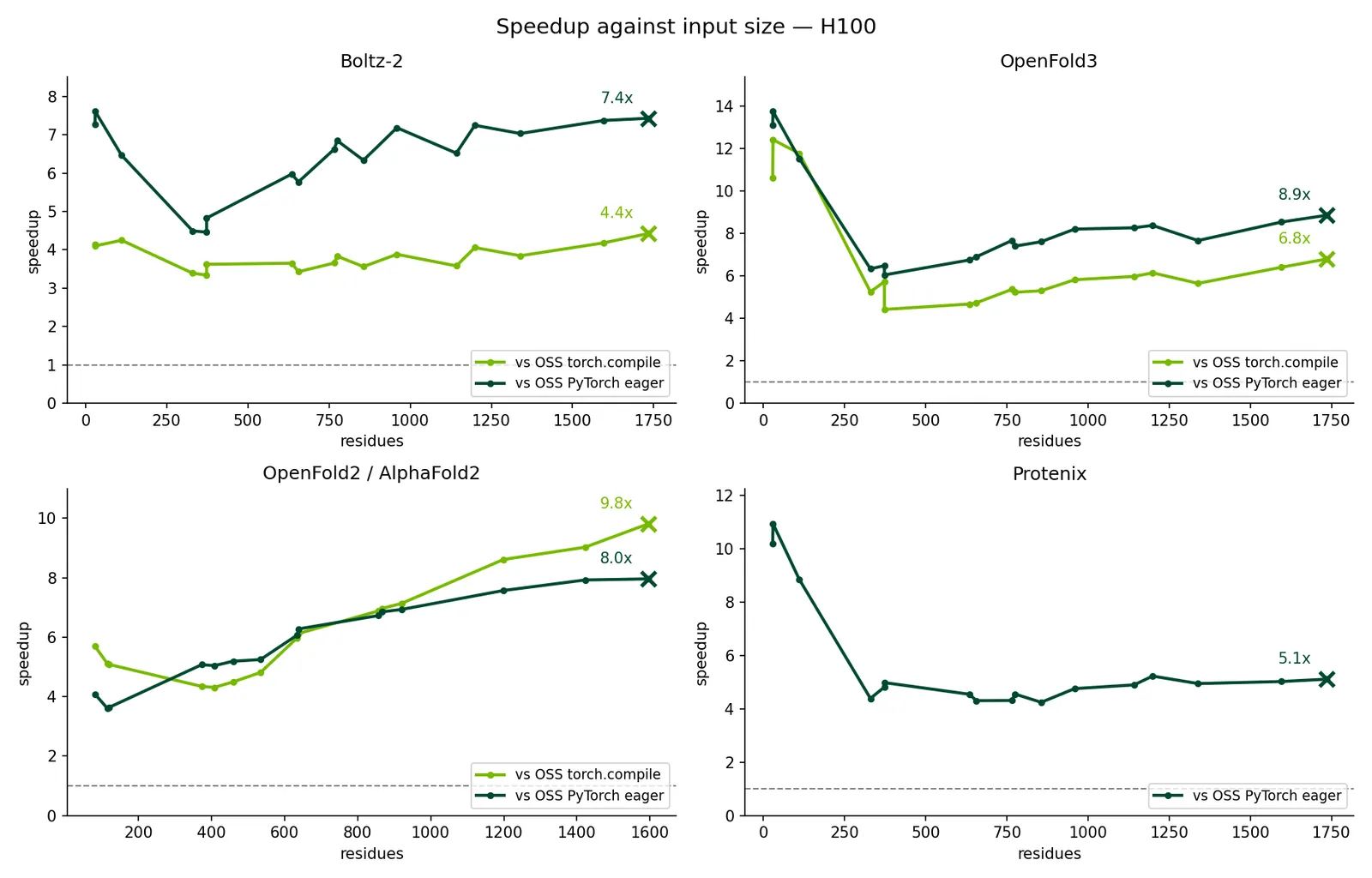

The following chart shows how BioIR speedup changes with input size on an NVIDIA H100 GPU.

Key Capabilities

BioIR provides the following key capabilities:

• Architected on PyTorch: A BioIR model remains an ordinary torch.nn.Module. No engine build, export step, or separate build artifact sits between a checkpoint and a forward pass. You can inspect tensors and use standard Python stack traces. Plain configuration fields select optimized layers, with documented PyTorch fallbacks for supported paths.

• Built for biomolecular architectures: BioIR applies optimizations at three levels: kernels, modules and layers, and the end-to-end pipeline. Custom CuTeDSL kernels and CUDA graphs use NVIDIA GPU capabilities to accelerate structure-prediction patterns and supported modules. Pipeline orchestration overlaps data loading, featurization, and output writing with the GPU forward pass. Refer to how BioIR accelerates.

• Lower GPU memory pressure: Fused kernels reduce intermediate materialization. Output-row chunking bounds peak activations for O(N^2) pair tensors. Precomputed masks avoid rebuilding the same attention data in every layer. Refer to where the memory savings come from.

• Supported hardware and models: BioIR supports mixed FP32 and BF16 execution across data center and workstation GPUs. Six are qualified for this release; the rest of the matrix runs but is not part of that set. The support matrix lists model keys, input coverage, GPU architectures, and fused-kernel availability.

Choose How to Use BioIR

BioIR supports two inference workflows:

1. Run a supported model end to end. Run OpenFold2, AlphaFold2, OpenFold3, Boltz-1, or Boltz-2 through the complete prediction pipeline.
2. Accelerate a custom model. Keep your architecture and replace matching components with optimized BioIR modules, such as a Pairformer stack or diffusion transformer ².

Your custom model does not need to belong to a supported end-to-end family. It only needs to contain a module that BioIR optimizes. Refer to the two inference workflows for implementation details.

Choose an Executor

For large batches of independent inputs, use the Ray executor to improve end-to-end throughput. Ray streams inputs through independently scalable preprocessing, GPU inference, and output-writing stages, so CPU work on one batch can run while GPUs process another. The inference stage assigns one complete model replica to each GPU, which lets available GPUs process different inputs concurrently.

Refer to Ray multi-GPU replicas for configuration details.

The following diagram shows how the Ray executor processes independent inputs across CPU stages and complete GPU model replicas.

Target Workloads

BioIR targets large-scale structure inference workloads.

• High-throughput protein design — generate and evaluate large candidate sets with hybrid generative and folding models.
• Synthetic data generation — produce structures in bulk for self-distillation, retraining, and fine-tuning.
• Folding-based scoring filters — screen and rank generative output by structural plausibility before committing to wet-lab work.
• Structure prediction alongside docking — supplement early-stage protein-ligand and protein-protein screening with structure predictions.

BioIR accelerates the GPU model-execution layer. It does not accelerate database search, MSA generation, experimental data preparation, or the remaining design-to-lab workflow. End-to-end gains still depend on how much time remains in the model forward pass after preprocess.

Related proteome-scale structure prediction work is described in:

• How to Accelerate Protein Structure Prediction at Proteome Scale
• AlphaFold Database expands to proteome-scale quaternary structures.
