LLS Installation

This guide provides instructions for installing Low Latency Streaming (LLS) components for self-hosted NVCF deployments. LLS enables real-time streaming capabilities for simulation workloads.

Note

This guide covers manual installation of LLS resources, image mirroring, and NLB resources.

Overview

Low Latency Streaming (LLS) provides real-time streaming capabilities for self-hosted NVCF deployments. LLS consists of:

• Streaming Proxy (RP Container) - Handle WebRTC UDP streaming connections

Self-hosted mode uses your ECR registry for container images and customer-managed infrastructure.

Architecture

Request and Streaming Flow

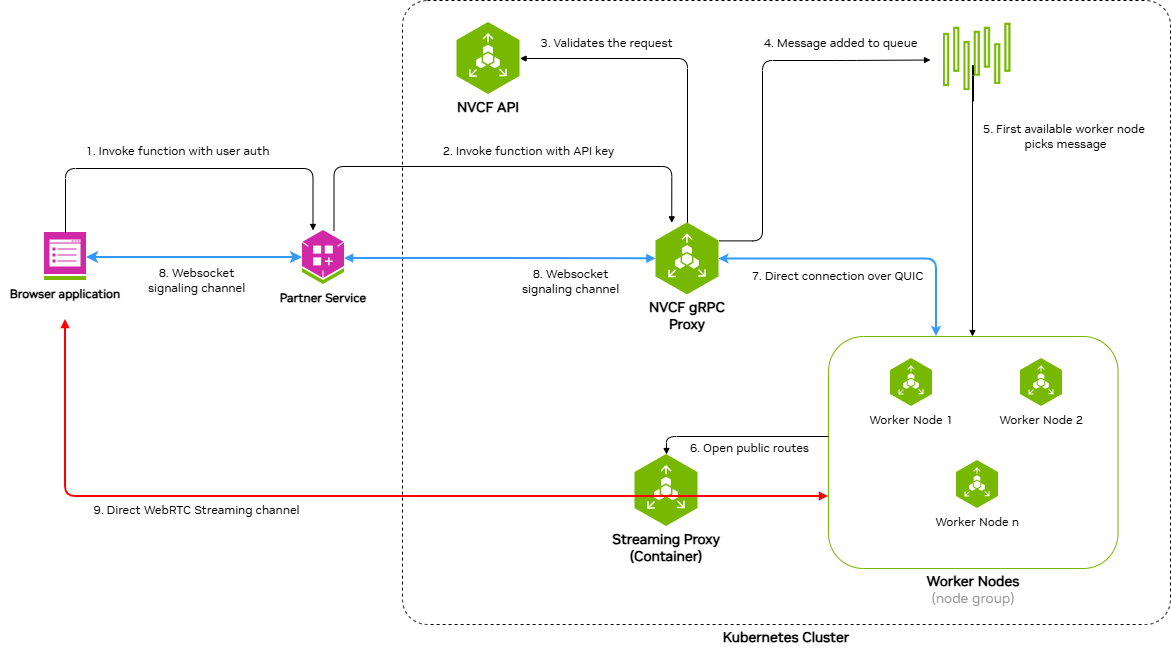

The following diagram illustrates the request and streaming flow for self-hosted NVCF LLS, showing how a browser application invokes a function and establishes direct streaming channels to worker nodes:

The architecture demonstrates a nine-step process:

1. Invoke function with user auth - Browser application sends function invocation request with user authentication to the Partner Service

2. Invoke function with API key - Partner Service forwards the request to NVCF gRPC Proxy using an API key

3. Validates the request - NVCF gRPC Proxy validates the request with NVCF API

4. Message added to queue - Validated request is added to the message queue

5. First available worker node picks message - An available worker node retrieves the message from the queue

6. WebSocket signaling channel - Bidirectional WebSocket channel between Partner Service and NVCF gRPC Proxy for signaling

7. Direct connection over QUIC - Direct QUIC connection between NVCF gRPC Proxy and Worker Nodes

8. WebSocket signaling channel - Bidirectional WebSocket channel between Browser application and Partner Service

9. Direct WebRTC Streaming channel - Direct WebRTC streaming channel between Browser application and Streaming Proxy Container(STUN), which opens public routes to Worker Nodes

Self-Hosted Deployment Architecture

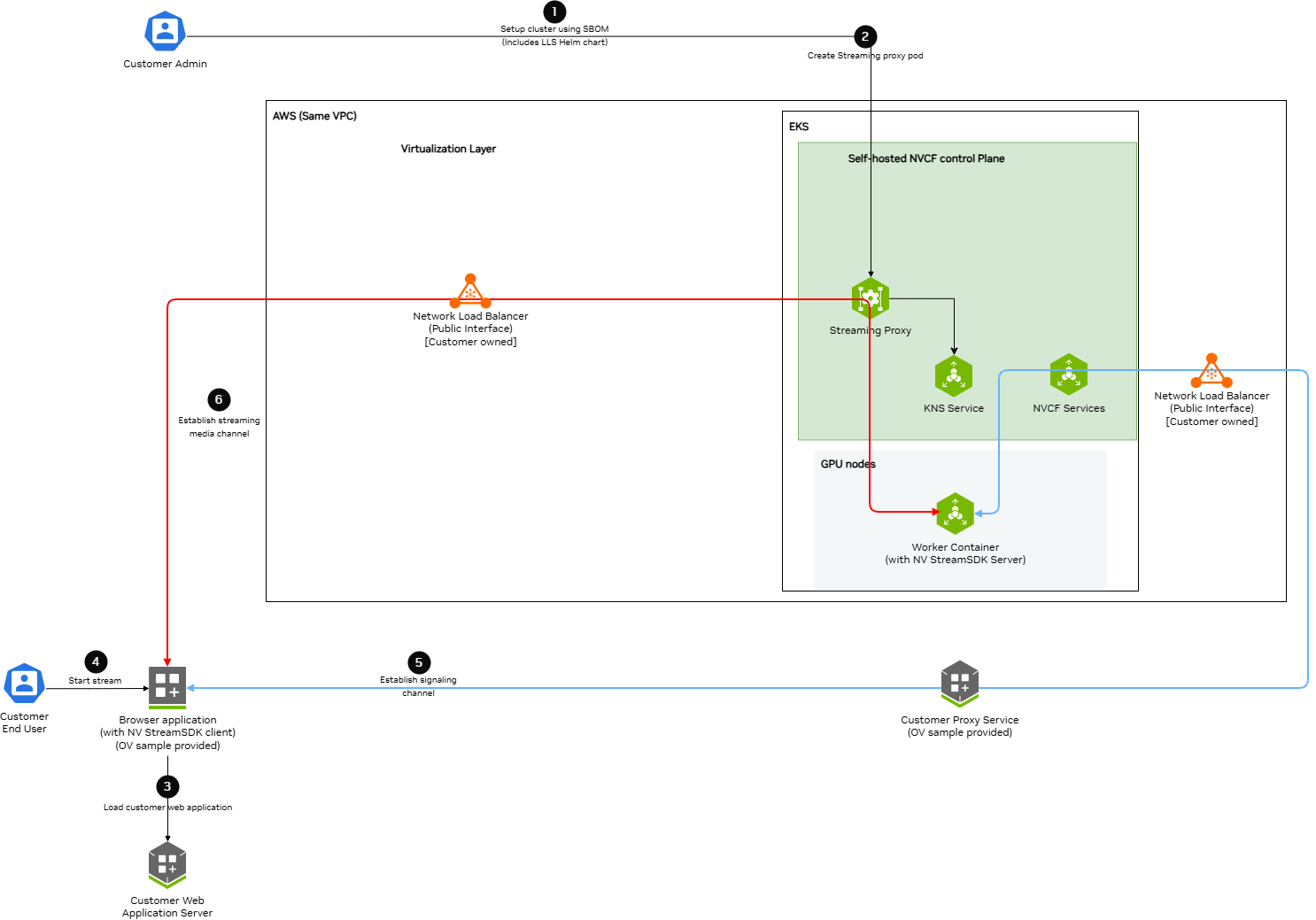

The following diagram shows the detailed architecture of a self-hosted NVCF LLS deployment in AWS VPC with EKS:

Key components and data flows:

Control Plane Components (EKS):

• Streaming Proxy Container - Handles WebRTC streaming connections and opens routes to Worker Nodes

• K8s Services - Creates ClusterIP and NodePort services

• KNS Service - Fetches JWKs for authentication

• NVCF Services - Connects to customer-owned load balancers via signaling channels

GPU Nodes (EKS):

• Worker Container - Runs streaming applications (StreamSDK packaged) and receives streaming data

AWS VPC:

• Network Load Balancer (Public Interface) - Customer-owned, receives streaming and signaling data from browser applications

Data Flow Channels:

• Red Lines (Streaming Channel) - WebRTC streaming data path from Browser application through load balancers and Straming Proxy to Worker Containers

• Blue Lines (Signaling Channel) - WebSocket signaling data path connecting Browser application, Customer services, Load Balancers, NVCF Services, and Worker Containers

Prerequisites

Before installing LLS, ensure:

• Self-hosted NVCF control plane installed and running on an AWS EKS cluster (see Control Plane Installation)

• kubectl configured with access to your cluster

• Helm v3.x installed

• NGC API Key with access to the nvcf-onprem organization

• AWS CLI configured with credentials that have permissions for EC2, ELB, and IAM operations

Configure AWS Credentials

LLS installation requires AWS CLI access to create NLB resources, security groups, and manage EC2 instances. Verify your AWS credentials are configured:

aws sts get-caller-identity

If this command fails, configure your AWS credentials before proceeding. See Configure AWS Credentials for detailed configuration options.

Set NGC API Key

Before proceeding, set your NGC API key as an environment variable:

export NGC_API_KEY="nvapi-xxxxxxxxxxxxx"  # Replace with your NGC API key

Note

Configurable UDP Streaming Port

The UDP port for WebRTC streaming traffic defaults to 5004 and is exported as LLS_UDP_PORT in Step 2.1. This variable is used throughout the guide for the NLB security group rule, NLB listener, and Helm values configuration.

To use a different port, change the export LLS_UDP_PORT= value in Step 2.1 and set env.lbPort in your Helm values file (Step 3) to the same value.

Step 1: Mirror LLS Artifacts

LLS requires specific container images and Helm charts to be available in your registry.

Note

Skip this step if you used Terraform with create_sm_ecr_repos = true. The automated ECR mirroring includes all LLS artifacts (regardless of whether lls_enabled is set). Proceed to Step 2: Create Network Load Balancer.

Required LLS Artifacts

The following artifacts must be mirrored for LLS deployment:

Container Images:

• streaming-proxy - Streaming Proxy Container(RP Container)

Helm Charts:

• gdn-streaming - GDN Streaming Proxy Helm chart

Optional (for streaming workloads):

• Streaming application images (e.g., usd-composer)

For detailed instructions on pulling these artifacts from NGC and pushing to your registry, see Image Mirroring. The LLS-specific artifacts section lists exactly what you need.

Important

When mirroring to ECR, the repository path must match your Helm values configuration. If using Terraform’s {cluster_name}/ prefix convention, ensure your registryName in Step 4 includes this prefix.

Step 2: Create Network Load Balancer

LLS requires a Network Load Balancer (NLB) for streaming traffic.

Requirements

• Type: Network Load Balancer

• Scheme: Internet-facing

• Subnet: Public subnet in the same availability zone as your GPU nodes

Security Group

Create a security group with the following rules:

Inbound:

• Protocol: UDP, Port: 5004, Source: 0.0.0.0/0 (streaming traffic)

Outbound:

• Protocol: All, Destination: 0.0.0.0/0

Target Group

• Target type: Instance

• Protocol: UDP

• Port: 30504

• Health check protocol: HTTP

• Health check port: 30800

• Health check path: /v1/health

Listener

• Protocol: UDP

• Port: 5004

• Default action: Forward to target group

Note

You must create the NLB in the same region and availability zone as your GPU node pool.

CLI Example

The following commands create all required NLB resources. Copy and paste each section, replacing the placeholder values at the start.

2.1 Set Environment Variables

# Required: Set your cluster name and region
export CLUSTER_NAME="<your-cluster-name>"
export REGION="<your-region>"

# UDP port for WebRTC streaming traffic (configurable — update if needed)
export LLS_UDP_PORT=5004

# Define resource names (based on cluster name)
export NLB_NAME="rp-public-${CLUSTER_NAME}"
export SG_NAME="${CLUSTER_NAME}-rp-sg"
export TG_NAME="${CLUSTER_NAME}-rp-tg"

2.2 Get VPC and Public Subnet

# Get VPC ID from your EKS cluster
export VPC_ID=$(aws eks describe-cluster \
  --name "$CLUSTER_NAME" \
  --region "$REGION" \
  --query 'cluster.resourcesVpcConfig.vpcId' \
  --output text)
echo "VPC ID: $VPC_ID"

# Set the availability zone where your GPU nodes are deployed
# This must match the node_availability_zones in your Terraform config
export LLS_AZ="us-west-2a"  # <-- Update to match your GPU node AZ

# Get the public subnet in the LLS availability zone
export SUBNET=$(aws ec2 describe-subnets \
  --region "$REGION" \
  --filters \
    "Name=vpc-id,Values=${VPC_ID}" \
    "Name=map-public-ip-on-launch,Values=true" \
    "Name=availability-zone,Values=${LLS_AZ}" \
  --query 'Subnets[0].SubnetId' \
  --output text)
echo "Public Subnet ($LLS_AZ): $SUBNET"

2.3 Create Security Group

# Create security group for NLB
export SG_ID=$(aws ec2 create-security-group \
  --group-name "$SG_NAME" \
  --description "Security group for LLS streaming NLB (UDP ${LLS_UDP_PORT})" \
  --vpc-id "$VPC_ID" \
  --region "$REGION" \
  --tag-specifications "ResourceType=security-group,Tags=[{Key=Name,Value=$SG_NAME},{Key=lls:cluster,Value=$CLUSTER_NAME},{Key=lls:managed-by,Value=customer},{Key=lls:purpose,Value=streaming-nlb},{Key=Project,Value=nvcf}]" \
  --query 'GroupId' \
  --output text)
echo "Security Group ID: $SG_ID"

2.4 Configure Security Group Rules

# Add inbound rule: UDP ${LLS_UDP_PORT} from anywhere (streaming traffic)
aws ec2 authorize-security-group-ingress \
  --group-id "$SG_ID" \
  --ip-permissions "IpProtocol=udp,FromPort=${LLS_UDP_PORT},ToPort=${LLS_UDP_PORT},IpRanges=[{CidrIp=0.0.0.0/0,Description='LLS streaming traffic'}]" \
  --region "$REGION"

# Remove default egress rule and add explicit outbound rule
aws ec2 revoke-security-group-egress \
  --group-id "$SG_ID" \
  --ip-permissions 'IpProtocol=-1,IpRanges=[{CidrIp=0.0.0.0/0}]' \
  --region "$REGION" 2>/dev/null || true

aws ec2 authorize-security-group-egress \
  --group-id "$SG_ID" \
  --ip-permissions 'IpProtocol=-1,IpRanges=[{CidrIp=0.0.0.0/0}]' \
  --region "$REGION"

2.5 Create Network Load Balancer

Choose one of the following options:

Option A: Dynamic IP (simpler)

# Create NLB with AWS-assigned public IP (single AZ)
export NLB_ARN=$(aws elbv2 create-load-balancer \
  --name "$NLB_NAME" \
  --type network \
  --scheme internet-facing \
  --subnets "$SUBNET" \
  --security-groups "$SG_ID" \
  --region "$REGION" \
  --tags \
    Key=Name,Value="$NLB_NAME" \
    Key=lls:cluster,Value="$CLUSTER_NAME" \
    Key=lls:managed-by,Value="customer" \
    Key=lls:purpose,Value="streaming-traffic" \
    Key=Project,Value="nvcf" \
  --query 'LoadBalancers[0].LoadBalancerArn' \
  --output text)
echo "NLB ARN: $NLB_ARN"

Option B: Static EIP (predictable IP)

Use this if you need a predictable ingress IP for firewall rules:

# Allocate a static EIP
export EIP_ALLOC=$(aws ec2 allocate-address \
  --domain vpc \
  --region "$REGION" \
  --tag-specifications "ResourceType=elastic-ip,Tags=[{Key=Name,Value=${CLUSTER_NAME}-lls-eip},{Key=lls:cluster,Value=$CLUSTER_NAME}]" \
  --query 'AllocationId' \
  --output text)
echo "EIP Allocation ID: $EIP_ALLOC"

# Create NLB with static EIP (single AZ)
export NLB_ARN=$(aws elbv2 create-load-balancer \
  --name "$NLB_NAME" \
  --type network \
  --scheme internet-facing \
  --subnet-mappings SubnetId="$SUBNET",AllocationId="$EIP_ALLOC" \
  --security-groups "$SG_ID" \
  --region "$REGION" \
  --tags \
    Key=Name,Value="$NLB_NAME" \
    Key=lls:cluster,Value="$CLUSTER_NAME" \
    Key=lls:managed-by,Value="customer" \
    Key=lls:purpose,Value="streaming-traffic" \
    Key=Project,Value="nvcf" \
  --query 'LoadBalancers[0].LoadBalancerArn' \
  --output text)
echo "NLB ARN: $NLB_ARN"

2.6 Wait for NLB to Become Active

echo "Waiting for NLB to become active..."
aws elbv2 wait load-balancer-available \
  --load-balancer-arns "$NLB_ARN" \
  --region "$REGION"
echo "NLB is active"

2.7 Create Target Group

export TG_ARN=$(aws elbv2 create-target-group \
  --name "$TG_NAME" \
  --protocol UDP \
  --port 30504 \
  --vpc-id "$VPC_ID" \
  --target-type ip \
  --health-check-enabled \
  --health-check-protocol HTTP \
  --health-check-port 30800 \
  --health-check-path /v1/health \
  --health-check-interval-seconds 30 \
  --health-check-timeout-seconds 6 \
  --healthy-threshold-count 5 \
  --unhealthy-threshold-count 2 \
  --matcher HttpCode=200-399 \
  --region "$REGION" \
  --tags \
    Key=Name,Value="$TG_NAME" \
    Key=lls:cluster,Value="$CLUSTER_NAME" \
    Key=lls:managed-by,Value="customer" \
    Key=lls:purpose,Value="streaming-targets" \
    Key=Project,Value="nvcf" \
  --query 'TargetGroups[0].TargetGroupArn' \
  --output text)
echo "Target Group ARN: $TG_ARN"

2.8 Create Listener

export LISTENER_ARN=$(aws elbv2 create-listener \
  --load-balancer-arn "$NLB_ARN" \
  --protocol UDP \
  --port ${LLS_UDP_PORT} \
  --default-actions Type=forward,TargetGroupArn="$TG_ARN" \
  --region "$REGION" \
  --query 'Listeners[0].ListenerArn' \
  --output text)
echo "Listener ARN: $LISTENER_ARN"

2.9 Verify and Save Outputs

# Get NLB DNS name
export NLB_DNS=$(aws elbv2 describe-load-balancers \
  --load-balancer-arns "$NLB_ARN" \
  --region "$REGION" \
  --query 'LoadBalancers[0].DNSName' \
  --output text)

# Display summary
echo ""
echo "============================================"
echo "NLB Creation Complete"
echo "============================================"
echo "NLB Name:         $NLB_NAME"
echo "NLB ARN:          $NLB_ARN"
echo "NLB DNS:          $NLB_DNS"
echo "Target Group ARN: $TG_ARN"
echo "Security Group:   $SG_ID"
echo "============================================"
echo ""
echo "Save the Target Group ARN for Step 3 (Helm values):"
echo "  $TG_ARN"

Important

Save the Target Group ARN — you will need it for the adding streaming proxy container nodes as targets to the target group Step 3: Create Helm Values File.

Step 3: Create Helm Values File

Create a custom-values.yaml file with your configuration.

If you used Terraform with lls_enabled = true, use the outputs from your Terraform deployment:

env:
  # UDP port for streaming traffic
  lbPort: "5004"  # UDP streaming port — must match LLS_UDP_PORT set in Step 2.1
  lbDns: "<nlb-dns-name>.elb.<region>.amazonaws.com" # load balancer dns name

# Replica count
replicaCount: 1

# Availability Zone for streaming proxy container
availabilityZones:
  enabled: true
  zones:
    - us-west-2a # Change to the actual availability zone of Load Balancer

# Node Selection
nodeSelector:
  node-type: compute

# Image Configuration
image:
  repository: <registry-name>/streaming-proxy
  tag: 2.0.1
  pullPolicy: Always

# Resource Limits
resources:
  requests:
    cpu: "5000m"
    memory: "24Gi"
  limits:
    cpu: "5000m"
    memory: "24Gi"

Note

• Replace all <placeholder> values with your actual configuration

• env.lbPort is the public UDP port for streaming traffic

• env.lbDns is the public load balancer dns name

• availabilityZones.zones is the availability zone for streaming proxy container which must be the same as the availability zone of the Load Balancer

• nodeSelector.node-type is the node type where streaming proxy container will be deployed

• image.repository is the streaming proxy container image repository

• image.tag is the streaming proxy container image tag

• resources.requests.cpu is the streaming proxy pod cpu request

• resources.requests.memory is the streaming proxy pod memory request

• resources.limits.cpu is the streaming proxy pod cpu limit

• resources.limits.memory is the streaming proxy pod memory limit

Step 4: Deploy LLS Operator

4.1 Deploy the LLS operator using Helm:

 # Authenticate with ECR
 aws ecr get-login-password --region $AWS_REGION | helm registry login --username AWS --password-stdin $AWS_ACCOUNT_ID.dkr.ecr.$AWS_REGION.amazonaws.com

 # Install, update to use latest artifact version and ECR location, if using nvcf-base for image mirroring the cluster name will be the repository name
helm upgrade --install gdn-streaming \
  oci://$AWS_ACCOUNT_ID.dkr.ecr.$AWS_REGION.amazonaws.com/$CLUSTER_NAME/gdn-streaming:2.0.1 \
   --namespace gdn-streaming \
   --create-namespace \
   -f custom-values.yaml

4.2 Add RP Container Node IP and Port to Load Balancer’s Target Group:

# Get the target group ARN from the Load balancer step and export as TG_ARN
for IP in $(kubectl get nodes -l node-type=compute -o jsonpath='{.items[*].status.addresses[?(@.type=="InternalIP")].address}'); do
 aws elbv2 register-targets --target-group-arn "$TG_ARN" --targets Id="$IP",Port=30504
done

4.3 Add security rule to cluster node to accept streaming traffic on nodeport:

 # # Get the security group from the Load balancer step and export as SG_ID
 NODE_SG_ID=$(aws ec2 describe-security-groups \
  --filters "Name=group-name,Values=$CLUSTER_NAME-node-*" \
  --query 'SecurityGroups[0].GroupId' --output text)

 echo "Node Security Group ID: $NODE_SG_ID"

# Add security rule to cluster node to accept streaming traffic on nodeport
aws ec2 authorize-security-group-ingress \
--group-id "$NODE_SG_ID" \
--protocol udp \
--port 30504 \
--source-group "$SG_ID" \
--tag-specifications 'ResourceType=security-group-rule,Tags=[{Key=Name,Value=streaming-proxy-udp-30504}]'

Step 6: Verify Deployment

Verify the LLS components are running:

1. Check Streaming proxy pods (should show 1/1 Running):

   kubectl get pods -n gdn-streaming


   Expected output:

   NAME                                                 READY   STATUS    RESTARTS   AGE
   streaming-proxy-xxxxx-xxxxx        1/1     Running   0          5m


2. Check container logs (filter out verbose stack traces):

   # show recent logs
   kubectl logs -n gdn-streaming -l app=streaming-proxy --tail=50


LLS Resource Summary

The following table summarizes all AWS and Kubernetes resources created for LLS, who creates them, and how they are cleaned up:

Resource	Created By	Cleaned Up By	Notes
Kubernetes Resources
Namespace gdn-streaming	Helm install	Manual / Script	Contains all LLS K8s resources
Streaming Proxy Pods	Helm install	Manual / Script	Tagged lls:managed-by=gdn-streaming
AWS Resources (Manual - Step 2)
Network Load Balancer	Customer (CLI)	Cleanup script	Must delete before Target Group
NLB Target Group	Customer (CLI)	Cleanup script	Must delete after NLB
NLB Security Group	Customer (CLI)	Cleanup script	Must delete after NLB and node SG rule
Elastic IP (if static)	Customer (CLI)	Customer (CLI)	Optional, delete if created
AWS Resources (Manual - Step 4)
Node SG ingress rule (UDP 30504)	Customer (CLI)	Cleanup script	Must remove before NLB Security Group

Step 1: Uninstall

helm uninstall gdn-streaming -n gdn-streaming

Step 2: Delete Manual NLB Resources

The NLB and its associated resources created in Step 2: Create Network Load Balancer must be manually deleted.

Download and use the NLB cleanup script:

lls-nlb-cleanup.sh

chmod +x lls-nlb-cleanup.sh
./lls-nlb-cleanup.sh <your-cluster-name> <your-region>

# Example:
./lls-nlb-cleanup.sh my-cluster us-west-2

The script performs the following steps in dependency order:

1. Finds the NLB security group by tag

2. Removes the UDP 30504 ingress rule from the cluster node security group (added in Step 4.3 — must be removed before the NLB security group can be deleted)

3. Deletes the NLB and waits for deletion to complete

4. Deletes the target group (requires NLB to be fully deleted first)

5. Deletes the NLB security group (with retry logic)

6. Lists any Elastic IPs that may need manual release

Note

Safety: The script identifies resources using the tags that were set during Step 2: Create Network Load Balancer. It will only delete resources with both lls:cluster=<your-cluster-name> and lls:managed-by=customer tags, ensuring it won’t accidentally delete other NLBs in your account.

If the NLB security group deletion still fails with DependencyViolation after the script removes the node SG rule, the NLB may not have fully deleted yet. The script will automatically retry. If it still fails after several attempts, wait a few more minutes and run the script again.

Step 2: Remove Terraform LLS Module (Optional)

If you deployed your cluster using the nvcf-base Terraform (see EKS Cluster Terraform (Optional)) with lls_enabled = true, disable the LLS module to remove IAM resources:

1. Edit your terraform.tfvars:

   lls_enabled = false


2. Apply the change:

   cd /path/to/nvcf-base/terraform/envs/<your-environment>
   terraform plan   # Review - should show 7 IAM resources to destroy
   terraform apply


Step 3: Final Verification

Verify all LLS resources have been removed:

export CLUSTER_NAME="<your-cluster-name>"
export REGION="<your-region>"

echo "=== Kubernetes Resources ==="
kubectl get namespace gdn-streaming 2>/dev/null || echo "Namespace: deleted"
kubectl get pods -n gdn-streaming 2>/dev/null || echo "Pods: deleted"

echo ""
echo "=== AWS Resources (Manual NLB) ==="
aws elbv2 describe-load-balancers --region "$REGION" \
  --query "LoadBalancers[?contains(LoadBalancerName, '${CLUSTER_NAME}')].[LoadBalancerName]" \
  --output text || echo "NLB: deleted"
aws elbv2 describe-target-groups --region "$REGION" \
  --query "TargetGroups[?contains(TargetGroupName, '${CLUSTER_NAME}')].[TargetGroupName]" \
  --output text || echo "Target Groups: deleted"
aws ec2 describe-security-groups --region "$REGION" \
  --filters "Name=tag:lls:cluster,Values=${CLUSTER_NAME}" \
  --query 'SecurityGroups[*].GroupId' \
  --output text || echo "LLS Security Groups: deleted"

echo ""
echo "=== AWS Resources (Terraform IAM) ==="
aws iam get-role --role-name "${CLUSTER_NAME}-gvo-operator" 2>/dev/null \
  && echo "WARNING: IAM role still exists" || echo "IAM roles: deleted"

echo ""
echo "=== Cleanup verification complete ==="

Resource Requirements

Streaming Proxy

• CPU: 5000m (limit), 5000m (request)

• Memory: 24Gi (limit), 24Gi (request)

• Runs as a single pod

Network Load Balancer

• Type: Network

• Scheme: Internet-facing

• Protocol: UDP

• Port: 5004

Security Groups

NLB Security Group:

Direction	Protocol	Port	Source/Destination
Inbound	UDP	5004	0.0.0.0/0 (streaming clients)
Outbound	All	All	0.0.0.0/0

Streaming Proxy Security Group:

Direction	Protocol	Port	Source/Destination
Inbound	TCP	30800 (NodePort)	NLB security group (health checks)
Inbound	UDP	30504 (NodePort)	NLB security group (streaming traffic)
Inbound	UDP	6004	EKS Interal Node (streaming traffic)
Inbound	UDP	3478	EKS Internal Node (Stun request)
Inbound	TCP	8000	EKS Internal Node (API Request)
Outbound	All	All	0.0.0.0/0

Liveness and Readiness Probes

The streaming proxy pod has liveness and readiness probes configured to the /v1/health endpoint at port 8000.

{"failureThreshold":3,"httpGet":{"path":"/v1/health","port":8000,"scheme":"HTTP"},"initialDelaySeconds":15,"periodSeconds":10,"successThreshold":1,"timeoutSeconds":5}

Troubleshooting

Health check

The health check is used to determine if the streaming proxy pod is healthy. The health check is configured to check the /v1/health endpoint at port 8000 of the streaming proxy pod.

curl -X GET http://<streaming-proxy-pod-ip>:8000/v1/health

Expected output:

   {
     "status": "OK"
   }
