nvImageCodec examples

import os
import cv2
import numpy as np
from matplotlib import pyplot as plt

def show_image(img, title=None, figsize=(5, 5), cmap=None):
    """Display an image in a compact format to reduce notebook size."""
    plt.figure(figsize=figsize, dpi=72)
    plt.imshow(img, cmap=cmap)
    if title:
        plt.title(title)
    plt.axis('off')
    plt.tight_layout()

Setting resource folder

resources_dir = os.getenv("PYNVIMGCODEC_EXAMPLES_RESOURCES_DIR", "../assets/images/")

Import nvImageCodec module and create Decoder and Encoder

from nvidia import nvimgcodec
decoder = nvimgcodec.Decoder()
encoder = nvimgcodec.Encoder()

Load and decode Jpeg image with nvImageCodec

with open(resources_dir + "tabby_tiger_cat.jpg", 'rb') as in_file:
    data = in_file.read()
    nv_img_cat = decoder.decode(data)

Save image to bmp file with nvImageCodec

with open("cat-jpg-o.bmp", 'wb') as out_file:
    data = encoder.encode(nv_img_cat, "bmp")
    out_file.write(data)

Read back with OpenCV just saved (with nvImageCodec) bmp image

cv_img_bmp = cv2.imread("cat-jpg-o.bmp")
cv_img_bmp = cv2.cvtColor(cv_img_bmp, cv2.COLOR_BGR2RGB)

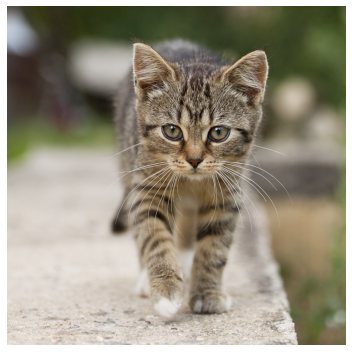

show_image(cv_img_bmp)

Load and decode Jpeg2000 (in jp2 container) image with nvImageCodec in one read function

nv_img = decoder.read(resources_dir + "cat-1046544_640.jp2")

Save image to jpg file with nvImageCodec in one write function

encoder.write("cat-jp2-o.jpg", nv_img)

'cat-jp2-o.jpg'

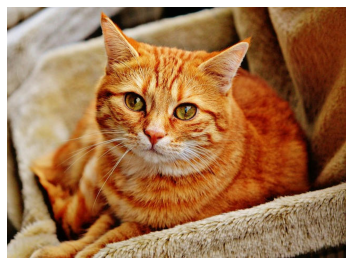

Read back with OpenCV just save (with nvImageCodec) bmp image

image = cv2.imread("cat-jp2-o.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
show_image(image)

Load jpg with nvImageCodec

nv_img_jpg = decoder.read(resources_dir + "tabby_tiger_cat.jpg")

Save as Jpeg 2000 with nvImageCodec

encoder.write("cat-jpg-o.j2k", nv_img_jpg)

cs = encoder.encode(nv_img_jpg, codec =".j2k")

Read back with OpenCV just saved (with nvImageCodec) j2k image

image = cv2.imread("cat-jpg-o.j2k")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
show_image(image)

Passing decoding parameters

Decode jpeg with Exif orientation - by default it applies exif orientation

nv_img_jpg = decoder.read(resources_dir+ "f-exif-8.jpg")
encoder.write("f-exif-8.bmp", nv_img_jpg)
image = cv2.imread("f-exif-8.bmp")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)

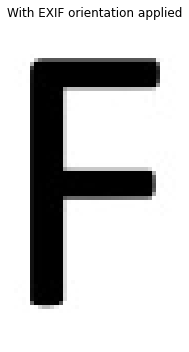

show_image(image, title="With EXIF orientation applied")

Let assume we would like to ignore exif orientation

dec_params = nvimgcodec.DecodeParams(apply_exif_orientation=False)
nv_img_jpg = decoder.read(resources_dir + "f-exif-8.jpg", params=dec_params)
encoder.write("f-wo-exif.bmp", nv_img_jpg)
image = cv2.imread("f-wo-exif.bmp")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)

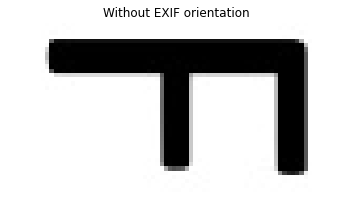

show_image(image, title="Without EXIF orientation")

Passing encoding parameters

Changing quality and chroma subsampling in jpeg

nv_img_jpg = decoder.read(resources_dir + "tabby_tiger_cat.jpg")
enc_params = nvimgcodec.EncodeParams(quality_type=nvimgcodec.QualityType.QUALITY, quality_value=5, chroma_subsampling=nvimgcodec.ChromaSubsampling.CSS_GRAY)
encoder.write("cat-q5-gray.jpg", nv_img_jpg, params=enc_params)

image = cv2.imread("cat-q5-gray.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)

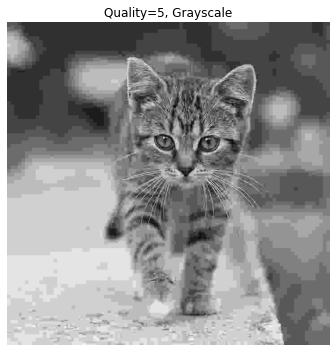

show_image(image, title="Quality=5, Grayscale")

Jpeg optimized huffman and progressive encoding

nv_img_jpg = decoder.read(resources_dir + "tabby_tiger_cat.jpg")
encoder.write("cat-q75.jpg", nv_img_jpg, params=nvimgcodec.EncodeParams(quality_type=nvimgcodec.QualityType.QUALITY, quality_value=75))
encoder.write("cat-q75-optimized_huffman.jpg", nv_img_jpg, params=nvimgcodec.EncodeParams(
    quality_type=nvimgcodec.QualityType.QUALITY,
    quality_value=75,
    jpeg_encode_params = nvimgcodec.JpegEncodeParams(optimized_huffman=True, progressive=True)
))

print("default huffman file size:", os.path.getsize("cat-q75.jpg"))
print("optimized huffman file size:", os.path.getsize(
    "cat-q75-optimized_huffman.jpg"))

image = cv2.imread("cat-q75-optimized_huffman.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
show_image(image, title="Optimized Huffman")

default huffman file size: 59965
optimized huffman file size: 58227

Jpeg2000 encode options overview

nv_img_jpg = decoder.read(resources_dir + "tabby_tiger_cat.jpg")

encoder.write("cat-psnr25.j2k", nv_img_jpg, params=nvimgcodec.EncodeParams(quality_type=nvimgcodec.QualityType.PSNR, quality_value=25))

encoder.write("cat-lossless.j2k", nv_img_jpg, params=nvimgcodec.EncodeParams(quality_type=nvimgcodec.QualityType.LOSSLESS))

jpeg2k_encode_params = nvimgcodec.Jpeg2kEncodeParams()
jpeg2k_encode_params.num_resolutions = 2
jpeg2k_encode_params.code_block_size = (32, 32)
jpeg2k_encode_params.bitstream_type = nvimgcodec.Jpeg2kBitstreamType.JP2
jpeg2k_encode_params.prog_order = nvimgcodec.Jpeg2kProgOrder.LRCP
jpeg2k_encode_params.mct_mode = 1
encoder.write("cat-lossless-2decomps.j2k",
              nv_img_jpg,
              params=nvimgcodec.EncodeParams(
                quality_type=nvimgcodec.QualityType.LOSSLESS,
                jpeg2k_encode_params=jpeg2k_encode_params
              )
            )

jpeg2k_encode_params.ht = True
encoder.write("cat-lossless-2decomps-ht.j2k", nv_img_jpg, params=nvimgcodec.EncodeParams(
    quality_type=nvimgcodec.QualityType.LOSSLESS,
    jpeg2k_encode_params=jpeg2k_encode_params
))

print("lossy file size:", os.path.getsize("cat-psnr25.j2k"))
print("lossless file size:", os.path.getsize("cat-lossless.j2k"))
print("lossless 2 decomposition levels file size:",  os.path.getsize("cat-lossless-2decomps.j2k"))
print("lossless 2 decomposition levels with High-Throughput file size:",  os.path.getsize("cat-lossless-2decomps-ht.j2k"))
image = cv2.imread("cat-psnr25.j2k")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
show_image(image, title="JPEG2000 PSNR=25")

lossy file size: 2427
lossless file size: 598063
lossless 2 decomposition levels file size: 427510
lossless 2 decomposition levels with High-Throughput file size: 611199

We can specify allowed backends used for decoding

gpu_dec = nvimgcodec.Decoder(backends=[nvimgcodec.Backend(nvimgcodec.BackendKind.GPU_ONLY, load_hint=0.5), nvimgcodec.BackendKind.HYBRID_CPU_GPU])
cpu_dec = nvimgcodec.Decoder(backends=[nvimgcodec.BackendKind.CPU_ONLY])

%%time
nv_img_j2k = cpu_dec.read(resources_dir + "cat-1046544_640.jp2")

CPU times: user 90.6 ms, sys: 2.75 ms, total: 93.4 ms
Wall time: 94.7 ms

%%time
nv_img_j2k = gpu_dec.read(resources_dir + "cat-1046544_640.jp2")

CPU times: user 27.1 ms, sys: 0 ns, total: 27.1 ms
Wall time: 26.8 ms

The same way we can create Encoder with allowed backends.

gpu_enc = nvimgcodec.Encoder(backends=[nvimgcodec.Backend(nvimgcodec.BackendKind.GPU_ONLY, load_hint=0.5)
                             , nvimgcodec.Backend(nvimgcodec.BackendKind.HYBRID_CPU_GPU)])
cpu_enc = nvimgcodec.Encoder(backends=[nvimgcodec.BackendKind.CPU_ONLY])

cpu_enc.write("cat_cpu_out.jpg", nv_img_j2k)

'cat_cpu_out.jpg'

gpu_enc.write("cat_gpu_out.jpg", nv_img_j2k)

'cat_gpu_out.jpg'

Support of __cuda_array_interface__

print(nv_img_j2k.__cuda_array_interface__)
print(nv_img_j2k.shape)

{'shape': (475, 640, 3), 'strides': None, 'typestr': '|u1', 'data': (13425796096, False), 'version': 3, 'stream': 1}
(475, 640, 3)

Support of __array_interface__

It is possible to pass to nvImageCodec host ndarray by object which supports __array_interface__ as for example image (numpy.ndarray) created by OpenCV

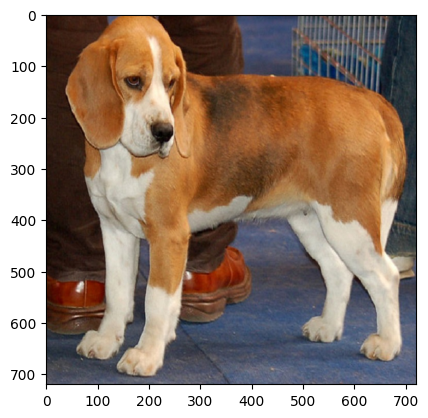

cv_img = cv2.imread(resources_dir + "Weimaraner.bmp")
cv_img = cv2.cvtColor(cv_img, cv2.COLOR_BGR2RGB)

print(type(cv_img))
print(cv_img.__array_interface__)

nv_h_img = nvimgcodec.as_image(cv_img)
gpu_enc.write("Weimaraner_ai_out.jpg", nv_h_img)

image = cv2.imread("Weimaraner_ai_out.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)

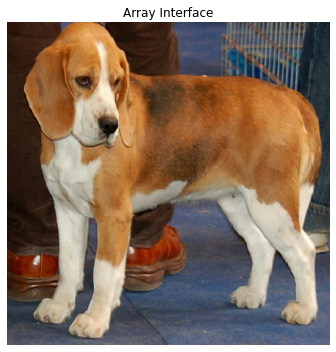

show_image(image, title="Array Interface")

<class 'numpy.ndarray'>
{'data': (147811792, False), 'strides': None, 'descr': [('', '|u1')], 'typestr': '|u1', 'shape': (720, 720, 3), 'version': 3}

If we use cpu() method of Image object it would create new Image with copied content to host buffer.

nv_img = cpu_dec.read(resources_dir + "cat-1046544_640.jp2")
nv_h_img = nv_img.cpu()

Image with host buffer supports __array_interface__

print(nv_h_img.__array_interface__)

{'shape': (475, 640, 3), 'strides': None, 'typestr': '|u1', 'data': (140011060068352, False), 'version': 3}

but can’t return a proper __cuda_array_interface__

try:
    print(nv_h_img.__cuda_array_interface__)
except RuntimeError as e:
    print(f"Expected error: {e}")

Expected error: Unable to initialize __cuda_array_interface__: Image buffer is not on device (expected device buffer for __cuda_array_interface__). Call '.cuda()' on the image to obtain a device-backed image before using the CUDA array interface.

We can pass such Image to functions which accept and can use this interface like imshow from matplotlib library

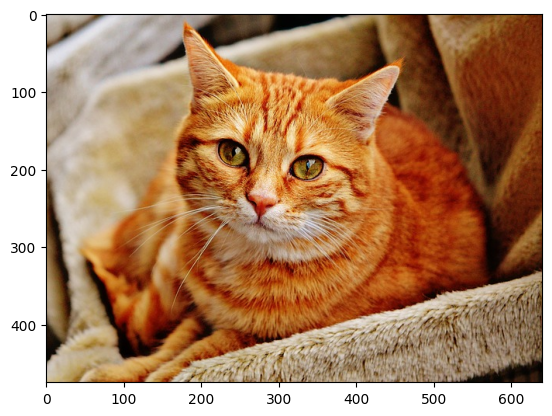

show_image(nv_h_img, title="Image with array interface")

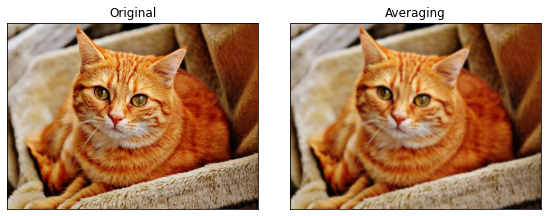

We can also create a zero-copy view of this image with numpy and process it with OpenCV

np_img = np.asarray(nv_h_img)
kernel = np.ones((5, 5), np.float32)/25
dst = cv2.filter2D(np_img, -1, kernel)
plt.figure(figsize=(8, 3), dpi=72)
plt.subplot(121), plt.imshow(np_img), plt.title('Original')
plt.xticks([]), plt.yticks([])
plt.subplot(122), plt.imshow(dst), plt.title('Averaging')
plt.xticks([]), plt.yticks([])
plt.tight_layout()
plt.show()

There is also method cuda() which can be used to convert an Image with a host buffer to an Image with copied contents to a device buffer.

nv_new_cuda_img = nv_h_img.cuda()
print(nv_new_cuda_img.__cuda_array_interface__)

{'shape': (475, 640, 3), 'strides': None, 'typestr': '|u1', 'data': (13423328256, False), 'version': 3, 'stream': 1}

We can check whether Image keeps a host or a device buffer by reading the buffer_kind property

print("Host image buffer kind: ", nv_h_img.buffer_kind)
print("Device image buffer kind: ", nv_new_cuda_img.buffer_kind)

Host image buffer kind:  ImageBufferKind.STRIDED_HOST
Device image buffer kind:  ImageBufferKind.STRIDED_DEVICE

Managing lifetime of decoder resources using “with” statement

with nvimgcodec.Decoder() as decoder_2:
    nv_img = decoder_2.read(resources_dir + "cat-1046544_640.jp2")
    show_image(nv_img.cpu(), title="Context manager decode")

Similarly for encoder resources

with nvimgcodec.Encoder() as encoder_2:
    encoder_2.write("cat-1046544_640_out.jpg", nv_img)
    image = cv2.imread("cat-1046544_640_out.jpg")
    image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)

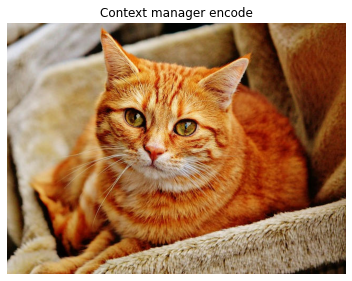

    show_image(image, title="Context manager encode")

Parsing image information without decoding

nvImageCodec allows to parse image information without having to decode the image. For this, we use the CodeStream entity

stream = nvimgcodec.CodeStream(resources_dir + "cat-1046544_640.jp2")
print(stream)

CodeStream( codec_name=jpeg2k num_images=1 height=475 width=640 num_channels=3 dtype=uint8 precision=8 color_spec=1 sample_format=7 size=558133 capacity=558133 num_tiles_y=1 num_tiles_x=1 tile_height=475 tile_width=640)

An CodeStream object can be also created from an in-memory encoded stream (bytes or numpy array)

with open(resources_dir + "cat-1046544_640.jp2", 'rb') as in_file:
    data = in_file.read()
    stream = nvimgcodec.CodeStream(data)
    print(stream)

CodeStream( codec_name=jpeg2k num_images=1 height=475 width=640 num_channels=3 dtype=uint8 precision=8 color_spec=1 sample_format=7 size=558133 capacity=558133 num_tiles_y=1 num_tiles_x=1 tile_height=475 tile_width=640)

print(f"Image has dimensions {stream.height}x{stream.width}x{stream.num_channels} ({stream.height * stream.width * stream.num_channels} total number of pixels) structured in {stream.tile_height}x{stream.tile_width} tiles")

Image has dimensions 475x640x3 (912000 total number of pixels) structured in 475x640 tiles

Inspect color specification properties for information about the color space of images.

jpeg_stream = nvimgcodec.CodeStream(resources_dir + "tabby_tiger_cat.jpg")
print(f"JPEG color spec: {jpeg_stream.color_spec}")

jp2_stream_rgb = nvimgcodec.CodeStream(resources_dir + "cat-1046544_640.jp2")
print(f"JPEG2000 with sRGB color spec: {jp2_stream_rgb.color_spec}")

jp2_stream_ycbcr  = nvimgcodec.CodeStream(resources_dir + "cat-300572_640_ycbcr.tiff")
print(f"Tiff with YCbCr color spec: {jp2_stream_ycbcr.color_spec}")

JPEG color spec: ColorSpec.SYCC
JPEG2000 with sRGB color spec: ColorSpec.SRGB
Tiff with YCbCr color spec: ColorSpec.SYCC

Using Color Spec when decoding

The color_spec parameter can be used in DecodeParams to control how images are processed during decoding.

cs = nvimgcodec.CodeStream(resources_dir + "cat-1046544_640.jp2")
print(f"Color spec of the source: {cs.color_spec}")

# Decode with sRGB (default behavior) - equivalent to define params=nvimgcodec.DecodeParams(color_spec = nvimgcodec.ColorSpec.SRGB)
img_srgb = decoder.decode(cs)
print(f"sRGB decode color spec: {img_srgb.color_spec}")

# Demonstrate grayscale conversion
img_gray = decoder.decode(cs, params=nvimgcodec.DecodeParams(
    color_spec=nvimgcodec.ColorSpec.GRAY
))
print(f"Grayscale decode color spec: {img_gray.color_spec}")

# Show visual comparison

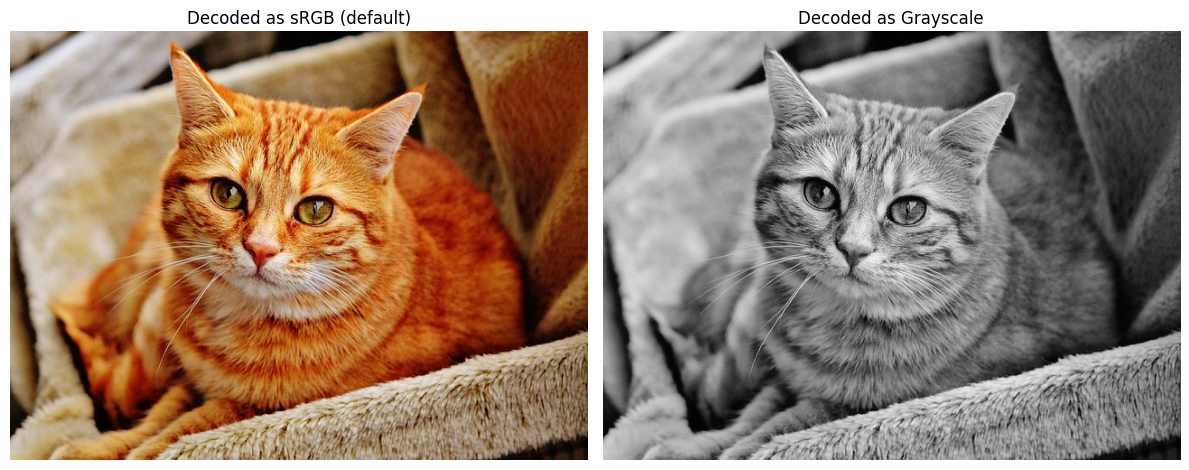

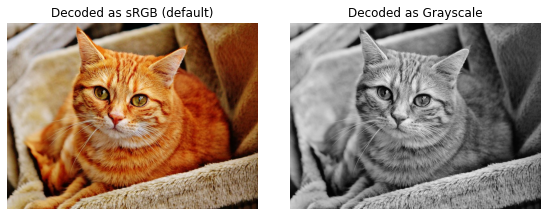

fig, axes = plt.subplots(1, 2, figsize=(8, 3), dpi=72)
axes[0].imshow(img_srgb.cpu())
axes[0].set_title("Decoded as sRGB (default)")
axes[0].axis('off')
axes[1].imshow(img_gray.cpu(), cmap='gray')
axes[1].set_title("Decoded as Grayscale")
axes[1].axis('off')
plt.tight_layout()
plt.show()

Color spec of the source: ColorSpec.SRGB
sRGB decode color spec: ColorSpec.SRGB
Grayscale decode color spec: ColorSpec.GRAY

Decoding with UNCHANGED color spec (preserve original color space). Please note that in case of GRAY input when decoding with UNCHANGED color space, shape is different (has only one channel)

cs = nvimgcodec.CodeStream(resources_dir + "cat-111793_640-16bit-gray.jp2")
print(f"Color spec of the source: {cs.color_spec}")

# Decode with sRGB (default behavior)
img_srgb = decoder.decode(cs)
print(f"sRGB decode color spec: {img_srgb.color_spec}")
print(f"Default sRGB decoded shape: {img_srgb.shape}")

img_unchanged = decoder.decode(cs, params=nvimgcodec.DecodeParams(color_spec = nvimgcodec.ColorSpec.UNCHANGED))
print(f"Unchanged decode color spec: {img_unchanged.color_spec}")
print(f"Unchanged decoded shape: {img_unchanged.shape}")

Color spec of the source: ColorSpec.GRAY
sRGB decode color spec: ColorSpec.SRGB
Default sRGB decoded shape: (426, 640, 3)
Unchanged decode color spec: ColorSpec.GRAY
Unchanged decoded shape: (426, 640, 1)

For RGB input decoding with UNCHANGED color spec should not change anything.

cs = nvimgcodec.CodeStream(resources_dir + "cat-1046544_640.jp2")
print(f"Color spec of the source: {cs.color_spec}")

# Decode with sRGB (default behavior)
img_srgb = decoder.decode(cs)
print(f"sRGB decode color spec: {img_srgb.color_spec}")
print(f"Default sRGB decoded shape: {img_srgb.shape}")

img_unchanged = decoder.decode(cs, params=nvimgcodec.DecodeParams(color_spec = nvimgcodec.ColorSpec.UNCHANGED))
print(f"Unchanged decode color spec: {img_unchanged.color_spec}")
print(f"Unchanged decoded shape: {img_unchanged.shape}")

Color spec of the source: ColorSpec.SRGB
sRGB decode color spec: ColorSpec.SRGB
Default sRGB decoded shape: (475, 640, 3)
Unchanged decode color spec: ColorSpec.SRGB
Unchanged decoded shape: (475, 640, 3)

Encode Jpeg2000 with tiles

# Encode JPEG2000 with tiling (e.g., 256x256 tiles)
jpeg2k_encode_params = nvimgcodec.Jpeg2kEncodeParams()
jpeg2k_encode_params.num_resolutions = 5
jpeg2k_encode_params.code_block_size = (64, 64)
jpeg2k_encode_params.bitstream_type = nvimgcodec.Jpeg2kBitstreamType.JP2
jpeg2k_encode_params.prog_order = nvimgcodec.Jpeg2kProgOrder.RPCL

# Set tile size (e.g., 256x256)
tile_width = 256
tile_height = 256

encoder.write(
    "cat-tiled-256x256.j2k",
    nv_img_jpg,
    params=nvimgcodec.EncodeParams(
        quality_type=nvimgcodec.QualityType.LOSSLESS,
        jpeg2k_encode_params=jpeg2k_encode_params,
        tile_width=tile_width,
        tile_height=tile_height
    )
)

# Parse information about the tiled JPEG2000 image
code_stream = nvimgcodec.CodeStream("cat-tiled-256x256.j2k")
print(f"Tile width: {code_stream.tile_width}")
print(f"Tile height: {code_stream.tile_height}")
print(f"Number of tiles (X): {code_stream.num_tiles_x}")
print(f"Number of tiles (Y): {code_stream.num_tiles_y}")

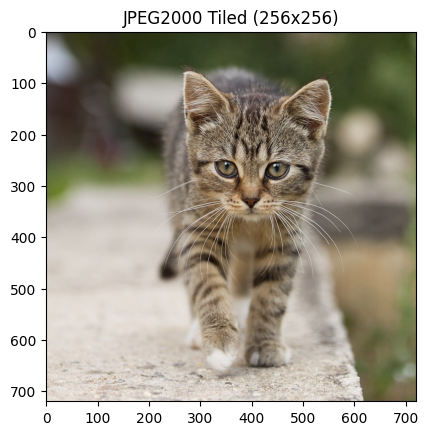

# Decode the tiled JPEG2000 image
image_tiled = decoder.decode(code_stream)
show_image(image_tiled.cpu(), title=f"JPEG2000 Tiled ({tile_width}x{tile_height})")
plt.show()

Tile width: 256
Tile height: 256
Number of tiles (X): 3
Number of tiles (Y): 3

Custom precision: encoding lower-bit-depth data

Some workflows have integer data with fewer significant bits than the container type – for example 12-bit sensor data stored in a uint16 buffer. Pass precision=N to nvimgcodec.as_image to tell the encoder how many bits actually matter; the JPEG 2000 encoder will record that precision in the SIZ marker so the bitstream round-trips it correctly. Encoders that do not support custom precision log a warning and continue at the full type bitdepth.

Valid range is 1 <= precision <= bitdepth(dtype). The argument is not supported for floating-point dtypes.

# Synthetic 12-bit data stored in a uint16 buffer (values stay in [0, 4095]).
rng = np.random.default_rng(0)
arr_12bit = rng.integers(0, 1 << 12, (256, 256, 3), dtype=np.uint16)

img = nvimgcodec.as_image(arr_12bit, precision=12)
print(f"image dtype     = {img.dtype}")
print(f"image precision = {img.precision}")  # 12, not 16

# Without precision=, Image.precision resolves to the dtype bitdepth.
img_default = nvimgcodec.as_image(arr_12bit)
print(f"default precision (no override) = {img_default.precision}")

image dtype     = uint16
image precision = 12
default precision (no override) = 16

# Lossless JPEG 2000 encode preserves the precision tag in the SIZ marker.
encode_params = nvimgcodec.EncodeParams(quality_type=nvimgcodec.QualityType.LOSSLESS)
encoded = encoder.encode(img, codec="jpeg2k", params=encode_params)
print(f"encoded CodeStream precision = {encoded.precision}")

# Re-parse from raw bytes to confirm the precision is recorded in the bitstream itself
# (e.g. what an external consumer would see after reading the file from disk).
encoded_bytes = bytes(encoded)
parsed = nvimgcodec.CodeStream(encoded_bytes)
print(f"parsed-from-bytes precision  = {parsed.precision}")

encoded CodeStream precision = 12
parsed-from-bytes precision  = 12

# Decode the bitstream back with allow_any_depth=True to keep the native dtype/precision
# and verify the original pixel values round-trip exactly.
decode_params = nvimgcodec.DecodeParams(
    color_spec=nvimgcodec.ColorSpec.UNCHANGED, allow_any_depth=True)
decoded = decoder.decode(parsed, params=decode_params).cpu()
print(f"decoded precision = {decoded.precision}")
print(f"decoded dtype     = {decoded.dtype}")
print(f"pixels match      = {np.array_equal(np.asarray(decoded), arr_12bit)}")

decoded precision = 12
decoded dtype     = uint16
pixels match      = True

Trying the same image with an encoder that does not support custom precision (e.g. PNG) produces a warning on the log. The image is still encoded, but the bitstream records the dtype’s full bitdepth (16 in this case), not the 12-bit tag the source image declared. The cell below makes that explicit by querying the encoder’s returned CodeStream (which still echoes the input value) and then re-parsing the encoded bytes (which reflects what was actually stored).

# PNG, BMP, PNM, JPEG, and TIFF encoders ignore custom precision and warn instead.
# The CodeStream object returned by encode() reports back the *input* precision the
# encoder was given; to see what the resulting bitstream actually records, re-parse
# the encoded bytes -- the PNG IHDR will report the dtype's full bitdepth.
encoded_png = encoder.encode(img, codec="png")
parsed_png = nvimgcodec.CodeStream(bytes(encoded_png))
print(f"png input precision (as given to encoder) = {encoded_png.precision}")
print(f"png bitstream precision (from re-parse)   = {parsed_png.precision}")

png input precision (as given to encoder) = 12
png bitstream precision (from re-parse)   = 16

[WARNING] [opencv_png_encoder] Custom plane_info.precision (12 bits) is not supported; encoding will use the full type precision (16 bits).

Planar layout: decoding to planar and wrapping a planar array

By default nvImageCodec decodes to an interleaved layout (I_RGB), where pixels are stored as (H, W, C). Many GPU / deep-learning pipelines instead expect a planar layout (P_RGB), where each color channel is a separate plane and the buffer is shaped (C, H, W).

The output layout is selected with the sample_format field of DecodeParams - use SampleFormat.P_RGB for planar RGB (or SampleFormat.P_Y for planar grayscale) and SampleFormat.I_RGB for interleaved.

cs = nvimgcodec.CodeStream(resources_dir + "tabby_tiger_cat.jpg")

# Interleaved (default): shape is (H, W, C)
img_interleaved = decoder.decode(cs)
print(f"Interleaved: sample_format={img_interleaved.sample_format}, shape={img_interleaved.shape}")

# Planar: same pixels, shape (C, H, W) - each channel is its own plane
img_planar = decoder.decode(
    cs, params=nvimgcodec.DecodeParams(sample_format=nvimgcodec.SampleFormat.P_RGB))
print(f"Planar:      sample_format={img_planar.sample_format}, shape={img_planar.shape}")

# Copy the planar image to host and view it as a (C, H, W) numpy array
planar_chw = np.asarray(img_planar.cpu())
print(f"Host planar array: shape={planar_chw.shape}, dtype={planar_chw.dtype}")

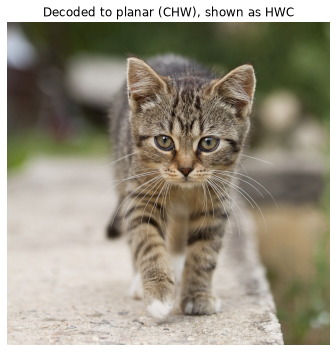

# matplotlib's imshow expects (H, W, C), so transpose the planes for display
show_image(np.transpose(planar_chw, (1, 2, 0)), title="Decoded to planar (CHW), shown as HWC")

Interleaved: sample_format=SampleFormat.I_RGB, shape=(720, 720, 3)
Planar:      sample_format=SampleFormat.P_RGB, shape=(3, 720, 720)
Host planar array: shape=(3, 720, 720), dtype=uint8

Creating an Image from a planar array

nvimgcodec.as_image can wrap an existing planar (C, H, W) array (host or device) as an Image - just declare the layout with sample_format=SampleFormat.P_RGB. This is the inverse of the step above and is handy when a planar tensor produced elsewhere (e.g. by a deep-learning framework) needs to be handed to the encoder.

# Build a planar (C, H, W) array - here reusing the planar decode from above.
planar_chw = np.asarray(img_planar.cpu())

# Wrap it as a planar Image (a view over the same memory - no pixel copy).
planar_image = nvimgcodec.as_image(planar_chw, sample_format=nvimgcodec.SampleFormat.P_RGB)
print(f"Wrapped Image: sample_format={planar_image.sample_format}, shape={planar_image.shape}")

# It can be used like any other Image, e.g. encoded to a file...
encoder.write("cat-from-planar.png", planar_image)

# ...and the round-trip matches the original interleaved decode.
roundtrip = decoder.read("cat-from-planar.png")
print("Round-trip matches interleaved decode:",
      np.array_equal(np.asarray(roundtrip.cpu()), np.asarray(img_interleaved.cpu())))

Wrapped Image: sample_format=SampleFormat.P_RGB, shape=(3, 720, 720)
Round-trip matches interleaved decode: True
