Attention

Scaled Dot Product Attention

This operation computes the scaled dot product attention (SDPA), as

$\text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d}}\right)V$

using the FlashAttention-2 algorithm as described in the paper FlashAttention-2: Faster Attention with Better Parallelism and Work Partitioning. It is applicable for both training and inference phases, with an option to generate a stats tensor to be used for backwards training computation.

Support Matrix

cudnn SDPA operation requires SM80 (Ampere) or newer architectures and cuda toolkit 12.x or newer.

The support matrix is based on the latest cudnn backend version 9.18.1

Glossary

¹ Interleaved q,k,v tensors. Generally they have layouts as BS3HD, B3SHD.

² Padded, variable length sequences (requires padding mask). When sequences in a batch have different lengths, use use_padding_mask=True with sequence length tensors.

   Setup:
   - Set use_padding_mask=True
   - Provide seq_len_q tensor of shape (B, 1, 1, 1) with actual query sequence lengths
   - Provide seq_len_kv tensor of shape (B, 1, 1, 1) with actual key/value sequence lengths

   Example:
   Batch with sequences “aa” (length 2) and “bbb” (length 3), max length S=8:

• seq_len_q = [2, 3]
• seq_len_kv = [2, 3]

  Q[b=0] = aa000000  (6 padding tokens)
  Q[b=1] = bbb00000  (5 padding tokens)
• Dimensions: $[B=2, H=1, S=8, D=64]$
• Strides: $[512, 64, 64, 1]$ (standard BHSD)

   cuDNN automatically masks out padding tokens during attention computation.

³ Ragged Layout.

   For memory efficiency, variable-length sequences can be packed together without padding. This is called THD layout where $T = \sum(\text{seq\_len})$ is the total number of valid tokens.

   Requirements:

• Must set ragged offset tensor via tensor.set_ragged_offset(ragged_offset_tensor)

   Ragged Offset Tensor:

• Shape: $(B + 1, 1, 1, 1)$
• Contains cumulative token offsets in elements (not bytes)
• Last element is the total number of tokens

   Ragged Offset Multiplier (cuDNN 9.24+, UNIFIED forward only):

• tensor.set_ragged_offset_multiplier(value) lets the ragged offsets be stored in coarser units; the engine multiplies each offset by value to recover element offsets.
• max_total_seq_len_q / max_total_seq_len_kv declare the packed token totals of the ragged Q and K/V. A ragged tensor’s dims stay (B, H, S_max, D) and the per-sequence starts live in a device-side offset tensor, so the packed total is not otherwise expressible in the graph. Supplying it lets the implementation bound the token axis exactly rather than inferring an upper bound from the bound buffers’ extents — which matters when a buffer is allocated larger than the tokens it holds, since rows past the real total are masked but still take part in P @ V and so must be finite. The values only ever tighten the inferred bound, never widen it, and are accepted only on a ragged layout. sdpa_backward has taken the same two arguments since cuDNN 9.6.
• Example: with a multiplier of $H \times D$, a token-unit cumulative-sequence-length tensor (e.g. cu_seq_len_q) can be bound directly as the ragged offset, avoiding a conversion pass.

   Memory Layout visualization:

     Example:

     Same sequences “aa” and “bbb” packed together:

• seq_len_q = [2, 3]


• seq_len_kv = [2, 3]


  Q = aabbb  (no padding, T=5 total tokens)

• Dimensions: $[B=2, H=1, S=8, D=64]$ (S is still max sequence length)

• Strides: $[512, 64, 64, 1]$ (strides unchanged, but ignored for ragged)

• Ragged offset: $[0, 2 \times H \times D, 5 \times H \times D] = [0, 128, 320]$

     Partially Packed Layout:

     Tokens within each batch can be contiguous without being globally packed.

• Ragged offset: $[0, 4 \times H \times D, 7 \times H \times D] = [0, 256, 448]$

  Q = aa00bbb0  (batch 0 at offset 0, batch 1 at offset 4)

     Not Supported:

     Tokens that are not contiguous within a batch cannot be represented.

• seq_len_q = [2, 3]

  Q = a0abbb00bb000000  (tokens interleaved - NOT SUPPORTED)

   Note that Q,K,V and their gradients can be individually ragged or not.

   Backward Pass with THD:

   When using THD layout with cudnn, maximum total tokens are needed for efficient workspace allocation. If not set, defaults to $B \times S$ which may overallocate memory.

⁴ None, Causal, Sliding window, Additive Bias, Softcap, Arbitrary masking.

⁵ d_qo should be equal to d_kv. (Except when d_qk == 192 and d_vo = 128, which is also supported.)

Important Notes on Support Surface

1. All attention flavors MHA, MQA, GQA are supported.
2. The head dim (d) should be a multiple of 8 for fp16/bf16 and multiple of 16 for fp8 data-types.
3. The seqlens s_q, and s_kv can have arbitrary value.
4. The layout of q,k,v,o and dq, dk, dv, do can be independent of each other.
5. Dropout: Randomly zeros some of the attention weights after the softmax as a form of regularization. You can configure dropout in two ways:
   • Philox RNG dropout (more performant): Provide:
     • An RNG seed tensor (INT32 or INT64)
     • An RNG offset tensor (INT32 or INT64)
     • A float representing the dropout probability (probability that any weight is set to zero)
     • (Debug only) Output RNG dump tensor to capture the generated dropout mask
   • Custom dropout mask: Provide:
     • A dropout mask tensor matching the attention weights’ dimensions. Dimensions set to 1 will broadcast.
     • A dropout scale tensor to adjust remaining weights, typically $1 / (1 - \text{dropout probability})$.
6. Stats from fprop is supported (Max, Sum). In addition QKClip required for KimiK2, Qwen are also supported optionally.

Benchmarks

To run the sdpa benchmarks, refer to benchmarks/sdpa folder. Current results:

GB200 - Llama 3.1 Causal (top_left)

• SDPA parameters: batch=1; num_q_heads=64; num_kv_heads=8; head_dim=128; is_causal=True
• Sequence lengths shown on x-axis
• Results obtained on NVIDIA GB200 GPU

GB200 - Llama 3.1 Non-Causal (no_mask)

• SDPA parameters: batch=1; num_q_heads=64; num_kv_heads=8; head_dim=128; is_causal=False
• Sequence lengths shown on x-axis
• Results obtained on NVIDIA GB200 GPU

GB200 - DeepSeek V3 Causal (top_left)

• SDPA parameters: batch=1; num_q_heads=128; num_kv_heads=128; head_dim_qk=192; head_dim_vo=128; is_causal=True
• Sequence lengths shown on x-axis
• Results obtained on NVIDIA GB200 GPU

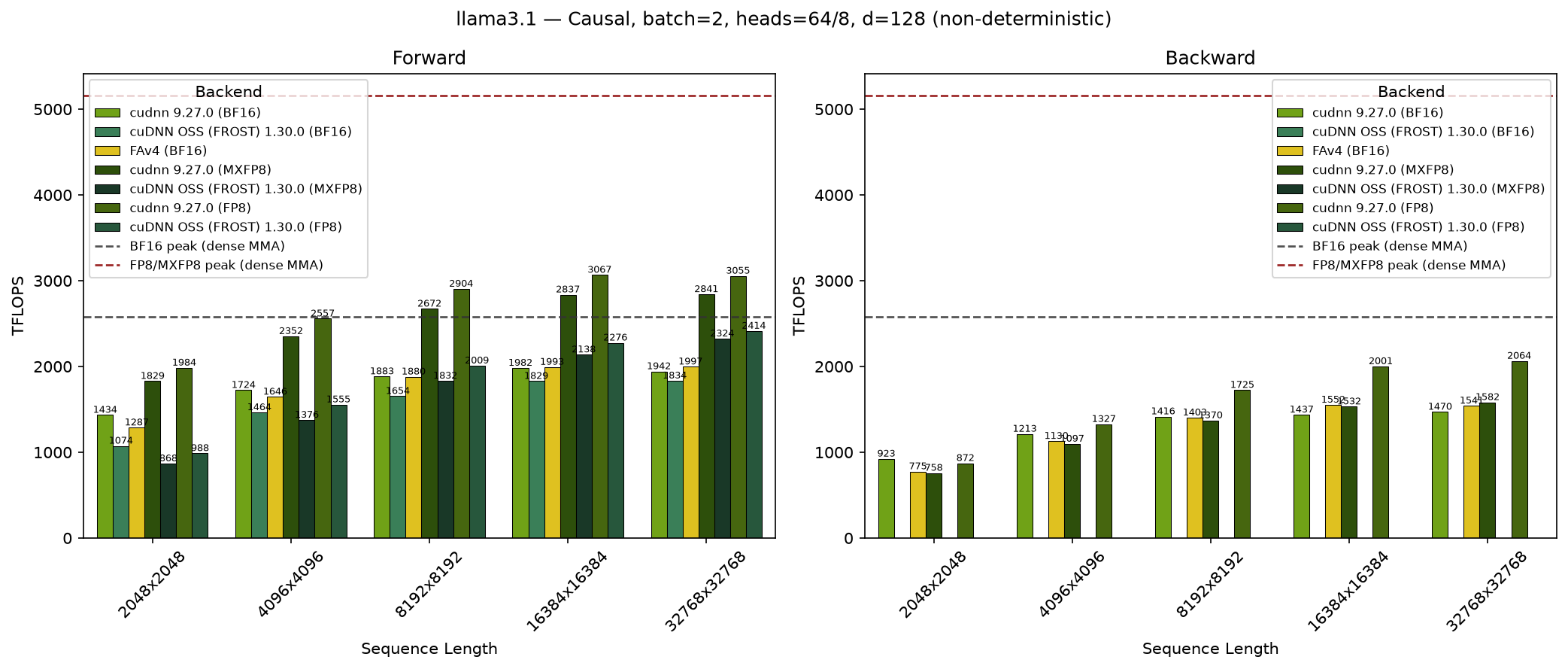

GB300 - Llama 3.1 Causal (top_left)

• SDPA parameters: batch=1; num_q_heads=64; num_kv_heads=8; head_dim=128; is_causal=True
• Sequence lengths shown on x-axis
• Results obtained on NVIDIA GB300 GPU

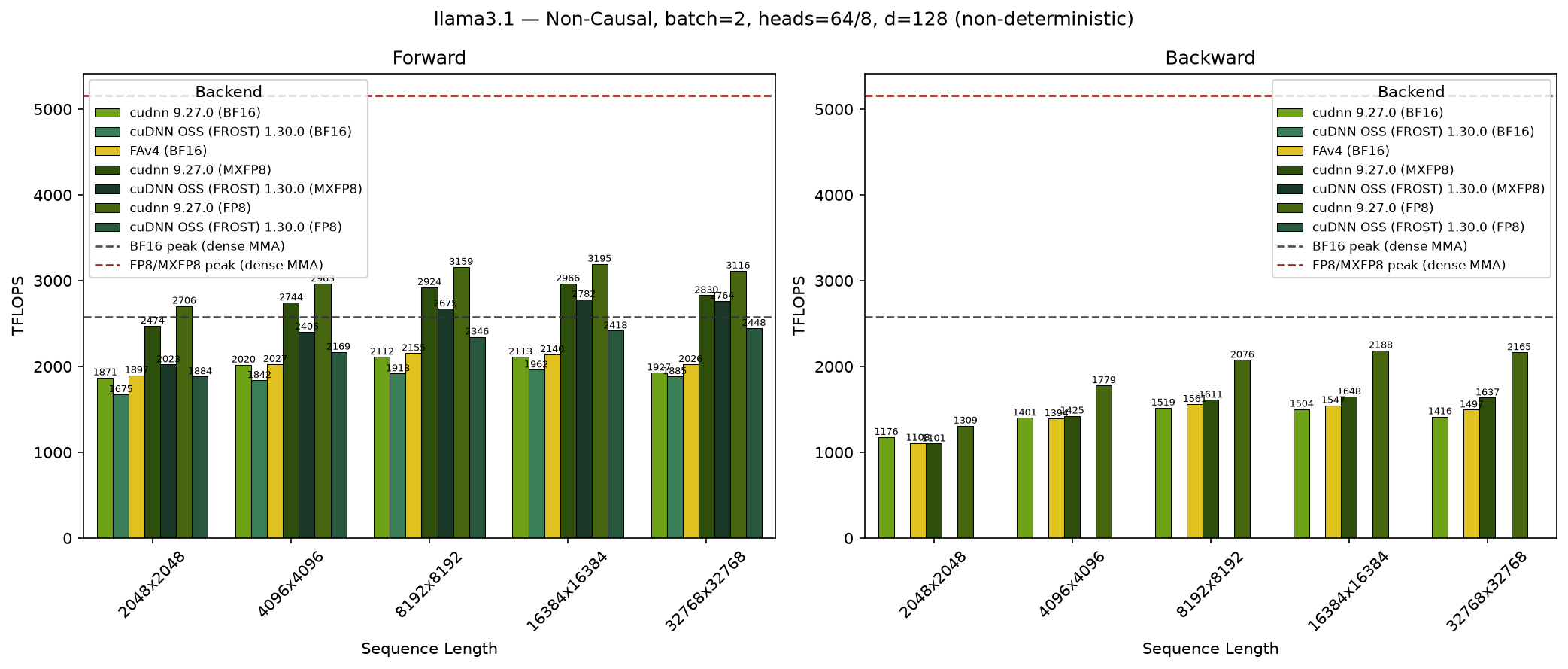

GB300 - Llama 3.1 Non-Causal (no_mask)

• SDPA parameters: batch=1; num_q_heads=64; num_kv_heads=8; head_dim=128; is_causal=False
• Sequence lengths shown on x-axis
• Results obtained on NVIDIA GB300 GPU

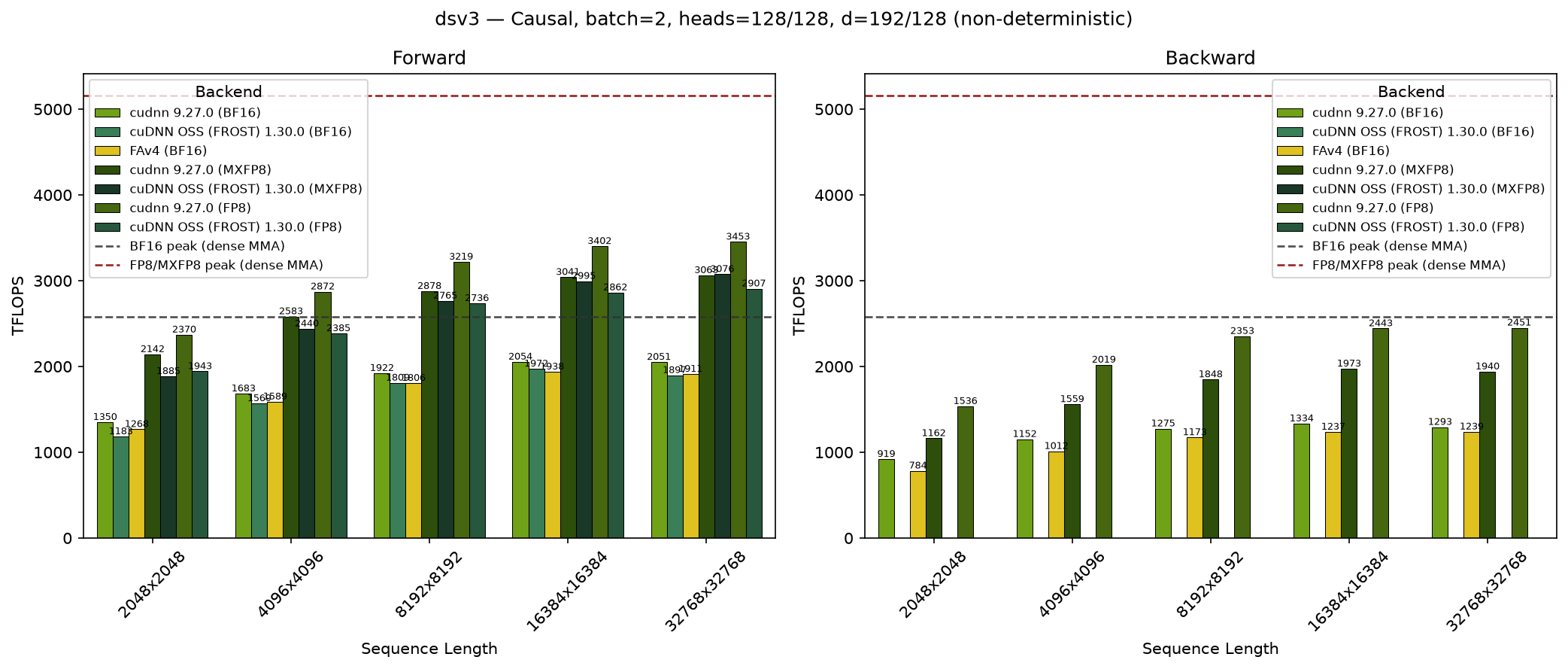

GB300 - DeepSeek V3 Causal (top_left)

• SDPA parameters: batch=1; num_q_heads=128; num_kv_heads=128; head_dim_qk=192; head_dim_vo=128; is_causal=True
• Sequence lengths shown on x-axis
• Results obtained on NVIDIA GB300 GPU

API

SDPA FP16/BF16 Forward

C++ API

// returns [output, softmax_stats]
std::array<std::shared_ptr<Tensor_attributes>, 2>
sdpa(std::shared_ptr<Tensor_attributes> q,
     std::shared_ptr<Tensor_attributes> k,
     std::shared_ptr<Tensor_attributes> v,
     SDPA_attributes options);

The options parameter of type SDPA_attributes is used to control the attributes of the forward operation, as detailed below:

// Indicates that softmax_stats should be generated (useful during training).
// If false, the softmax_stats output will be nullptr.
SDPA_attributes& set_generate_stats(bool const value);
// Return softmax_stats in base 2, i.e. (max + ln(sum_exp)) * log2(e), instead of the
// default natural-log form max + ln(sum_exp). Matches flash-attention-style
// kernels that fold log2(e) into the softmax scale. Only affects softmax_stats.
SDPA_attributes& set_stats_use_log2(bool const value);
// Indicates whether the kernel should output max of attention score
// and numerically stable sum of exponents using normalized values wrt max score
SDPA_attributes& set_logit_max(std::shared_ptr<Tensor_attributes> value);
SDPA_attributes& set_score_sum_exp(std::shared_ptr<Tensor_attributes> value);
SDPA_attributes& set_attn_scale(std::shared_ptr<Tensor_attributes> value);
SDPA_attributes& set_attn_scale(float const value);
// DEPRECATED
// Calls set_generate_stats(!value) (note the negation of `value`).
SDPA_attributes& set_is_inference(bool const value);
// ========================== BEGIN paged attn options =====================
SDPA_attributes& set_paged_attention_k_table(std::shared_ptr<Tensor_attributes> value);
SDPA_attributes& set_paged_attention_v_table(std::shared_ptr<Tensor_attributes> value);
SDPA_attributes& set_paged_attention_max_seq_len_kv(int const value);
// ==========================  END  paged attn options =====================
// ========================== BEGIN    var len options =====================
SDPA_attributes& set_padding_mask(bool const value);
// integer tensor that specifies the sequence length of each batch
SDPA_attributes& set_seq_len_q(std::shared_ptr<Tensor_attributes> value);
SDPA_attributes& set_seq_len_kv(std::shared_ptr<Tensor_attributes> value);
// integer tensor of shape (B+1, 1, 1, 1) that specifies the cumulative sequence
// lengths (prefix sums, leading 0) of each batch. Mutually exclusive with
// set_seq_len_q/set_seq_len_kv; both tensors must be set together.
// Requires cuDNN 9.24+ and the UNIFIED implementation.
SDPA_attributes& set_cu_seq_len_q(std::shared_ptr<Tensor_attributes> value);
SDPA_attributes& set_cu_seq_len_kv(std::shared_ptr<Tensor_attributes> value);
// ==========================  END     var len options =====================
// ========================== BEGIN score mod options =====================
SDPA_attributes& set_score_mod(std::function<Tensor_t(Graph_t, Tensor_t)>);
// Use in combination to set diagonal masking
SDPA_attributes& set_diagonal_alignment(DiagonalAlignment_t const alignment);
SDPA_attributes& set_diagonal_band_left_bound(int const value);
SDPA_attributes& set_diagonal_band_right_bound(int const value);
// DEPRECATED
// Sets the diagonal position to TOP_LEFT
// calls set_diagonal_band_right_bound(0) if no right_bound was specified
SDPA_attributes& set_causal_mask(bool const value);
// DEPRECATED
// Sets the diagonal position to BOTTOM_RIGHT
// and calls set_diagonal_band_right_bound(0) if no right_bound was specified
SDPA_attributes& set_causal_mask_bottom_right(bool const value);
// DEPRECATED
// calls set_diagonal_band_left_bound(value)
SDPA_attributes& set_sliding_window_length(int const value);
SDPA_attributes& set_bias(std::shared_ptr<Tensor_attributes> value);
SDPA_attributes& set_block_mask(std::shared_ptr<Tensor_attributes> value);
SDPA_attributes& set_alibi_mask(bool const value);
// ==========================  END  score mod options =====================
// ========================== BEGIN   dropout options =====================
SDPA_attributes& set_dropout(float const probability,
                             std::shared_ptr<Tensor_attributes> seed,
                             std::shared_ptr<Tensor_attributes> offset);
SDPA_attributes& set_dropout(std::shared_ptr<Tensor_attributes> mask,
                             std::shared_ptr<Tensor_attributes> scale);
// for debugging dropout mask with seed and offset
SDPA_attributes& set_rng_dump(std::shared_ptr<Tensor_attributes> value);
// ==========================  END    dropout options =====================
// ========================== BEGIN   experimental options ================
// Sets the underlying SDPA implementation to use (default is AUTO).
SDPA_attributes& set_implementation(AttentionImplementation_t value);
// Use unfused mul/add in the softmax computation.
SDPA_attributes& set_unfuse_fma(bool const value);
// ==========================  END    experimental options ================
SDPA_attributes& set_compute_data_type(DataType_t value);

Python API

graph.sdpa(
    q,                                    # Query tensor
    k,                                    # Key tensor (or container for paged attention)
    v,                                    # Value tensor (or container for paged attention)
    attn_scale=None,                      # Attention scale factor (float or tensor)
    bias=None,                            # Additive bias mask tensor
    block_mask=None,                      # Block mask tensor (128x128 tiles, UNIFIED only)
    use_alibi_mask=False,                 # Enable ALiBi positional encoding
    use_padding_mask=False,               # Enable variable sequence length masking
    seq_len_q=None,                       # Per-batch query sequence lengths
    seq_len_kv=None,                      # Per-batch key/value sequence lengths
    cu_seq_len_q=None,                    # Cumulative query sequence lengths (UNIFIED only)
    cu_seq_len_kv=None,                   # Cumulative key/value sequence lengths (UNIFIED only)
    diagonal_alignment=TOP_LEFT,          # Diagonal alignment: TOP_LEFT or BOTTOM_RIGHT
    diagonal_band_left_bound=None,        # Left bound for sliding window (None = no bound)
    diagonal_band_right_bound=None,       # Right bound for causal mask (0 = causal, None = no bound)
    dropout=None,                         # Dropout config: (prob, seed, offset) or (mask, scale)
    rng_dump=None,                        # Debug: output tensor for RNG dropout mask
    paged_attention_k_table=None,         # Page table for K container
    paged_attention_v_table=None,         # Page table for V container
    paged_attention_max_seq_len_kv=None,  # Max KV sequence length for paged attention
    max_total_seq_len_q=None,             # Packed token total for Q (ragged tensors)
    max_total_seq_len_kv=None,            # Packed token total for KV (ragged tensors)
    generate_stats=None,                  # Output softmax stats for training (True/False)
    stats_use_log2=False,                 # Return stats as (max + ln(sum_exp)) * log2(e) instead of max + ln(sum_exp)
    implementation=AUTO,                  # SDPA implementation: AUTO, COMPOSITE, UNIFIED
    unfuse_fma=False,                     # Use unfused mul/add in the softmax computation
    compute_data_type=NOT_SET,            # Computation data type
    name=None,                            # Operation name
)

Args:

• q (cudnn_tensor): The query data with shape $(B, H_q, S_q, D_{qk})$.
• k (cudnn_tensor): The key data. When paged_attention_k_table is provided, this is a container of non-contiguous key blocks.
• v (cudnn_tensor): The value data. When paged_attention_v_table is provided, this is a container of non-contiguous value blocks.
• attn_scale (Optional[Union[float, cudnn_tensor]]): Scale factor for attention scores. Typically $\frac{1}{\sqrt{d}}$. Default is None (no scaling).
• bias (Optional[cudnn_tensor]): Additive bias mask for attention scores. Supports broadcasting.
• block_mask (Optional[cudnn_tensor]): Block-level mask for 128x128 tiles. Only supported with UNIFIED implementation. On SM10x, the native backend requires cuDNN 9.26.0 or newer: older kernels can return NaNs when the first KV tile is masked out. This restriction is checked during native validation/planning; ordinary attention and FROST admission are unaffected. Because mask contents may change between executions, the requirement applies to every graph with a block-mask tensor, including one initially containing an all-visible mask.
• use_alibi_mask (Optional[bool]): Enable ALiBi (Attention with Linear Biases) positional encoding. Requires diagonal_band_right_bound=0.
• use_padding_mask (Optional[bool]): Enable variable sequence length masking. Must also provide a Q-side and a KV-side length tensor, each in per-batch (seq_len_q/seq_len_kv) or cumulative (cu_seq_len_q/cu_seq_len_kv) form.
• seq_len_q (Optional[cudnn_tensor]): Per-batch query sequence lengths with shape $(B, 1, 1, 1)$.
• seq_len_kv (Optional[cudnn_tensor]): Per-batch key/value sequence lengths with shape $(B, 1, 1, 1)$.
• cu_seq_len_q (Optional[cudnn_tensor]): Cumulative query sequence lengths (prefix sums with a leading 0) with shape $(B+1, 1, 1, 1)$ or 1-D $(B+1,)$ (promoted automatically), int32 or int64. Mutually exclusive with seq_len_q (a side cannot use both forms); a KV-side length tensor (seq_len_kv or cu_seq_len_kv) must also be provided, and use_padding_mask=True is required. The two sides may use different forms (e.g. cu_seq_len_q with seq_len_kv), which requires cuDNN 9.25+. Supplying cu_seq_len_q requires cuDNN 9.24+ and the UNIFIED implementation.
• cu_seq_len_kv (Optional[cudnn_tensor]): Cumulative key/value sequence lengths; same shape, type, and constraints as cu_seq_len_q.
• diagonal_alignment (Optional[cudnn.diagonal_alignment]): Alignment for diagonal masking. TOP_LEFT for standard causal, BOTTOM_RIGHT for prefix-LM style.
• diagonal_band_left_bound (Optional[int]): Left bound for sliding window attention. Masks columns at or before row_idx - left_bound.
• diagonal_band_right_bound (Optional[int]): Right bound for causal masking. Set to 0 for causal mask. Masks columns beyond row_idx + right_bound.
• dropout (Optional[tuple]): Dropout configuration. Either (probability, seed, offset) for Philox RNG or (mask, scale) for custom mask.
• rng_dump (Optional[cudnn_tensor]): Debug tensor to capture the Philox RNG dropout mask.
• paged_attention_k_table (Optional[cudnn_tensor]): Page table with block offsets into the K container.
• paged_attention_v_table (Optional[cudnn_tensor]): Page table with block offsets into the V container.
• paged_attention_max_seq_len_kv (Optional[int]): Maximum sequence length for K/V caches. Recommended when using paged attention.
• generate_stats (Optional[bool]): If True, output softmax statistics for backward pass. Required for training.
• stats_use_log2 (Optional[bool]): If True, stats is returned in base 2, $\log_2(e)\,[\max + \ln(\sum e^{s - \max})]$, instead of the default natural-log form $\max + \ln(\sum e^{s - \max})$. This is the convention of flash-attention-style kernels (FA2/FA3, TRT-LLM) that fold $\log_2 e$ into the softmax scale, so consumers that mix LSE tensors from several backends (cascade/split-KV merges, speculative decoding) get one convention without an extra elementwise pass. Only affects stats; score_max and score_sum_exp are unchanged, and sdpa_backward still expects natural-log stats. Served by the FROST SDPA engines and, on cuDNN 9.27.0+, by both the UNIFIED and COMPOSITE implementations (CUDNN_ATTR_OPERATION_SOFTMAX_STATS_LOG2 on the softmax operation descriptor used by both implementations); on older backends both decline it at validation, so only a FROST engine can serve it there.
• implementation (Optional[cudnn.attention_implementation]): SDPA implementation to use. AUTO (default), COMPOSITE, or UNIFIED.
• unfuse_fma (Optional[bool]): Use unfused mul/add in the softmax computation.
• compute_data_type (Optional[cudnn.data_type]): Data type for internal computation.
• name (Optional[str]): Name for the operation.

Returns:

• o (cudnn_tensor): The output attention data with shape $(B, H_q, S_q, D_v)$.
• stats (Optional[cudnn_tensor]): Softmax statistics with shape $(B, H_q, S_q, 1)$ when generate_stats=True. Natural log by default ($\max + \ln \sum e^{s - \max}$); base 2 when stats_use_log2=True.

Configurable Options

• Attention scale (attn_scale): Applies a scaling factor to attention scores before the softmax, such as $\frac{1}{\sqrt{\text{d}}}$. Set to 1.0 by default. Can be passed as a float or as a tensor.

• Bias mask: Applies an additive bias mask to attention scores. You must pass a bias tensor as specified in the tensors section below. The dimensions that are passed as 1 will apply a broadcasted mask over attention scores.

• Block mask: Masks out tiles of attention scores at a 128x128 block granularity. The block mask is a uint8 tensor where each bit represents whether a 128x128 tile should be computed (1) or masked out (0). This is supported with the UNIFIED implementation.

• ALiBi mask: Attention with Linear Biases (ALiBi) is an additive mask applied to the attention scores as described in the paper Train Short, Test Long: Attention with Linear Biases Enables Input Length Extrapolation. When using ALiBi, diagonal_band_right_bound must be set to exactly 0 (causal masking).

• Padding mask (Variable Sequence Length): Masks out padded time steps to ignore them in computation. You must pass per-batch sequence length tensors as specified in the tensors section below. In padded or ragged layout (discussed below) where the actual seqlen can be less than the max seqlens of a graph, certain batches can be skipped by setting the actual seqlen of the corresponding batch to 0.

• Diagonal masking options: These options control causal and sliding window masking:

• Diagonal Alignment (diagonal_alignment): Specifies where the diagonal starts. Options are:

  • TOP_LEFT: The diagonal starts at the top-left of the attention matrix. Used for standard causal masking.
  • BOTTOM_RIGHT: The diagonal starts at the bottom-right of the attention matrix, aligned with the actual sequence length. Useful for prefix-LM or when $S_q \neq S_{kv}$.

• Diagonal Band Right Bound (diagonal_band_right_bound): Specifies that attention scores beyond column row_idx + right_bound are masked with negative infinity. Setting this to 0 enables causal masking.

• Diagonal Band Left Bound (diagonal_band_left_bound): Specifies that attention scores at or before column row_idx - left_bound are masked with negative infinity. This enables sliding window attention.

• Common masking patterns:

  • Causal mask (top-left): diagonal_alignment=TOP_LEFT, right_bound=0
  • Causal mask (bottom-right): diagonal_alignment=BOTTOM_RIGHT, right_bound=0
  • Sliding window: Set left_bound to window size
  • Band attention: Set both left_bound and right_bound

• Paged attention: Enables non-contiguous K/V caches to reduce memory fragmentation. See the PagedAttention paper.

  • Requirements:
    • Pass page_table_k tensor with block offsets into the K container (optional if K is not paged)
    • Pass page_table_v tensor with block offsets into the V container (optional if V is not paged)
    • Pass sequence length tensors (seq_len_q, seq_len_kv) for padding mask
    • Optionally pass paged_attention_max_seq_len_kv for the maximum KV sequence length (recommended)
  • FROST engines (opt-in, SM100 line, f16/bf16): paged decode and MTP graphs (S_q * pack_g <= 128 on the d128 flavor, pack_g = the packed head group for a PackGQA plan — H_q/H_kv, or its largest divisor of 128 — and 1 otherwise) run a dedicated decode tile (TILE_CGA_M=1); other shapes run the prefill pipeline. See python/cudnn/sdpa/frost/SUPPORT_MATRIX_TRACKER.md.
  • Offset calculation:
    • $K_{cache}[b,h,s,d] = K_{container}[page\_table\_k[b,1,s / bs_k, 1], h, s \mod bs_k, d]$
    • $V_{cache}[b,h,s,d] = V_{container}[page\_table\_v[b,1,s / bs_v, 1], h, s \mod bs_v, d]$
  • Packed page tables: Page tables can also use ragged offsets to pack only the necessary block indices, useful for frameworks that prefer packed representations.

• Implementation: Select the underlying SDPA implementation:

  • AUTO (default): Auto-selects the best implementation. Recommended for most users.
  • COMPOSITE: Standard cuDNN graph representing SDPA as distinct operations.
  • UNIFIED: Optimized fused SDPA operation (cuDNN 9.13.1+). Supports a subset of features including block masking.

• Unfuse FMA (unfuse_fma): Uses unfused mul/add in the softmax computation.

• Generate stats (generate_stats): When True, outputs softmax statistics needed for backward pass during training. Set to True for training, False for inference.

• Stats in base 2 (stats_use_log2): Returns stats as $\log_2(e)\,[\max + \ln(\sum e^{s - \max})]$ rather than the natural-log default. The value is exactly the natural-log stats times $\log_2 e$, so it is a convention switch, not a different quantity; the backward pass is unaffected and continues to take natural-log stats.

Limitations

• Head dimension must be a multiple of 8.
• ALiBi requires causal masking (diagonal_band_right_bound=0).
• Block masking is only supported with the UNIFIED implementation.
• Ampere/Ada architectures are limited to head dimensions up to 256 for prefill, 128 for decode and backward.

Fused epilogue gate (FROST, SM107)

A gated attention tail — the SDPA output multiplied by the sigmoid of a per-element gate tensor G of O’s shape, O_gated = O * sigmoid(G) — is built as three graph nodes, an sdpa (or sdpa_fp8 / sdpa_mxfp8) node followed by sigmoid and mul pointwise nodes on O. Under CUDNN_FRONTEND_ENABLE_FROST_ENGINES=1 the Rubin d256 FROST forward engines (sdpa_fwd_prefill_sm107, sdpa_fwd_prefill_sm107_fp8, sdpa_fwd_prefill_sm107_mxfp8) serve the whole tail fused: the gate tile is TMA-staged by the kernel’s load warp and applied in the epilogue after the dead-row select, so the gated O (and the quantized O on the FP8 / MXFP8 rows) is written once. Served today at d_qk = d_v = 256 with a bf16 G, dense / unsplit / non-PackGQA / non-paged layouts; any other combination falls back to the unfused three-node execution. Two contracts hold on the fused path: Stats (LSE) is independent of G, and Amax_O — an output of the sdpa node, which precedes the gate on the graph — is the amax of the un-gated normalised O (in scale_o units on FP8, unscaled on MXFP8), while the stored O is the gated value. The per-engine claims are tracked in python/cudnn/sdpa/frost/SUPPORT_MATRIX_TRACKER.md.

o, stats = graph.sdpa(name="sdpa", q=q, k=k, v=v, is_inference=False, attn_scale=scale, use_causal_mask=True)
o.set_dim(o_dims).set_stride(o_strides)          # the sdpa output stays VIRTUAL but declared; the mul output is the real O
gate = graph.tensor(name="gate", dim=o_dims, stride=o_strides, data_type=cudnn.data_type.BFLOAT16)
o_gated = graph.mul(a=o, b=graph.sigmoid(input=gate, name="sig"), name="gated")   # the tail the engine fuses
o_gated.set_output(True).set_dim(o_dims).set_stride(o_strides).set_data_type(cudnn.data_type.BFLOAT16)

The same fusion is reachable without the graph API through the gated attention block (fuse_gate=True).

Tensors

Input Tensors

Output Tensors

Where:

• $B$ is the batch size
• $H_{q}$ is the number of query heads
• $H_{k}$ is the number of key heads
• $H_{v}$ is the number of value heads
• $S_{q}$ is the sequence length of the query
• $S_{kv}$ is the sequence length of the key and value
• $D_{qk}$ is the embedding dimension per head of query and key
• $D_{v}$ is the embedding dimension per head of value
• $bs_{k}$ is the (power of 2) block size of the K container
• $bs_{v}$ is the (power of 2) block size of the V container
• $num\_blocks_{k}$ is the number of blocks in the K container
• $num\_blocks_{v}$ is the number of blocks in the V container

Samples and Tests

• Python forward sample: samples/python/50_sdpa_forward.ipynb

• Python backward sample: samples/python/51_sdpa_backward.ipynb

• Python prefill sample with paged caches: samples/python/52_sdpa_with_paged_caches.ipynb

• Python decode sample with packed paged caches: samples/python/53_sdpa_decode_with_paged_caches.ipynb

• C++ sample: samples/cpp/sdpa

• Python tests (v2 with randomized configurations): test/python/test_mhas_v2.py

Example Usage:

import cudnn
import torch
import math
# Create graph
graph = cudnn.pygraph(
    io_data_type=cudnn.data_type.HALF,
    intermediate_data_type=cudnn.data_type.FLOAT,
    compute_data_type=cudnn.data_type.FLOAT,
)
# Create tensor descriptors
q = graph.tensor_like(q_gpu)
k = graph.tensor_like(k_gpu)
v = graph.tensor_like(v_gpu)
# Forward pass with causal masking
o, stats = graph.sdpa(
    name="sdpa",
    q=q,
    k=k,
    v=v,
    attn_scale=1.0 / math.sqrt(d),
    generate_stats=True,                          # For training
    diagonal_band_right_bound=0,                  # Causal mask
    diagonal_alignment=cudnn.diagonal_alignment.TOP_LEFT,
)
o.set_output(True).set_dim(shape_o).set_stride(stride_o)
stats.set_output(True).set_data_type(cudnn.data_type.FLOAT)
# Build and execute
graph.build([cudnn.heur_mode.A, cudnn.heur_mode.FALLBACK])

SDPA FP16/BF16 Backward

This operation computes gradient tensors for scaled dot product attention (SDPA) using the FlashAttention-2 algorithm as described in the paper FlashAttention-2: Faster Attention with Better Parallelism and Work Partitioning. You are required to pass the stats tensor from the forward operation to the backward operation as input.

C++ API

// returns [dQ, dK, dV]
std::array<std::shared_ptr<Tensor_attributes>, 3>
sdpa_backward(std::shared_ptr<Tensor_attributes> q,
              std::shared_ptr<Tensor_attributes> k,
              std::shared_ptr<Tensor_attributes> v,
              std::shared_ptr<Tensor_attributes> o,
              std::shared_ptr<Tensor_attributes> dO,
              std::shared_ptr<Tensor_attributes> stats,
              SDPA_backward_attributes);

The options parameter of type SDPA_backward_attributes is used to control the attributes of backward operation, as detailed below:

SDPA_backward_attributes& set_attn_scale(std::shared_ptr<Tensor_attributes> value);
SDPA_backward_attributes& set_attn_scale(float const value);
// ========================== BEGIN    var len options =====================
SDPA_backward_attributes& set_padding_mask(bool const value);
// integer tensor that specifies the sequence length of each batch
SDPA_backward_attributes& set_seq_len_q(std::shared_ptr<Tensor_attributes> value);
SDPA_backward_attributes& set_seq_len_kv(std::shared_ptr<Tensor_attributes> value);
// the maximum number of sequence tokens for all batches, used for workspace allocation
SDPA_backward_attributes& set_max_total_seq_len_q(int64_t const value);
SDPA_backward_attributes& set_max_total_seq_len_kv(int64_t const value);
// ==========================  END     var len options =====================
// ========================== BEGIN score mod options =====================
SDPA_backward_attributes& set_score_mod(std::function<Tensor_t(Graph_t, Tensor_t)>);
// Use in combination to set_diagonal_alignment to set (bottom right) causal masking
SDPA_backward_attributes& set_diagonal_alignment(DiagonalAlignment_t const alignment);
SDPA_backward_attributes& set_diagonal_band_left_bound(int const value);
SDPA_backward_attributes& set_diagonal_band_right_bound(int const value);
// DEPRECATED
// Sets the diagonal position to TOP_LEFT
// calls set_diagonal_band_right_bound(0) if no right_bound was specified
SDPA_backward_attributes& set_causal_mask(bool const value);
// DEPRECATED
// Sets the diagonal position to BOTTOM_RIGHT
// and calls set_diagonal_band_right_bound(0) if no right_bound was specified
SDPA_backward_attributes& set_causal_mask_bottom_right(bool const value);
// DEPRECATED
// calls set_diagonal_band_left_bound(value)
SDPA_backward_attributes& set_sliding_window_length(int const value);
SDPA_backward_attributes& set_bias(std::shared_ptr<Tensor_attributes> value);
SDPA_backward_attributes& set_dbias(std::shared_ptr<Tensor_attributes> value);
SDPA_backward_attributes& set_alibi_mask(bool const value);
// ==========================  END  score modoptions =====================
// ========================== BEGIN   dropout options =====================
SDPA_backward_attributes& set_dropout(float const probability,
                                      std::shared_ptr<Tensor_attributes> seed,
                                      std::shared_ptr<Tensor_attributes> offset);
SDPA_backward_attributes& set_dropout(std::shared_ptr<Tensor_attributes> mask,
                                      std::shared_ptr<Tensor_attributes> scale,
                                      std::shared_ptr<Tensor_attributes> scale_inv);
// for debugging dropout mask with seed and offset
SDPA_backward_attributes& set_rng_dump(std::shared_ptr<Tensor_attributes> value);
// ==========================  END    dropout options =====================
SDPA_backward_attributes& set_deterministic_algorithm(bool const value);
SDPA_backward_attributes& set_compute_data_type(DataType_t const value);

Python API

graph.sdpa_backward(
    q,                                    # Query tensor from forward pass
    k,                                    # Key tensor from forward pass
    v,                                    # Value tensor from forward pass
    o,                                    # Output tensor from forward pass
    dO,                                   # Gradient of output
    stats,                                # Softmax statistics from forward pass
    attn_scale=None,                      # Attention scale factor (must match forward)
    bias=None,                            # Bias tensor from forward pass
    dBias=None,                           # Output tensor for bias gradient
    use_alibi_mask=False,                 # Enable ALiBi (must match forward)
    use_padding_mask=False,               # Enable variable sequence length masking
    seq_len_q=None,                       # Per-batch query sequence lengths
    seq_len_kv=None,                      # Per-batch key/value sequence lengths
    max_total_seq_len_q=None,             # Max total tokens for Q (ragged tensors)
    max_total_seq_len_kv=None,            # Max total tokens for KV (ragged tensors)
    diagonal_alignment=TOP_LEFT,          # Diagonal alignment (must match forward)
    diagonal_band_left_bound=None,        # Left bound (must match forward)
    diagonal_band_right_bound=None,       # Right bound (must match forward)
    dropout=None,                         # Dropout config (must match forward)
    use_deterministic_algorithm=False,    # Force deterministic gradient computation
    compute_data_type=NOT_SET,            # Computation data type
    name=None,                            # Operation name
)

Args:

• q (cudnn_tensor): The query data from the forward pass.
• k (cudnn_tensor): The key data from the forward pass.
• v (cudnn_tensor): The value data from the forward pass.
• o (cudnn_tensor): The output data from the forward pass.
• dO (cudnn_tensor): The gradient of the loss with respect to the output.
• stats (cudnn_tensor): The softmax statistics tensor from the forward pass (generate_stats=True).
• attn_scale (Optional[Union[float, cudnn_tensor]]): The attention scale factor. Must match the forward pass.
• bias (Optional[cudnn_tensor]): The bias tensor from the forward pass.
• dBias (Optional[cudnn_tensor]): Output tensor to store the bias gradient.
• use_alibi_mask (Optional[bool]): Enable ALiBi. Must match the forward pass configuration.
• use_padding_mask (Optional[bool]): Enable variable sequence length masking. Must match forward pass.
• seq_len_q (Optional[cudnn_tensor]): Per-batch query sequence lengths.
• seq_len_kv (Optional[cudnn_tensor]): Per-batch key/value sequence lengths.
• max_total_seq_len_q (Optional[int]): Maximum total sequence tokens for Q when using ragged tensors. Used for workspace allocation. Defaults to $B \times S_q$ if not provided.
• max_total_seq_len_kv (Optional[int]): Maximum total sequence tokens for KV when using ragged tensors. Used for workspace allocation. Defaults to $B \times S_{kv}$ if not provided.
• diagonal_alignment (Optional[cudnn.diagonal_alignment]): Must match the forward pass.
• diagonal_band_left_bound (Optional[int]): Must match the forward pass.
• diagonal_band_right_bound (Optional[int]): Must match the forward pass.
• dropout (Optional[tuple]): Dropout configuration. Must match the forward pass to ensure the same dropout mask is applied.
• use_deterministic_algorithm (Optional[bool]): If True, forces deterministic gradient computation. This ensures bitwise-identical results across multiple runs but may be slower. Default is False.
• compute_data_type (Optional[cudnn.data_type]): Data type for internal computation.
• name (Optional[str]): Name for the operation.

Returns:

• dQ (cudnn_tensor): The gradient with respect to the query tensor.
• dK (cudnn_tensor): The gradient with respect to the key tensor.
• dV (cudnn_tensor): The gradient with respect to the value tensor.

Important Notes:

• The backward operation does NOT support paged attention. K and V must be contiguous tensors.

• All masking and dropout configurations must exactly match the forward pass to ensure correct gradients.

• When using ragged tensors, set max_total_seq_len_q and max_total_seq_len_kv to the maximum total tokens (sum of sequence lengths) for proper workspace allocation.

• Python sample: samples/python/51_sdpa_backward.ipynb

• C++ sample: samples/cpp/sdpa

• Python tests (v2 with randomized configurations): test/python/test_mhas_v2.py

Tensors

Input Tensors

Output Tensors

Example Usage:

# Backward pass graph
graph_backward = cudnn.pygraph(
    io_data_type=cudnn.data_type.HALF,
    intermediate_data_type=cudnn.data_type.FLOAT,
    compute_data_type=cudnn.data_type.FLOAT,
)
q = graph_backward.tensor_like(q_gpu)
k = graph_backward.tensor_like(k_gpu)
v = graph_backward.tensor_like(v_gpu)
o = graph_backward.tensor_like(o_gpu)
dO = graph_backward.tensor_like(dO_gpu)
stats = graph_backward.tensor_like(stats_gpu)
dQ, dK, dV = graph_backward.sdpa_backward(
    name="sdpa_backward",
    q=q,
    k=k,
    v=v,
    o=o,
    dO=dO,
    stats=stats,
    attn_scale=attn_scale,
    diagonal_band_right_bound=0,  # Must match forward
    diagonal_alignment=cudnn.diagonal_alignment.TOP_LEFT,
    use_deterministic_algorithm=True,  # For reproducible training
)
dQ.set_output(True).set_dim(q_gpu.shape).set_stride(q_gpu.stride())
dK.set_output(True).set_dim(k_gpu.shape).set_stride(k_gpu.stride())
dV.set_output(True).set_dim(v_gpu.shape).set_stride(v_gpu.stride())

Block Sparse Attention FE OSS API

The experimental Block Sparse Attention API provides CuTe DSL forward and explicit backward kernels driven by per-query-block lists of selected key/value blocks. It is a standalone Python FE OSS API and is separate from the cuDNN Graph API described above.

HSTU Attention FE OSS API (SM100/SM103)

The experimental HSTU Attention API provides packed-variable-length forward and backward CuTe DSL kernels for Blackwell SM100/SM103 GPUs. HSTU applies SiLU to scaled QK scores without softmax, supports its specialized mask modes, and exposes the sequence normalization factor separately as scaling_seqlen. FP16 and BF16 arbitrary-mask forward and backward automatically build private block metadata on the active CUDA stream without adding public API parameters; D256 backward builds both Q-to-K and K-to-Q views from one coarse classification.

Gated Attention Block FE OSS API (SM107)

The experimental Gated Attention Block API is a model-level FE OSS API for NVIDIA Rubin (SM107): the QKV+gate projection, QK-RMSNorm (optional) with partial RoPE, GQA SDPA, sigmoid gate and out projection of a Qwen3.5-style gated attention sub-layer behind one class, one workspace and one execute(), every stage a FROST kernel. It runs bf16 / fp16, per-tensor FP8 and MXFP8 — the MXFP8 pipeline optionally with MXFP4 (e2m1 x E8M0) projection weights and with an NVFP4 or MXFP4 block-quantized output feeding an fp4 x fp4 out projection — with two fusion knobs (fuse_norm_rope, fuse_gate) that take the block to three launches (four with the fp4 output), plus a bf16 backward with a recompute policy. It is separate from the cuDNN Graph API above; the fused epilogue gate it uses is also available as the graph pattern described under “Fused epilogue gate”.

SDPA PyTorch Custom Ops (cudnn::sdpa_fwd / cudnn::sdpa_bwd)

PyTorch custom ops (torch.library) exposing the full cuDNN SDPA feature surface — the features torch.nn.functional.scaled_dot_product_attention’s aten contract cannot express:

• attention sinks — per-Q-head logits folded into the softmax denominator
• diagonal bands — window_left and window_right. The two bounds use different conventions, matching diagonal_band_left_bound / diagonal_band_right_bound: window_left counts visible tokens including self (so FA2’s (w, 0) maps to window_left = w + 1), while window_right is the last visible column past the diagonal, with no offset (FA2’s (_, r) maps to window_right = r). window_right=0 is exactly causal; window_right > 0 admits future columns and so cannot be combined with is_causal, which the op rejects rather than silently resolving.
• bottom-right causal alignment — inference-style diagonals
• padded batches — per-batch actual lengths via seq_len_q / seq_len_kv
• THD / varlen packing — FlashAttention-style (T, H, D) + cu_seqlens

The ops build cuDNN pygraph sdpa / sdpa_backward nodes; the engine Router picks the best serving plan (FROST OSS kernels or cuDNN-backend engines) per configuration. Graphs are cached per configuration (bounded, thread-safe; cuDNN handles are thread-local).

Usage

import torch
import cudnn
_ = cudnn.sdpa_torch  # lazy public export: importing registers cudnn::sdpa_fwd / cudnn::sdpa_bwd
# Dense BHSD with sinks + sliding window
o, lse = torch.ops.cudnn.sdpa_fwd(q, k, v, scale, is_causal=True,
                                  window_left=128, sinks=sinks, return_lse=True)
# THD / varlen (FA-style packed (T, H, D) + cu_seqlens), differentiable:
q, k, v = (t.requires_grad_(True) for t in (q_thd, k_thd, v_thd))
o, lse = torch.ops.cudnn.sdpa_fwd(q, k, v, scale, is_causal=True,
                                  cu_seqlens_q=cu, cu_seqlens_kv=cu,
                                  max_seqlen_q=mx, max_seqlen_kv=mx,
                                  return_lse=True)
o.backward(grad)  # routes through cudnn::sdpa_bwd via register_autograd
# Or through the python wrapper (same op underneath). It defaults to
# return_lse=False; autograd needs the stats, so ask for them explicitly:
o, lse = cudnn.sdpa_torch(q, k, v, is_causal=True, cu_seqlens_q=cu, cu_seqlens_kv=cu,
                          max_seqlen_q=mx, max_seqlen_kv=mx, return_lse=True)

Contracts and limits

• Dense tensors are BHSD (B, H, S, D) (any strides; the graph declares the actual layout). Varlen tensors are packed (T, H, D); non-contiguous views (e.g. K/V slices of a fused (T, 2, H, D) KV projection) are declared with their true strides. On the varlen path, a non-dense innermost dim or a misaligned base pointer is repaired by one copy (warned as slow path); the dense path declares the given strides as-is.
• One io dtype per call (fp16 or bf16); mixed-dtype inputs are rejected.
• sdpa_bwd serves the THD/varlen path. Dense backward and sink backward (dSink) are follow-ups and raise NotImplementedError. It consumes a padded (B, H, max_seqlen_q, 1) fp32 LSE (backend restriction: bprop THD rejects ragged LSE on SM8X/SM12X).
• Autograd (register_autograd) requires return_lse=True on the forward; the glue converts the packed TH1 stats to the padded layout device-side.
• Both ops ship register_fake meta kernels. cudnn::sdpa_fwd passes torch.library.opcheck on the dense and varlen paths, including dynamic-shape AOT dispatch (torch.compile-ready); the opcheck autograd case exercises cudnn::sdpa_bwd through the registered backward.

Requirements

• nvidia-cudnn-frontend, cuDNN backend ≥ 9.6 (THD token-major stats), sm80+.

Tests: test/python/sdpa/test_torch_ops.py.

SDPA FP8 Forward

This operation computes the scaled dot product attention (SDPA) in the 8-bit floating point (FP8) datatype, using the FlashAttention-2 algorithm as described in the paper FlashAttention-2: Faster Attention with Better Parallelism and Work Partitioning. It is applicable for both training and inference phases, with an option to generate a stats tensor to be used for backwards training computation.

The FP8 datatype consists of two encodings:

• FP8_E4M3 (1 sign bit, 4 exponent bits, and 3 mantissa bits)
• FP8_E5M2 (1 sign bit, 5 exponent bits, 2 mantissa bits).

Due to the limited numerical precision of FP8 data type, for practical use cases, you must scale values computed in FP32 format before storing them in FP8 format, and descale the values stored in FP8 format before performing computations on them. For more information, refer to the Transformer Engine FP8 Primer.

The suggested value for the scaling factor is computed as: (Max representable value in the fp8 format) / (Max absolute value seen in the tensor for the previous layer).

• For E4M3, the suggested scaling factor is 448.f/ prev_layer_tensor_amax (rounded to the nearest lower power of two)
• For E5M2, the suggested scaling factor is 57344.f/ prev_layer_tensor_amax (rounded to the nearest lower power of two)

The suggested value for the descale factor is the reciprocal of the scale factor.

Since scaling and descaling are critical for convergence with FP8 datatype, you are required to pass scaling and descaling input tensors, as well as amax output tensors.

C++ API

// returns [o, stats, amax_s, amax_o]
std::array<std::shared_ptr<Tensor_attributes>, 4>
Graph::sdpa_fp8(std::shared_ptr<Tensor_attributes> q,
                std::shared_ptr<Tensor_attributes> k,
                std::shared_ptr<Tensor_attributes> v,
                std::shared_ptr<Tensor_attributes> descale_q,
                std::shared_ptr<Tensor_attributes> descale_k,
                std::shared_ptr<Tensor_attributes> descale_v,
                std::shared_ptr<Tensor_attributes> descale_s,
                std::shared_ptr<Tensor_attributes> scale_s,
                std::shared_ptr<Tensor_attributes> scale_o,
                SDPA_fp8_attributes attributes);

The options parameter of type SDPA_fp8_attributes is used to control the attributes of the forward operation, as detailed below:

// Indicates that softmax_stats should be generated (useful during training).
// If false, the softmax_stats output will be nullptr.
SDPA_fp8_attributes&
set_generate_stats(bool const value);
SDPA_fp8_attributes&
set_logit_max(std::shared_ptr<Tensor_attributes> value);
SDPA_fp8_attributes&
set_score_sum_exp(std::shared_ptr<Tensor_attributes> value);
SDPA_fp8_attributes&
set_attn_scale(std::shared_ptr<Tensor_attributes> value);
SDPA_fp8_attributes&
set_attn_scale(float const value);
SDPA_fp8_attributes&
set_causal_mask(bool const value);
SDPA_fp8_attributes&
set_bias(std::shared_ptr<Tensor_attributes> value);
SDPA_fp8_attributes&
set_padding_mask(bool const value);
SDPA_fp8_attributes&
set_seq_len_q(std::shared_ptr<Tensor_attributes> value);
SDPA_fp8_attributes&
set_seq_len_kv(std::shared_ptr<Tensor_attributes> value);
SDPA_fp8_attributes&
set_dropout(float const probability,
            std::shared_ptr<Tensor_attributes> seed,
            std::shared_ptr<Tensor_attributes> offset);
SDPA_fp8_attributes&
set_dropout(std::shared_ptr<Tensor_attributes> mask,
            std::shared_ptr<Tensor_attributes> scale);
// DEPRECATED
// Calls set_generate_stats(!value) (note the negation of `value`).
SDPA_fp8_attributes&
set_is_inference(bool const value);

Python API

Args:
    q (cudnn_tensor): The query data.
    k (cudnn_tensor): The key data.
    v (cudnn_tensor): The value data.
    descale_q (cudnn_tensor): Descale factor for query.
    descale_k (cudnn_tensor): Descale factor for key.
    descale_v (cudnn_tensor): Descale factor for value.
    descale_s (cudnn_tensor): Descale factor for S tensor.
    scale_s (cudnn_tensor): Scale factor for S tensor.
    scale_o (cudnn_tensor): Scale factor for output.
    attn_scale (Optional[Union[float, cudnn_tensor]]): The scale factor for attention. Default is None.
    use_causal_mask (Optional[bool]): Whether to use causal mask. Default is False.
    use_padding_mask (Optional[bool]): Enable variable sequence length masking. Requires seq_len_q/seq_len_kv or cu_seq_len_q/cu_seq_len_kv. Default is False.
    seq_len_q (Optional[cudnn_tensor]): Per-batch query sequence lengths with shape (B, 1, 1, 1).
    seq_len_kv (Optional[cudnn_tensor]): Per-batch key/value sequence lengths with shape (B, 1, 1, 1).
    cu_seq_len_q (Optional[cudnn_tensor]): Cumulative query sequence lengths (prefix sums with a leading 0) with shape (B+1, 1, 1, 1) or 1-D (B+1,), int32 or int64. Mutually exclusive with seq_len_q (a side cannot use both forms); a KV-side length tensor (seq_len_kv or cu_seq_len_kv) must also be provided. The two sides may use different forms (e.g. cu_seq_len_q with seq_len_kv). Requires cuDNN 9.25+ and the UNIFIED implementation (the FP8 path requires 9.25+ for cumulative sequence lengths in any form).
    cu_seq_len_kv (Optional[cudnn_tensor]): Cumulative key/value sequence lengths; same shape, type, and constraints as cu_seq_len_q.
    compute_data_type (Optional[cudnn.data_type]): The data type for computation. Default is NOT_SET.
    name (Optional[str]): The name of the operation.
    generate_stats (Optional[bool]): If true, compute and output softmax stats (useful at training time). Default is None, but one of {generate_stats, is_inference} must be set.
Deprecated Args:
    is_inference (Optional[bool]): If false, compute and output softmax stats. Prefer generate_stats instead (NOTE: generate_stats takes the negation of the argument to is_inference).
Returns:
    o (cudnn_tensor): The output data.
    stats (Optional[cudnn_tensor]): The softmax statistics, if generate_stats is true.
    amax_s (cudnn_tensor): The absolute maximum of S tensor.
    amax_o (cudnn_tensor): The absolute maximum of output tensor.

Configurable Options

The current FP8 support is a subset of the options supported in FP16 and BF16 support.

• Attention scale (attn_scale): Applies a scaling factor to attention scores before the softmax, such as $\frac{1}{\sqrt{\text{d}}}$. Set to 1.0 by default.
• Causal mask: Fills the upper triangular matrix of attention scores with negative infinity.
• Padding mask (use_padding_mask): Variable sequence lengths, provided either as per-batch lengths (seq_len_q/seq_len_kv) or as cumulative sequence lengths (cu_seq_len_q/cu_seq_len_kv; cuDNN 9.25+, UNIFIED implementation only).

Limitations

• Requires Hopper (SM90) or newer architecture.
• Head dimension must be a multiple of 16.
• Limited masking options compared to FP16/BF16 (causal and padding masks only).
• Requires explicit scale/descale tensors for all FP8 inputs and outputs.

Tensors

The tensors in forward operation are defined as the following:

$P = QK^T$

$S = \text{softmax}(P)$

$O = SV$

Input Tensors

Output Tensors

Where:

• $B$ is the batch size
• $H_{q}$ is the number of query heads
• $H_{k}$ is the number of key heads
• $H_{v}$ is the number of value heads
• $S_{q}$ is the sequence length of the query
• $S_{kv}$ is the sequence length of the key and value
• $D_{qk}$ is the embedding dimension per head of query and key
• $D_{v}$ is the embedding dimension per head of value

Samples and tests

• C++ sample: samples/cpp/sdpa

SDPA FP8 Backward

This operation computes the gradients for scaled dot product attention (SDPA) 8-bit floating point (FP8) datatype, using the FlashAttention-2 algorithm as described in the paper FlashAttention-2: Faster Attention with Better Parallelism and Work Partitioning. You are required to pass the stats tensor from the forward operation to the backward operation as input.

• C++ sample: samples/cpp/sdpa

C++ API

// returns [dQ, dK, dV, amax_dQ, amax_dK, amax_dV, amax_dP]
std::array<std::shared_ptr<Tensor_attributes>, 7>
Graph::sdpa_fp8_backward(std::shared_ptr<Tensor_attributes> q,
                         std::shared_ptr<Tensor_attributes> k,
                         std::shared_ptr<Tensor_attributes> v,
                         std::shared_ptr<Tensor_attributes> o,
                         std::shared_ptr<Tensor_attributes> dO,
                         std::shared_ptr<Tensor_attributes> Stats,
                         std::shared_ptr<Tensor_attributes> descale_q,
                         std::shared_ptr<Tensor_attributes> descale_k,
                         std::shared_ptr<Tensor_attributes> descale_v,
                         std::shared_ptr<Tensor_attributes> descale_o,
                         std::shared_ptr<Tensor_attributes> descale_do,
                         std::shared_ptr<Tensor_attributes> descale_s,
                         std::shared_ptr<Tensor_attributes> descale_dp,
                         std::shared_ptr<Tensor_attributes> scale_s,
                         std::shared_ptr<Tensor_attributes> scale_dq,
                         std::shared_ptr<Tensor_attributes> scale_dk,
                         std::shared_ptr<Tensor_attributes> scale_dv,
                         std::shared_ptr<Tensor_attributes> scale_dp,
                         SDPA_fp8_backward_attributes attributes);

The options parameter of type SDPA_fp8_backward_attributes is used to control the attributes of the backward operation, as detailed below:

SDPA_fp8_backward_attributes&
set_attn_scale(std::shared_ptr<Tensor_attributes> value);
SDPA_fp8_backward_attributes&
set_attn_scale(float const value);
SDPA_fp8_backward_attributes&
set_causal_mask(bool const value);

Python API

Args:
    q (cudnn_tensor): The query data.
    k (cudnn_tensor): The key data.
    v (cudnn_tensor): The value data.
    o (cudnn_tensor): The output data.
    dO (cudnn_tensor): The output gradient data.
    stats (cudnn_tensor): The softmax statistics in case the operation is in a training step.
    descale_q (cudnn_tensor): Descale factor for query.
    descale_k (cudnn_tensor): Descale factor for key.
    descale_v (cudnn_tensor): Descale factor for value.
    descale_o (cudnn_tensor): Descale factor for output.
    descale_dO (cudnn_tensor): Descale factor for output gradient.
    descale_s (cudnn_tensor): Descale factor for S tensor.
    descale_dP (cudnn_tensor): Descale factor for P gradient tensor.
    scale_s (cudnn_tensor): Scale factor for S tensor.
    scale_dQ (cudnn_tensor): Scale factor for query gradient.
    scale_dK (cudnn_tensor): Scale factor for key gradient.
    scale_dV (cudnn_tensor): Scale factor for value gradient.
    scale_dP (cudnn_tensor): Scale factor for dP gradient.
    attn_scale (Optional[Union[float, cudnn_tensor]]): The scale factor for attention. Default is None.
    use_causal_mask (Optional[bool]): Whether to use causal mask. Default is False.
    compute_data_type (Optional[cudnn.data_type]): The data type for computation. Default is NOT_SET.
    name (Optional[str]): The name of the operation.
Returns:
    dQ (cudnn_tensor): The query gradient data.
    dK (cudnn_tensor): The key gradient data.
    dV (cudnn_tensor): The value gradient data.
    amax_dQ (cudnn_tensor): The absolute maximum of query gradient tensor.
    amax_dK (cudnn_tensor): The absolute maximum of key gradient tensor.
    amax_dV (cudnn_tensor): The absolute maximum of value gradient tensor.
    amax_dP (cudnn_tensor): The absolute maximum of dP tensor.

Limitations

• Requires Hopper (SM90) or newer architecture.
• Dropout is not supported in FP8 backward pass.
• Only causal masking is supported.
• Requires explicit scale/descale tensors for all FP8 inputs and outputs.

Tensors

The tensors in backward operation are defined as the following:

$dV = S^TdO$

$dS = dOV^T$

$dP = \text{dSoftmax}(dS)$

$dQ = dPK$

$dK = QdP$

Input Tensors

Output Tensors

Where:

• $B$ is the batch size
• $H_{q}$ is the number of query heads
• $H_{k}$ is the number of key heads
• $H_{v}$ is the number of value heads
• $S_{q}$ is the sequence length of the query
• $S_{kv}$ is the sequence length of the key and value
• $D_{qk}$ is the embedding dimension per head of query and key
• $D_{v}$ is the embedding dimension per head of value

FAQs

Logical vs Physical Layout

BHSD Layout (Batch-Head-Sequence-Dim)

The default logical layout where dimensions are ordered as $(B, H, S, D)$.
