IKET Profiling#

Warning

IKET is an experimental profiling feature for CuTe DSL kernels. The API, output format, profiler workflow, and overhead characteristics may change in future releases. Users should understand the intended use cases and limitations before interpreting profiling results. IKET dialect tool support may also move to official NVIDIA Nsight tools in the future.

IKET, short for In-Kernel Event Tracing, lets CuTe DSL kernels emit named markers and ranges from inside the kernel. The run-iket profiler collects those events and generates timeline output that can be inspected in the Perfetto UI at https://ui.perfetto.dev/, along with machine-readable JSON output. run-iket is a purpose-built standalone profiler for collecting IKET traces in this experimental workflow. Conceptually, IKET is similar to CPU-side NVTX ranges and markers, but the events are emitted from device code inside the kernel. IKET supports Hopper and newer GPU architectures, including SM90, SM100, SM103, SM110, and SM120. The run-iket profiler is released with the nvidia-cutlass-dsl package.

IKET records device-side events at instrumentation points. The figure below is a conceptual illustration, not a run-iket output format. It shows the kind of producer/consumer activity that user-defined IKET ranges and markers can make visible inside a kernel. Actual timeline viewing uses the Perfetto trace described later in this guide.

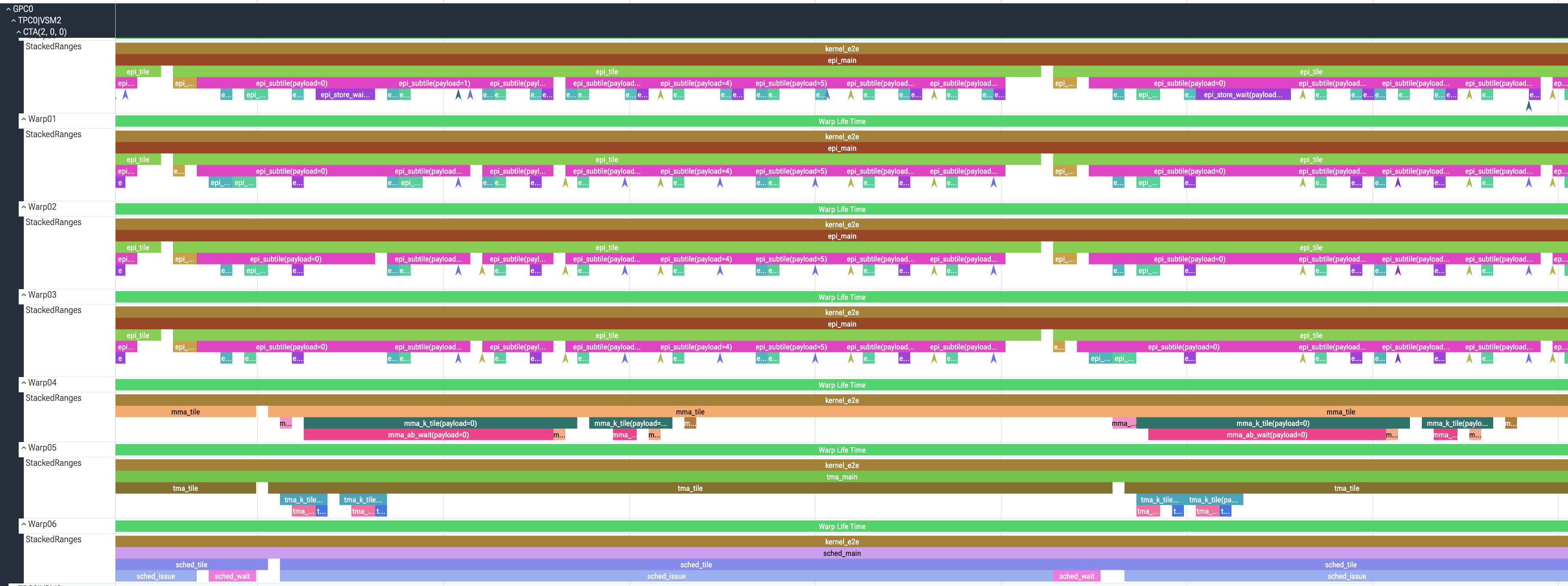

Conceptual IKET timeline showing producer and consumer warp ranges

Figure 3 Conceptual view of IKET ranges and markers inside a kernel. run-iket emits Perfetto and JSON traces; it does not emit this simplified diagram.#

Requirements#

Use a nvidia-cutlass-dsl installation that includes run-iket. A quick first check is:

run-iket --help

The profiled workload must run on a supported GPU architecture and must JIT-compile the instrumented CuTe DSL kernel during the run-iket profiling process. Kernels that are already compiled and reused without recompilation do not gain IKET instrumentation during that run.

End-to-End Quick Start#

This section shows the minimal end-to-end flow: add IKET calls in kernel code, run the workload under run-iket, and open the generated trace.

Step 1: Add IKET instrumentation. Place IKET calls inside a @cute.kernel function. IKET calls in host-side Python wrappers do not emit in-kernel events.

The following example shows a small kernel fragment with a marker, a token-based range, and a stack-based range.

import cutlass
import cutlass.cute as cute


@cute.kernel
def kernel(gA: cute.Tensor, gB: cute.Tensor, gC: cute.Tensor):
    bidx, _, _ = cute.arch.block_idx()

    cute.experimental.iket.mark("kernel_start", bidx)

    load_token = cute.experimental.iket.range_start("load")
    # Load data from gA and gB.
    cute.experimental.iket.range_end(load_token)

    cute.experimental.iket.range_push("compute")
    # Compute and store results.
    cute.experimental.iket.range_pop()

A complete CuTe DSL GEMM example with IKET instrumentation is available at examples/python/CuTeDSL/dsl_tutorials/fp16_gemm_4_iket.py.

Step 2: Run the application under run-iket. The profiler automatically requests IKET lowering for kernels that are JIT-compiled during the profiled run.

run-iket profile --postprocess perfetto -- \
  python fp16_gemm_4_iket.py \
  --mnk 512,1024,64

Step 3: Open the trace. Open the generated *.pftrace file in the Perfetto UI at https://ui.perfetto.dev/ and inspect the in-kernel markers and ranges.

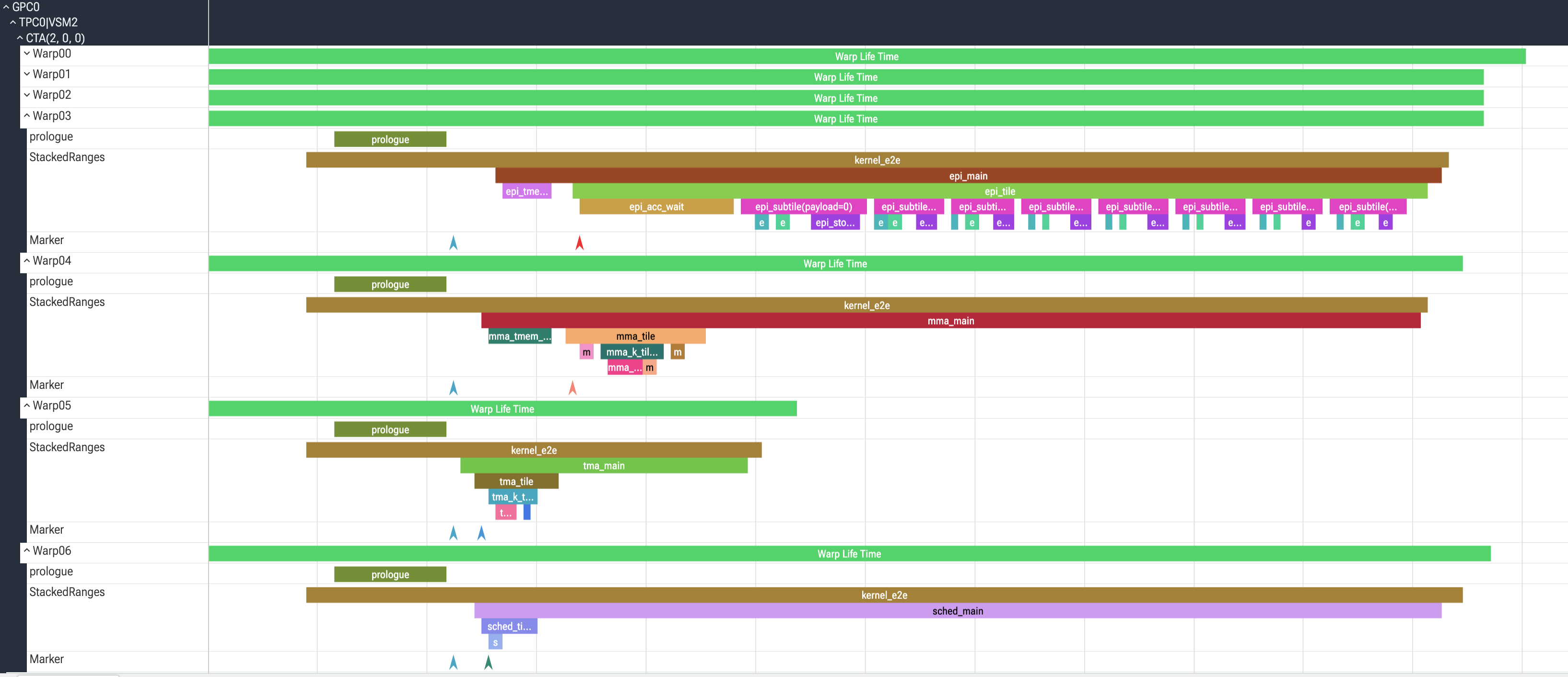

Cropped IKET timeline in Perfetto UI

Figure 4 Cropped Perfetto view from the GEMM tutorial, showing nested IKET ranges across several warp roles.#

The rest of this guide explains the API, instrumentation patterns, trace output, limitations, and overhead guidance in more detail.

IKET API calls are stripped by default. If neither run-iket is used to profile the target kernel nor an explicit compile option enables IKET lowering, the iket.* operations do not add instrumentation code to the final kernel.

To build IKET instrumentation outside a run-iket profiling run, enable IKET for all JIT compilations in the process:

export CUTE_DSL_COMPILER_OPT=iket
python my_kernel.py

Alternatively, enable IKET for one explicit compilation:

compiled = cute.compile(host_function, *args, options="iket")

API Reference#

IKET APIs are available under cutlass.cute.experimental.iket. The table below uses iket as shorthand for that module. IKET API calls should be placed inside @cute.kernel code. Instrumentation in host-side Python code does not create in-kernel events.

IKET has three basic concepts:

  • An event is one warp-level runtime record emitted by a kernel. Each event records a timestamp and the metadata needed to identify it in the trace.

  • A marker is a point annotation and emits one event.

  • A range represents a duration and is usually built from two events: one at the start and one at the end. Each event can optionally carry one payload value to record a runtime variable.

API

Purpose

Notes

iket.mark(name)

Emit a single timestamped marker.

Use for point events.

iket.mark(name, payload)

Emit a marker with a numeric payload.

The payload is stored with the event.

iket.range_push(name)

Start a stack-based range.

Closed by the next matching iket.range_pop() in LIFO order.

iket.range_push(name, payload)

Start a stack-based range with a numeric payload.

The payload is attached to the push event.

iket.range_pop()

End the most recent stack-based range.

Does not take a range name.

iket.range_start(name)

Start a token-based range and return a token.

Closed by iket.range_end(token).

iket.range_start(name, payload)

Start a token-based range with a numeric payload.

Closed by iket.range_end(token, payload) with matching payload type.

iket.range_end(token)

End a token-based range.

The token must come from iket.range_start or iket.sentinel_token.

iket.range_end(token, payload)

End a token-based range with a numeric payload.

The corresponding iket.range_start call must also have a payload, and the payload types must match.

iket.sentinel_token(name)

Create a token without a real runtime event for cross-iteration ranges.

Use it when range_end appears before the later range_start in source order.

Choosing a Range API#

CuTe DSL IKET provides two valid range-pairing models. Choose the one that makes the pairing easiest to see in the kernel source.

Use range_push / range_pop when the range is naturally nested and the push and pop calls can stay in the same structured scope. This is often the clearest shape for phase-style instrumentation such as setup, mainloop, wait, issue, and epilogue ranges.

Use range_start / range_end when an explicit handle makes the pairing clearer. This can be useful when a range ends at a later synchronization point, crosses an iteration boundary, or has multiple mutually exclusive close sites.

Payloads#

Payloads attach a runtime value to an event. They are useful for recording values such as loop indices, block coordinates, or small computed metrics. Supported payloads include Python boolean, integer, and floating-point literals, plus CuTe DSL numeric and index scalar values. Do not use tensors, tuples, or other aggregate values as payloads. Prefer warp-uniform payload values, such as loop indices or block coordinates, when they describe the event clearly. For example:

for k_tile in cutlass.range(k_tile_count):
    cute.experimental.iket.range_push("k_tile", k_tile)
    # Work for this K tile.
    cute.experimental.iket.range_pop()

IKET events are warp-level events. If active threads in the participating warp evaluate a payload expression to different values, the dumped payload value is from the first active thread. To record the payload value from a specific thread, guard the IKET call with a predicate such as if tidx == 0:. For range endpoints, guard paired endpoints consistently.

Plain Python integer literals are emitted as 32-bit integer payloads, and plain Python floating-point literals are emitted as 32-bit floating-point payloads. Use explicit CuTe DSL scalar types for 64-bit literal payloads:

cute.experimental.iket.mark("large_count", cutlass.Int64(0x100000000))
cute.experimental.iket.mark("scale", cutlass.Float64(3.141592653589793))

For token-based ranges, the start and end payload forms must match. It is not allowed to start a range with a payload and end it without one, or to use different payload types between range_start and range_end.

Example Instrumentation Patterns#

The examples below use cute.experimental.iket inside @cute.kernel code. IKET calls in host-side Python wrappers do not emit in-kernel events.

Before Adding Events#

Start by identifying the kernel body and the work you want to measure.

  1. Find the @cute.kernel function. Host-side @cute.jit functions and launch wrappers are useful context, but IKET instrumentation should be placed in device kernel code.

  2. Split the kernel into natural phases. For a GEMM-shaped kernel this may be setup, TMA or copy issue, mainloop, MMA, waits, and epilogue. Other kernels should use names that match their own algorithmic phases.

  3. Note warp-specialized regions such as if warp_idx == 0: or if is_leader_cta:. Put both ends of a range inside the same role or guard when the work is role-specific.

  4. Identify asynchronous work. For example, TMA copies, cp.async-style copies, WGMMA or MMA issue, and pipeline or mbarrier operations may have separate issue and completion points.

Coarse Phase Timing#

Begin with a small number of coarse ranges. This provides orientation in the trace and keeps overhead manageable while you decide where more detail is needed.

@cute.kernel
def kernel(...):
    user_warp_lifetime = cute.experimental.iket.range_start(
        "user_warp_lifetime"
    )

    cute.experimental.iket.range_push("setup")
    # Allocate/register fragments, partition tensors, initialize pipelines.
    cute.experimental.iket.range_pop()  # setup

    cute.experimental.iket.range_push("mainloop")
    for k_tile in cutlass.range(k_tile_count):
        # Main loop body.
    cute.experimental.iket.range_pop()  # mainloop

    cute.experimental.iket.range_push("epilogue")
    # Convert accumulators and store results.
    cute.experimental.iket.range_pop()  # epilogue

    cute.experimental.iket.range_end(user_warp_lifetime)

For warp-specialized code, place the range inside the guard for the warp that does the work:

if warp_idx == tma_warp_id:
    cute.experimental.iket.range_push("tma_main")
    # TMA producer work.
    cute.experimental.iket.range_pop()  # tma_main

if warp_idx == mma_warp_id:
    cute.experimental.iket.range_push("mma_main")
    # MMA consumer work.
    cute.experimental.iket.range_pop()  # mma_main

Timing Waits and Async Work#

For asynchronous operations, decide whether the range measures issue time or completion/wait time. An event immediately after an async issue point measures issue-side timing. Completion is usually observed at a pipeline or mbarrier wait.

To measure issue time:

issue_token = cute.experimental.iket.range_start("tma_issue", k_tile)
cute.copy(tma_atom, src_tensor, dst_tensor, tma_bar_ptr=barrier)
cute.experimental.iket.range_end(issue_token, k_tile)

To measure wait time:

cute.experimental.iket.range_push("ab_wait")
ab_full = ab_consumer.wait_and_advance()
cute.experimental.iket.range_pop()

The same wait pattern can be used around pipeline acquire calls, mbarrier waits, allocator waits, or other synchronization points whose return marks completion of the waited-for work.

Cross-Iteration Wait-Boundary Timing#

Some pipelined loops start work for iteration N and observe the next useful boundary for that work in iteration N + 1. For example, the next iteration may reach a pipeline wait, mbarrier wait, or other wait_and_advance-style call before the previous tile’s range should close. Use sentinel_token to initialize the token before the loop. Creating the sentinel token emits no runtime event. Calling range_end on the initial sentinel token is valid and emits no runtime event; after the variable is replaced by a token from range_start, range_end emits the runtime end event for that real range.

iter_token = cute.experimental.iket.sentinel_token("mma_k_tile")

for k_tile in cutlass.range(k_tile_count):
    ...  # some setup codes for k_tile
    ab_full = ab_consumer.wait_and_advance()

    # Close the previous tile only after this wait boundary is reached.
    if k_tile > 0:
        cute.experimental.iket.range_end(iter_token)

    iter_token = cute.experimental.iket.range_start("mma_k_tile")
    # Work for this tile.
    cute.gemm(tiled_mma, tCtAcc, tCrA, tCrB, tCtAcc)
    ab_full.release()

if k_tile_count > 0:
    ...  # final drain or synchronization boundary for the last tile
    cute.experimental.iket.range_end(iter_token)

Use this pattern only when the cross-iteration boundary is meaningful. For a simple per-iteration range whose start and end are both inside the same loop iteration, a push/pop pair inside the loop is simpler:

for k_tile in cutlass.range(k_tile_count):
    cute.experimental.iket.range_push("k_tile", k_tile)
    # Work for this tile.
    cute.experimental.iket.range_pop()

Warp-Specialized Mainloop Example#

The following skeleton shows how to layer ranges by role and by loop level in a warp-specialized kernel. Adapt the role names and phase names to the actual kernel.

@cute.kernel
def kernel(...):
    user_warp_lifetime = cute.experimental.iket.range_start(
        "user_warp_lifetime"
    )

    # Work shared by all participating warps.
    cute.experimental.iket.range_push("prologue")
    # Tensor partitioning, pipeline setup, scheduler setup.
    cute.experimental.iket.range_pop()  # prologue

    if warp_idx == tma_warp_id:
        cute.experimental.iket.range_push("tma_main")
        while work_tile.is_valid_tile:
            cute.experimental.iket.range_push("tma_tile")

            for k_tile in cutlass.range(k_tile_count):
                cute.experimental.iket.range_push("tma_k_tile", k_tile)
                ...  # some setup codes for k_tile

                cute.experimental.iket.range_push("tma_acquire")
                ab_empty = ab_producer.acquire_and_advance()
                cute.experimental.iket.range_pop()  # tma_acquire

                issue_token = cute.experimental.iket.range_start(
                    "tma_issue", k_tile
                )
                cute.copy(tma_a_atom, tAgA, tAsA, tma_bar_ptr=ab_empty.barrier)
                cute.copy(tma_b_atom, tBgB, tBsB, tma_bar_ptr=ab_empty.barrier)
                cute.experimental.iket.range_end(issue_token, k_tile)

                cute.experimental.iket.range_pop()  # tma_k_tile

            tile_sched.advance_to_next_work()
            work_tile = tile_sched.get_current_work()
            cute.experimental.iket.range_pop()  # tma_tile

        ab_producer.tail()
        cute.experimental.iket.range_pop()  # tma_main

    if warp_idx == mma_warp_id:
        cute.experimental.iket.range_push("mma_main")
        while work_tile.is_valid_tile:
            cute.experimental.iket.range_push("mma_tile")

            for k_tile in cutlass.range(k_tile_count):
                cute.experimental.iket.range_push("mma_k_tile", k_tile)

                cute.experimental.iket.range_push("ab_wait")
                ab_full = ab_consumer.wait_and_advance()
                cute.experimental.iket.range_pop()  # ab_wait

                cute.experimental.iket.range_push("mma_issue")
                cute.gemm(tiled_mma, tCtAcc, tCrA, tCrB, tCtAcc)
                cute.experimental.iket.range_pop()  # mma_issue

                ab_full.release()
                cute.experimental.iket.range_pop()  # mma_k_tile

            tile_sched.advance_to_next_work()
            work_tile = tile_sched.get_current_work()
            cute.experimental.iket.range_pop()  # mma_tile

        cute.experimental.iket.range_pop()  # mma_main

    cute.experimental.iket.range_end(user_warp_lifetime)

This style makes each role visible in the trace. Prefixing names with the role such as tma_ and mma_ also makes JSON output easier to filter.

Instrumentation Guidelines#

Consider the following when placing IKET calls. These choices affect what the profiler can reconstruct from the runtime events, so unclear or mismatched instrumentation may produce results that do not match the intended measurement or even cause the profiler to fail when postprocessing the data.

  • Every dynamic range_push has exactly one matching range_pop on each participating warp execution path, in LIFO order.

  • Every dynamic non-sentinel range_start is closed by range_end on each participating warp execution path. It is valid to close the same token in multiple mutually exclusive branches, as long as each executed path closes it once.

  • Start and end points are in the same warp role and compatible control-flow path. Do not start a range in one thread-divergent branch and close it in another. Violating this may cause undefined profiling results.

  • Payload-bearing token ranges use matching payload types at start and end.

  • Event names are at most 32 characters.

  • Reuse the same descriptive name for the same recurring phase inside a loop. This creates many runtime events but only one unique marker or range name.

  • When more than 30 unique marker or range names are used, instrumentation overhead increases.

  • Avoid high-frequency events in innermost unrolled loops unless that detail is necessary. IKET events can affect compiler scheduling and can create large traces.

  • Do not put IKET range operations inside cutlass.range(..., prefetch_stages=...). That loop form is not currently supported for IKET range instrumentation.

Profiling with the run-iket Tool#

The run-iket tool is installed with the nvidia-cutlass-dsl package. During profiling, run-iket automatically enables IKET lowering for JIT-compiled kernels so that the final kernel contains instrumentation code. The application command must appear after -- so that workload arguments are not parsed as profiler arguments.

run-iket \
    --output-dir ./iket_output \
    --clobber \
    profile \
    --postprocess all \
    -- \
    python my_kernel.py

Important options:

Option

Description

--output-dir <dir>

Directory for profiler output and intermediate files.

--clobber

Remove an existing output directory and create a new one without prompting.

profile

Start a profiling run.

--postprocess perfetto

Generate a Perfetto timeline trace.

--postprocess json

Generate JSON output for script-based analysis.

--postprocess all

Generate both Perfetto and JSON output.

Output Files#

With --postprocess perfetto, run-iket writes one or more *.pftrace files under the output directory. With --postprocess json, it also writes JSON traces containing the collected ranges, markers, timestamps, and payloads.

The exact filenames may include the profiled process ID. If the workload uses multiple processes or GPUs, run-iket may produce separate traces that are NOT aligned to a single global timeline.

For a single-process run with --postprocess all, the output directory contains files shaped like this:

iket_output/
  *.pftrace   # Open this in Perfetto UI.
  *.json      # Use this for script-based analysis.

There may also be profiler intermediate files in the same directory. Start with the *.pftrace file for visual inspection, then use the JSON file when you need scripted filtering or aggregation.

JSON Trace Shape#

The JSON output is intended for script-based analysis. Its schema is also experimental and may change in future releases. A trace is organized around profiled kernel launches, with ranges, markers, warp locations, payload fields, and warp lifetimes. A simplified trace looks like this:

{
  "launches": [
    {
      "gridId": 0,
      "kernelName": "my_kernel",
      "ranges": [
        {
          "rangeName": "mainloop",
          "rangeScope": 0,
          "startTs": 1000,
          "endTs": 2500,
          "warpLocs": [
            {
              "smId": 0,
              "tpcId": 0,
              "gpcId": 0,
              "ctaId": [0, 0, 0],
              "warpId": 0
            }
          ],
          "internalEvents": []
        }
      ],
      "markers": [
        {
          "markerName": "checkpoint",
          "timestamp": 1500,
          "location": {
            "smId": 0,
            "tpcId": 0,
            "gpcId": 0,
            "ctaId": [0, 0, 0],
            "warpId": 0
          },
          "payloadType": 0,
          "payloadVal": 0
        }
      ],
      "warpLifetimes": [
        {
          "startTs": 900,
          "endTs": 3800,
          "warpLocation": {
            "smId": 0,
            "tpcId": 0,
            "gpcId": 0,
            "ctaId": [0, 0, 0],
            "warpId": 0
          }
        }
      ]
    }
  ]
}

Important fields include:

  • launches[]: profiled kernel launches.

  • gridId and kernelName: launch identity and kernel name.

  • ranges[]: duration ranges with rangeName, startTs, endTs, rangeScope, and one or more warpLocs. Use endTs - startTs as the range duration.

  • markers[]: point events with markerName, timestamp, location, and optional payload fields such as payloadType and payloadVal.

  • warpLifetimes[]: active spans for warps observed during the profiled launch.

Timestamp values are in a trace-local timebase. Compare timestamp differences within one trace, but do not compare absolute timestamp values across separate traces. rangeScope and payloadType are profiler metadata fields whose exact numeric values are experimental. A warpLocs entry identifies the GPU location for a warp that emitted or participated in the range.

Viewing a Trace in Perfetto#

Open the generated *.pftrace file in the Perfetto UI at https://ui.perfetto.dev/.

The basic workflow is:

  1. Open the trace file.

  2. Search for the profiled kernel or zoom into the kernel region. Use the W / A / S / D keys on your keyboard to pan and zoom.

  3. Expand the relevant tracks.

  4. Click a marker or range to inspect its name, timing, and payload values.

The trace is organized around profiled kernel launches and the warp-level IKET records collected inside those launches. After expanding a kernel region, look for tracks grouped by the recorded GPU location, such as CTA and warp identity. The visible marker and range names come from the strings passed to the IKET API in the kernel.

The image below shows a more complete expanded trace from the GEMM tutorial. Use it as a guide to the track structure:

  • The left track hierarchy is expanded by GPU location, then by CTA and warp.

  • WarpLifeTime tracks are generated automatically for kernels that contain IKET instrumentation.

  • Long ranges under each warp show user-instrumented phases such as kernel_e2e, epi_main, mma_tile, and tma_tile. Token-based range_start / range_end ranges use separate tracks for each range name.

  • Stack-based range_push / range_pop ranges are shown on StackedRanges tracks, and markers are shown on Marker tracks.

  • Very short colored blocks and marker glyphs represent fine-grained events. Payload values may appear in event labels and are also available by clicking the event and inspecting the details panel.

Example IKET timeline in Perfetto UI

Figure 5 Example IKET timeline in Perfetto UI. The exact tracks and event names depend on the kernel instrumentation and workload. This trace was generated from examples/python/CuTeDSL/dsl_tutorials/fp16_gemm_4_iket.py.#

Trace viewing is powered by the Perfetto UI (https://ui.perfetto.dev/), part of the Perfetto project (https://perfetto.dev/) licensed under the Apache License 2.0. Perfetto UI is provided by a third-party site. This product does not modify or redistribute Perfetto UI code. Perfetto is only a viewer for the generated trace. The trace content comes from the IKET instrumentation emitted by the CuTe DSL kernel and collected by run-iket.

Assumptions, Limitations, and Impact#

The run-iket profiler assumes well-formed instrumentation and sufficiently convergent execution within participating warps. IKET events are warp-level records, so placement is easiest to interpret when all participating threads in a warp follow the same instrumentation path.

Range Pairing and Warp Divergence#

For token-based ranges, every dynamic non-sentinel range_start must be closed by range_end on each participating warp execution path. A token may be closed in multiple mutually exclusive branches, but each executed path should close that dynamic range once. For stack-based ranges, every range_push must be balanced by range_pop using LIFO stack semantics.

Avoid these patterns:

  • Starting a range in one thread-divergent branch and ending it in another branch.

  • Returning or otherwise exiting early between paired range endpoints.

  • Emitting different push/pop nesting on different warp execution paths.

If a range pair is inside a branch where different threads in a warp diverge, the trace may be incomplete or may reflect serialized divergent execution. Incorrectly paired range_start / range_end or range_push / range_pop calls may cause profiling to fail, may produce incorrect timeline visualization, or may cause undefined profiling results. Warp-uniform placement gives cleaner and easier-to-interpret results.

Event Name Count and Overhead#

Unique user names include marker names and range names from mark, range_start, and range_push. Repeatedly emitting the same name is supported and is the expected way to record a loop phase or recurring marker.

Kernels with more than 30 unique marker or range names may use a wider event encoding during IKET lowering, which can increase instrumentation overhead. Keep the number of unique names as small and stable as practical, especially in performance-sensitive kernels.

Event names may use arbitrary characters and must be at most 32 characters. Longer names are not supported; use a shorter stable name instead.

Timestamp Semantics#

An IKET timestamp records the instrumentation point itself. The timer granularity is 32 ns. If a range starts and ends very close together, its start and end timestamps may be identical. In the final Perfetto visualization, such a very short range may look similar to a marker. For asynchronous operations such as TMA copies, placing an end event immediately after the issue point usually measures issue-side timing, not completion. To measure completion or wait time, place the corresponding range endpoint around the synchronization or wait point where completion is observed.

Workload Size#

run-iket profiles the whole workload it launches. It does not currently support selecting a smaller profiling or capture window. Prefer small workloads with a limited number of instrumented kernel launches while collecting IKET traces. A kernel with many IKET events can generate a large amount of data because records are collected per warp, and often across many CTAs. Large workloads, such as workloads with many instrumented kernel launches, may run much more slowly under the profiler or may run out of memory.

Kernel Launch and Overlap Timing#

run-iket can collect traces from workloads that launch multiple instrumented kernels. However, IKET is intended for in-kernel timing. Do not use the IKET trace to measure host-side launch latency, inter-kernel launch gaps, kernel overlap, or CPU/GPU scheduling behavior. These workload-level analyses are not IKET’s target use case, and the corresponding timing views include additional run-iket overhead and are not currently optimized for launch or overlap analysis. When a trace contains multiple kernels, interpret the IKET markers and ranges within each individual kernel launch.

Use NVIDIA Nsight Systems in a separate run when you need accurate kernel launch latency, kernel overlap, CPU/GPU scheduling, or whole-application timeline analysis.

Profiler Compatibility#

run-iket cannot run at the same time as NVIDIA Nsight Compute, NVIDIA Nsight Systems, or other CUPTI-based profiling and tracing tools due to conflicts over driver profiling resources. Do not run them together on the same workload. Use separate runs when collecting IKET traces and other profiler outputs.

Buffer Sizing#

run-iket uses multiple profiling passes to allocate device-side trace buffers. An initial pass estimates how much buffer space the workload needs, and a later pass allocates memory with some margin and collects the timestamp and payload records.

This assumes the number of emitted IKET records per warp is reasonably stable between those passes. If a kernel emits a very different number of records per warp between the sizing pass and the collection pass, the trace may contain incorrect data, and the workload may fail with an illegal memory access. Prefer deterministic profiled workloads and avoid data-dependent instrumentation rates that vary substantially between runs.

Unsupported Prefetch-Stage Loops#

IKET range operations are not currently supported inside a cutlass.range loop that uses prefetch_stages, such as cutlass.range(..., prefetch_stages=...). This is a known limitation of the prefetch-stage loop form. Place IKET range instrumentation outside that loop, or use a loop form without prefetch stages when profiling that region.

Compiler and Runtime Impact#

IKET events do slightly change the generated kernel code. Avoid placing too many events in innermost hot loops, especially loops the compiler may unroll. IKET markers and ranges can act partly like code-motion barriers and may reduce loop interleaving optimizations after unrolling.

High-frequency instrumentation, many unique range or marker names (especially more than 30), payloads, many kernel launches, or large workloads can increase overhead, overflow buffers, alter compiler behavior, or create large traces. Payloads also increase the amount of stored trace data.

IKET profiling may also add fixed per-kernel entry and exit overhead. This overhead can affect the trace-reported kernel duration, but it is not shown as a separate IKET marker or range on the Perfetto timeline.

IKET profiling adds CPU-side overhead in addition to in-kernel overhead. Host wall-clock measurements outside CUDA Driver/API timing are therefore not a clean measure of kernel event overhead.

Performance Overhead Guidance#

The primary way to compare profiled overhead is to use kernel durations from the IKET Perfetto trace. Do not use application wall-clock timing or timing taken outside CUDA Driver/API boundaries as the measure of event overhead.

For a reasonable comparison:

  1. Instrument the target kernel.

  2. Run run-iket with a minimal instrumentation variant that emits one instrumented event site, so the profiler recognizes and profiles the kernel.

  3. Run run-iket again with many instrumented event sites or with the intended full event set in the instrumented kernel.

  4. Compare the trace-reported kernel execution times in Perfetto.

The difference between those trace-reported kernel times estimates incremental event overhead. To report amortized overhead, divide the runtime delta by the number of executed instrumentation points, preferably on a per-warp basis.

As a separate compiler and binary sanity check, you can compare an uninstrumented kernel against the same kernel compiled with IKET instrumentation enabled but not profiled. To build that IKET-enabled binary outside a run-iket profiling run, use CUTE_DSL_COMPILER_OPT=iket or cute.compile(..., options="iket"). This is not a replacement for the Perfetto-based profiled-overhead comparison above.

Payloads can significantly increase overhead and trace volume. 64-bit payloads are more expensive than no-payload or 32-bit payload events.

How It Works#

At compile time, CuTe DSL emits iket.* IR operations and event metadata for the IKET API calls in the kernel. By default, the compiler strips the iket.* operations before lowering, so IKET calls do not contribute instrumentation code to the final kernel.

When IKET lowering is enabled, either explicitly with CUTE_DSL_COMPILER_OPT=iket or cute.compile(..., options="iket"), or automatically by run-iket during a profiling run, lowering emits placeholder instrumentation and metadata into the compiled kernel.

During profiling, run-iket prepares the kernel for collection, patches the placeholder instrumentation at runtime, collects timestamp and payload records, and postprocesses the records into Perfetto and JSON output.

Troubleshooting#

Empty or missing trace

Confirm that the workload is launched under run-iket and that the instrumented kernels are JIT-compiled in that profiled process. If running without run-iket, confirm that CUTE_DSL_COMPILER_OPT=iket is set or that the kernel is compiled with options="iket".

Trace is very large or profiling fails

Reduce the number of instrumented kernel launches, reduce event frequency, or reduce payload use. If the workload can legitimately emit more records per warp than the profiler detects automatically, increase --max-ts-cnt-per-warp <N> to reserve space for up to N events per warp. Choose N above the largest expected number of marker, range-start, range-end, range-push, and range-pop events emitted by one warp in one kernel launch.

Expected events do not appear

Confirm the IKET calls are inside @cute.kernel code and are reachable on the execution path being profiled. Also check that paired range endpoints are not split across divergent branches. If the workload caches a compiled kernel or executor, make sure that compilation happens inside the run-iket profiling process or clear the application-level compiled kernel cache before profiling.

Unexpected timing around asynchronous work

Move range endpoints to the wait or synchronization point that observes completion.

Inspect generated IR

Use existing CuTe DSL debugging options such as CUTE_DSL_KEEP=ir or CUTE_DSL_PRINT_IR=1 to inspect generated IR when diagnosing whether IKET operations were emitted.
